LTC6752MPS5#TRMPBF datasheet, PDF

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> LTC6752MPS5#TRMPBF

LTC6752MPS5#TRMPBF: DescriptionIC COMP R-R CMOS 280MHZ 5SOT-23; Categorysemiconductor Analog mixed-signal IC; File Size113KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC6752MPS5#TRMPBF Overview

IC COMP R-R CMOS 280MHZ 5SOT-23

LTC6752MPS5#TRMPBF Parametric

Parameter Name	Attribute value
type	Universal
Number of components	1
Output type	CMOS
Voltage - Power, single/dual (±)	2.45 V ~ 3.5 V
Voltage - Input Offset (Maximum)	5.5mV
Current - Input Bias (Maximum)	1.5µA
Current - Output (typ)	70mA
Current - static (maximum)	5.8mA
CMRR, PSRR (typ)	66dB CMRR，73dB PSRR
Propagation delay (max)	5ns
lag	-
Operating temperature	-55°C ~ 125°C
Package/casing	SOT-23-5 slim type, TSOT-23-5
Installation type	surface mount
Supplier device packaging	TSOT-23-5

Preview

Download Datasheet

View All

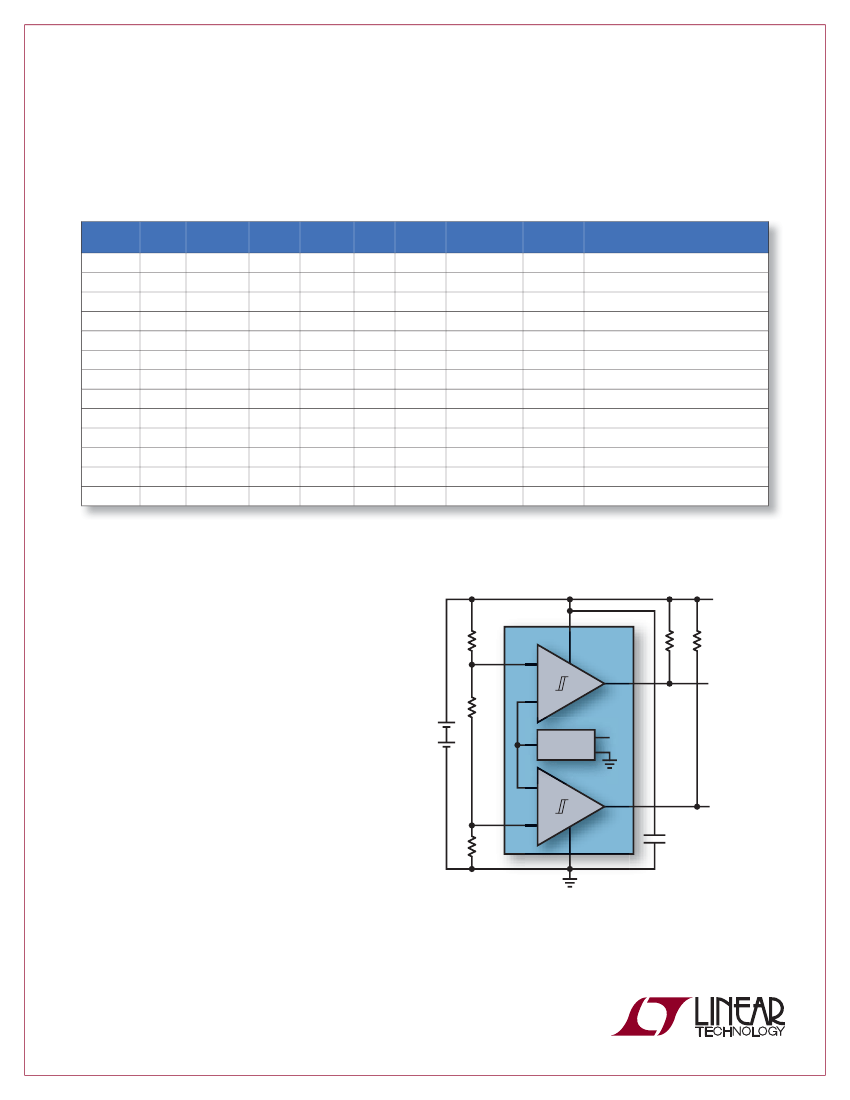

High Speed Comparators

High toggle rate, nanosecond propagation delay and tiny packages are the hallmarks of Linear Technology’s high speed

comparators. Packed with innovative features, our complete family of high speed comparators allows your signal conditioning,

timing and clock circuit designs to push the performance envelope.

Part

Number

LTC6752

LTC6752-1

LTC6752-2

LTC6752-3

LTC6752-4

LT1719

LT1711

LT1715

LT1712

LT1720

LT1721

Prop

Comps Delay

2.9ns

4.2ns

4.5ns

4ns

4.5ns

Toggle

Rate

280MHz

70MHz

100MHz

150MHz

100MHz

70MHz

Adj

Hyst

Separate Shut

Comp

Latch Supply Down Outputs

CMOS Output Logic

3.3V 2.5V 1.8V Packages

SOT-23

SC70

MSOP8

9mm

QFN

SC70

SOT-23, SO8

MSOP8

MSOP10

SSOP16

9mm

DFN, MSOP8, SO8

SSOP16, SO16

Featured High Speed Comparators: LTC6752 Family

The LTC6752 is a family of 5 comparators, offered in

different packages with a variety of features. These

extremely fast CMOS output comparators can swing to

within 200mV of the rail with up to 8mA of load current.

Propagation delay is only 2.9ns and these comparators

can support a toggle rate up to 280MHz. They exhibit

only 4.5ps of jitter for a 100mV

P-P

100MHz sinusoidal

input. The CMOS outputs can support logic levels from

1.8V to 3.3V, and the inputs extend beyond both rails.

Several of the LTC6752 options include an internal

latch function. The internal latch retains the output state

when the LE/HYST pin is within 300mV of the negative

supply. This feature is ideal for detecting short pulses,

as shown in this simple fast event capture circuit. Once

a fast event occurs, this circuit will hold the output

until a reset occurs, allowing the interface (such as a

microprocessor) to acknowledge the event.

3.3V

INPUT 50mV TO 3.3V PULSE

MINIMUM PULSE WIDTH 10ns

3.3V

1.82k

REF

1000pF

OUT

LTC6752-2

OUT

OUTPUT 3.3V

–

LE/HYST

SHDN

200Ω

RESET

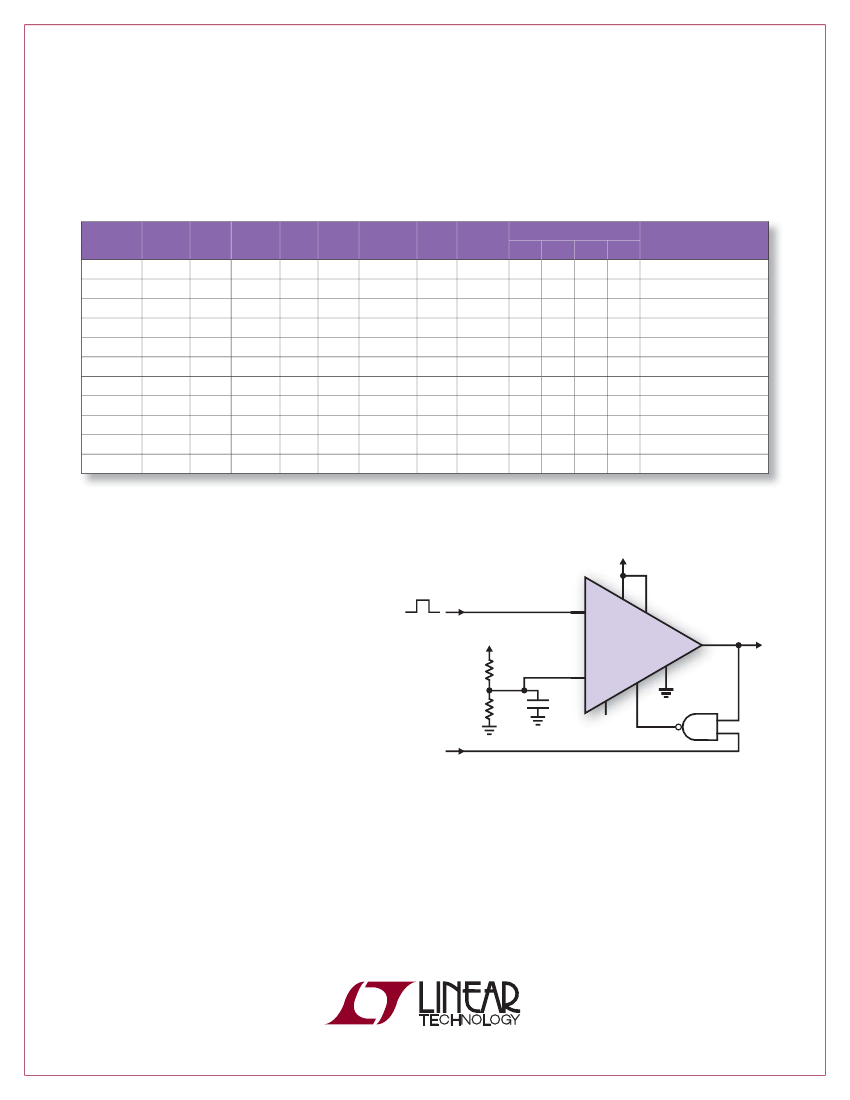

Fast Event Capture Circuit

LT, LTC, LTM, Linear Technology and the Linear logo are

registered trademarks of Linear Technology Corporation. All other

trademarks are the property of their respective owners.

LTC6752MPS5#TRMPBF Related Products

	LTC6752MPS5#TRMPBF	LTC6752MPS5#TRPBF
Description	IC COMP R-R CMOS 280MHZ 5SOT-23	IC COMP R-R CMOS 280MHZ 5SOT-23
type	Universal	Universal
Number of components	1	1
Output type	CMOS	CMOS
Voltage - Power, single/dual (±)	2.45 V ~ 3.5 V	2.45 V ~ 3.5 V
Voltage - Input Offset (Maximum)	5.5mV	5.5mV
Current - Input Bias (Maximum)	1.5µA	1.5µA
Current - Output (typ)	70mA	70mA
Current - static (maximum)	5.8mA	5.8mA
CMRR, PSRR (typ)	66dB CMRR，73dB PSRR	66dB CMRR，73dB PSRR
Propagation delay (max)	5ns	5ns
Operating temperature	-55°C ~ 125°C	-55°C ~ 125°C
Package/casing	SOT-23-5 slim type, TSOT-23-5	SOT-23-5 slim type, TSOT-23-5
Installation type	surface mount	surface mount
Supplier device packaging	TSOT-23-5	TSOT-23-5
