63813-2100 Modular Card Extractor Tool
Module Card Extractor Tool
Instruction Manual
Part No. 63813-2100
FEATURES
%
This tool is designed for the removal of the memory module card from the metal latch 87814 series Molex sockets, 1mm pitch,
276-circuit vertical press-fit with metal latch DDR2.
SCOPE
Products: 87814 Series 276 Circuit Vertical Press-fit Metal Latch DDR2 Dimm Connector System. See Product List below for specific part
numbers.
Product List
The following is a partial list of the product order numbers and their specifications this tool is designed to run. Updates to this list are
available on www.molex.com.
Assembly Order Number
87814-1001
87814-1002
Description
1.00mm (.039") Pitch DDR-2 DIMM Socket, Vertical,
Press-fit, 276 Circuits Metal Latch
DESCRIPTION
The 1mm pitch, 276-circuit vertical press-fit with metal latch DDR2
takes up a much smaller space inside the housing than a conventional
latch will. The entire connector length is almost similar to the module
card. However, the latch cannot be extracted by hand and this
extraction tool is required to withdrawal the module card from the
metal latch.

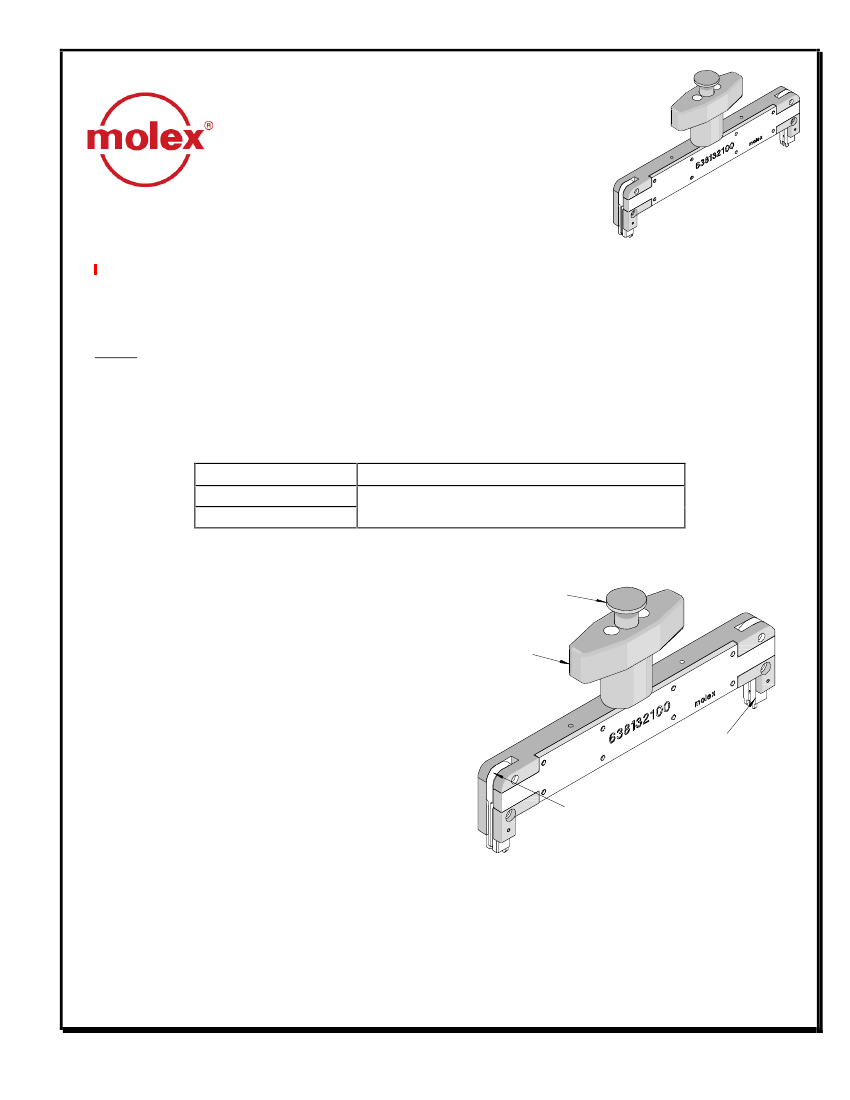

The Module Card Extractor Tool consists of modular card latch, metal
latch, and thumb pusher with a handle.
THUMB PUSHER
HANDLE
METAL LATCH PUSHER
Figure 1
MODULE CARD
LATCH
Doc No. 63813-2100
Revision: A
Release Date: 05-10--06
Revision Date: 05-10-06
UNCONTROLLED COPY
Page 1 of 5
63813-2100 Modular Card Extractor Tool
Operation

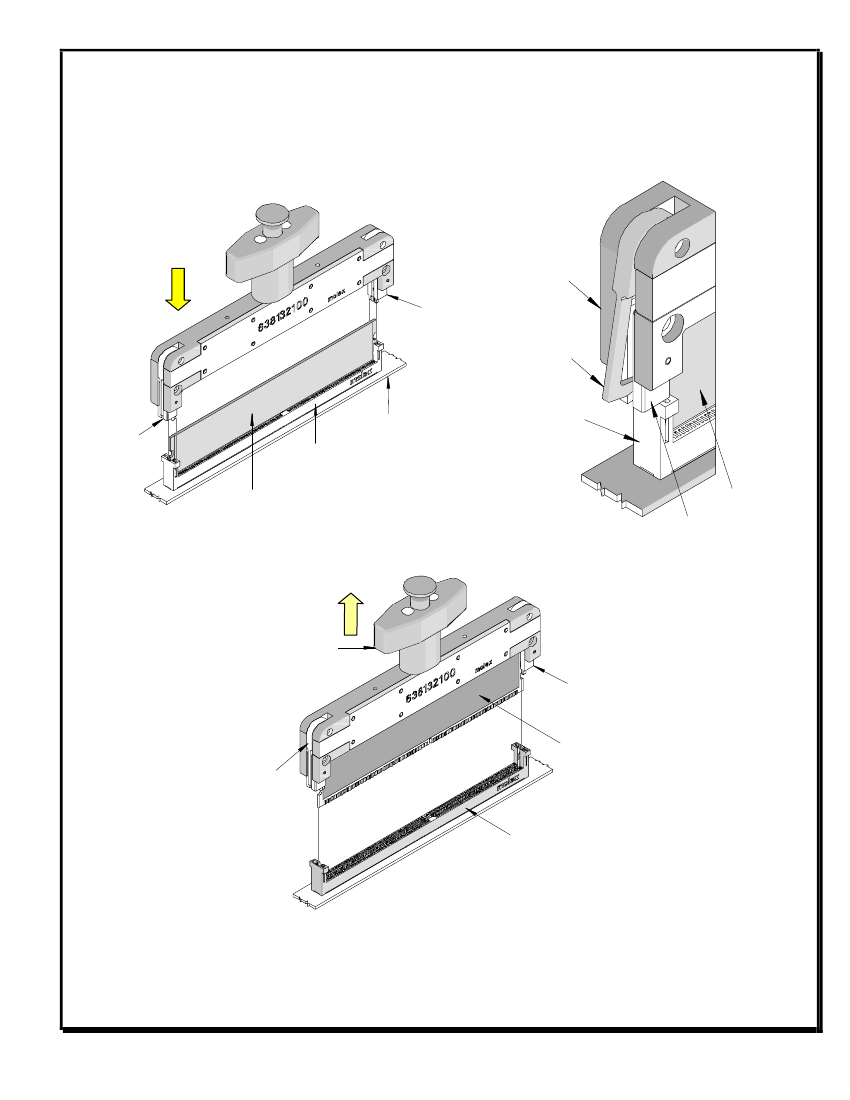

1. Align the metal latch pushers (2) with the slots on the module card housing. See Figure 2.
2. Push the extractor tool down and into the slots. The module card latches are spring-loaded and will open when extractor tool is
engaged in the module card housing. See Figure 3.
METAL
LATCH
PUSHER
EXTRACTOR
TOOL
MODULE CARD
LATCHES OPEN
MODULE CARD
HOUSING
METAL
LATCH
PUSHER
MODULE CARD
PCB BOARD
MODULE HOUSING
Figure 2
MODULE CARD
Figure 3
METAL LATCH PUSHER
3. Make sure the extractor tool is firmly seated in the slots of the module card housing and the module card latches are locked into
the module card.
LIFT UP BY
THE HANDLE
METAL LATCH
PUSHER
MODULE
CARD
MODULE CARD
LATCHES LOCKED
IN PLACE
MODULE CARD
HOUSING
Figure 4
4. Pull the module card straight up with the handle of the extractor tool. See Figure 4.
Doc No. 63813-2100
Revision: A
Release Date: 05-10--06
Revision Date: 05-10-06
UNCONTROLLED COPY
Page 2 of 5
63813-2100 Modular Card Extractor Tool

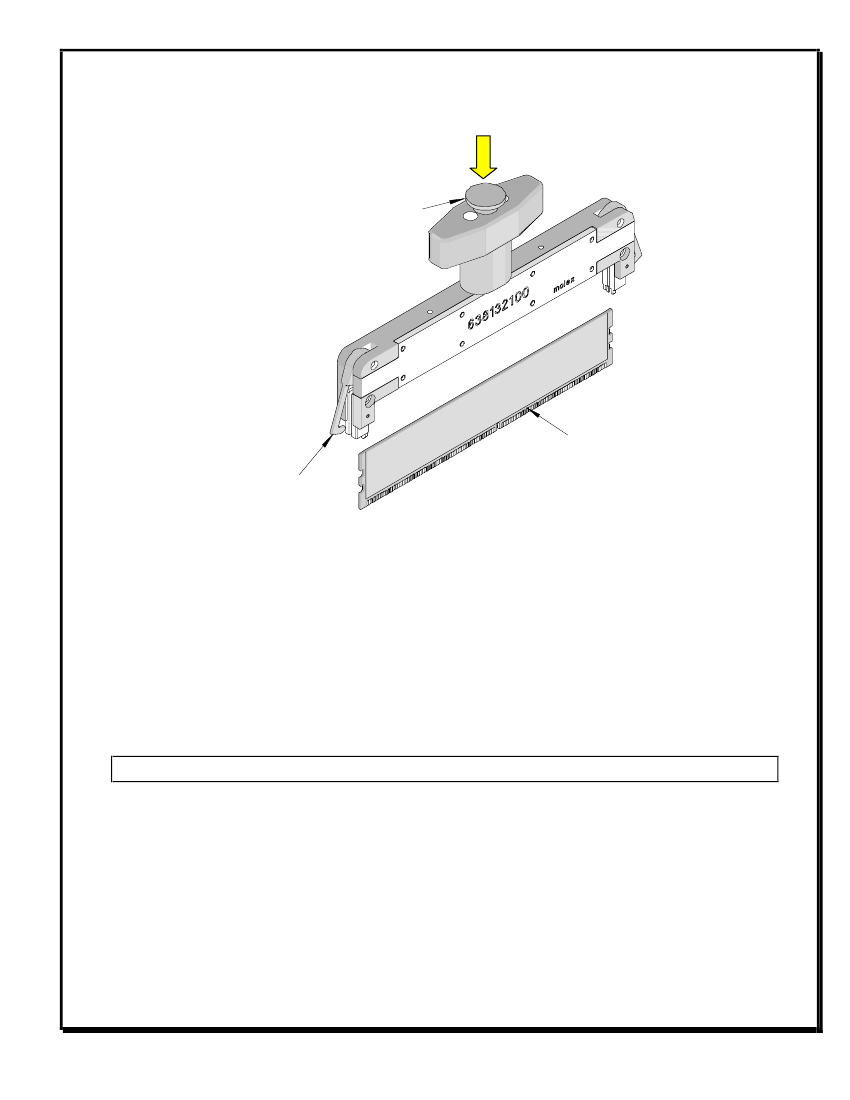

5. When the module card is free of the housing, press down on the thumb pusher. This will open the module card latches and release
the card from the extractor tool. See Figure 5.
PUSH DOWN
ON THE THUMB
PUSHER
MODULE CARD
MODULE CARD
LATCHES WILL
RELEASE
Figure 5
Maintenance
It is recommended that each operator of the tool be made aware of, and responsible for, the following maintenance steps:
1. Remove dust, moisture, and other contaminants with a clean brush, or soft, lint free cloth.
2. Do not use any abrasive materials that could damage the tool.
3. Make certain all pins; pivot points and bearing surfaces are protected with a thin coat of high quality machine oil. Do not oil
excessively.
4. When tool is not in use, store in a clean, dry area.
CAUTION:
Molex specifications are valid only when used with Molex terminals, applicators and tooling.
Doc No. 63813-2100
Revision: A
Release Date: 05-10--06
Revision Date: 05-10-06
UNCONTROLLED COPY
Page 3 of 5
63813-2100 Modular Card Extractor Tool
PARTS LIST
Order No
Description
Quantity
63813-2100 Module Card Extractor Tool (Figure 6)
1
63813-2101
Extractor Base
1
2
63813-2102
Pusher Plate
1
3
63813-2103
Base Cover
1
4
63813-2204
Handle
1
5
63813-2205
Handle Shaft
1
6
63813-2206
Module Card Latch
2
7
63813-2207
Metal Latch Pusher
2
8
63600-2698
Knob
1
9
63600-2699
Metal Bushing
1
10
63600-2700
Compression Spring
1
11
63600-2701
Compression Spring
4
12
63600-2702
1.5mm Diameter Dowel Pin
2
13
63600-2703
M4 Screw Plug
4
14
63600-2704
M3 by 8 Long Low Head SHCS
2
15
N/A
M2.5 by 10 Long SHCS
**8
16
N/A
M3 by 35 Long SHCS
**2
17
N/A
4mm by 10 Long Dowel Pin
**2
** Available from an industrial supply company such as MSC (1-800-645-7270).
Item
Doc No. 63813-2100
Revision: A
Release Date: 05-10--06
Revision Date: 05-10-06
UNCONTROLLED COPY
Page 4 of 5
63813-2100 Modular Card Extractor Tool

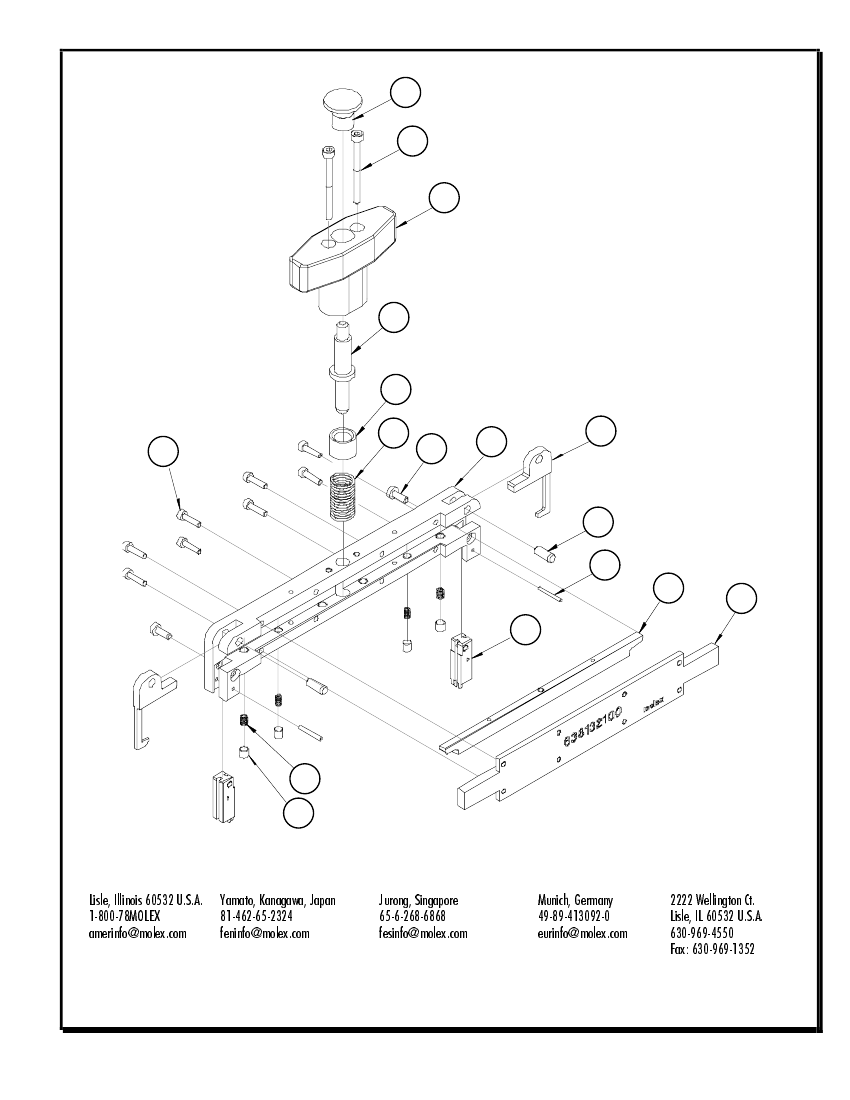

Assembly Drawing
8
16 (2)
4
5
9
10
15 (8)
14
(2)
1
6
(2)
17 (2)
12 (2)
2
7
(2)
3
11 (4)
13 (4)
Figure 6
