DF7A-09EP-3.96C datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> DF7A-09EP-3.96C

Preview

DF7A-09EP-3.96C: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Plug; CategoryThe connector; File Size35KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

DF7A-09EP-3.96C Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Plug

DF7A-09EP-3.96C Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DF7A
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

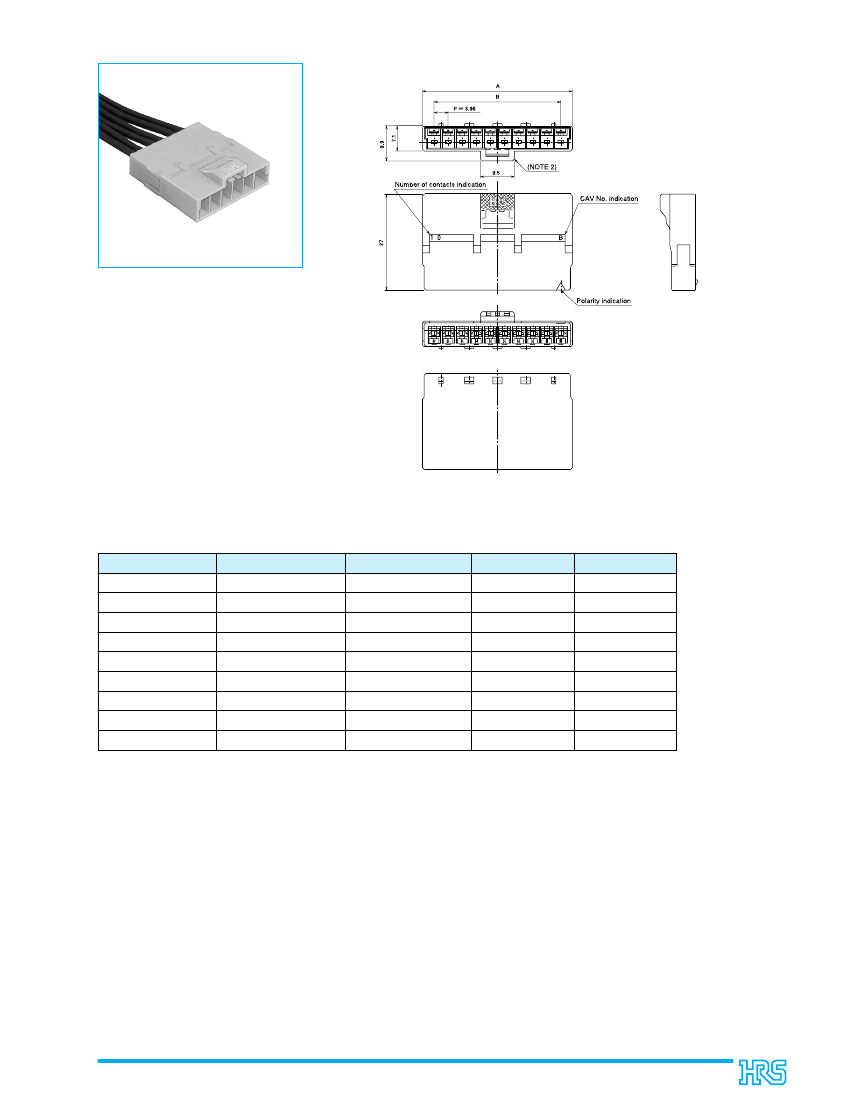

sIn-line

Plugs

Photograph shows contacts inserted

HRS No.

680-0072-9

680-0073-1

680-0074-4

680-0075-7

680-0076-0

680-0077-2

680-0078-5

680-0079-8

680-0080-7

Product No.

DF7A-02EP-3.96C

DF7A-03EP-3.96C

DF7A-04EP-3.96C

DF7A-05EP-3.96C

DF7A-06EP-3.96C

DF7A-07EP-3.96C

DF7A-08EP-3.96C

DF7A-09EP-3.96C

DF7A-10EP-3.96C

Number of Contacts

2

3

4

5

6

7

8

9

10

A

10.40

14.36

18.32

22.28

26.24

30.20

34.16

38.12

42.08

B

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

NOTE 1: Sold by the package. One package contains 100 pieces.

NOTE 2: The lock form will differ partially for odd numbers of contacts.

* See Page 9 for retainers.

7

DF7A-09EP-3.96C Related Products

	DF7A-09EP-3.96C	DF7A-02EP-3.96C	DF7A-03EP-3.96C	DF7A-04EP-3.96C	DF7A-05EP-3.96C	DF7A-06EP-3.96C	DF7A-07EP-3.96C	DF7A-08EP-3.96C
Description	Board Connector, 9 Contact(s), 1 Row(s), Male, Plug	Board Connector, 2 Contact(s), 1 Row(s), Male, Plug	Board Connector, 3 Contact(s), 1 Row(s), Male, Plug	Board Connector, 4 Contact(s), 1 Row(s), Male, Plug	Board Connector, 5 Contact(s), 1 Row(s), Male, Plug	Board Connector, 6 Contact(s), 1 Row(s), Male, Plug	Board Connector, 7 Contact(s), 1 Row(s), Male, Plug	Board Connector, 8 Contact(s), 1 Row(s), Male, Plug
Maker	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N	N	N
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	DF7A	DF7A	DF7A	DF7A	DF7A	DF7A	DF7A	DF7A
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	9	2	3	4	5	6	7	8
Base Number Matches	1	1	1	1	1	1	1	1
