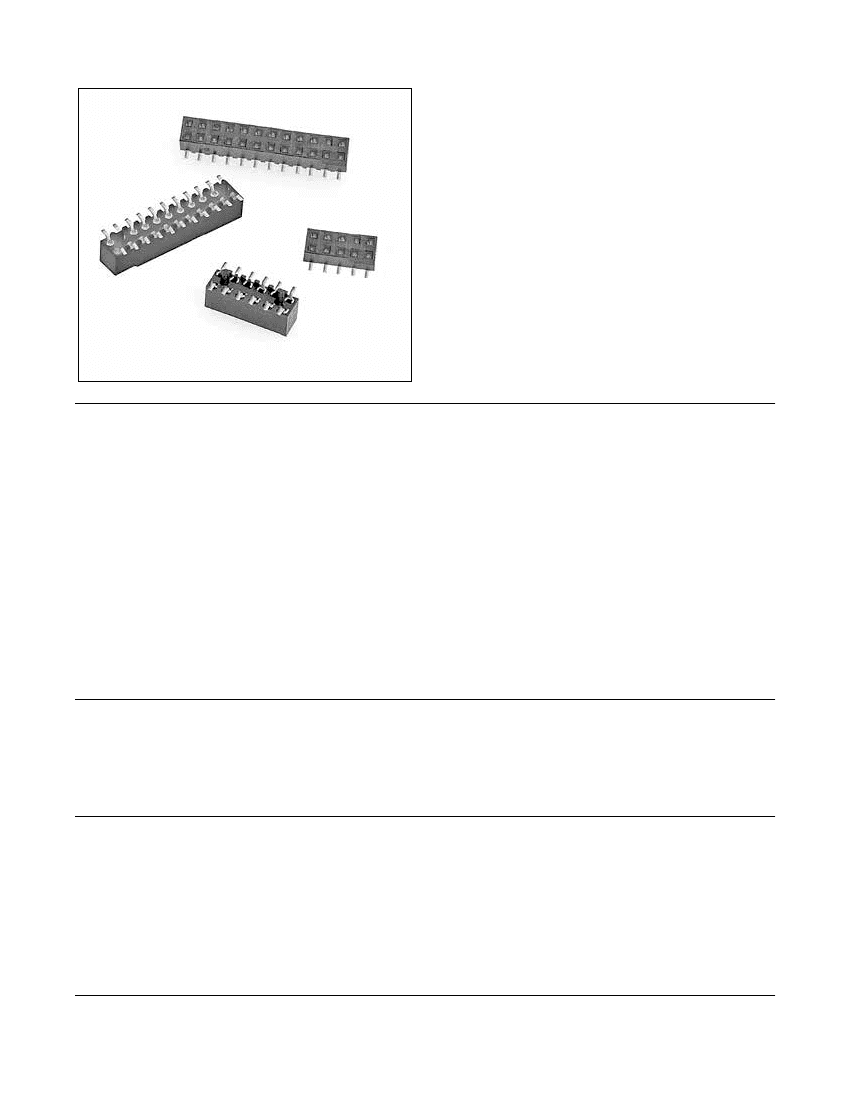

Orientation delta and 3M Logo (except surface mount)
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1 × 10
9
Ω
at 250 V
DC
Withstanding Voltage:
500 V
DC
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
Maximum 260°C, (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

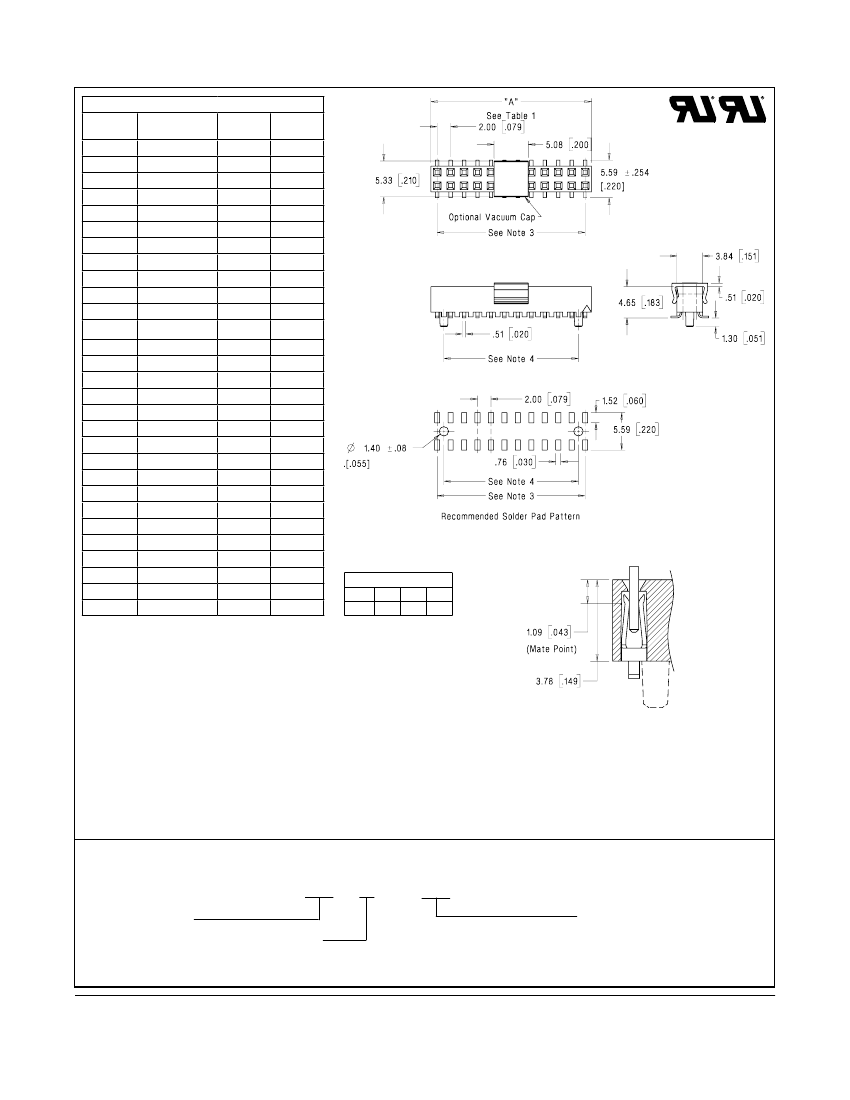

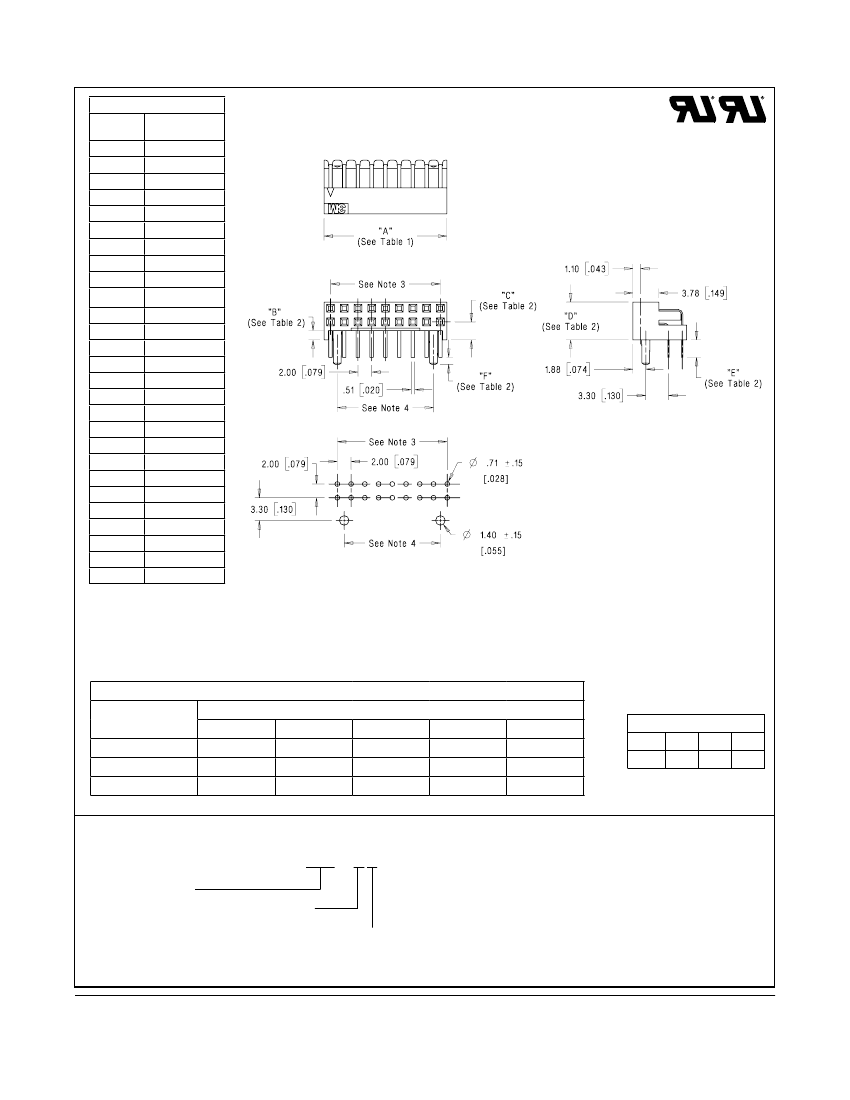

Boardmount Socket
2 mm x 2 mm Straight Surface Mount, Straight and Right Angle Plated Through-Hole 1502 Series
Table 1
Contact
Quantity
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
Dimension A
3.96 [0.156]
5.87 [0.231]
7.87 [0.310]
9.88 [0.389]
11.86 [0.467]
13.87 [0.546]
15.88 [0.625]
17.88 [0.704]
19.86 [0.782]
21.87 [0.861]
23.88 [0.940]
25.88 [1.019]
27.86 [1.097]
29.87 [1.176]
31.88 [1.255]
33.88 [1.334]
35.86 [1.412]
37.87 [1.491]
39.88 [1.570]
41.88 [1.649]
43.87 [1.727]
45.87 [1.806]
47.88 [1.885]
49.89 [1.964]
51.87 [2.042]
53.87 [2.121]
55.88 [2.200]
57.86 [2.278]
59.87 [2.357]
Tape
Width
n/a
n/a
24 mm
24 mm
24 mm
24 mm
24 mm
44 mm
44 mm
44 mm
44 mm
44 mm
44 mm
44 mm
56 mm
56 mm
56 mm
56 mm
56 mm
56 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
88 mm
88 mm
Order
Code
n/a
n/a
WB
WB
WB
WB
WB
WD
WD
WD
WD
WD
WD
WD
WE
WE
WE
WE
WE
WE
WF
WF
WF
WF
WF
WF
WF
WG
WG
C
mm
[Inch]
Tolerance Unless Noted
.0
mm
±
2.54
.00
±
±
.127
[ ] Dimensions for
Reference only
Notes:
1. Tape & reel include vacuum pick-up cap for pick ‘n place
handling equipment.
2. Parts in tray packaging are supplied without vacuum cap.
3. Positions per row, subtract 1, multiply by 2 mm spacing.
4. Optional locator posts: Positions per row, multiply by
2 mm, then subtract 4 mm.
Note: Mate point same for all board mount types.
**Optional Locator Posts available for positions eight and greater.
Ordering Information
1502XX-20X0-RB-XX
Number of positions
(See Table 1)
Board Location Post
0 = None (Standard)
2 = With board location post
(Special order)
Packaging style:
Blank = tray packaging
WX = tape & reel pkg (see Table 1 for
ordering code)
TS-0519-H
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Boardmount Socket
2 mm x 2 mm Straight Surface Mount, Straight and Right Angle Plated Through-Hole 1502 Series
Table 1
Contact
Quantity
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
Dimension A
3.96 [0.156]
5.87 [0.231]
7.87 [0.310]
9.88 [0.389]
11.86 [0.467]
13.87 [0.546]
15.88 [0.625]
17.88 [0.704]
19.86 [0.782]
21.87 [0.861]
23.88 [0.940]
25.88 [1.019]
27.86 [1.097]
29.87 [1.176]
31.88 [1.255]
33.88 [1.334]
35.86 [1.412]
37.87 [1.491]
39.88 [1.570]
41.88 [1.649]
43.87 [1.727]
45.87 [1.806]
47.88 [1.885]
49.89 [1.964]
51.87 [2.042]
53.87 [2.121]
55.88 [2.200]
57.86 [2.278]
59.87 [2.357]
C
mm
[Inch]
Tolerance Unless Noted
.0
mm
.00
.000
±
±
2.54
±
.254
[ ] Dimensions for
Reference only
Recommended Hole Pattern
Ordering Information
1502XX-600X-RB
Number of positions
(See Table 1)
Solder Tail Length
Dimension B
1 = .1.4 mm (Special order)
2 = 2.54 mm (Standard)
TS-0519-H
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Boardmount Socket
2 mm x 2 mm Straight Surface Mount, Straight and Right Angle Plated Through-Hole 1502 Series
Table 1
Contact
Quantity
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
Dimension A
7.87 [0.310]
9.88 [0.389]
11.86 [0.467]
13.87 [0.546]
15.88 [0.625]
17.88 [0.704]
19.86 [0.782]
21.87 [0.861]
23.88 [0.940]
25.88 [1.019]
27.86 [1.097]
29.87 [1.176]
31.88 [1.255]
33.88 [1.334]
35.86 [1.412]
37.87 [1.491]
39.88 [1.570]
41.88 [1.649]
43.87 [1.727]
45.87 [1.806]
47.88 [1.885]
49.89 [1.964]
51.87 [2.042]
53.87 [2.121]
55.88 [2.200]
57.86 [2.278]
59.87 [2.357]
C
Recommended Hole Pattern
Table 2
Standoff
Height Code
0
1
2
Dimensions
B
.015 [0.38]
.053 [1.35]
.028 [0.71]
C
.065 [1.65]
.103 [2.62]
.078 [1.98]
D
.179 [4.55]
.217 [5.51]
.192 [4.88]
E
.100 [2.54]
.100 [2.54]
.125 [3.18]
F
.040 [1.02]
.040 [1.02]
.015 [0.38]
mm
[Inch]
Tolerance Unless Noted
.0
mm
.00
.000
±
2.54
±
.254
±
.127
[ ] Dimensions for
Reference only
Ordering Information
1502XX-5XX2-RB
Number of positions
(See Table 1)
Standoff Height Code
(see table 2, Dim B)
0 = 0.38 mm(Standard)
1 = 1.135 mm (Special order)
2 = 0.71 mm (Special order
- Avail. for 40, 44 and 50
position only)
Board Location Post
0=None (Standard)
2=Board locating Post
TS-0519-H
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
