MS –Q Q ua d r us
®
Patented Quadrus
Technology
Imager for Direct
Part Mark Reading
The MS-Q Quadrus is an aggressive performance
handheld imager for decoding 2D symbols on low
contrast substrates such as metal, plastic, rubber,
and glass. It is optimized to read both linear bar-
codes and 2D symbols and excels at challenging
marks such as those created by direct part mark
(DPM) methods such as dot peen and laser/
chemical etch.
The MS-Q Quadrus is a portable reading solution
for any barcode or 2D application, even with dif-
ficult low contrast codes.
Optional
High Resolution
Optics
Durable Ergonomic
Handle
MS–Q Quadrus: At a Glance
• Decodes/second: up to 10
• Read Range: 2 to 16” (51 to 406 mm)
• Bluetooth, USB, RS-232 Interface Options
•
Rugged Handle Options:
- Cabled
- 3900 mAH
ESP®Easy Setup Program:
Single-point
software provides quick and easy setup and
configuration of all Microscan readers.
Optimized Resolution
The MS-Q Quadrus handheld
imager is available in a high
resolution optical version
which is custom designed
to optimize resolution for
reading small 2D symbols
in direct part mark appli-
cations. Also available, a
standard resolution version
is suitable for reading all
printed symbols, plus many
directly marked symbols.
User-Friendly Design
All MS-Q imagers feature
point-and-click targeting with
a red laser spot to quickly
center the symbol in the
field of view. Beeper, vibrator
and multipurpose perfor-
mance indicators provide
real time feedback.
Aggressive Decoding
Patented Quadrus decode
algorithms provide outstand-
ing performance on difficult
low contrast or damaged 2D
symbols.
Security Option
The secured version of the
MS-Q Quadrus has disabled
image capture and down-
loading. Permanent removal
of its photographic functions
allows use within sensitive
industrial areas where
photographic devices are
prohibited.
IUID Codes
The MS-Q Quadrus can read
IUID codes on a variety of
surfaces. Software enables
IUID code format validation
and constructs the IUID
string for DoD suppliers.
Application Examples
•Automotive
•Aerospace
•Electronics
•Department of Defense
suppliers
For more information on this product, visit
www.microscan.com.
MS– Q Quadrus: Available Codes
All Standard
Postal Codes
Linear
MicroPDF
PDF417
GS1 Databar
Stacked
Data
Matrix
QR
Micro QR Aztec
Maxicode
2D
MS–Q Q
UADRUS
®
I
MAGER
S
PECIFICATIONS

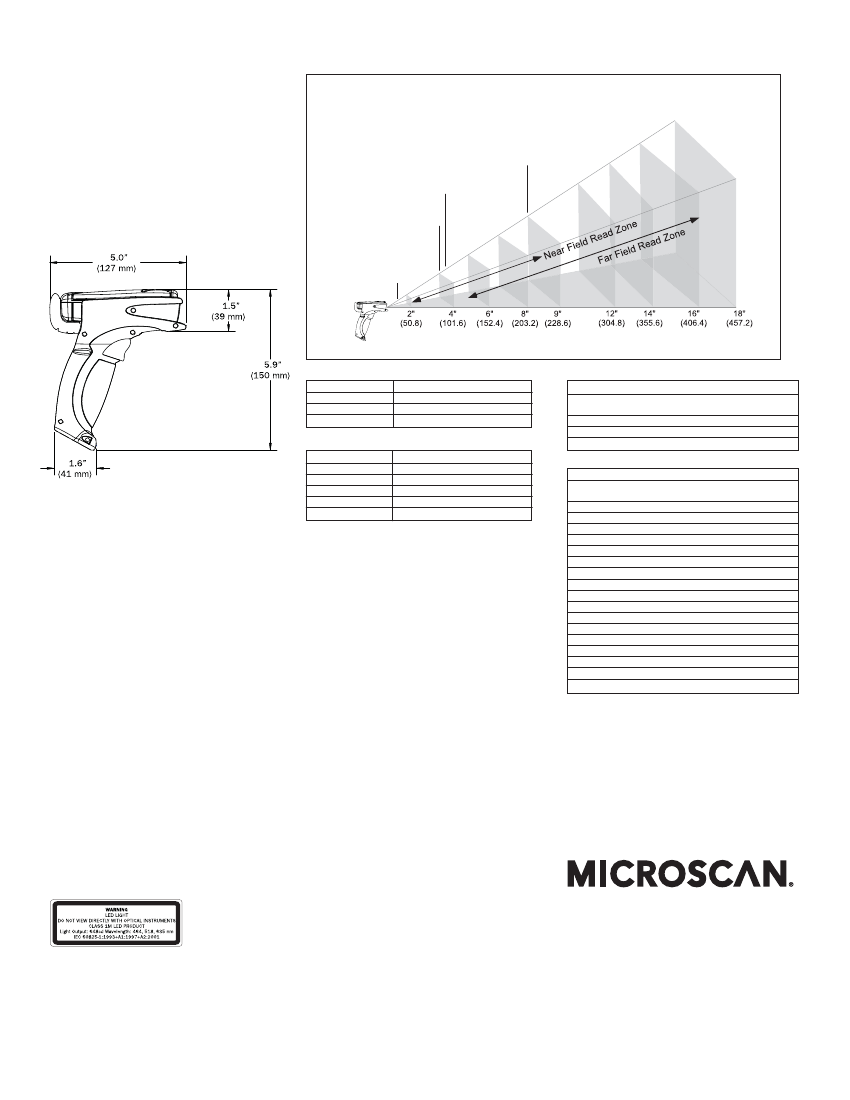

IMAGER MECHANICAL
Height:
1.3" (33 mm)
Width:
1.8" (46 mm)
Depth:
4.3" (109 mm)
Weight:
4 oz. (113g) not including cable
Cable Length:
6' (1.8 m)
AND
O
PTIONS
NEAR/FAR FIELD FOCAL DISTANCE COMPARISON CHART
MEASUREMENT
Shown in inches (mm)
HANDLE & BATTERY CHARACTERISTICS
Cabled weight:
4.0 oz. (113)
Cabled weight with imager :
7.2 oz. (204 g)
With 3900 mAH battery:
6.4 oz. (181 g)
With 3900 mAH battery/imager:
9.6 oz. (272 g)
Standard Res, Far Field Focal Pt
X-dimension=3.65” (92.7)
Y-dimension=1.83” (46.4)
High Res, Far Field Focal Pt
X-dimension=1.67” (42.4)
Y-dimension=1.03” (26.1)
Standard Res, Near Field Focal Pt
X-dimension=1.52” (38.6)
Y-dimension=1.14” (30.0)
High Res, Near Field Focal Pt
X-dimension=1.02” (25.9)
Y-dimension=0.63” (15.9)
BATTERY BLANK HANDLE VIEW
FOCAL DISTANCE
READ RANGES, STANDARD RESOLUTION
Narrow Bar-Width
.0075" (.191 mm)
.015" (.381 mm)
.020" (.508 mm)
Read Range Distance
3.2 to 3.9" (81 to 99 mm)
3.0 to 9.0" (76 to 229 mm)
3.0 to 16.0" (76 to 406 mm)
FIELD OF VIEW, STANDARD RESOLUTION
Near Field of View
Distance
(inches/mm)
Field of View Size
(1024 x 640 pixel, Default)
READ RANGES, HIGH RESOLUTION
Narrow Bar-Width
.005" (.127 mm)
.0075" (.191 mm)
.010" (.254 mm)
.015" (.381 mm)
.020" (.508 mm)
Read Range Distance
1.75 to 2.5" (44.4 to 63.5 mm)
1.75 to 4" (44.4 to 101.6 mm)
1.75 to 4.75" (44.4 to 102.6 mm)
1.75 to 6" (44.4 to 152.3 mm)
1.75 to 6.5" (44.4 to 165.1 mm)
4" (101.6)
Far Field of View
9" (228.6)
1.52 x 1.14" (38.6 x 30 mm)
3.65 x 1.83" (92.7 x 46.4 mm)
FIELD OF VIEW, HIGH RESOLUTION
Near Field of View
Distance
inches/mm
Field of View Size
(1024 x 640 pixel, Default)
ENVIRONMENTAL
Operating Temperature:
0° to 50° C (32° to 122° F)
Battery Blank Operating Temperature:
-35° to 50° C
(-31° to 122° F)
Storage Temperature:
-20° to 60° C (-4 to 140° F)
Humidity:
5 to 90% (non-condensing)
Shock:
Withstands 100+ drops of 6.5’ (2 meters)
to concrete
Ranges based on Grade A symbols. Data subject to change.
READ PARAMETERS
Pitch:
±60° (front to back)
Skew:
±60°
Tilt:
360°
Focal Range:
1 to 16" (25 to 406 mm)
Rotational Tolerance:
±180°
Print Contrast Resolution:
25 percent (bar codes);
35 percent (PDF417); absolute dark/light reflectance
differential, measure at 650 nm.
Target Beam:
Visible Laser Diode at 630 nm. Class 2
Ambient Light Immunity:
Sunlight: Up to 9,000 ft-
candles 96,890 lux
CE STANDARDS
Immunity:
EN 55024
ESD:
EN 61000-4-2
Radiated RF:
EN61000-4-3
Keyed Carrier:
ENV50204
EFT:
EN61000-4-4
Conducted RF:
EN61000-4-6
Emissions:
EN55022, Class B Radiated, Class B
Conducted
2" (50.8)
2.5" (63.5)
2.75" (69.9)
3" (76.2)
3.5" (88.9)
4" (101.6)
Far Field of View
2" (50.8)
2.5" (63.5)
3" (76.2)
3.5" (88.9)
4" (101.6)
4.5" (114.3)
5" (127)
5.5" (139.7)
6" (152.7)
6.5" (165.1)
.74 x .46" (18.8 x 11.6 mm)
.93 x .57" (23.5 x 14.5 mm)
1.02 x .63" (25.9 x 15.9 mm)
1.11 x .68" (28.3 x 17.4 mm)
1.3 x .80" (33 x 20.3 mm)
1.48 x .91" (37.7 x 23.2 mm)
.74 x .46" (18.8 x 11.6 mm)
.93 x .57" (23.5 x 14.5 mm)
1.11 x .68" (28.2 x 17.4 mm)
1.3 x .80" (32.9 x 20.3 mm)
1.48 x .91" (37.6 x 23.2 mm)
1.67 x 1.03" (42.4 x 26.1 mm)
1.85 x 1.14" (47.1 x 28.9 mm)
2.04 x 1.25" (51.8 x 31.8 mm)
2.22 x 1.37" (56.5 x 34.7 mm)
2.41 x 1.48" (61.2 x 37.6 mm)
INDICATORS
LED Indicators:
Memory status, Battery power,
Successful decode, and Connection status
Programmable Indicators:
Beeper or Vibrate option;
communicates scanner operation and communication
functions to user
LIGHT COLLECTION OPTIONS
Sensor:
CMOS, progressive scan, 1.33 MP (1024 by
1280), 256 gray scale
Sensor Array:
Near Field: 1024 by 640 (default)
Far Field: 1024 by 640 (default)
Standard Resolution Field of View:
Near: 21.5° horizontal by 16.2° vertical
Far: 22.9° horizontal by 11.6° vertical
High Resolution Field of View:
Near & Far: 21° horizontal by 13° vertical
Standard Resolution Focal Point:
Near: 4" (101.6 mm) Far: 9" (228.6 mm)
High Resolution Focal Point:
Near: 2.75" (70 mm) Far: 4.5" (115 mm)
ROHS/WEEE COMPLIANT
ISO CERTIFICATION
Certified ISO 9001:2008 Quality Management
System
©2011 Microscan Systems, Inc. SP013F 01/11
Read Range and other performance data is determined using high quality
Grade A symbols per ISO/IEC 15415 and ISO/IEC 15416 in a 25°C
environment. For application-specific Read Range results, testing should
be performed with symbols used in the actual application. Microscan
Applications Engineering is available to assist with evaluations. Results
may vary depending on symbol quality.
Warranty–
One year limited war-
ranty on parts and labor. Free extended 3 year warranty upon online
product registration.
IMAGE OUTPUT OPTIONS
Format:
Jpeg, Raw (uncompressed)
COMMUNICATION PROTOCOLS
Standard Interface:
USB
Optional Interface:
RS-232,
Bluetooth Class 1 Radio at 328' (100 m)
ELECTRICAL
Power Requirements:
5 VDC (mA)
Typical:
140
Peak:
310
Idle:
NA/
Bluetooth Radio at 295' (90 m) away (mA):
Typical:
280
Peak:
350
Idle:
96
Sleep:
3
Bluetooth Radio at 33' (10 m) away (mA):
Typical:
260
Peak:
350
Idle:
96
Sleep:
3
Life of 3900 mAH Battery with Radio:
Will support
8000 read/transmits per charge including 16 hours
of standby interval.
Batch Memory:
Minimum of 1MB
Microscan Systems Inc.
Tel 425 226 5700 / 800 251 7711
Fax 425 226 8250
Microscan Europe
Tel 31 172 423360 / Fax 31 172 423366
SYMBOLOGY TYPES
Linear Barcodes:
Code 39, Code 128, I2 of 5,
UPC/EAN, Codabar, Codablock F, Code 93, PLANET,
PostNet, KIX Code, Postal Codes
Stacked Symbologies:
PDF417, Micro PDF417,
GS1 Databar
2D Symbologies:
Data Matrix, MaxiCode, Aztec
Code, QR Code, Micro QR Code
Microscan Asia Pacific
Tel 65 6846 1214 / Fax 65 6846 4641
SAFETY CERTIFICATIONS
FCC, CE
www.microscan.com
Product Information: info@microscan.com
Auto ID Support: helpdesk@microscan.com
Vision Support: visionsupport@microscan.com
NERLITE Support: nerlitesupport@microscan.com
