1-532469-2: DescriptionCONNECTOR, 134 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-532469-2 Overview

CONNECTOR, 134 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

1-532469-2 Parametric

Parameter Name	Attribute value
Objectid	2094429876
Reach Compliance Code	unknown
YTEOL	0
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	134

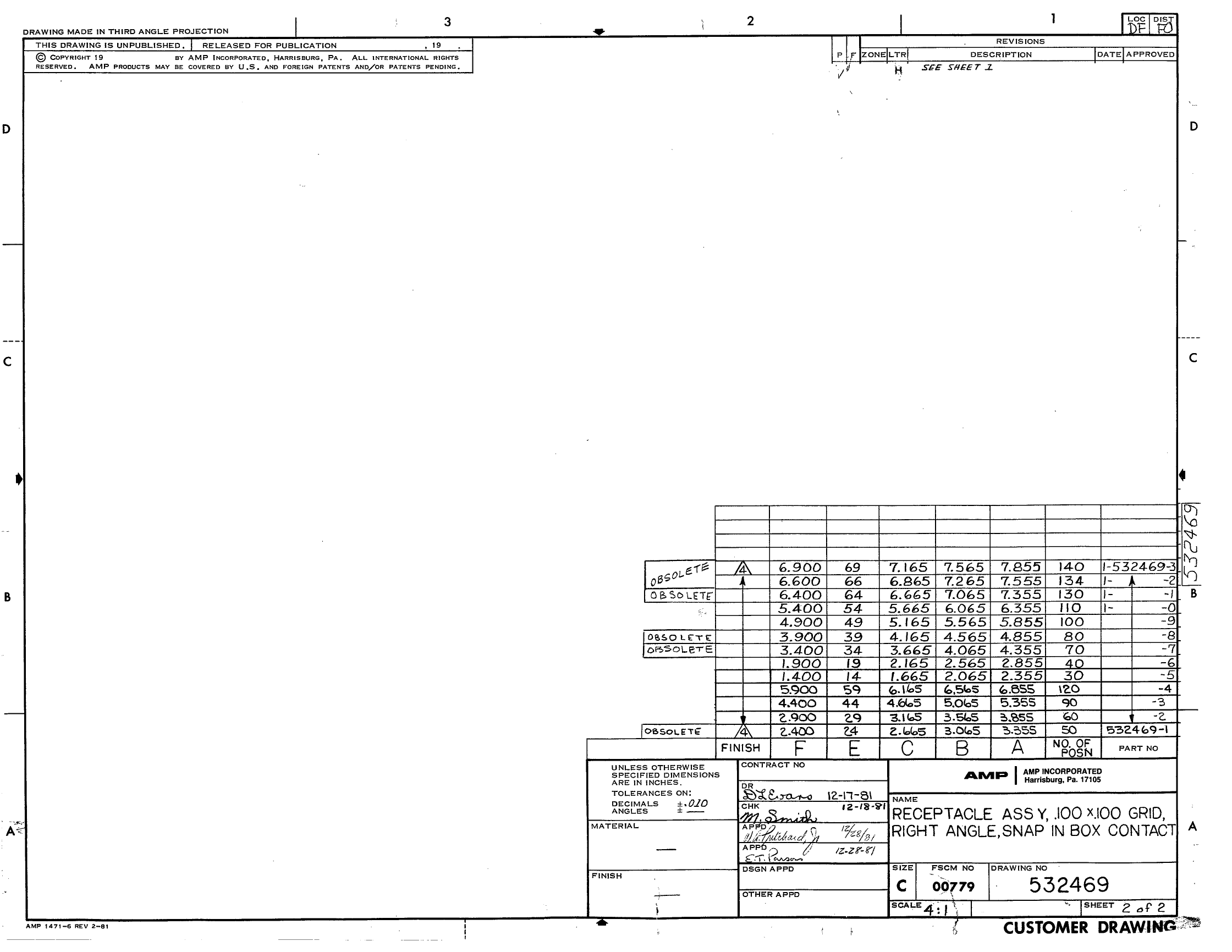

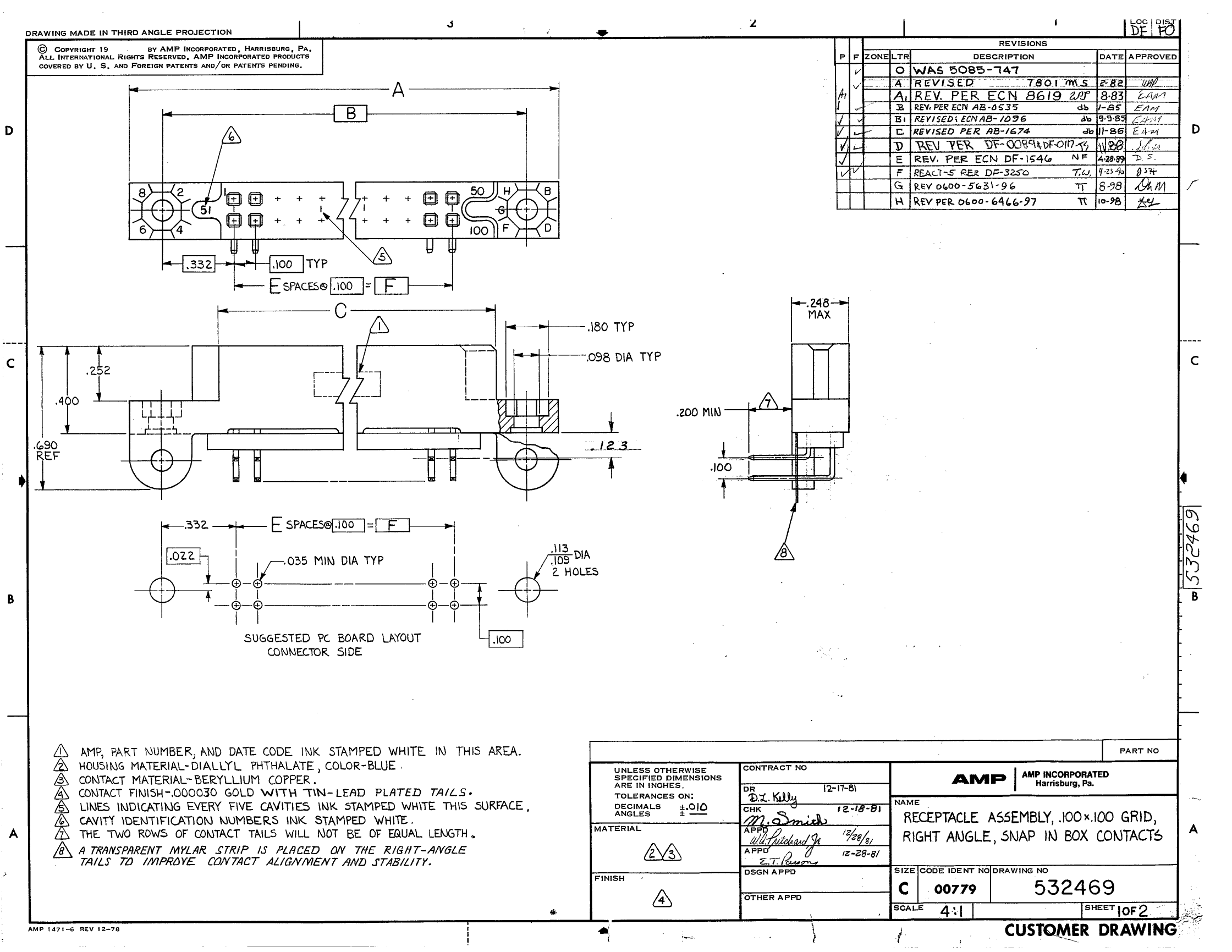

Preview

Download Datasheet

View All

1-532469-2 Related Products

	1-532469-2	1-532469-3	1-532469-1	532469-1	532469-8	532469-7
Description	CONNECTOR, 134 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 140 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,130 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56	HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56	HEADER CONNECTOR,PCB MNT,PLUG,80 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56	HEADER CONNECTOR,PCB MNT,PLUG,70 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	134	140	130	50	80	70
Objectid	2094429876	-	301415428	301475367	-	301475373
Number of connectors	ONE	-	ONE	ONE	ONE	ONE
Manufacturer's serial number	-	532469	532469	532469	532469	532469
Board mount options	-	-	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	-	-	0.248 inch	0.248 inch	0.248 inch	0.248 inch
subject depth	-	-	0.69 inch	0.69 inch	0.69 inch	0.69 inch
body length	-	-	7.355 inch	3.355 inch	4.855 inch	4.355 inch
Contact to complete cooperation	-	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	-	-	GOLD	GOLD	GOLD	GOLD
Contact material	-	-	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	-	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Plug contact pitch	-	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	-	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	-	-	#2-56	#2-56	#2-56	#2-56
Installation option 2	-	-	THREADED	THREADED	THREADED	THREADED
PCB row number	-	-	2	2	2	2
PCB contact pattern	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	-	-	30u inch	30u inch	30u inch	30u inch
polarization key	-	-	ENDS	ENDS	ENDS	ENDS
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	-	-	0.2 inch	0.2 inch	0.2 inch	0.2 inch
