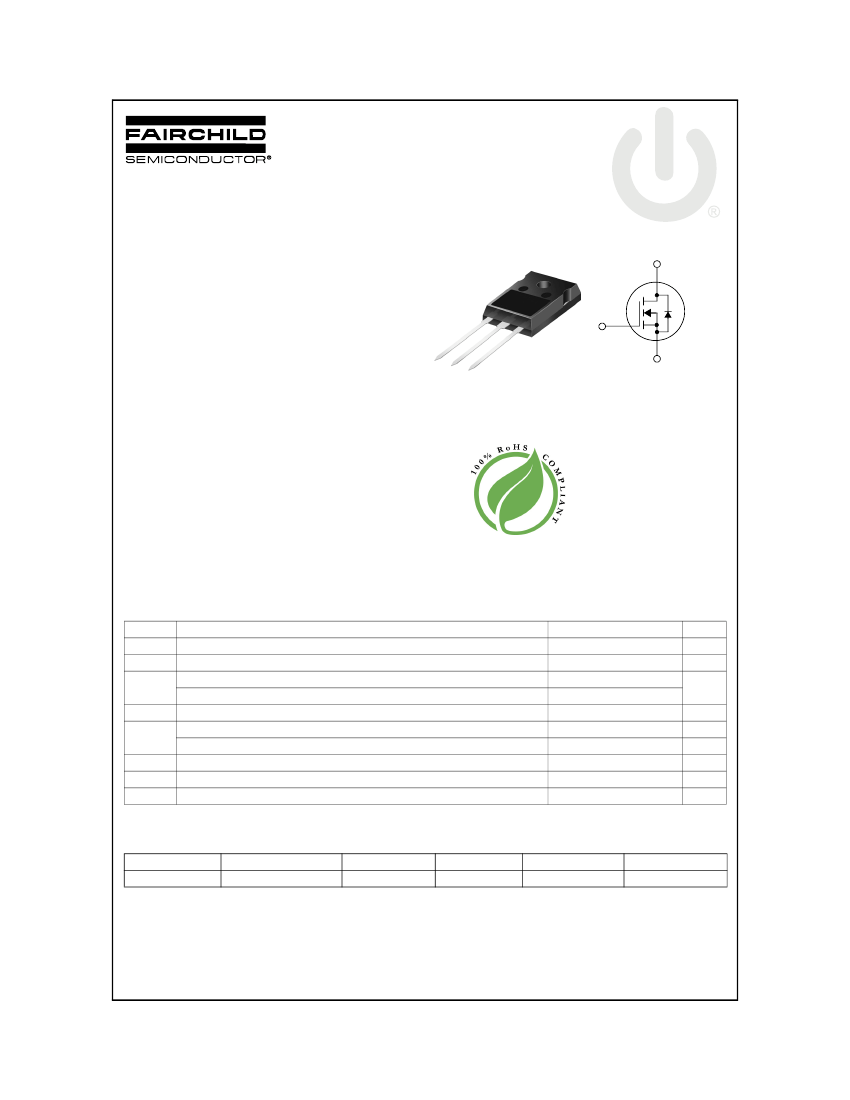

FCH47N60F_F085 N-Channel MOSFET
October 2013
FCH47N60F_F085
N-Channel MOSFET
600V, 47A, 75mΩ
Features
Typ r
DS(on)
= 66mΩ at V
GS
= 10V, I
D
= 47A
Typ Q
g(tot)
= 190nC at V
GS
= 10V, I
D
= 47A
UIS Capability
RoHS Compliant
Qualified to AEC Q101
D
G
Description
SuperFET
TM
is Fairchild’s proprietary new generation of high
voltage MOSFETs utilizing an advanced charge balance
mechanism for outstanding low on-resistance and
lower gate charge performance.
This advanced technology has been tailored to minimize
conduction loss, provide superior switching performance, and
withstand extreme dv/dt rate and higher avalanche energy.
Consequently, SuperFET is suitable for various automotive
DC/DC power conversion.
G D
S
TO-247
S
For current package drawing, please refer to the Fairchild
website at www.fairchildsemi.com/packaging
Applications
Automotive On Board Charger
Automotive DC/DC converter for HEV
MOSFET Maximum Ratings
T
J
= 25°C unless otherwise noted
Symbol
V
DSS
Drain to Source Voltage
V
GS
I
D
E
AS
P
D
R
θJC
R
θJA
Gate to Source Voltage
Drain Current - Continuous (V
GS
=10) (Note 1)
Pulsed Drain Current
Single Pulse Avalanche Energy
Power Dissipation
Derate above 25 C
Thermal Resistance Junction to Case
Maximum Thermal Resistance Junction to Ambient
(Note 3)
o
Parameter
Ratings
600
±30
T
C
= 25°C
T
C
= 25°C
(Note 2)
47
See Figure4
810
417
3.3
-55 to + 150
0.3
50
Units
V
V
A
mJ
W
W/
o
C
o
o
o
T
J
, T
STG
Operating and Storage Temperature
C
C/W
C/W
Package Marking and Ordering Information
Device Marking
FCH47N60F
Device
FCH47N60F_F085
Package
TO-247
Reel Size
-
Tape Width
-
Quantity
30 units
Notes:
1: Current is limited by bondwire configuration.
2: Starting T
J
= 25°C, L = 5mH, I
AS
= 18A, V
DD
= 100V during inductor charging and V
DD
= 0V during time in avalanche
3:
R
θJA
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder
mounting surface of the drain pins.
R
θJC
is guaranteed by design while
R
θJA
is determined by the user's board design. The maximum rating
