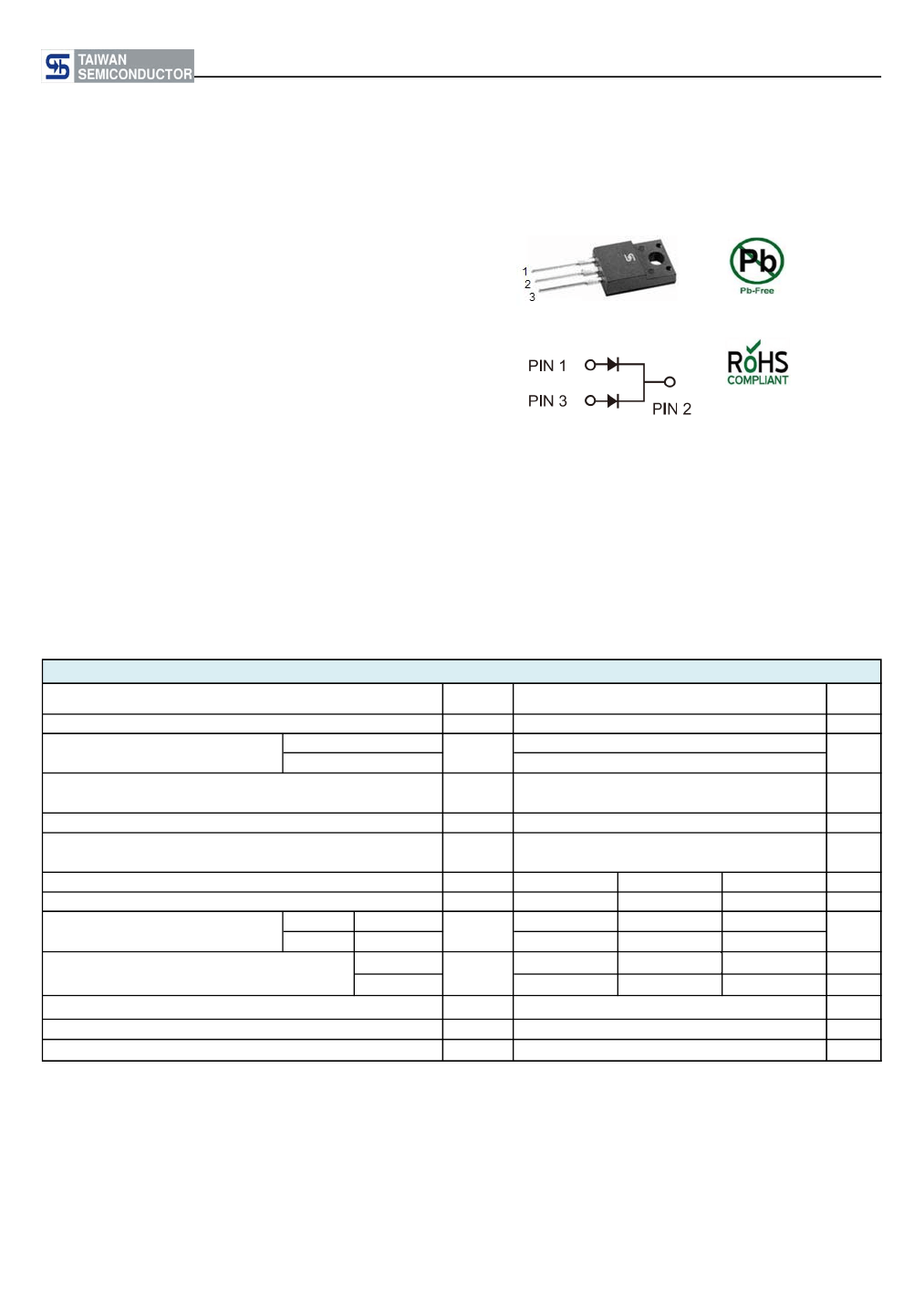

TSF30U45C
Taiwan Semiconductor
Trench Schottky Rectifier
FEATURES
- Patented Trench Schottky technology
- Excellent high temperature stability
- Low forward voltage
- Low power loss/ high efficiency
- High forward surge capability
- Compliant to RoHS directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
ITO-220AB
TYPICAL APPLICATIONS
Trench Schottky barrier rectifier are designed for high frequency
miniature switched mode power supplies such as adapters, lighting
and on-board DC/DC converters.
MECHANICAL DATA
Case:
ITO-220AB
Molding compound, UL flammability classification rating 94V-0
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.7g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum average forward rectified
current
per device
per diode
SYMBOL
V
RRM
I
F(AV)
I
FSM
dV/dt
V
AC
Min.
Breakdown voltage ( I
R
=1.0mA )
Instantaneous forward voltage per diode
( Note1 )
Instantaneous reverse current per diode
at rated reverse voltage
Typical thermal resistance per diode
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with pulse width = 300μs, 1% duty cycle
I
F
= 15A
I
F
= 15A
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
V
BR
V
F
I
R
R
θJC
T
J
T
STG
45
-
-
-
-
TSF30U45C
45
30
15
250
10000
1500
TYP.
-
0.450
0.415
150
50
4
- 55 to +150
- 55 to +150
MAX.
-
0.50
0.45
500
100
V
V
μA
mA
°C/W
°C
°C
UNIT
V
A
A
V/μs
V
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load per diode
Voltage rate of change (rated VR)
Isolation voltage from terminal to heatsink t = 1 min
Document Number: DS_D1412008
Version: F14
TSF30U45C
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
TSF30U45C
PACKING
CODE
C0
PACKING CODE
SUFFIX
G
PACKAGE
ITO-220AB
PACKING
50 / Tube
EXAMPLE
PREFERRED
PART NO.
TSF30U45C C0G
PART NO.
TSF30U45C
PACKING
CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25°C unless otherwise noted)

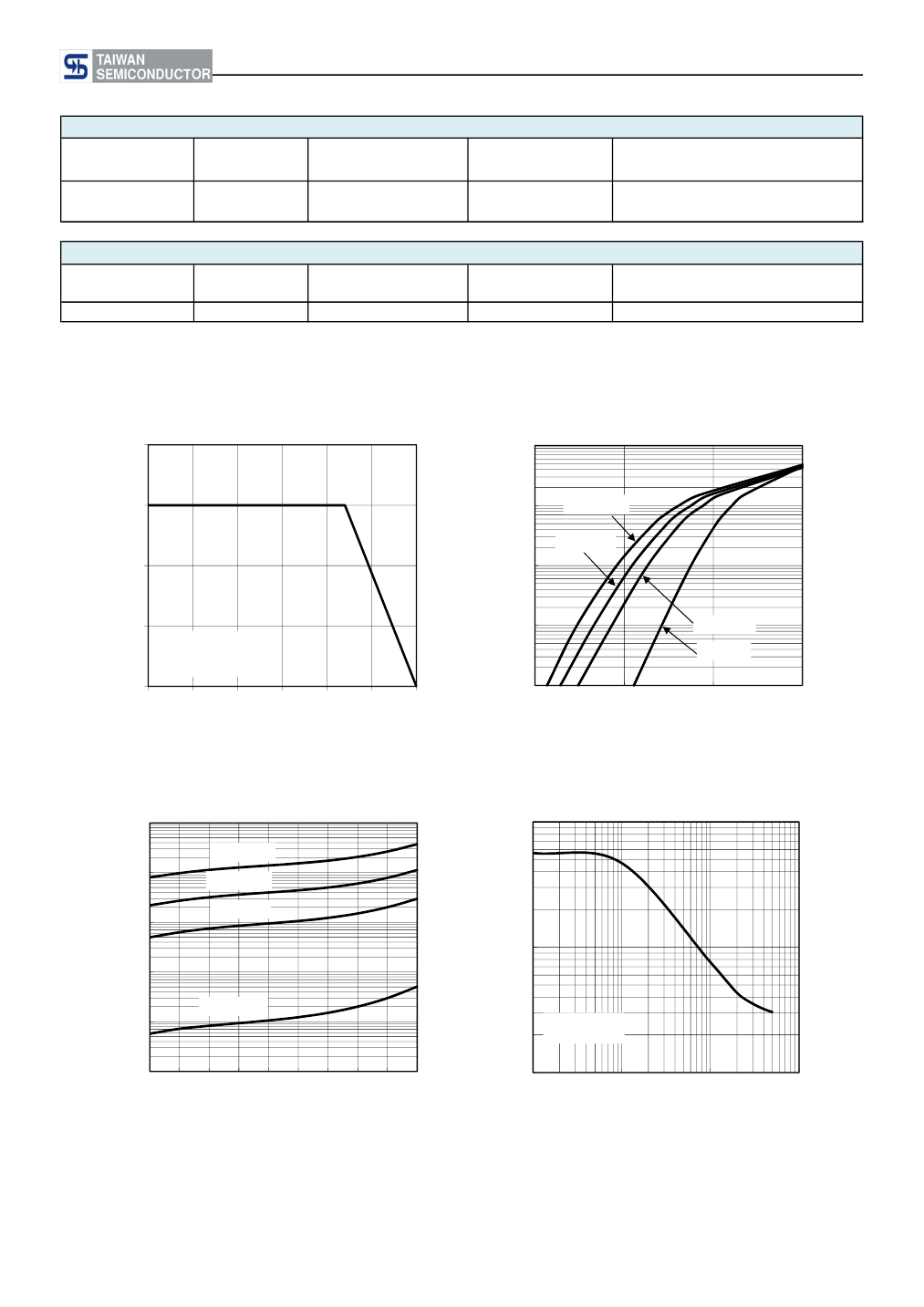

FIG.1 FORWARD CURRENT DERATING CURVE
20
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
100
AVERAGE FORWARD CURRENT (A)
15
10
T
J
=150°C
T
J
=125°C
10
1
5
0.1
WITH HEATSINK
3in x 5in x 0.25in
Al-Plate
0
0
25
50
75
100
125
150
T
J
=100°C
T
J
=25°C
0.01
0
0.2
0.4
0.6
CASE TEMPERATURE (
o
C)
FORWARD VOLTAGE (V)
FIG. 3 TYPICAL REVERSE CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT (mA)
FIG. 4 TYPICAL JUNCTION CAPACITANCE
10000
T
J
=150°C
10
CAPACITANCE (pF)
T
J
=125°C
T
J
=100°C
1
1000
0.1
0.01
T
J
=25°C
f=1.0MHz
Vslg=50mVp-p
0.001
10
20
30
40
50
60
70
80
90
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
100
0.1
1
10
100
REVERSE VOLTAGE (V)
Document Number: DS_D1412008
Version: F14

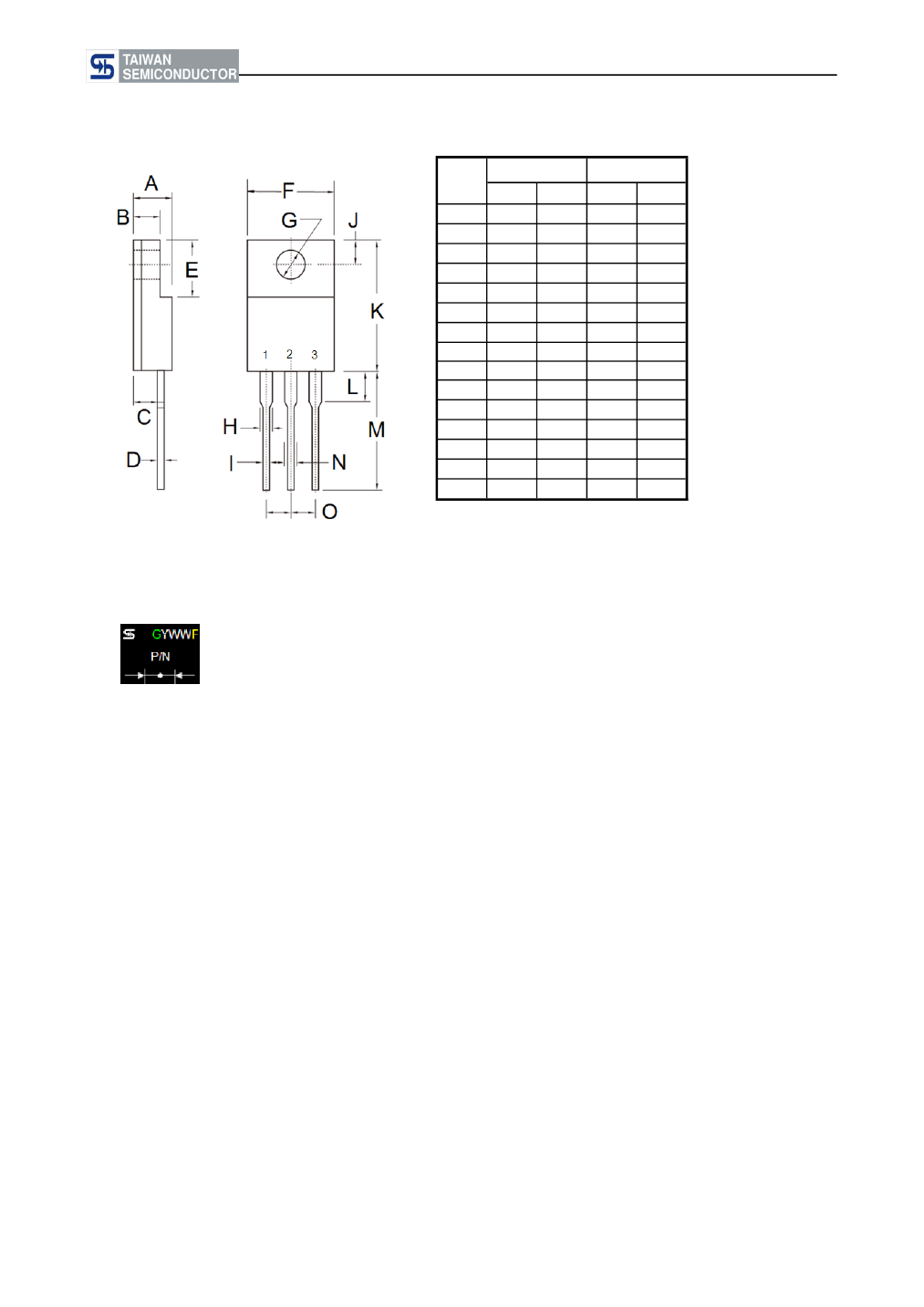

TSF30U45C
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1412008
Version: F14
