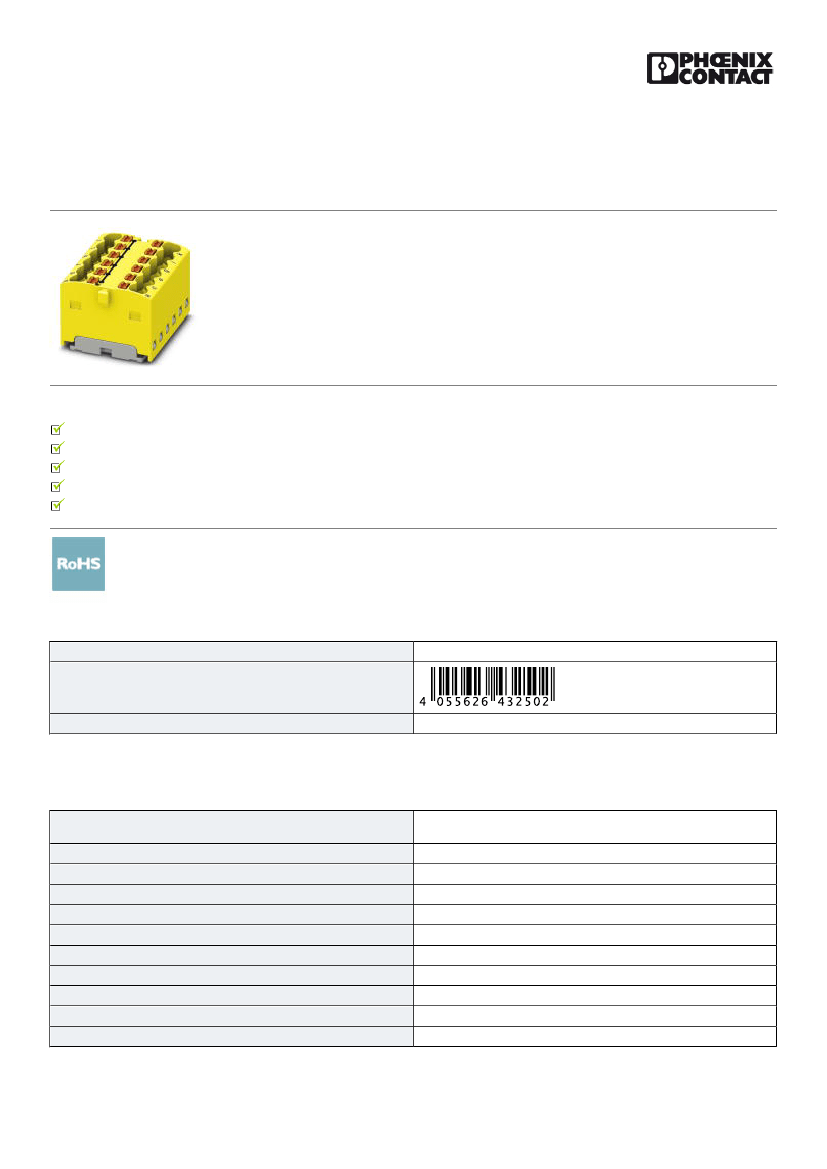

Distribution block - PTFIX 12X1,5 YE - 3002769
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Distribution block, internally jumpered, nom. voltage: 450 V, nominal current: 17.5 A, connection method:
Push-in connection, number of connections: 12, cross section:0.14 mm² - 2.5 mm², AWG: 26 - 14, width: 24.9
mm, height: 17.7 mm, color: yellow, mounting type: for snapping onto a DIN rail adapter
Your advantages
Space-saving, thanks to the compact design
Flexible use, thanks to direct mounting with flange covers from accessories
Space-saving potential distribution, thanks to compact micro potential distributors
Convenient test options, thanks to test openings at every terminal point
Clear arrangement thanks to marking of all terminal points
Key Commercial Data
Packing unit
GTIN
GTIN
4055626432502
20 pc
Technical data
General
Note
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Notes on operation The blocks can be bridged with one another via the
conductor shaft. For corresponding plug-in bridges, see accessories
1
12
1
1.5 mm²
yellow
PA
V0
6 kV
3
III
11/15/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3002769
Distribution block - PTFIX 12X1,5 YE - 3002769
Technical data
General
Insulating material group
Maximum power dissipation for nominal condition
Ambient temperature (operation)
Maximum load current
Maximum total current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
I
0.56 W
-60 °C ... 130 °C
26 A
26 A
17.5 A
450 V
No
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
30 s
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
24.9 mm
21.6 mm
17.7 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Push-in connection
IEC 60998-2-2
0.14 mm²
2.5 mm²
26
11/15/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/3002769
Distribution block - PTFIX 12X1,5 YE - 3002769
Technical data
Connection data
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
14
0.14 mm²
1.5 mm²
24
12
0.14 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
A1 / B1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 60998-2-2
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
11/15/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/3002769
Distribution block - PTFIX 12X1,5 YE - 3002769
Approvals
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
150 V
15 A
26-14
http://www.csagroup.org/services-industries/product-listing/
B
300 V
15 A
26-14
C
300 V
15 A
26-14
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
150 V
15 A
26-14
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
15 A
26-14
C
300 V
15 A
26-14
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
150 V
15 A
26-14
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
15 A
26-14
C
300 V
15 A
26-14
FILE E 60425
cULus Recognized
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/15/2018 Page 4 / 4
