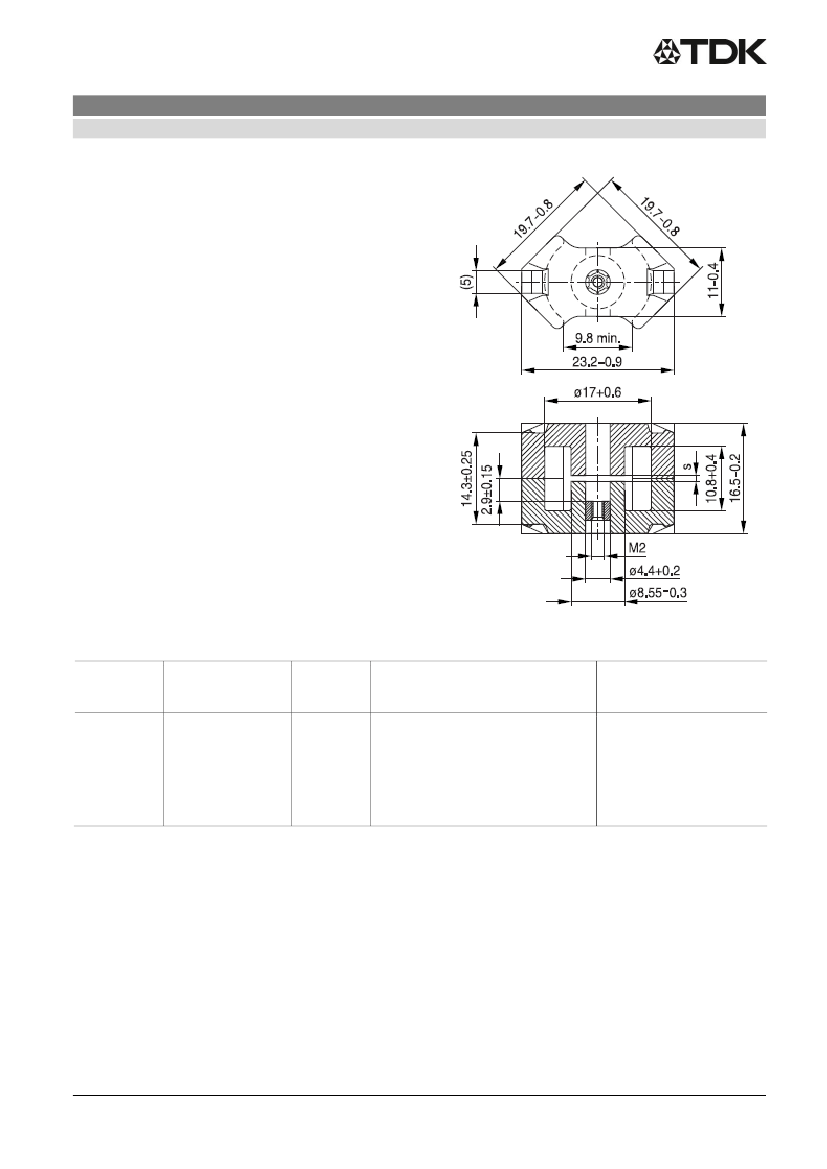

RM8
Ferrite core
Series/Type:
Ordering code:
Date:
Version:
B65811
B65811J0000R608
2017-07-25
5
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then
change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
RM8
(header 1 + top left bar):
Identification/Classification 2
Ferrite core
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
B65811J0000R608
Series/Type: (bottom right header bar)
B65811
Preliminary data (optional):
Department:
SMP MAG D
Date:
2017-07-25
Version:
5
EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
RM8
Ferrite core
B65811J0000R608
B65811
Magnetic characteristics
l/A
l
e
A
e
A
min
V
e
= 0.59 mm
-1
= 38 mm
= 64 mm
2
= 55 mm
2
= 2430 mm
3
Approx. weight
12 g/set
Delivery mode
Sets
Packing
Standard Styrofoam tray (size 200 mm x 300 mm)
Material
A
L
value
nH
1)
µ
e
Pv
max
W/Set
<
0.68 (1000 kHz, 50 mT, 100
°C)
<
0.9 (2000 kHz, 30 mT, 100
°C)
Ordering code
-J without center hole
B65811J0000R608
PC200
1260 +30/-20%
600
1680 +30/-20%
2)
790
<
0.73 (1000 kHz, 50 mT, 100
°C)
<
1.46 (2000 kHz, 30 mT, 100
°C)
2)
2)
1)
Measurement Parameter: 10 kHz, 0.25 mT, 100 turns, room temperature.
A
L
value is measured acc. to IEC62044-2. An appropriate wringing of cores with polished surface is used to improve
reproducibility of the measurement. (It is recommended to rub the mating surfaces themselves six times in a circular or elliptic
arc that matches the core profile before measuring A
L
value).
2)
Magnetised (magnetised in DC field strength H = 200 A/m for 10 s)
Material PC200 is not suitable for applications with strong magnetic fields above 80 A/m.
With respect to power loss characteristics, customer should assure that there is no overheating in an application.
For information only.
SMP MAG D
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 5
2017-07-25
RM8
Ferrite core
B65811J0000R608
B65811
Cautions and warnings
Mechanical stress and mounting
Ferrite cores have to meet mechanical requirements during assembling and for a growing number of
applications. Since ferrites are ceramic materials one has to be aware of the special behavior under
mechanical load.
As valid for any ceramic material, ferrite cores are brittle and sensitive to any shock, fast temperature
changing or tensile load. Especially high cooling rates under ultrasonic cleaning and high static or
cyclic loads can cause cracks or failure of the ferrite cores.
For detailed information see data book, chapter
“General - Definitions, 8.1”.
Effects of core combination on AL value
Stresses in the core affect not only the mechanical but also the magnetic properties. It is apparent
that the initial permeability is dependent on the stress state of the core. The higher the stresses are in
the core, the lower is the value for the initial permeability. Thus the embedding medium should have
the greatest possible elasticity.
For detailed information see data book, chapter
“General - Definitions, 8.1”.
Heating up
Ferrites can run hot during operation at higher flux densities and higher frequencies.
NiZn-materials
The magnetic properties of NiZn-materials can change irreversible in high magnetic fields.
Ferrite Accessories
EPCOS ferrite accessories have been designed and evaluated only in combination with EPCOS
ferrite cores. EPCOS explicitly points out that EPCOS ferrite accessories or EPCOS ferrite cores may
not be compatible with those of other manufacturers. Any such combination requires prior testing by
the customer and will be at the customer‘s own risk.
EPCOS assumes no warranty or reliability for the combination of EPCOS ferrite accessories with
cores and other accessories from any other manufacturer.
Processing remarks
The start of the winding process should be soft. Else the flanges may be destroyed.
– Too strong winding forces may blast the flanges or squeeze the tube that the cores can not be
mounted any more.
– Too long soldering time at high temperature (>300 °C) may effect coplanarity or pin arrangement.
– Not following the processing notes for soldering of the J-leg terminals may cause solderability
problems at the transformer because of pollution with Sn oxyde of the tin bath or burned
insulation of the wire. For detailed information see chapter
“Processing notes”,
section 2.2.
– The dimensions of the hole arrangement have fixed values and should be understood as a
recommendation for drilling the printed circuit board. For dimensioning the pins, the group of
holes can only be seen under certain conditions, as they fit into the given hole arrangement. To
avoid problems when mounting the transformer, the manufacturing tolerances for positioning the
customers’ drilling process must be considered by increasing the hole diameter.
SMP MAG D
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 5
2017-07-25
RM8
Ferrite core
B65811J0000R608
B65811
Display of ordering codes for EPCOS products
The ordering code for one and the same EPCOS product can be represented differently in data
sheets, data books, other publications, on the EPCOS website, or in order-related documents such as
shipping notes, order confirmations and product labels.
The varying representations of the
ordering codes are due to different processes employed and do not affect the specifications of
the respective products.
Detailed information can be found on the Internet under
www.epcos.com/orderingcodes
SMP MAG D
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 5
2017-07-25
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain
statements about the suitability of our products for
certain areas of application.
These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out
that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application.
As a
rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them
than the customers themselves. For these reasons, it is always ultimately incumbent on the
customer to check and decide whether an EPCOS product with the properties described in the
product specification is suitable for use in a particular customer application.
2. We also point out that
in individual cases, a malfunction of electronic components or failure
before the end of their usual service life cannot be completely ruled out in the current state
of the art, even if they are operated as specified.
In customer applications requiring a very high
level of operational safety and especially in customer applications in which the malfunction or
failure of an electronic component could endanger human life or health (e.g. in accident
prevention or life-saving systems), it must therefore be ensured by means of suitable design of the
customer application or other action taken by the customer (e.g. installation of protective circuitry
or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or
failure of an electronic component.
3.
The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements,
some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as hazardous).
Useful information on this will be found in our Material
Data Sheets on the Internet (www.epcos.com/material). Should you have any more detailed
questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently,
the products described in this
publication may change from time to time.
The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also
reserve the right to discontinue production and delivery of products.
Consequently,
we cannot guarantee that all products named in this publication will always be available.
The aforementioned does not apply in the case of individual agreements deviating from the
foregoing for customer-specific products.
6. Unless otherwise agreed in individual contracts,
all orders are subject to the current version of
the “General Terms of Delivery for Products and Services in the Electrical Industry”
published by the German Electrical and Electronics Industry Association (ZVEI).
7. The trade names EPCOS, CeraDiode, CeraLink, CeraPad, CeraPlas, CSMP, CSSP, CTVS,
DeltaCap, DigiSiMic, DSSP, ExoCore, FilterCap, FormFit, LeaXield, MiniBlue, MiniCell, MKD,
MKK, MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, PhiCap, PowerHap, PQSine, PQvar,
SIFERRIT, SIFI, SIKOREL, SilverCap, SIMDAD, SiMic, SIMID, SineFormer, SIOV, SIP5D, SIP5K,
TFAP, ThermoFuse, WindCap are
trademarks registered or pending
in Europe and in other
countries. Further information will be found on the Internet at www.epcos.com/trademarks.
