F-219
ACP–12–01–G–00.25–T–S–P–1
ACP–12–01–G–00.25–S–S–M–1
ACP–12–05–G–00.25–T–S–P–1
ACP-12 SERIES

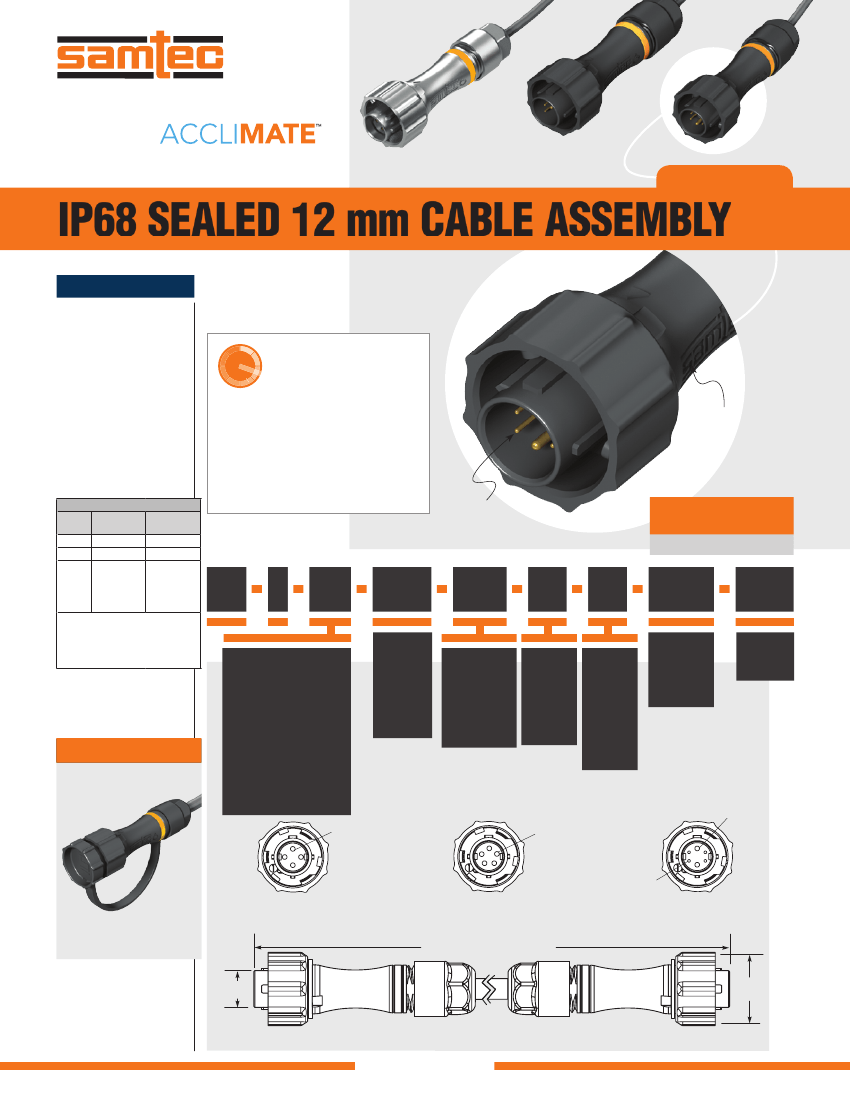

IP68 SEALED 12 mm CABLE ASSEMBLY
SPECIFICATIONS
For complete specifications see
www.samtec.com?ACP-12
Insulator Material:
Thermoplastic
Terminal Material:
Brass
Contact Material:
Brass/BeCu
Plating:
Au over 50 µ" (1.27 µm) Ni
Operating Temp Range:
-40 °C to +80 °C
Housing:
–P: Black Nylon
–M: Zinc Alloy
Cable Jacket:
TPU
RoHS Compliant:
Yes
CURRENT RATING
LEAD
PINS
CCC per
STYLE POWERED
PIN
–01
4
3.8 A
–02
5
3.6 A
2
(plus 4
–05
signal pins
5.0 A
powered
@ 1.2 A)
For general reference only.
See www.samtec.com?ACP-12
for complete test data or contact
AccliMate@samtec.com for
applications requiring higher
current carrying capacity.
Mates with:
ACR-12, ACRK-12
Solutionator
DESIGN IN A MINUTE
®
• Easy sealed cable solutions
• Build a standard or flexible custom online
• Calculate performance, current rating,
voltage drop
• Live chat with AccliMate
™
engineers
for custom options
• Variety of shells, pin sizes, signal,
power, I/O interfaces
• Assembly and field kits available
Tested to IP68 for
dust & water
Choice of
terminals or sockets
ALSO AVAILABLE
(MOQ Required)
• Other assembly lengths
ACP
12
–01
–02
–05
LEAD
STYLE
PLATING
LENGTH
END 1
END 2
HOUSING
MATERIAL
KEYING
OPTIONS
= 1.0 mm DIA (4) terminals
or sockets (24 AWG)
= 1.0 mm DIA (5) terminals
or sockets (24 AWG)
= 10 µ"
(0.25 µm)
Gold over
50 µ"
(1.27 µm)
Ni on
contact
–G
= Length in
meters
(00.25 m min.
to 50.00 m max.)
Standard
lengths
–“XX.XX”
= Terminal
–T
= Terminal
–T
= Plastic
–P
= Socket
(N/A with
End 2 -T)
–S
= Socket
–S
= Metal
–M
= Orange,
45°
–1
DUST CAPS
• DCA-ACP-12-M-X (Metal)
• DCA-ACP-12-P-X (Plastic)
–BC
= Blunt
Cut
= 1.0 mm DIA (2) terminals
or sockets (24 AWG)
+ 0.5 mm DIA (4) terminals
or sockets (28 AWG)
(1.0) .040
DIA (4)
(1.0) .040
DIA (5)
(1.0) .040
DIA (2)
(0.5) .020
DIA (4)
–01
–02
–05
• Visit sealedio.samtec.com
for a complete list of sealed
systems
(9.30)
.366
Note:
Some lengths,
styles and options are
non-standard, non-returnable.
–P HOUSING
Overall Length (XX.XX) ± 2%
(18.50)
.728
–M HOUSING
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
