DD211/M: DescriptionInterface Circuit, CDFP14, CERAMIC, PACKAGE 14 PIN; CategoryDrivers and interfaces; File Size993KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

DD211/M Overview

Interface Circuit, CDFP14, CERAMIC, PACKAGE 14 PIN

DD211/M Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	QFF,
Reach Compliance Code	compliant
Is Samacsys	N
Interface integrated circuit type	INTERFACE CIRCUIT
JESD-30 code	S-CDFP-F14
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	5.84 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

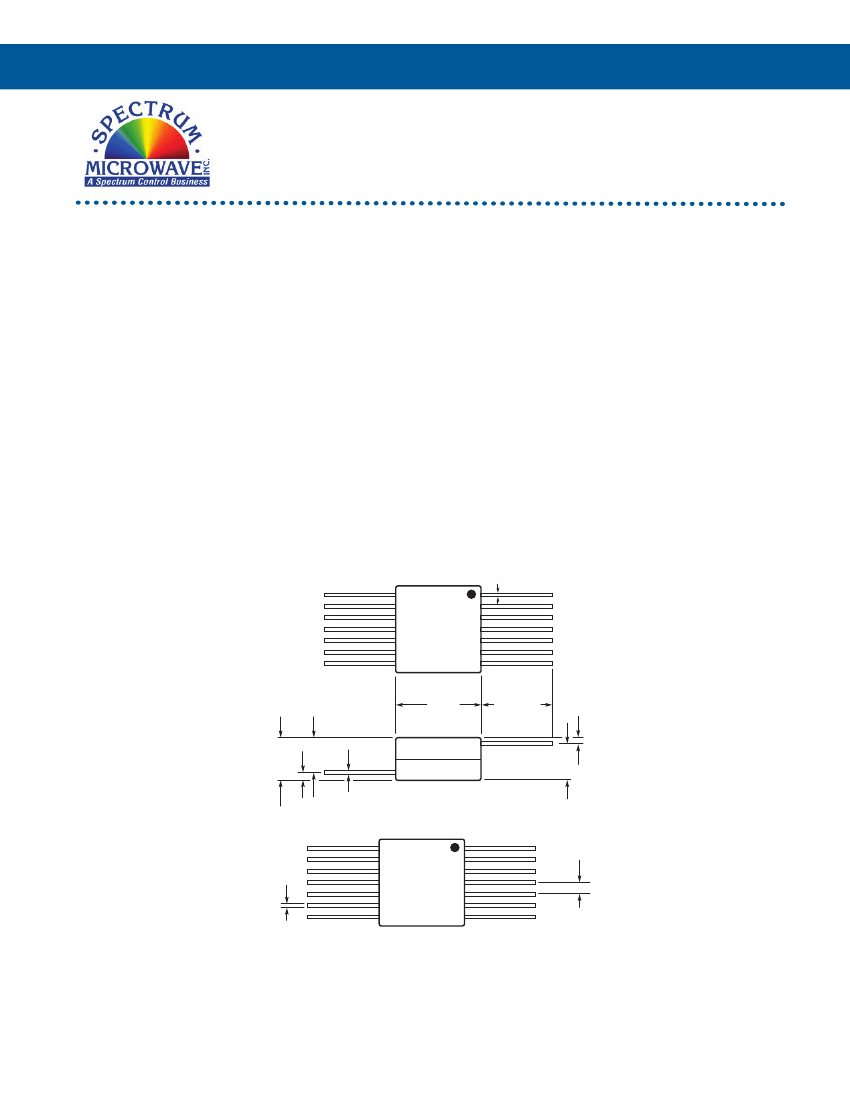

D

UAL

H

IGH

S

PEED

D

RIVERS

DD211

DD211B

DD211M*

A dual DD111 with current programming pins

omitted. This driver is often used in SPDT applications

by driving the inverting input of one channel and the

noninverting input of the other channel from the same

TTL input signal.

1. W hen using channel 1 inverting input pin 4, connect

bias pin 5 to non-inverting input pin 6.

2. W hen using channel 2 inverting input pin 11,.

connect bias pin 10 to non-inverting pin 9.

3. W hen using channel 1 non-inverting input pin 6,

connect bias pin 5 to inverting input pin 4.

4. W hen using channel 2 non-inverting input pin 9,

connect bias pin 10 to inverting input pin 11.

5. The two drivers are identical except for quiescent

positive output current, which is nominally 15 mA

for DD211 and 30 mA for DD211B.

6 W hen driving anode-grounded diodes, care must

be exercised to avoid excessive power dissipation.

V ee should be limited to -10 V, at which point the

negative output current will be approximately

-10 mA . Consult factory for design assistance.

* M suffix denotes welded metal package instead of standard epoxy sealed ceramic package.

METAL WELDED PACKAGE

CHA NNEL 1

V ee (– 5 to – 15)

Output

Ground

Inv Input

Input Bias

Non Input Inv

+5 V DC

.015 ± .003

1

14

CHA NNEL 2

V ee (– 5 to – 15)

Output

Ground

Inv Input

Input Bias

Non Input Inv

+5 V DC +2

DD111

XXXX

TOP V IEW

7

.425

SQ

MAX

250 M IN

TY P

9

.230

MAX

.110

TOP

BOTTOM

.005 ± .001

110

035

.035

14

1

0.050

.015

MAX

9

BOTTOM V IEW

7

Tel: 508-485-6350 Fax: 508-485-5168

165 Cedar Hill Street, Marlborough, Ma 01752

www.SpectrumMicrowave.com

Spectrum Microwave
