DLA-200LCD
LCD Digital Panel Meters
Specifications Installation and Operating Instructions
3½ Digit LCD
FEATURES
}
}
}
}
}
}
}
}
}
}
}0.37",}3½}digit}high}contrast}LCD
Optional}positive}green}backlight
}User-selectable}decimal}points
Polycarbonate}case
}Optional}bezel}mount
SPECIFICATIONS
ORDERING INFO
PART NUMBER
BACKLIGHT
METER INPUT
DISPLAY
Numeral Size:
Overrange:
Polarity Indication:
Supply Voltage:
.37” (9.4 mm)
three lower order digits blank for
inputs >1999 & < -1999
automatic (-) for negative
+5 VDC @2mA
(10mA with backlight option)
DLA-200LCD .............................. NONE .........................................
±
200mV
.
.
DLA-200LCD-L .................5V POSITIVE GREEN ..............................
±
200mV
DLA-201LCD .............................. NONE ................................................
±
2V
.
.
DLA-201LCD-L .................5V POSITIVE GREEN .....................................
±
2V
.
DLA-202LCD .............................. NONE ..............................................
±
20V
DLA-202LCD-L .................5V POSITIVE GREEN ...................................
±
20V
.
.
DLA-203LCD .............................. NONE ............................................
±
200V
.
DLA-203LCD-L .................5V POSITIVE GREEN .................................
±
200V
ACCESSORIES
INPUTS
Input Ranges:
Input Impedance:
Common Mode Range:
±200 mVdc, ± 2Vdc, ±20Vdc, ±200Vdc
1000 MΩ (200 mV)
1 MΩ (other ranges)
± 1 Vdc
±1% F.S. ± 2 counts
3 per second
PERFORMANCE
Accuracy:
Sampling Rate:

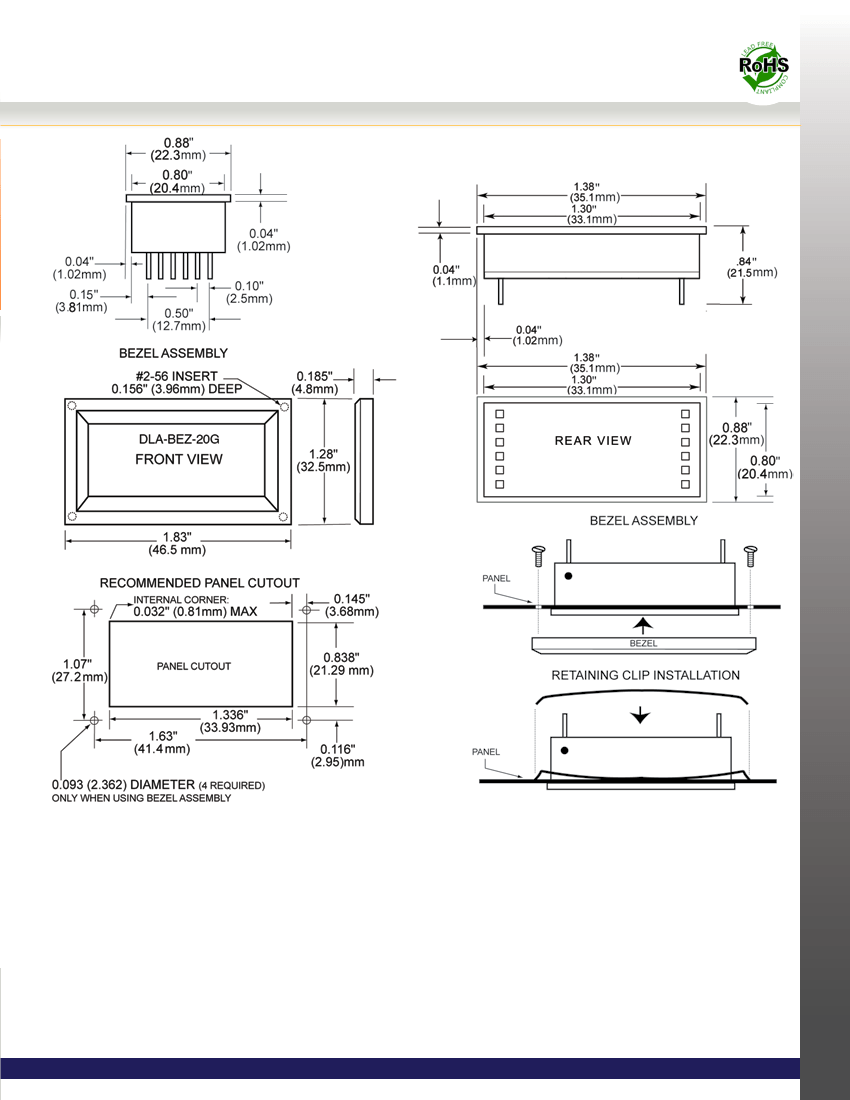

DLA-BEZ-20-G ....................................................................Bezel Assembly
PW2-5 ....................................... Regulated 120V AC to 5V DC Power Supply
CVC ..............................................................................................Calibrator
ENVIRONMENT
Operating Temperature: 0 to 50 °C
Max Humidity:
95% (non-condensing)
CONNECTION
12 pin

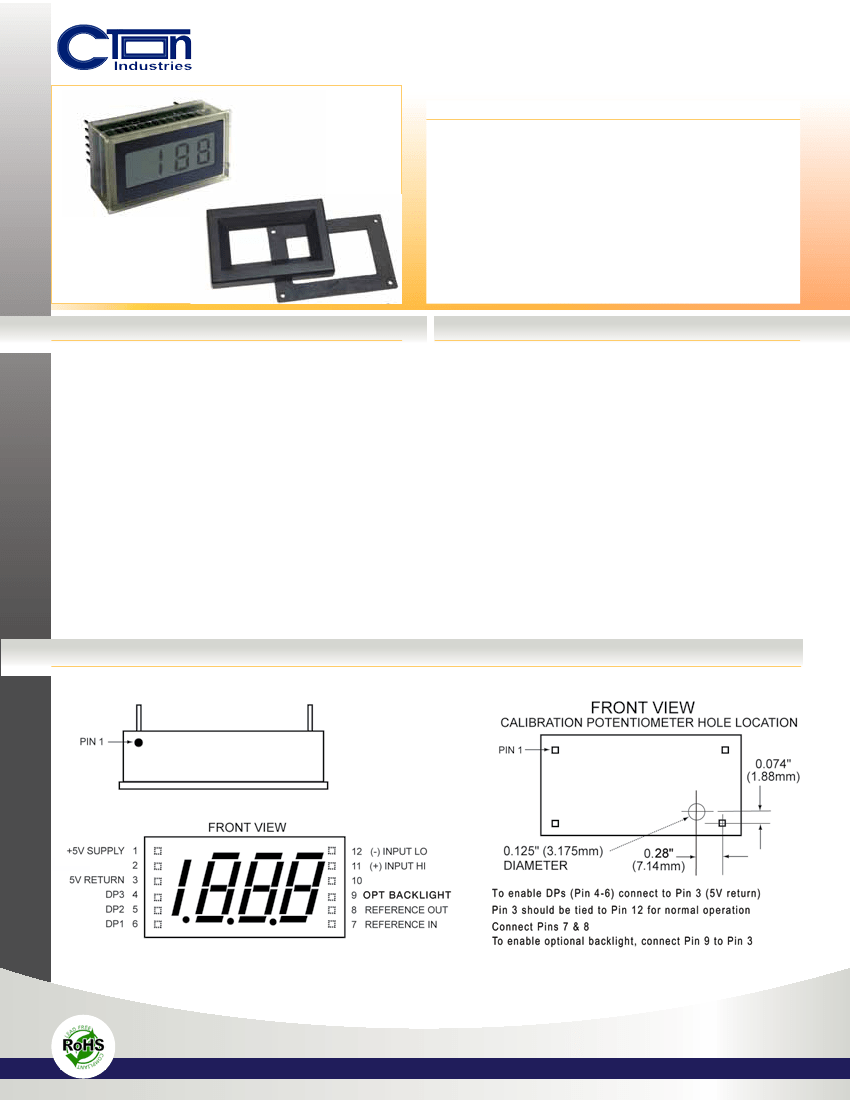

WIRING
