ODU MEDI-SNAP®
Assembly Instructions
Straight Plug Size 1
Right-angled Plug Size 1
In-line Receptacle Size 1
Straight Plug Size 2
www.odu.de
ODU MEDI-SNAP®
Assembly Straight Plug Size 1
010.013.001.000.000
Assembly Instructions

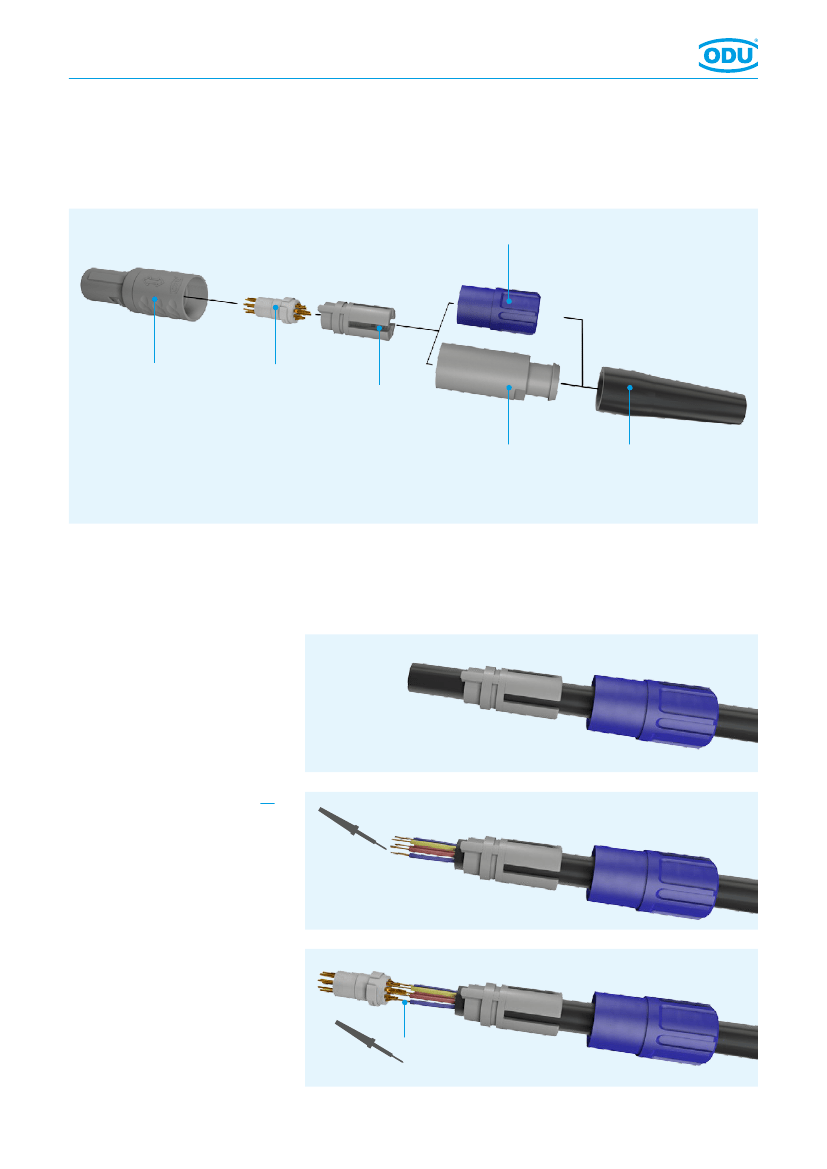

Back nut (style 1)
Housing
Insert with
solder capacity
Cable collet
Back nut for
cable bend relief
(style 2)
Cable bend relief
1. Slide back nut and cable collet
over the cable.
2. Strip cable and wire (see page 10).
3. Pre-tinning of strands.
4. Solder the litz wires (A) according
to contact arrangement.
Recommended cleaning agent:
Isopropyl Alcohol.
A
Page 2
www.odu.de
ODU MEDI-SNAP®
010.013.001.000.000
Assembly Instructions
5. Slide the cable collet against
contact insert.
Caution: Don’t damage the
contacts.
6. Put the assembled cable con-
sidering the guidings (B) into the
housing.
B

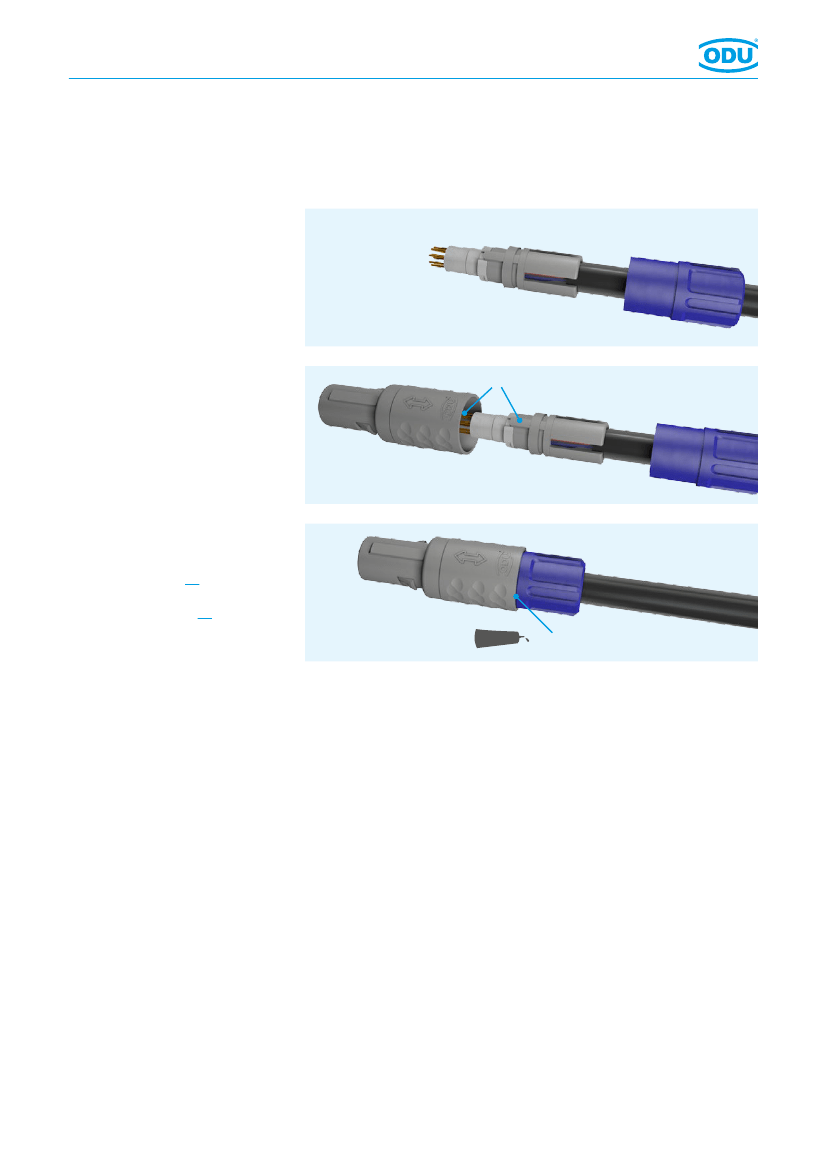

7. Screw and fasten back nut on the
assembled in-line receptacle.
Caution! Consider tightening
torque (see page 10).
If necessary, secure thread (C) with
adhesive (see page 10).
The assembly is finished.
C
www.odu.de
Page 3
ODU MEDI-SNAP®
Assembly Right-angled Plug Size 1
010.013.003.000.000
Assembly Instructions

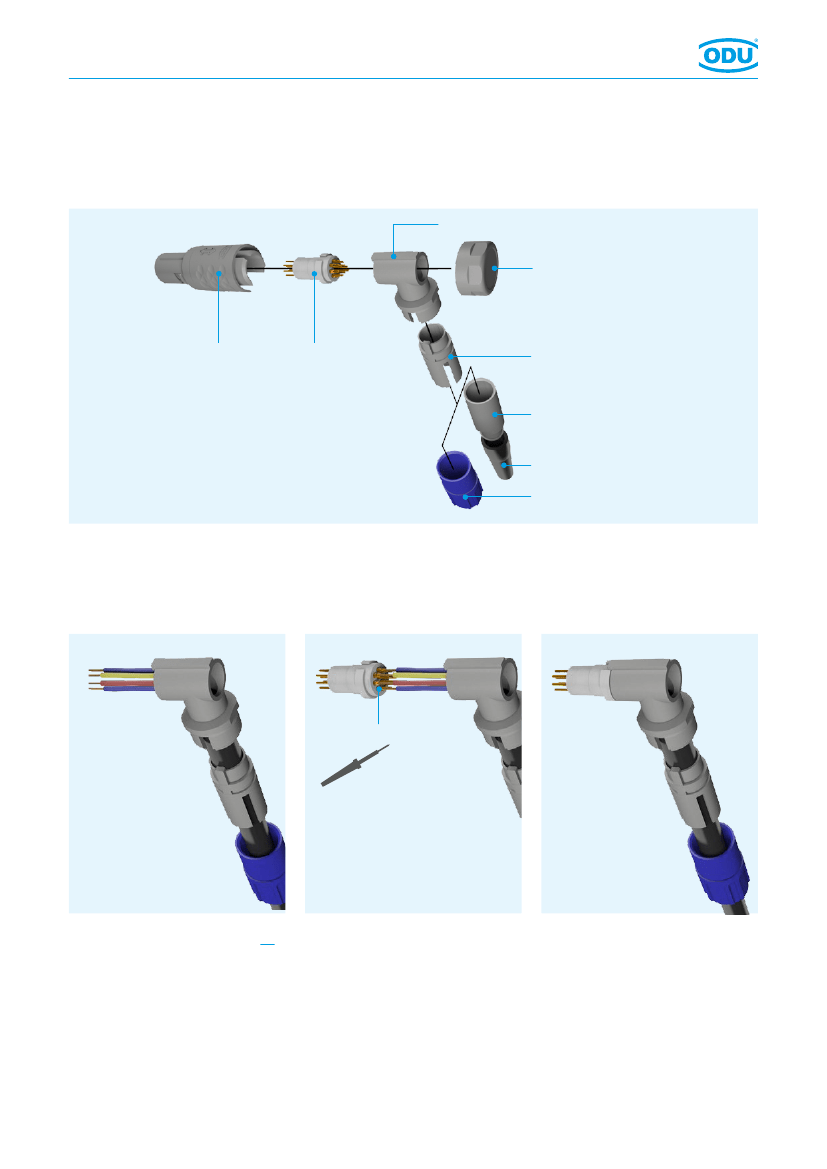

Right-angled part
Back screw
Housing
Insert with
solder capacity
Cable collet
Back nut for cable bend relief
(style 2)
Cable bend relief
Back nut (style 1)
A
1. Strip cable and wire (see page 10).
2. Slide back nut and cable collet and
right-angled part over the cable.
3. Pre-tinning of strands.
4. Solder the litz wires according to
contact arrangement.
Recommended cleaning agent:
Isopropyl Alcohol.
5. Slide the right-angled part against
contact insert.
Caution: Don’t damage the
contacts.
6. Slide the cable collet against
right-angled part.
Page 4
www.odu.de
ODU MEDI-SNAP®
010.013.003.000.000
Assembly Instructions
7. Slide the assembled cable
considering the guidings (B) into
the housing. Slide the cable collet
into the right-angled part and
screw it with the back nut.
If necessary, secure thread (C) with
adhesive (see page 10).
Caution! Consider tightening
torque (see page 10).
B
C

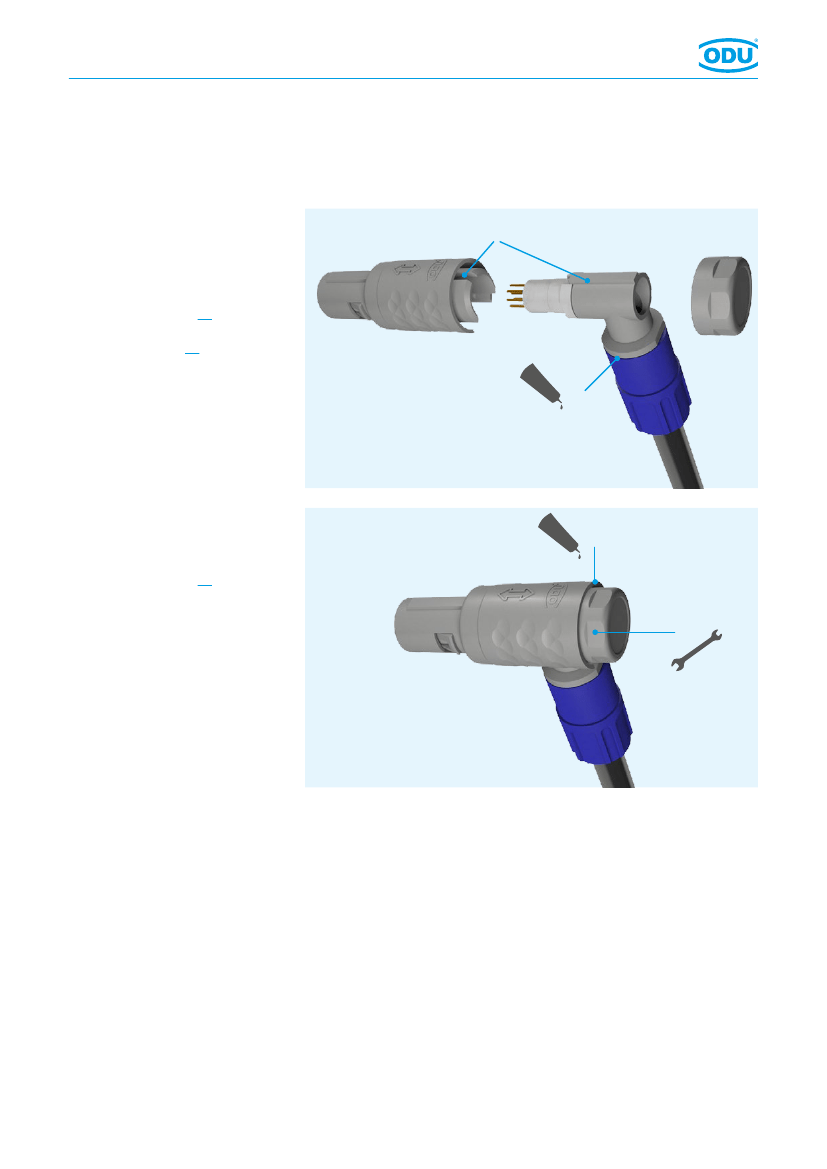

8. Screw back screw on the
assembled plug and fasten it with
ODU spanner wrench (D).
If necessary, secure thread (E) with
adhesive (see page 10).
The assembly is finished.
E
D
