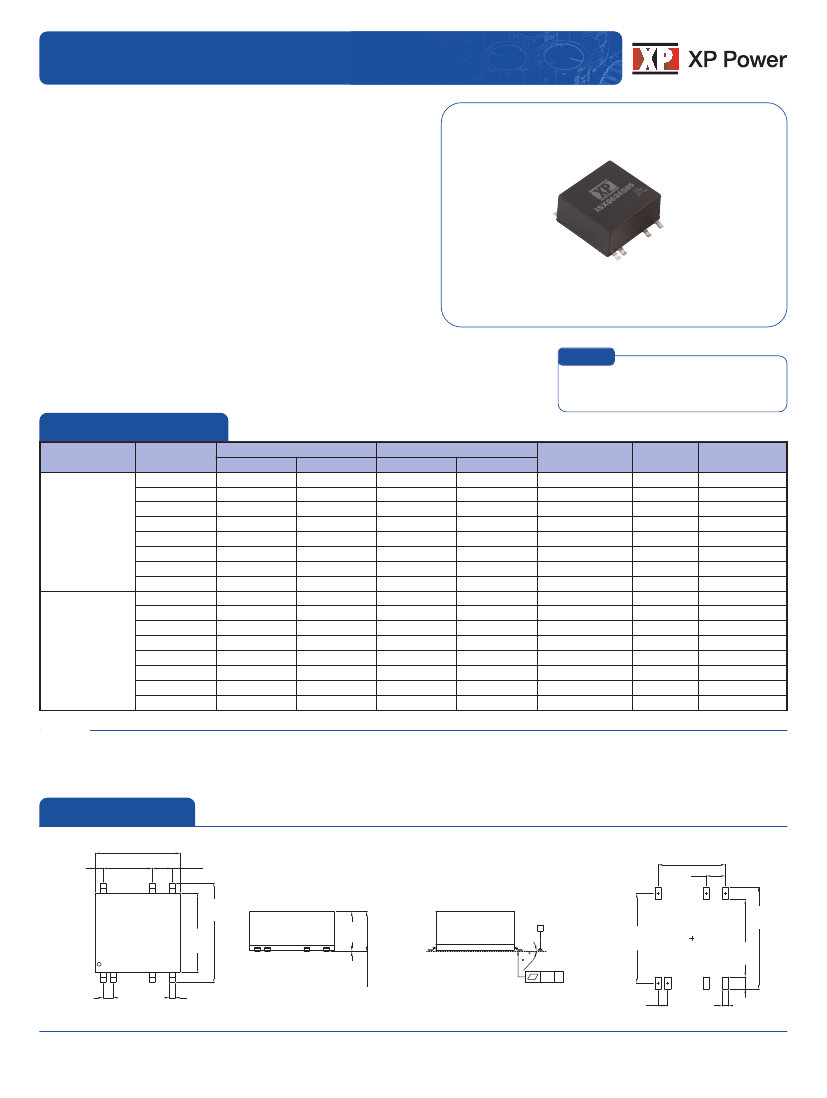

ISX06 Series
6 Watt
• Regulated Single & Dual Output
• Wide 4:1 Input Range
• 1500 VDC Isolation
• Operating Temperature -40 °C to +100 °C
• Remote On/Off
• Tape & Reel Package Available
• Optional Water Washable Versions
• 3 Year Warranty
• Compact SMD Package
DC-DC Converter
xxx Series
Dimensions:
ISX06:
1.0 x 0.87 x 0.4” (25.4 x 22.0 x 10.2 mm)
Models & Ratings
Input Voltage
Output Voltage
3.3 V
5.0 V
12.0 V
9-36 V
15.0 V
24.0 V
±5.0 V
±12.0 V
±15.0 V
3.3 V
5.0 V
12.0 V
18-75 V
15.0 V
24.0 V
±5.0 V
±12.0 V
±15.0 V
Output Current
Min
Max
218 mA
180 mA
75 mA
60 mA
38 mA
±90 mA
±38 mA
±30 mA
218 mA
180 mA
75 mA
60 mA
38 mA
±90 mA
±38 mA
±30 mA
1450 mA
1200 mA
500 mA
400 mA
250 mA
±600 mA
±250 mA
±200 mA
1450 mA
1200 mA
500 mA
400 mA
250 mA
±600 mA
±250 mA
±200 mA
Input Current
(1,2)
No Load
Full Load
30 mA
30 mA
30 mA
30 mA
30 mA
30 mA
30 mA
30 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
262 mA
316 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
130 mA
160 mA
150 mA
150 mA
150 mA
150 mA
150 mA
150 mA
Maximum
Capacitive Load
(3)
330 µF
330 µF
100 µF
100 µF
100 µF
±100 µF
±100 µF
±100 µF
330 µF
330 µF
100 µF
100 µF
100 µF
±100 µF
±100 µF
±100 µF
Efficiency
76%
79%
83%
83%
83%
82%
83%
83%
76%
79%
83%
83%
83%
82%
83%
83%
Model Number
(4)
ISX0624S3V3
ISX0624S05
ISX0624S12
ISX0624S15
ISX0624S24
ISX0624D05
ISX0624D12
ISX0624D15
ISX0648S3V3
ISX0648S05
ISX0648S12
ISX0648S15
ISX0648S24
ISX0648D05
ISX0648D12
ISX0648D15
Notes
1. Input currents measured at nominal input voltage.
2. Input current is typically 10 mA at nominal input voltage when output is
remotely turned off.
3. Maximum capacitive load is per output.
4. For optional water washable version, add suffix ‘-P’ e.g. ISX0624S12-P.
Mechanical Details
0.87 (22.0)
0.08
(2.11)
16
0
0.2
(5.08)
0.70 (17.78)
0.20
(5.08)
1.06
(26.8)
0.80
(20.3)
0.5
(12.7)
11
9
1.0
(25.4)
0.8
(20.3)
Top View
0.4
(10.05)
0.01
(0.15)
0~
4
S
Seating
Plane
0.93
(23.55)
1 2
6
8
0.1
(2.54)
0.1 S
0.06 (1.5)
±0.4 ±0.02
(10.2 ±0.5)
S
0
0.10
(2.54)
0.07
(1.7)
0.13
(3.25)
1
www.xppower.com
ISX06 Series
Input
Characteristic
Input Voltage Range
Input Filter
Input Reflected Ripple
Input Surge
Undervoltage Lockout
Remote On/Off
ON at >4.5 V, OFF at <8 V
ON at >8.5 V, OFF at <17 V
ON: Logic high (2.5 - 50 V) or open circuit
OFF: Logic low (<0.8 V) or short pin 1 to pin 2
Minimum
9
18
Pi type
20
50
100
Typical
Maximum
36
75
DC-DC Converter
Units
VDC
VDC
mA pk-pk
VDC for 1 s
VDC for 1 s
Notes & Conditions
24 V nominal
48 V nominal
Through 12 µH inductor and 47 µF capacitor
24 V models
48 V models
24 V models
48 V models
Output
Characteristic
Output Voltage
Initial Set Accuracy
Output Voltage Balance
Minimum Load
Line Regulation
Load Regulation
Cross Regulation
Transient Response
Ripple & Noise
Overload Protection
Short Circuit Protection
Maximum Capacitive Load
Temperature Coefficient
0.02
%/ ˚C
110
150
3
100
±0.5
±0.5
±1.0
±1.2
±5
Minimum
3.3
±1.0
±1.0
Typical
Maximum
30
±2.0
Units
VDC
%
%
A
%
%
%
% deviation
mV pk-pk
%
15% to 100% load
On dual output models when one load is varied between
25% and 100% and other is fixed at 100%
Recovery within 1% in less than 600 µs for a 25% load
change.
20 MHz bandwidth. Measured using 0.47 µF ceramic
capacitor.
Foldback
Continuous, with auto recovery
See Models and Ratings table
For dual output with balanced laods
See Models and Ratings table
Notes & Conditions
See Models and Ratings table
General
Characteristic
Efficiency
Isolation: Input to Output
Isolation Resistance
Isolation Capacitance
Switching Frequency
Power Density
Mean Time Between Failure
Weight
Moisture Sensitivity Level
Level 2
350
0.017 (7.8)
1500/1800
10
9
Minimum
Typical
80
Maximum
Units
%
VDC
pF
kHz
W/in
3
kHrs
lb (g)
Ω
Notes & Conditions
See Models and Ratings table
60 s/1 s
At 500 VDC
1200
330
1500
17.2
MIL-HDBK-217F, +25 °C GB
IPC/JEDEC J-STD-020D.1
Environmental
Characteristic
Operating Temperature
Storage Temperature
Case Temperature
Humidity
Cooling
Case Flammability
Lead-Free Reflow Solder Process
UL 94V-0 Rated
Minimum
-40
-50
Typical
Maximum
+100
+125
+105
95
Units
°C
°C
°C
%RH
Non-condensing
Natural convection
Non conductive black plastic
IPC/JEDEC J-STD-020D.1
Notes & Conditions
See Derating Curve.
www.xppower.com
2
ISX06 Series
Safety Approvals
Safety Agency
CB
CSA
Safety Standard
IEC60950-1
UL60950-1 & CSA-C22.2 No. 60950-1
DC-DC Converter
Notes & Conditions
ITE
ITE
EMC: Emissions
Phenomenon
Conducted
Standard
EN55032
Test Level
Class A
Notes & Conditions

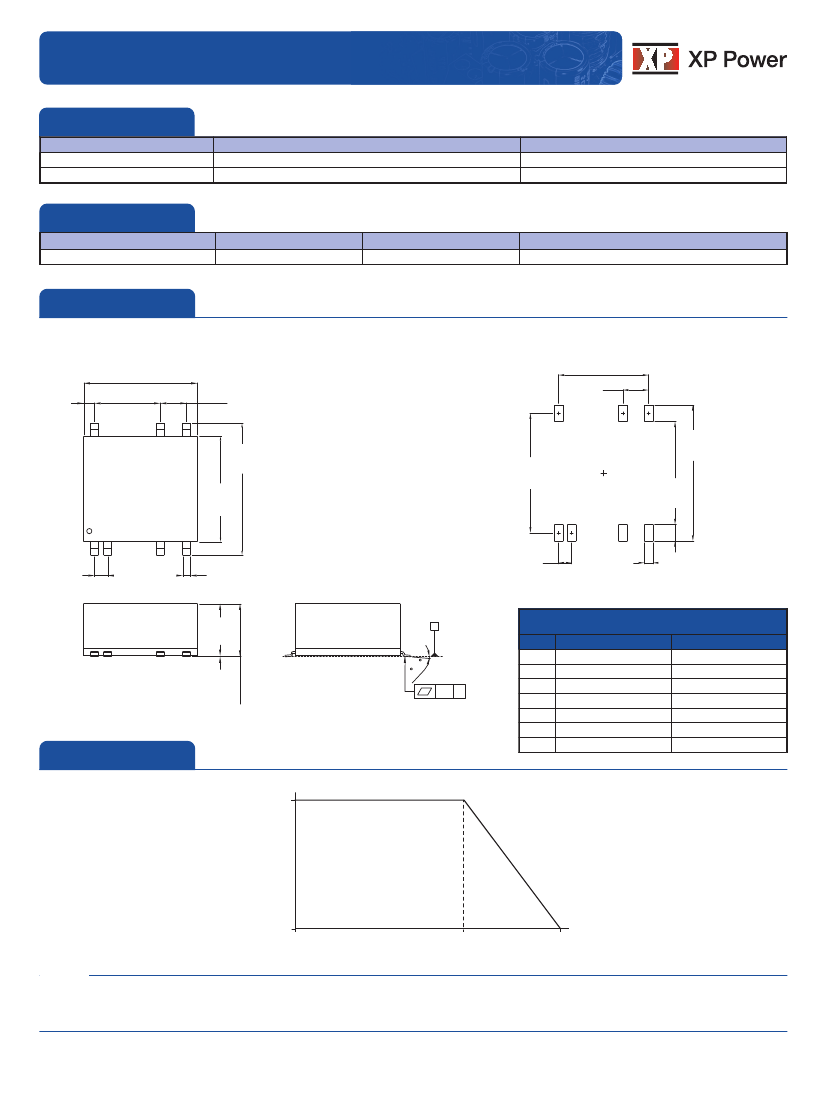

Mechanical Details
Connecting Pin Pattern
0.87 (22.0)
0.08
(2.11)
16
0.70 (17.78)
0.2
(5.08)
0.20
(5.08)
1.06
(26.8)
0.80
(20.3)
0.5
(12.7)
11
9
1.0
(25.4)
0.8
(20.3)
Top View
0.93
(23.55)
1 2
6
8
0.1
(2.54)
0.06 (1.5)
0.10
(2.54)
0.07
(1.7)
0.13
(3.25)
0.4
(10.05)
0.01
(0.15)
±0.4 ±0.02
(10.2 ±0.5)
0~
4
S
Seating
Plane
Pin Connections
Pin
1
2
6
8
9
11
16
Single
Remote On/Off
-Vin
No Connection
No Connection
+Vout
-Vout
+Vin
Dual
Remote On/Off
-Vin
Common
-Vout
+Vout
Common
+Vin
0.1 S
Application Notes
Derating Curve
Output Power (%)
0
-40
100
60
Ambient Temperature (°C)
100
Notes
1. All dimensions are in inches (mm)
2. Weight: 0.017 lbs (7.8 g) approx.
3. Tolerance: X.XX±0.01 (X.X±0.25)
X.XXX±0.005 (X.XX±0.13)
4. Pin Tolerance: ±0.002 (±0.05)
3
www.xppower.com
