124298: DescriptionBoard Connector, 3 Contact(s), 3 Row(s), Male, Right Angle, Press Fit Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size42KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

124298 Overview

Board Connector, 3 Contact(s), 3 Row(s), Male, Right Angle, Press Fit Terminal, Locking, Receptacle,

124298 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.563 inch
subject depth	0.878 inch
body length	0.461 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P3
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	5 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	124298
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

verpackt in Tray

VPE: 72 St.

322,6

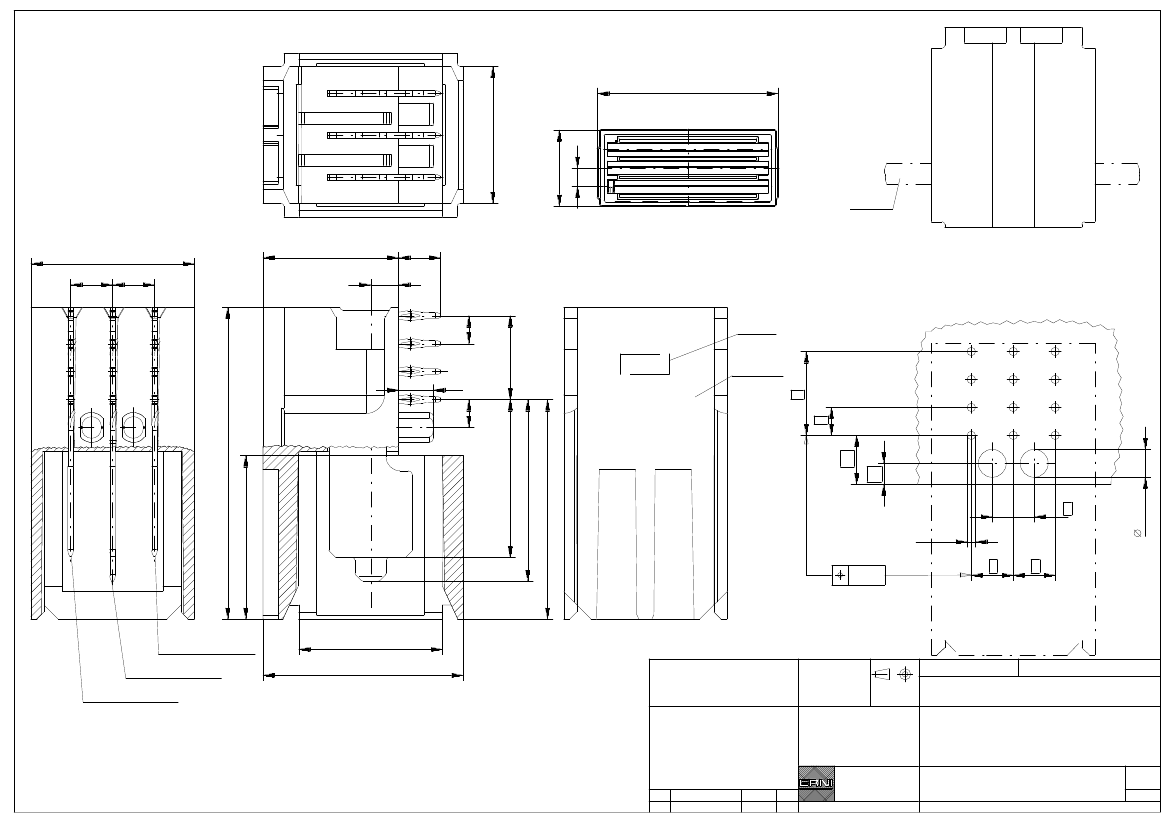

Bestückungsplan /

contact layout

Ansicht Steckseite /

engaging view

S = Short

M = Middle

S

M

S

9,8

135,9

33

ANTISTATIC

084347 PS

LP/ PCB

11,7

3

9,7

2

3

-0,25

position A

B

C

Lochbild für Leiterplatte /

Board hole pattern

A

B

C

A

B

C

2

Datum

Date

Id.-Nr.

3x2=

6

2,5

124298 RC

ERNI

11,3

13

15,7

3x2=

2

(6)

2

3,5

1,5

22,3

3

1)

alle Löcher/

0.05

all holes

3

11,7

position A : Short

position B : Middle

position C : Short

10,3

14,3

Information:

Tolerances

ISO 2768-m

Consider protection memo from DIN 34

Scale

All Dimensions

in mm

5:1

1)

ø 0,6

±0,05

Durchmesser des metallisierten Loches

ø 0,6

±0,05

Diameter

of finished plated-through hole

Anforderungsstufe 2

class 2

Schichtaufbau im metallisierten Loch siehe Zchng. 114406.

Metal plating of plated-through hole see drawing 114406.

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

ERmet Messerleiste PM 14,3

ERmet Male PM 14,3

www.ERNI.com

c

Index

12.01.2005

Date

H:00045317.SZA

124298

ERMPM

2

I

+0,05
