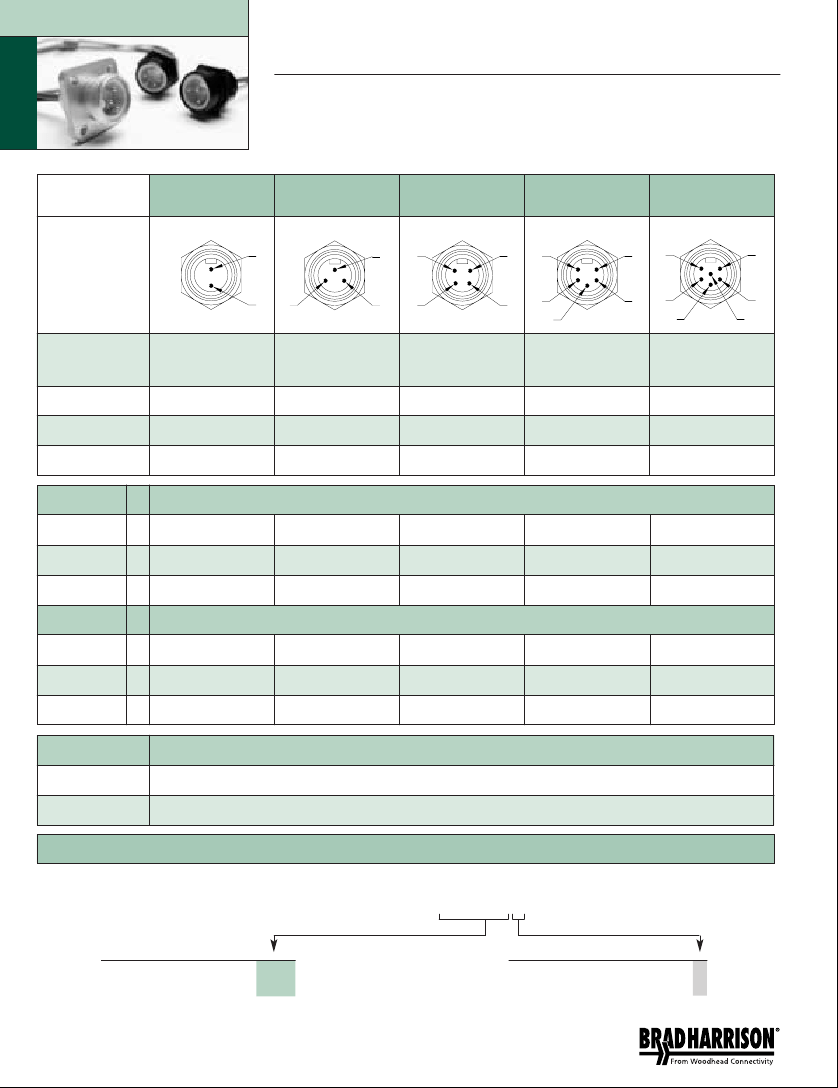

Mini-Change Receptacles
®
2P to 6P
Receptacles
#16 AWG PVC 12-inch leads – U.S. color code, epoxy potted
Straight, 90° and flange mount in male and female versions
Low-resistance contact design with gold/palladium nickel plating
2P
1
3P
1
1
4P
4
1
5P
5
1
6P
5
MALE FACE
VIEW
2
2
3
2
3
2
3
4
2
3
6
4
COLOR CODE
VOLTAGE
CURRENT
CONDUCTOR
MALE
STRAIGHT
90˚
FLANGE MOUNT
FIG
1- white
2- black
1- green-gnd
2- black
3- white
1- black
2- white
3- red
4- green-gnd
1- white
4- orange
2- red
5- black
3- green-gnd
1- white
4- orange
2- red
5- black
3- green-gnd 6- blue
600V AC/DC
13A
#16-2
600V AC/DC
13A
#16-3
600V AC/DC
10A
#16-4
600V AC/DC
8A
#16-5
600V AC/DC
8A
#16-6
RECEPTACLES
1R2006A20A120
1R2007A20A120
1R2G06A20A120
WITH #16 AWG PVC LEADS 12 INCHES LONG
1
3
2
FIG
1R3006A20A120
1R3007A20A120
1R3G06A20A120
1R4006A20A120
1R4007A20A120
1R4G06A20A120
1R5006A20A120
1R5007A20A120
1R6006A20A120
1R6007A20A120
1R5G06A20A120 1R6G06A20A120
FEMALE
STRAIGHT
90°
FLANGE MOUNT
RECEPTACLES
1R2004A20A120
1R2005A20A120
1R2G04A20A120
WITH #16 AWG PVC LEADS 12 INCHES LONG
1
3
2
1R3004A20A120
1R3005A20A120
1R3G04A20A120
1R4004A20A120
1R4005A20A120
1R4G04A20A120
1R5004A20A120
1R5005A20A120
1R6004A20A120
1R6005A20A120
1R5G04A20A120 1R6G04A20A120
PART NO.
5601
5611
ACCESSORIES
Locknut 1/2"-14NPT, zinc plated steel
Gasket, black neoprene
CATALOG OPTIONS
Use the following chart to modify your part’s specifications
1R2006A20A1201
CABLE LENGTH
3' . . . . . . . . . . . . . . . . F030
6' . . . . . . . . . . . . . . . . F060
SHELL
STAINLESS STEEL SHELL .ADD 1
NON-METALLIC SHELL . .ADD 2
(AVAILABLE ON MALE & FEMALE
STRAIGHT RECEPTACLES ONLY)
46
1 - 8 0 0 - 2 2 5 - 7 7 2 4
SALES AND TECHNICAL SUPPORT
Mini-Change Receptacles
®

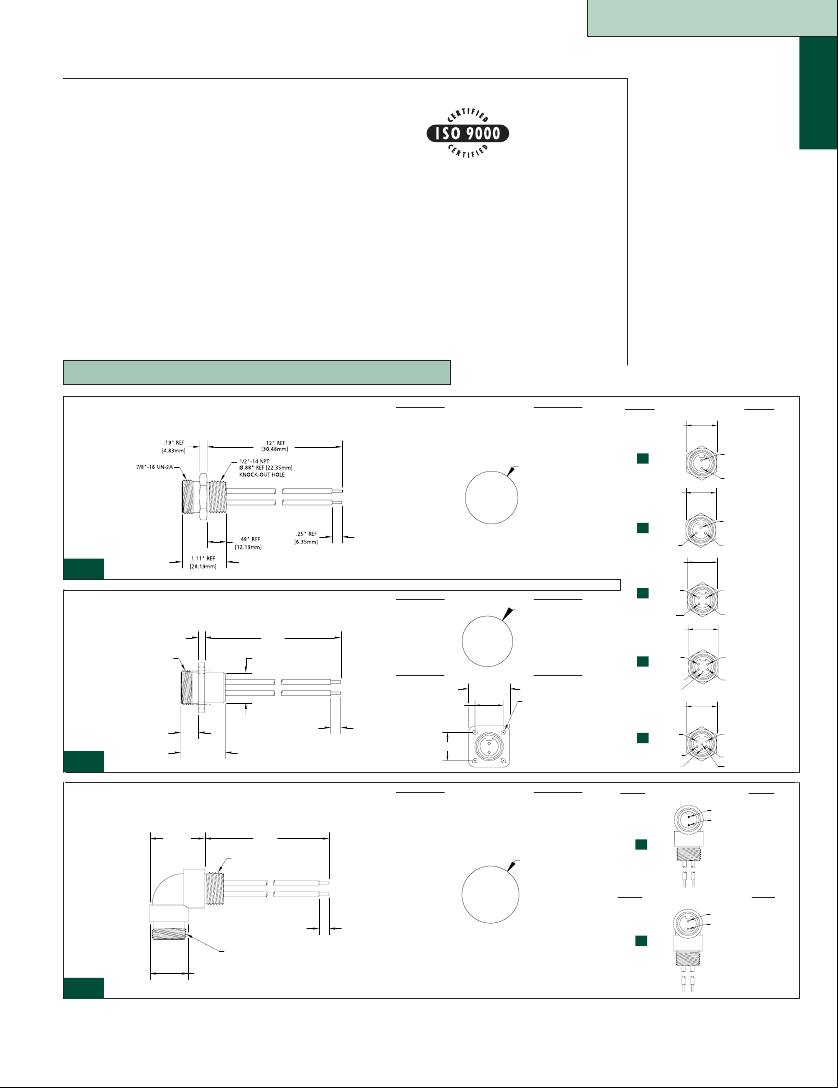

RECEPTACLE DIMENSIONS
MALE STRAIGHT WITH 1/2" - 14NPT THREADS
FEMALE STRAIGHT WITH 1/2" - 14NPT THREADS
MECHANICAL
SHELL: ZINC DIECAST W/ BLACK EPOXY
COAT, OPTIONAL STAINLESS STEEL
TYPE 303 OR NON-METALLIC GRAY
NYLON 6/6
90˚: ZINC DIECAST W/ BLACK E-COAT
FLANGE MOUNT: GRAY ANODIZED
ALUMINUM
INSERT: PVC - UL STD 94 - V0
CONDUCTORS: #16 AWG, PVC INSULATION OVER 26
X #30 COPPER STRANDING, 600V, UL
STYLE I015 CSA TEW
ELECTRICAL
VOLTAGE RATING: 600 V AC/DC
AMPERAGE: 2P - 13A
3P - 13A
4P - 10A
5P - 8A
6P - 8A
ENVIRONMENTAL
PROTECTION: IP 68, NEMA 6P
AMBIENT OPERATING TEMP: -4° TO 221° F (-20° TO 105° C)
CERTIFICATIONS
UL: UL RECOGNIZED, FILE NO. E46237
CSA: CSA CERTIFIED, FILE NO. LR6837
TYPICAL KNOCKOUT
FEMALE FACE VIEW
1.00" REF
[25.40mm]
.88"
[22.2mm]
2P
1-WHITE
2-BLACK
1.00" REF
[25.40mm]
KNOCK-OUT HOLE
1-GREEN
3P
3-WHITE
2-BLACK
FIG 1
MALE FLANGE MOUNT
FEMALE FLANGE MOUNT
.16" REF
[4.06mm]
7/8"-16 UN-2A
12" REF
[30.48mm]
Ø.75" REF
[19.05mm]
1.00" REF
[25.40mm]
TYPICAL KNOCKOUT
.78"
(19.8mm)
4P
4-GREEN
1-BLACK
3-RED
1.00" REF
[25.40mm]
2-WHITE
KNOCK-OUT HOLE
5P
5-BLACK
1-WHITE
MOUNTING DETAIL
1.25" SQ REF
[31.8mm]
.86"
[21.8mm]
.12" x .19"
[3.1 x 4.8mm]
4-ORANGE
3-GREEN
2-RED
1.00" REF
[25.40mm]
.44" REF
[11.18mm]
1.11" REF
[28.19mm]
.25" REF
[6.35mm]
6P
.86"
[21.8mm]
5-BLACK
1-WHITE
FIG 2
4-ORANGE
3-GREEN
2-RED
6-BLUE
MALE 90˚ WITH 1/2" - 14NPT THREADS
FEMALE 90˚ WITH 1/2" - 14NPT THREADS
1.38" REF
[35.05mm]
12" REF
[30.48mm]
1/2"-14 NPT
TYPICAL KNOCKOUT
TYPICAL MALE FACE VIEW
1
2
2P
.88"
[22.2mm
KNOCK-OUT HOLE
TYPICAL FEMALE FACE VIEW
1
2
.25" REF
[6.35mm]
2P
7/8"-16 UN-2A
Ø.97" REF
[24.64mm]
FIG 3
w w w. c o n n e c t o r. c o m
FA X
1-847-272-8133
47
2P to 6P
Specifications
