REV ZONE
A1
-
ECO
-
REVISIONS
DESCRIPTION
TECHNICAL DATA SHEET RELEASE
DATE
08-OCT-15
BY
JLAG
CHK APPR
-
-
LENGTH Mxx
58.84MM
25.40MM
60.39MM
25.40MM
MN47A4AC01M*** DOM: YYMMDD LOT: XXXXXX
Amphenol Sine Systems
VOLTS: 600 AMPS: 10
Risk of Electrical Shock
Do Not Disconnect Under Load.
Risque de chocs electriques
Ne pas debrancher sous tension.
P1
P2
P1
3
4
1
2
3
WIRING DIAGRAM
P2
4
3
1
2
3
4
BLACK
WHITE
RED
GREEN
2
FACE VIEW
1
4
1
2
TECHNICAL DATA:
1) MATERIALS:
COUPLING NUT: MACHINED ALUMINUM, ANODIZED
INSULATION INSERT: THERMOPLASTIC, UL 94/V-0
CONTACT: GOLD FLASH PLATING OVER COPPER ALLOY
OVERMOLD MATERIAL: THERMOPLASTIC COLOR: YELLOW
CABLE RATING: UL LISTED TYPE STOOW, CSA CERTIFIED TYPE ST, FT2 FLAME RATING, 600V, 105°C
CABLE JACKET MATERIAL: PVC COLOR: YELLOW
CONDUCTOR INSULATION: PVC
NUMBER OF CONDUCTORS: (4) 16AWG
2) ELECTRICAL DATA:
CURRENT (MAX): 10A
VOLTAGE (MAX): 600V AC/DC
INSULATION RESISTANCE (MIN): 5000M OHMS
DIELECTRIC TEST VOLTAGE: 2200V
3) MECHANICAL DATA:
TEMPERATURE RANGE: -20°C TO +105°C
PROTECTION: IP67 (MATED CONDITION)
MATING CYCLES: >500
VIBRATION RESISTANCE PER MIL-STD-202 METHOD 204
THERMAL SHOCK PER MIL-STD-202 METHOD 207
48 HOUR SALT SPRAY PER MIL-STD-202 METHOD 101
4) RoHS COMPLIANT
5) UL 2238 LISTED ASSEMBLY
UL FILE NUMBERS: E224856
Risk of Electrical Shock
Do Not Disconnect Under Load.
Risque de chocs electriques
Ne pas debrancher sous tension.
WARNING
TOLERANCE
0-2.99 M = +100.0/-25.0mm
3-8.99 M = +150.0/-25.0mm
9-14.99 M = +300.0/-25.0mm
15-OVER M = +450.0/-25.0mm
QUANTITY
1)
2)
1
2
3
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
UNLESS OTHERWISE SPECIFIED
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
DATE
3) Note reference =
X
MATERIAL SPECIFICATIONS:
KMM
MRF
KMM
RFC
12-MAY-14
12-MAY-14
12-MAY-14
Amphenol
Sine Systems - www.sineco.com
44724 Morley Drive
Clinton Township, MI 48036
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.

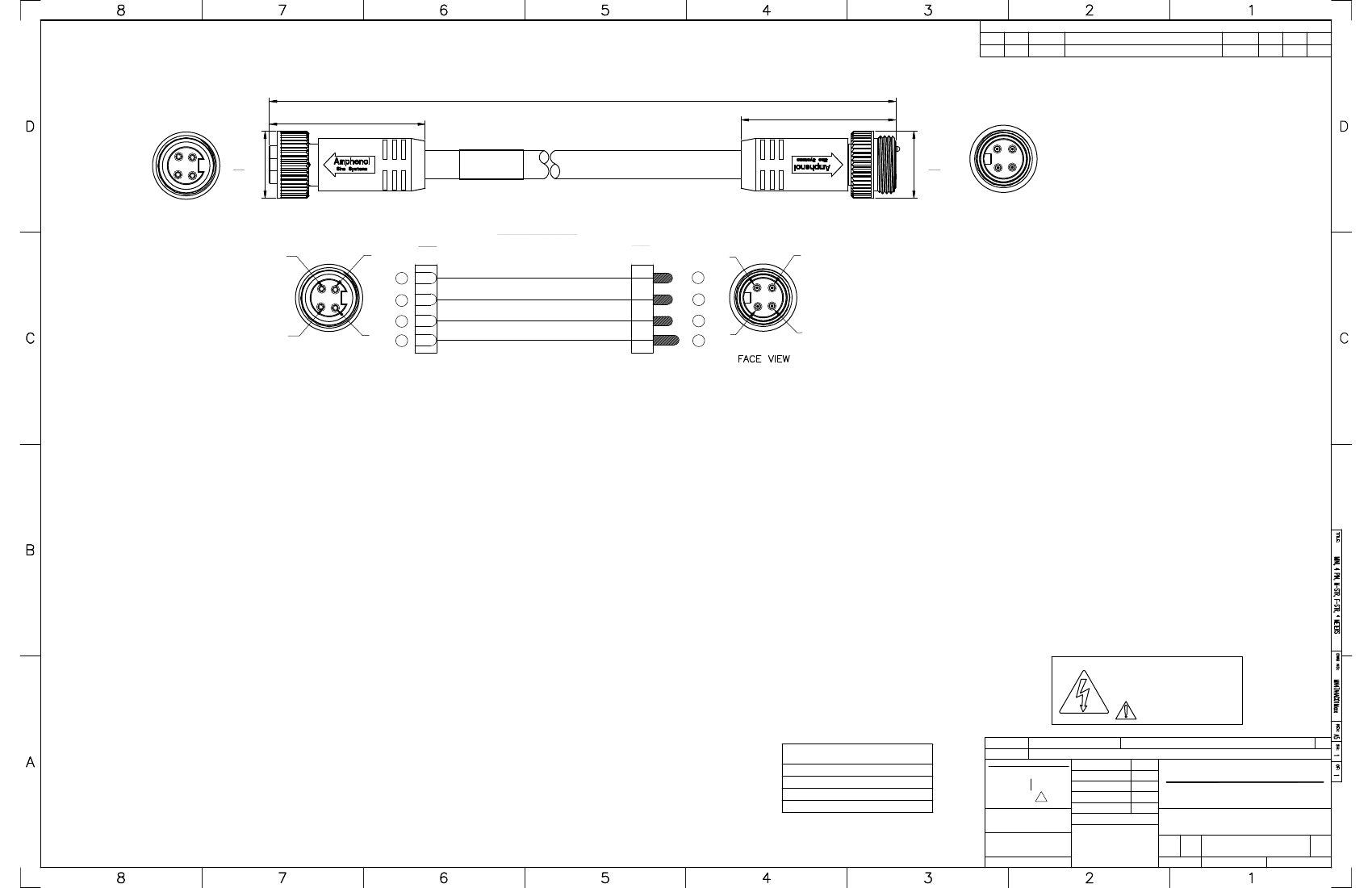

MINIBOSS M22 (7/8"), 4 PIN, MALE INLINE,
STRAIGHT TO FEMALE, STRAIGHT, 16 AWG,
STOOW, PVC JACKET
TYPE
DWG NO:
REVISION
C-
HALF
MN47A4AC01M
MN47A4AC01M
SHEET
A1
1
OF
1
