Technical Data Sheet
N – 7/16
Adaptor
N Jack – 7/16 Jack
53K160-KIMN1
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

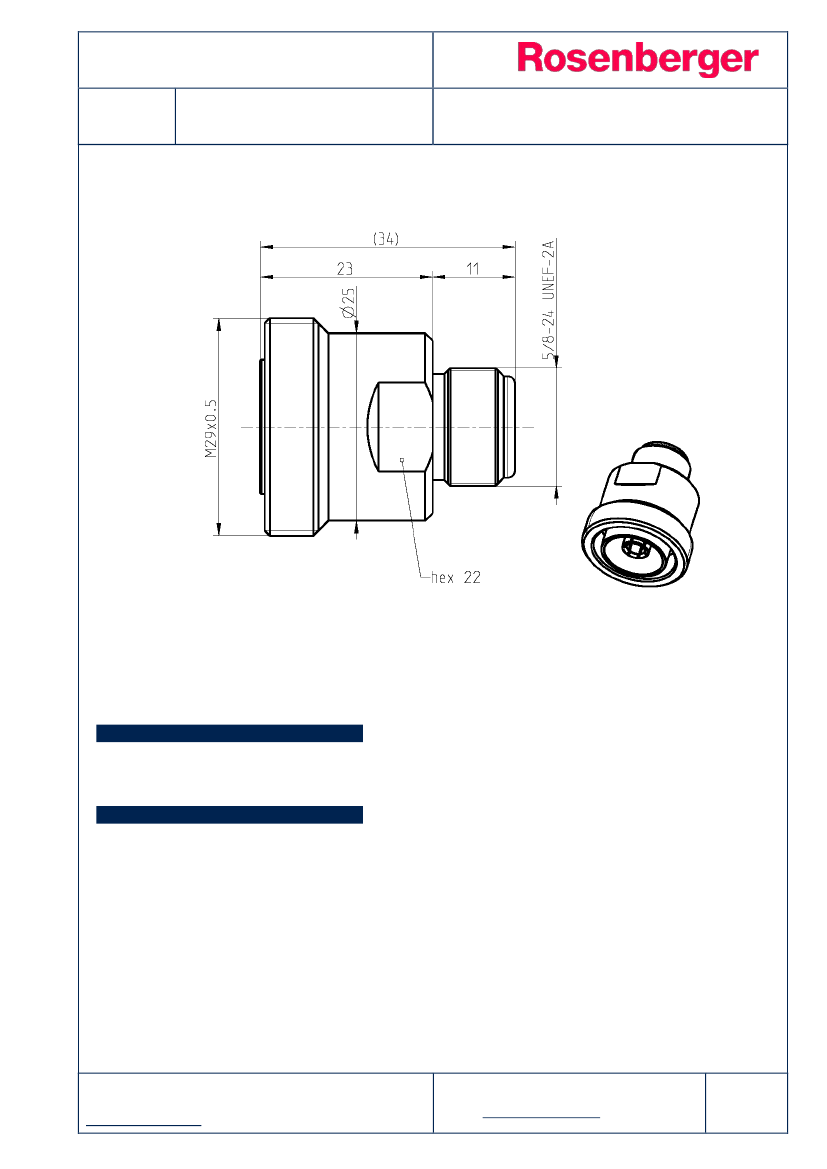

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
N side:
7/16 side:
IEC 61169-16, MIL-PRF-39012, CECC 22210
IEC 61169-4, EN 122190, DIN 47223
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
CuBe or equiv.
Brass
PTFE
Plating
Silver, 3-6 µm
Flash white bronze over silver(e.g. Optargen®)
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
N – 7/16
Adaptor
N Jack – 7/16 Jack
53K160-KIMN1
Electrical data
Impedance
Frequency
Return loss
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
Intermodulation
(3
rd
order)
50
Ω
DC to 7.5 GHz
≥
37 dB, DC to 2.5 GHz
≥
36 dB, 2.5 to 4 GHz
≥
25 dB, 4 to 7.5 GHz
≤
0.05 dB
3
≥
5 x10 MΩ
≤
1 mΩ, N side;
≤
0.4 mΩ, 7/16 side
≤
0.25 mΩ, N side;
≤
1.5 mΩ, 7/16 side
500 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
≥
128 dB up to 1 GHz
≤
-130 dBm @ 2 x 20 W
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
radial
Coupling test torque
Recommended torque
N side
min. 500
≥
450 N
≥
200 N
≥
3 Ncm
max. 1.7 Nm
0.7 Nm to 1.1 Nm
7/16 side
min. 500
≥
1000 N
≥
200 N
≥
3 Ncm
max. 35 Nm
25 to 30 Nm
Environmental data
Temperature range
Rapid change of temperature
Corrosion salt mist
Vibration
Shock
Climatic class
Cold
Dry heat
Damp heat (steady state)
Degree of protection (mated pair)
RoHS
-45°C to +85°C
IEC 60068-2-14 Test Na
IEC 60068-2-11 Test Ka
IEC 60068-2-6 Test Fc
IEC 60068-2-27 Test Ea
IEC 60068-1 (45/85/56)
IEC 60068-2-1 Test A
IEC 60068-2-2 Test B
IEC 60068-2-3 Test Ca
IEC 60529, IP68
compliant
Weight
Weight
73 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Martin Wimmer
Date
30.07.2013
Approved
Rong Fang
Date
12.04.17
Rev.
a00
Engineering change number
17-s027
Name
S. Krautenb.
Date
10.04.17
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
