Panel Actuators and Indicators
Type PL 22
Two Colours Pilot Light
• Ø 22mm (Ø 0.87”) dimension
• Two colours lamp
• High brightness pure colour LED
• High reliability and durability
• AC and DC voltage
• cULus and CE
• IEC/EN 60947-5-1, IEC/EN 60073, IEC/EN 60529, UL 508
PL 22S TC
Product description
Pilot lights are panel mounted
lamp assemblies consisting of
the indicator housing, an
internal lamp, terminals, and a
lens. Applications include
industrial control panels of all
types, equipment indicator
panels, status indicators and
display lighting.
The light source is high
brightness pure colour LED.
Ordering key
Series
Dimension
Type
Colour
Voltage
PL 22S TC RG 24
Approvals
Dimension and style
22S =
Ø22mm (Ø0.87”) standard size
3MHG
Technical data
Rated imp. withstand voltage U
imp
Rated insulation Voltage U
i
Allowable voltage fluctuation
Continuous operating life
Ultrahigh brightness
Applying frequency
Current consumption (AC/DC)
Operating temperature
Storage temperature
Degree of protection
2500VAC 50Hz 1min.
500VAC
±20%
≥100.000h
≥100cd/m
2
(≥9.29ftc)
50-60Hz
≤18mA
-25 to +70°C (-13 to +158°F)
-30 to +80°C (-22 to +176°F)
IP 65
Type
TC =
Two colours
Colours
RG=
Red and Green
RY=
Red and Yellow
RB=
Red and Blue
Voltage
06
12
24
48
=
=
=
=
6VAC/DC
12VAC/DC
24VAC/DC
48VAC/DC
110
220D
220A
380A
=
=
=
=
110VAC/DC
220VDC
220VAC
380VAC
Dimensions
mm/inches
Ø29/1.14”
7/0.28”max
Ø22/0.87”
“STC” Type
1
Specifications are subject to change without notice. Pictures are just an example. For special features and/or custumization, please ask to our sales network. 122011
50/1.97”
13/0.51”

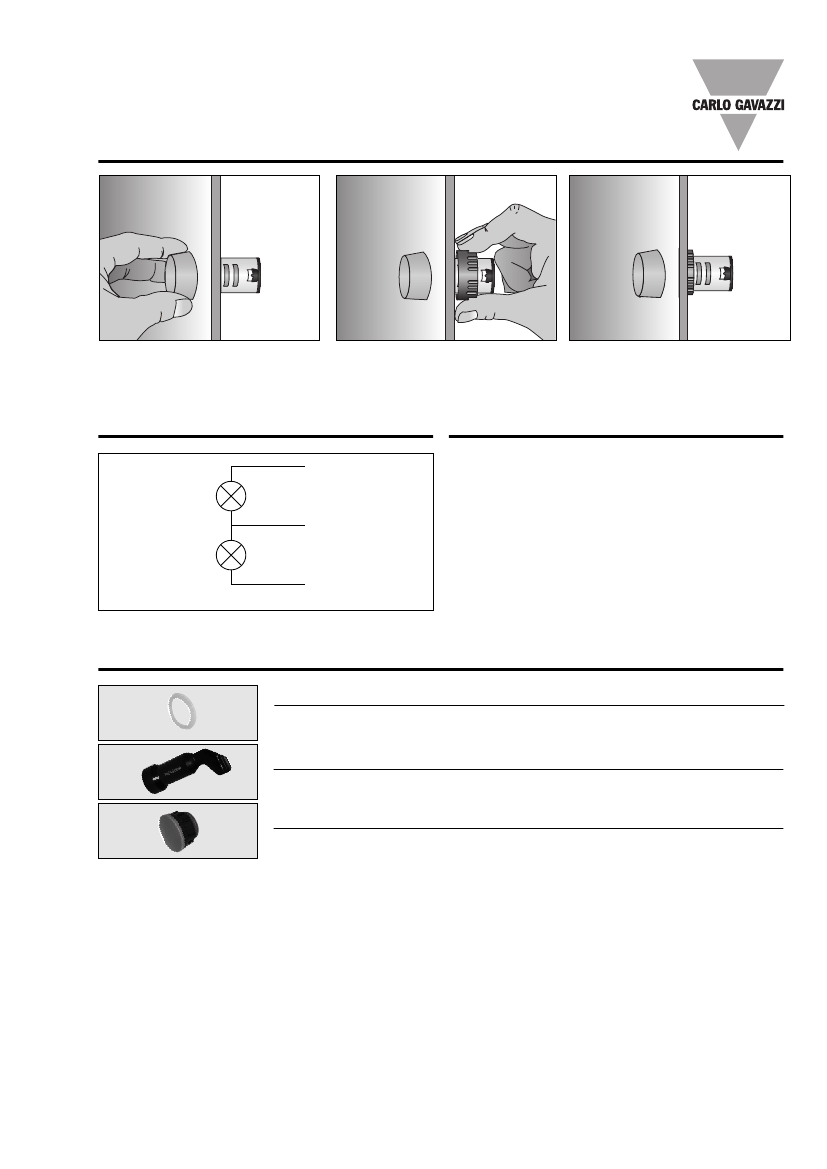

Mounting
Just insert the pilot light into the hole of
the pannel.
The pilot light will be secured at the
back by the plastic nut
The pilot light has been installed.
Wiring Diagram
X1
Red
Wiring Notes
1) Use 60°C or 75°C copper (CU) conductor and wire size
range 18AWG, stranded or solid.
2) Terminal tightening torque 0.6Nm (5.3in.lb)
3) Recommended external fuse - listed or R/C fuses,
Supplemental (JDYX, JDYX2) rated 3A mmaximum.
X0
Green
“STC” Type
X2
Accessories for Panel Indicators
Reducing ring for Pilot Light Ø22mm (0.87”)
To mount the Ø22mm (0.87”) pilot light into the hole
for Ø25mm (0.98”) of the panel.
ABS
Ø25mm/Ø0.98”
PA RR 2
Fastering connector for Pilot Light Ø22mm (0.87”)
Improve the quality of installation and
reduce the time of installations.
PC
PA PL CONN
Panel hole cap Ø22mm (0.87”)
For blocking up prepared or useless holes
on the panels.
ABS
PA PHC 22
Specifications are subject to change without notice. Pictures are just an example. For special features and/or custumization, please ask to our sales network. 122011
2
