NOTES:
1. MATERIALS AND FINISHES:
HD-BNC STR PLUG - BRASS, NICKEL PLATING
BERYLLIUM COPPER, NICKEL PLATING
PHOSPHOR BRONZE, GOLD PLATING
PTFE, NATURAL
BNC CRIMP JACK - BRASS, NICKEL PLATING
PHOSPHOR BRONZE, GOLD PLATING
PTFE, NATURAL
CABLE
- BELDEN 4855R
2. ELECTRICAL:
A. IMPEDANCE: 75 OHM
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 95-850-193-XXX , AND DATE CODE"
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
DESCRIPTION
10-Apr-18
DATE
7641
ECO
APPR
BMG
SCALE
0.500
LENGTH "L" (SEE TABLE)
HD-BNC STR PLUG
BELDEN 4855R CABLE
MARK:"AMPHENOL RF
95-850-193-XXX
DATE CODE"
BNC CRIMP JACK
INTERFACE
SERIES: HD-BNC PLUG
HEAT SHRINK TUBE
TYP(2)
PART NUMBER
(IMPERIAL)
95-850-193-006
95-850-193-012
95-850-193-018
-
95-850-193-024
-
95-850-193-036
-
95-850-193-048
-
-
95-850-193-060
95-850-193-072
-
-
95-850-193-120
95-850-193-144
95-850-193-180
LENGTH TABLE
PART NUMBER
(METRIC)
-
95-850-193M025
-
-
95-850-193M050
-
95-850-193M075
95-850-193M100
-
95-850-193M125
95-850-193M150
-
-
95-850-193M200
95-850-193M300
-
-
-
95-850-193M500
95-850-193M10L
-
95-850-193M20L
-
95-850-193M30L
-
DESIGN REQUIREMENTS:
X
FREQUENCY : DC TO 12 GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT: 1000 VRMS
OTHER
MATERIAL
SEE NOTES
REFERENCE
EAR # 7771
CONFIGURATION LEVEL: In Work
95-850-193-300
-
95-850-193-600
-
95-850-193-900
-
95-850-193L100
LENGTH 'L' IN
INCHES [METERS]
6.00 [0.152]
9.84 [0.250]
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
49.21 [1.250]
59.06 [1.500]
60.00 [1.524]
72.00 [1.829]
78.74 [2.000]
118.11 [3.000]
120.00 [3.048]
144.00 [3.658]
180.00 [4.572]
196.85 [5.000]
300.00 [7.620]
393.70 [10.000]
600.00 [15.240]
787.40 [20.000]
900.00 [22.860]
1181.10 [30.000]
1200.00 [30.480]
DATE
23-Jun-17
DATE
23-Jun-17
DATE
10-Apr-18
INTERFACE PER
MIL-STD-348
SERIES: BNC JACK
CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
DRAWN
B. GREENBAUM
ENGINEER
B. GREENBAUM
APPROVED
K. CAPOZZI
TITLE

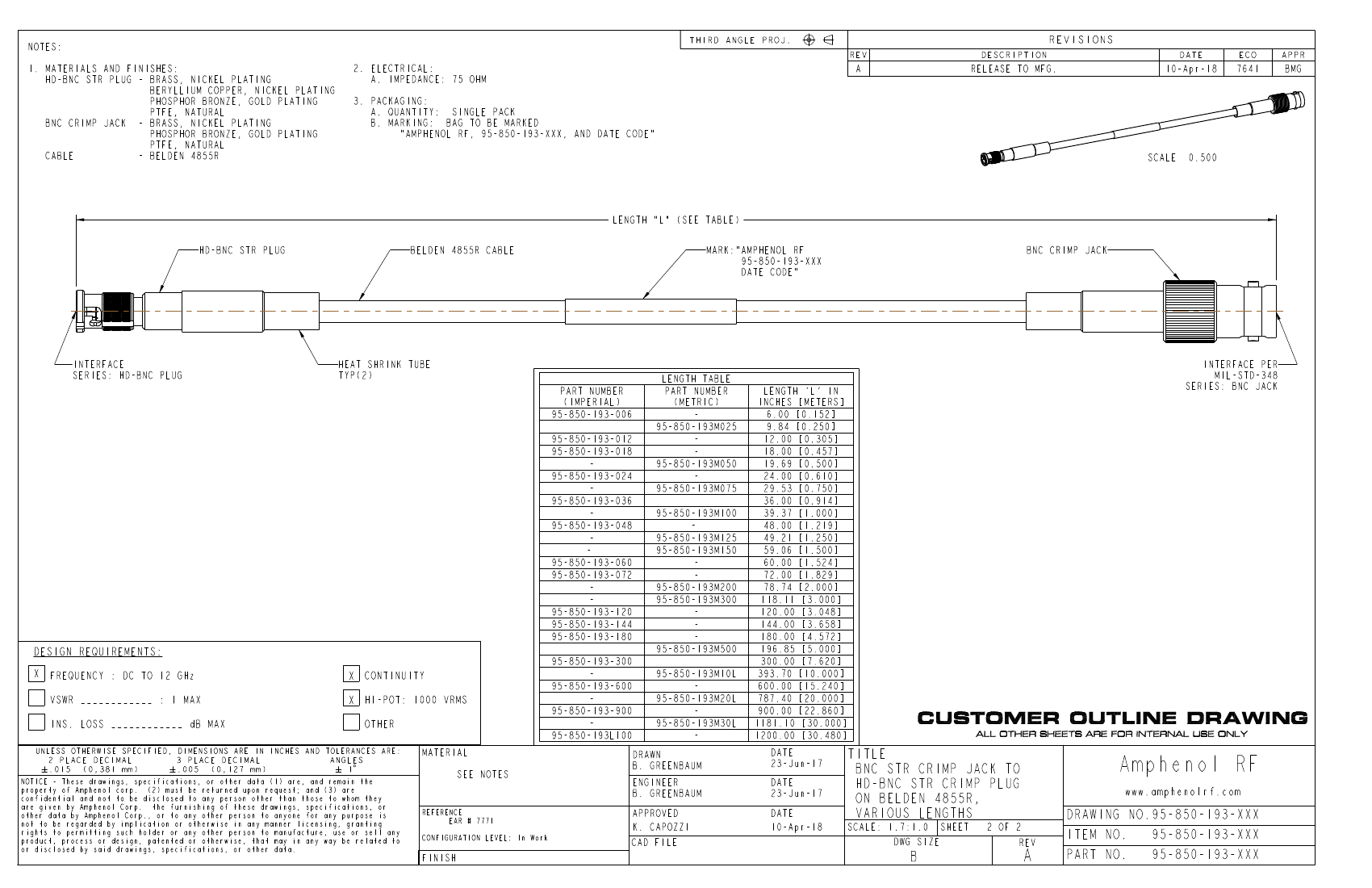

BNC STR CRIMP JACK TO
HD-BNC STR CRIMP PLUG
ON BELDEN 4855R,
VARIOUS LENGTHS
SCALE: 1.7:1.0
DWG SIZE
SHEET
Amphenol RF
www.amphenolrf.com
FINISH
CAD FILE
2 OF 2
DRAWING NO. 95-850-193-XXX
B
REV
A
ITEM NO.
PART NO.
95-850-193-XXX
95-850-193-XXX
