Polycarbonate and abS
QLINE D
Spec-00408
G
763.422.2211
763.422.2600
non-Metallic
Polycarbonate and abS
QlIne d
Qline d, tyPe 4X

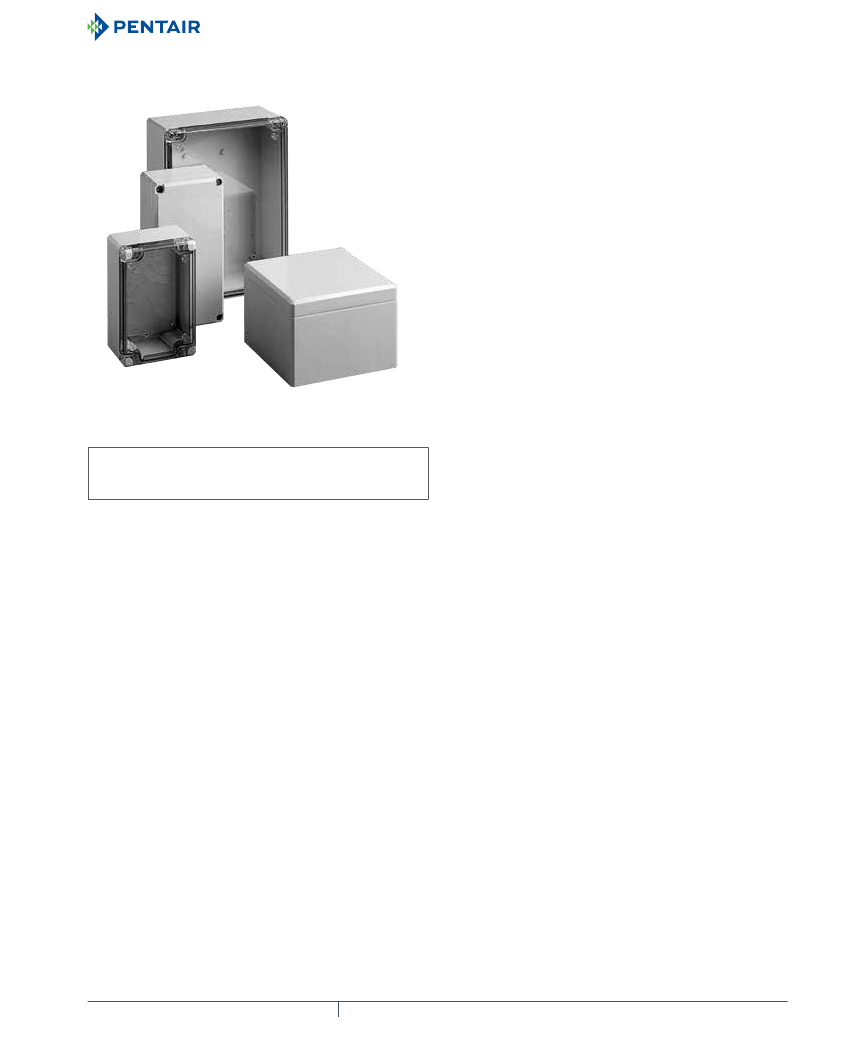

QLINE D polycarbonate and ABS enclosures have contoured
bodies with flush cover screws for an attractive, contemporary
appearance. Tough as well as stylish, they are functional in
corrosive environments and can withstand occasional submersion.
The ABS series shares the same features and similar physical
properties as the polycarbonate but is a more economical, non-UL
rated alternative.
aPPlication
SPeciFicationS
•
•
•
•
•
•
•
•
•
•
•
•
Body is impact-resistant polycarbonate for PCD series and ABS
for ABD series
Opaque and clear covers are impact-resistant polycarbonate for
PCD series and ABS for ABD series
Polycarbonate material is easily punched, drilled, filed or sawed
Straight side walls permit ganging of multiple enclosures
Cross-point captivated cover screws are stainless steel
Mounting holes molded directly adjacent to cover screws
Cover screws protected by removable caps that are aesthetic and
provide tamper resistance
Molded internal pads for mounting optional panels, rails and
other components
Panel mounting feature on both body and cover
Seamless foam-in-place gasket assures water-tight and dust-
tight seal
Screws provided for mounting optional panel
Material is halogen free
Polycarbonate enclosure
indUStry StandardS
UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No.
E61997
Enclosure flammability evaluated per UL 508A
NEMA/EEMAC Type 4, 4X, 6, 12, 13
CSA File No. 42186: Type 4, 4X, 6, 12, 13
IEC 60529, IP67
abS enclosure
NEMA/EEMAC Type 4, 4X, 6, 12, 13
IEC 60529, IP67
Polycarbonate and ABS enclosures are light-gray (RAL 7035) inside
and out. Optional panels are plated steel.
See also Accessories.
Hardware Kit
Hinge Kit
HOL-SEALERS Non-Metallic Hole Seals
Mounting Bracket Kit
Hoffman excels at modifying and customizing products to
your specifications. Contact your local Hoffman sales office or
distributor for complete information.
Bulletin: Q41
FiniSH
acceSSorieS
ModiFication and cUStoMiZation
1
non-Metallic
SUBJECT TO CHANGE WITHOUT NOTICE
EQUIPMENT PROTECTION
Spec-00408 G
Polycarbonate and abS
QLINE D

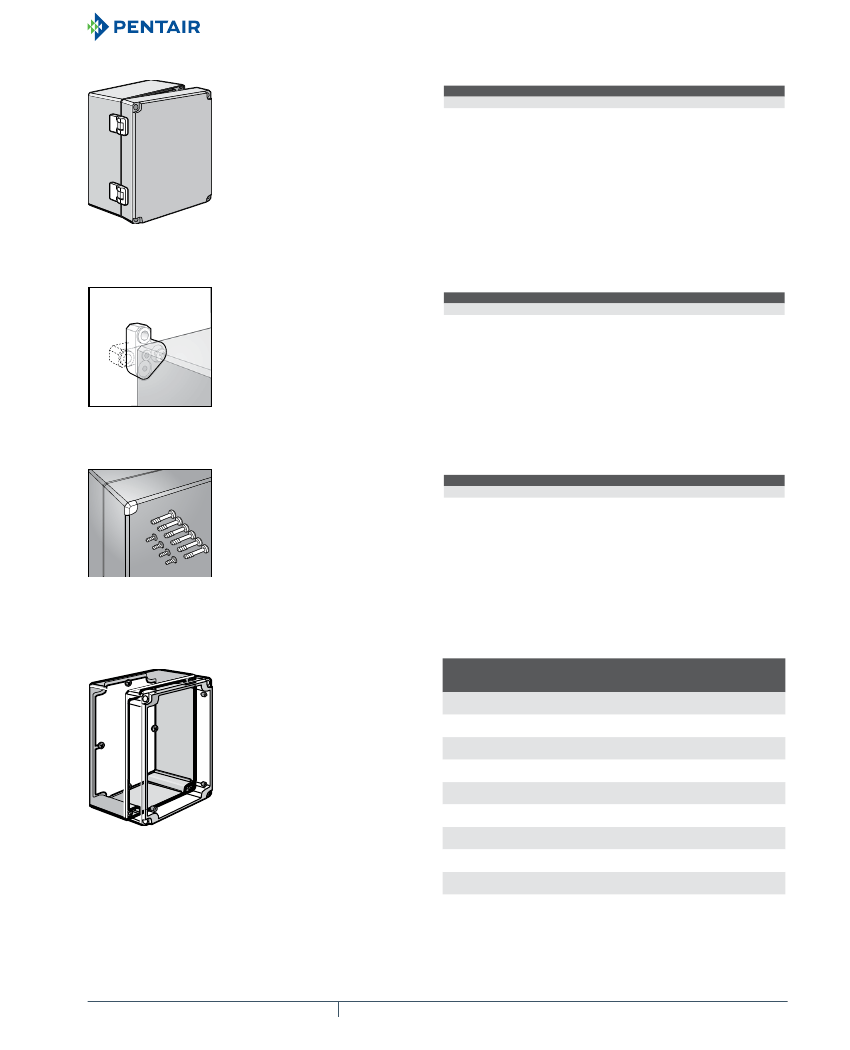

Hinge Kit
Hinge Kit includes two polyamide
hinges, eight M4 self-tapping, plated
screws, eight flat washers and
drilling templates. Use on all QLINE
D enclosures.
Hinge Kit meets Type 4
requirements.
Bulletin: Q41Y
Catalog Number
QDEHK
MoUnting bracKet Kit
Mounting Bracket Kit has four
polycarbonate brackets and four M4
self-tapping, plated screws. Kit is
field-installable. Use on all QLINE D
enclosures. Maintains listed ratings
for enclosure.
Bulletin: Q41Y
Catalog Number
QDMFK
Hardware Kit
Hardware Kit includes six self-
tapping, stainless steel cover
screws, four self-tapping plated
panel screws and six removable
plastic caps that fit over the screws
to provide tamper resistance as well
as a clean aesthetic appearance.
This kit is offered as a replacement
kit for lost or damaged hardware
originally furnished with the
enclosure.
Bulletin: Q41Y
Catalog Number
QDHK

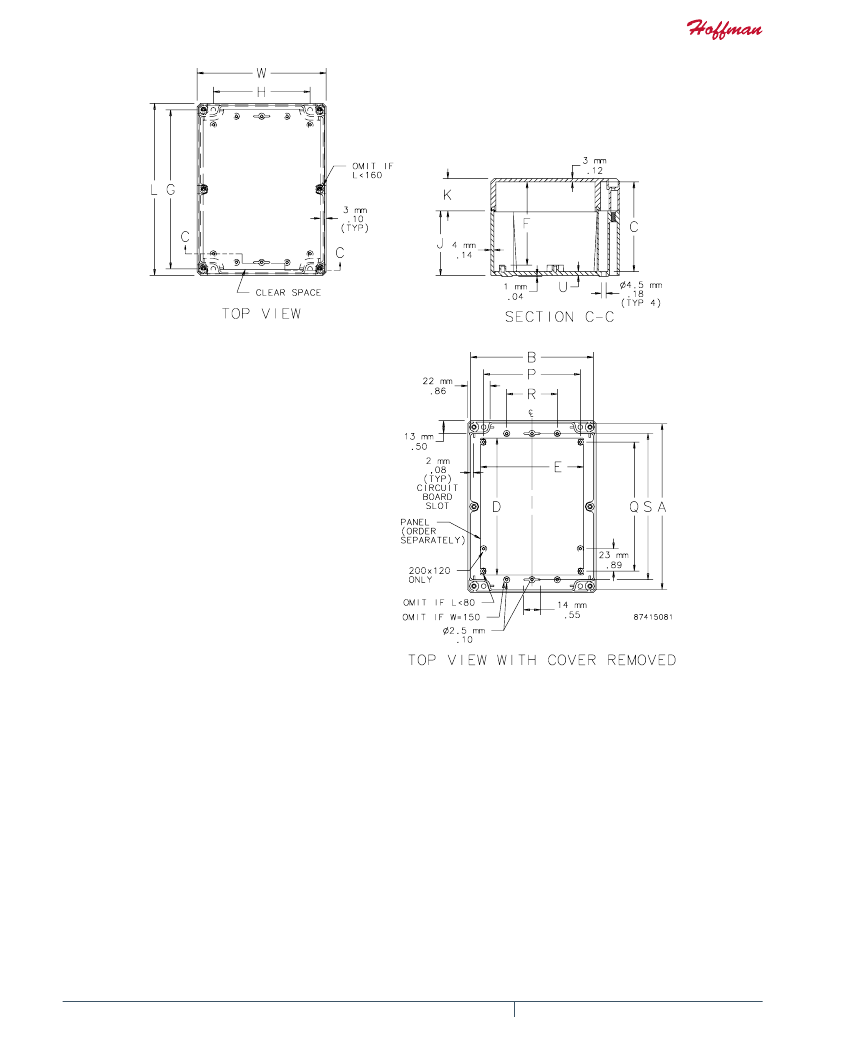

PanelS
Catalog Number
Q88PD
Q128PD
Q168PD
Q1212PD
Q1612PD
Q2012PD
Bulletin: Q41Y
Q2015PD
Q2416PD
Q3023PD
Panel Size
DxE
mm/in.
65 x 55
2.56 x 2.17
93 x 65
3.66 x 2.56
133 x 65
5.24 x 2.56
105 x 95
4.13 x 3.74
132 x 105
5.20 x 4.13
172 x 105
6.77 x 4.13
172 x 133
6.77 x 5.24
213 x 145
8.38 x 5.71
285 x 210
11.22 x 8.27
Mounting
GxH
mm/in.
44 x 60
1.71 x 2.28
82 x 60
3.21 x 2.28
121 x 60
4.78 x 2.28
98 x 84
3.86 x 3.29
160 x 90
6.30 x 3.54
160 x 90
6.30 x 3.54
160 x 118
6.30 x 4.65
201 x 138
7.93 x 5.43
255 x 198
10.04 x 7.50
5
non-Metallic
SUBJECT TO CHANGE WITHOUT NOTICE
EQUIPMENT PROTECTION
Spec-00408 G
