PIR Motion Sensor (EKMB, EKMC, AMN2, 3)
High-sensitive
human detection sensor
with built-in amp.
PIR MOTION SENSOR
WL series / VZ series
ADVANTAGES
• Simplified circuitry with fully integrated circuit design
• 1µA low current consumption with the proprietary design
• Excellent resistance to electromagnetic noise
• High Signal/Noise ratio to minimize false operation
• Environment-friendliness with “Lead-free” element
Long distance
detection type
Standard type
TYPICAL APPLICATIONS
• Lighting: lamp, automatic switch, street lighting
• Anti-crime devices: security camera, crime-prevention
sensor
• Home appliance: air conditioner, air purifier, fan heater
• Commercial equipments: vending machine, copy machine
• Audio and Visual devices: TV, PC, display
NaPiOn series
Standard type
Slight motion
detection type
Spot detection
type
10m detection
type
RoHS compliant
FEATURES
1. Sensing circuits enclosed in a TO5 can
The high-density embedded circuit design eliminates external
sensing circuits. Advantages include reduced development and
design schedules.
Lens
IC
Lens
PIR element
Chip parts
2. Super low current consumption
Reduction of current consumption allows battery life to be
extended for battery driven products, including wireless based
and low power consumption devices.
Capacitor
Sensor module
PC board
Shielded plate
3. Excellent noise resistance
(Radiations noise, power supply noise)
The entire circuitry is enclosed in a metal package, which means
it has high electromagnetic shielding capability.
Radiation
noise
Power supply
superimposed
Vd
noise
4. Miniaturized lenses with small elements
A short focal length is all that’s required even when detecting at
the same distance, which means both downsizing and high-
sensitivity are achieved.
Small
movement
OUT
GND
ASCTB240E 201208-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
PIR Motion Sensor (EKMB, EKMC, AMN2, 3)
PRODUCT TYPES
1. WL series
Detection performance
Lens color
White
Black
Pearl White
White
Black
Pearl White
1µA
EKMB1101111
EKMB1101112
EKMB1101113
EKMB1103111
EKMB1103112
EKMB1103113
Consumption current
2µA
EKMB1201111
EKMB1201112
EKMB1201113
EKMB1203111
EKMB1203112
EKMB1203113
6µA
EKMB1301111K
EKMB1301112K
EKMB1301113K
EKMB1303111K
EKMB1303112K
EKMB1303113K
Standard type
Long distance detection
type
2. VZ series
Detection performance
Standard type
Lens color
White
Black
Pearl White
Long distance detection
type
White
Black
Pearl White
Consumption current 170µA
EKMC1601111
EKMC1601112
EKMC1601113
EKMC1603111
EKMC1603112
EKMC1603113
3. NaPiOn series
Detection performance
Standard type
Slight motion detection
type
Spot detection type
10m detection type
Lens color
Black
White
Black
White
Black
White
Black
White
Digital output
AMN31111
AMN31112
AMN32111
AMN32112
AMN33111
AMN33112
AMN34111
AMN34112
Analog output
AMN21111
AMN21112
AMN22111
AMN22112
AMN23111
AMN23112
AMN24111
AMN24112
RATING
1. Absolute maximum rating (Measuring condition: ambient temperature = 25°C
77°F)
Power supply voltage
Usage ambient temperature
Storage temperature
–0.3 to 7.0VDC (for VZ series, NaPiOn series), –0.3 to 4.5VDC (for WL series)
–20 to 60°C
–3 to 140°F
(No freezing and condensing at low temperature)
–20 to 70°C
–4 to 158°F
2. Electrical characteristics
1) WL series VZ series
Items
Rated consumption current
(Stand by) Note)
Rated operating voltage
Output current (When detecting)
Symbol
Iw
Vdd
Iout
1µA ave.
WL series
2µA ave.
2.3VDC min. 4.0VDC max.
100µA max.
6µA ave.
VZ series
170µA ave.
3.0VDC min.
6.0VDC max.
Ambient temperature = 25°C
77°F
Vout Vdd-0.5V
Operating voltage 5V (VZ) 3V (WL)
Ambient temperature = 25°C
77°F
Vdd-0.5VDC min. Open when not detecting
Operating voltage 5V (VZ) 3V (WL)
Ambient temperature = 25°C
77°F
Iout = 0
30s max.
Operating voltage 5V (VZ) 3V (WL)
Ts [°C] = Const. (WL)
100µA max.
Measuring conditions
Ambient temperature = 25°C
77°F
Iout = 0
Operating voltage 5V (VZ) 3V (WL)
Output voltage (When detecting)
Vout
Vdd-0.5VDC min.
Circuit stability time
Twu
25s typ. 210s max.
10s max.
Note: The current which is consumed during detection consist of the standby consumed current plus the output current.
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB240E 201208-T
PIR Motion Sensor (EKMB, EKMC, AMN2, 3)
2) NaPiOn series
a) Digital output
Items
Rated consumption current
(Stand by) Note)
Rated operating voltage
Output current (When detecting)
Symbol
Iw
Vdd
Iout
Specified value
170µA ave.
3.0VDC min.
6.0VDC max.
100uA
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Vout Vdd-0.5V
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Open when not detecting
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Measuring conditions
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Iout = 0
Output voltage (When detecting)
Circuit stability time
Vout
Twu
Vdd-0.5V
30s max.
Note: The current which is consumed during detection consists of the standby consumed current plus the output current.
b) Analog output
Items
Consumption current
Operating voltage
Output current
Output voltage range
Output offset average voltage
Steady-state noise
Detection sensitivity
Circuit stability time
Symbol
Iw
Vdd
Iout
Vout
Voff
Vn
Vh or Vl
Twu
Specified value
170µA ave.
4.5VDC min.
5.5VDC max.
50µA
0V min.
VDD max.
2.3V min.
2.5V ave.
2.7V max.
155mVpp ave.
300mVpp max.
0.45V
45s
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Steady-state output voltage when not detecting
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Temperature difference with background: 4°C
39.2°F
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Measuring conditions
Ambient temperature = 25°C
77°F
Operating voltage = 5V
Iout = 0
Note: To set the same detection performance as the digital output type, set the output voltage (2.5V)
±0.45V.
3. Detection performance
1) WL series VZ series
Items
Detection distance
Detection range
(Horizontal
×
Vertical)
Detection zone
Standard type
5m
16.404ft
94°
×
82°
64 zones
Long distance detection type
12m
39.3696ft
102°
×
92°
92 zones
Measuring conditions
1. Detectable difference in temperature between the target
and background is more than 4°C
7.2°F.
2. Movement speed 1.0m/s
3. Detection object: human body
(size is 700mm
×
250mm
27.559inch
×
9.843inch)
2) NaPiOn series
Items
Standard type
Slight motion
detection type
Spot detection
type
10m detection
type
Measuring conditions
1. Detectable difference in temperature between the target
and background is more than 4°C
7.2°F.
2. Movement speed
1) Digital output type
Standard type/Spot type/10m detection type:
0.8 to 1.2m/s
Slight motion detection type: 0.5m/s
2) Analog output type
Standard type/Spot type/10m detection type:
0.5 to 1.5m/s
Slight motion detection type: 0.3 to 1.0m/s
3. Detection object: human body
(size is 700mm
×
250mm
27.559inch
×
9.843inch)
(for the slight motion detection type, 200mm
×
200mm
7.874inch
×
7.874inch)
Detection distance
5m
16.404ft
2m
6.562ft
5m
16.404ft
10m
32.808ft
Detection range
(Horizontal
×
Vertical)
100°
×
82°
91°
×
91°
38°
×
22°
110°
×
93°
Detection zone
64 zones
104 zones
24 zones
80 zones
ASCTB240E 201208-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
PIR Motion Sensor (EKMB, EKMC, AMN2, 3)

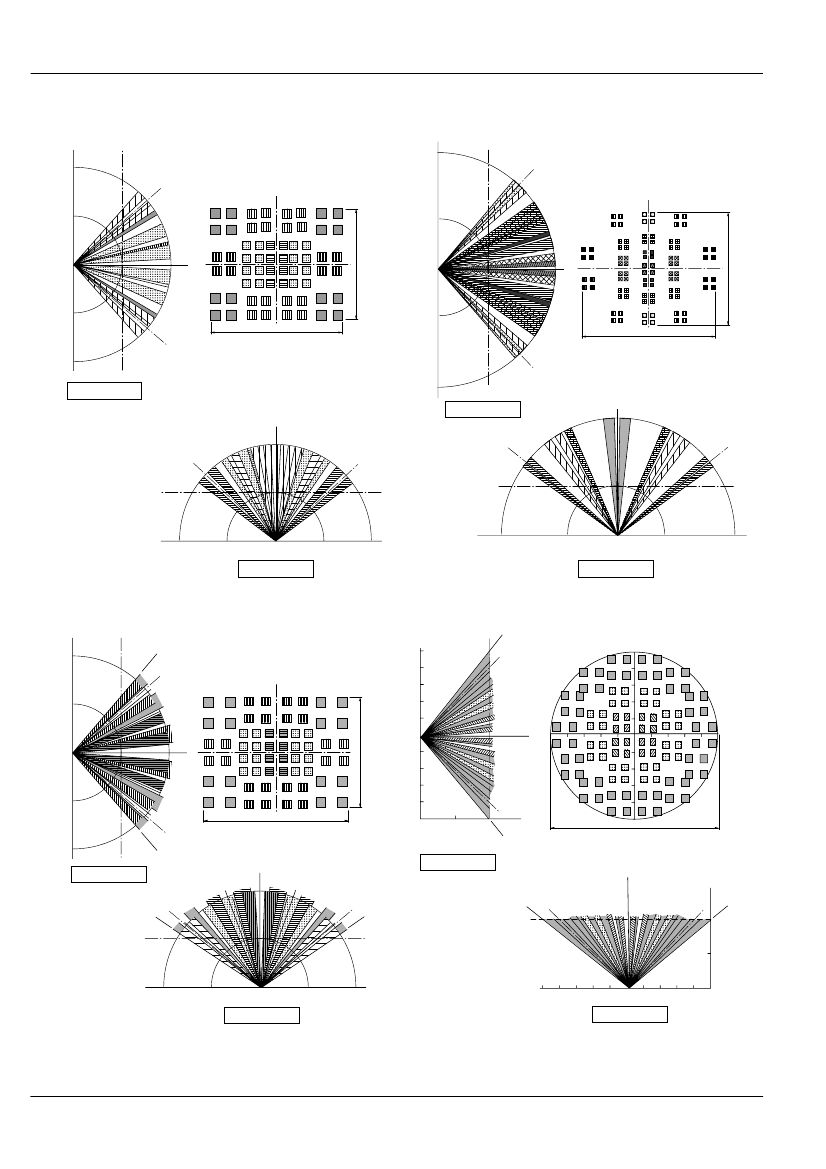

DETECTION PERFORMANCE
1. WLseries VZ series
Standard type
Y
5m
16.404ft
41°
2.5m
8.202ft
Y
5m
16.404ft
2. WL series VZ series
Long distance 12m detection type
12m
39.370ft
Y
46.3°
Y
X
5.6m
18.372ft
X
11.6m
38.058ft
41°
6.6m
21.654ft
13.8m
45.276ft
X-Y cross section
46.3°
X-Y cross section
SIDE VIEW
SIDE VIEW
51.3°
47°
47°
X
51.3°
X
5m
16.404ft
2.5m
8.202ft
12m
39.370ft
5m
16.404ft
TOP VIEW
TOP VIEW
3. NaPiOn series
Standard type
Y
5m
16.404ft
(49°)
41°
4. NaPiOn series
Slight motion detection type
Y
2.5m
8.202ft
Y
(51°)
Y
46°
2.5m
8.202ft
X
X
5.66m
18.570ft
41°
(49°)
7.42m
24.344ft
X-Y cross section
2.5m
8.202ft
46°
2m
6.562ft
(51°)
5m dia.
16.404ft dia.
X-Y cross section
SIDE VIEW
SIDE VIEW
50°
(56°)
X
50°
(56°)
(51°)
X
46°
46°
(51°)
2m
6.562ft
5m
16.404ft
2.5m
8.202ft
2.5m
8.202ft
2.5m
8.202ft
TOP VIEW
TOP VIEW
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB240E 201208-T
PIR Motion Sensor (EKMB, EKMC, AMN2, 3)
5. NaPiOn series
Spot detection type
Y
2.5m
8.202ft
11°
X
11°
2.5m
8.202ft
(20°)
2m
6.562ft
5m
16.404ft
2m
6.562ft
12.3m
40.354ft
X
1.4m
4.593ft
5m
16.404ft
(20°)
Y
10m
32.808ft
6. NaPiOn series
10m detection type
Y
(50°)
46.5°
15.9m
52.165ft
Y
SIDE VIEW
X-Y cross section
(27°)
19°
19°
(27°)
5m
16.404ft
(50°) 46.5°
X-Y cross section
X
2m
6.562ft
SIDE VIEW
(58°)
X
55°
55° (58°)
2.5m
8.202ft
2.5m
8.202ft
TOP VIEW
10m
32.808ft
5m
16.404ft
TOP VIEW

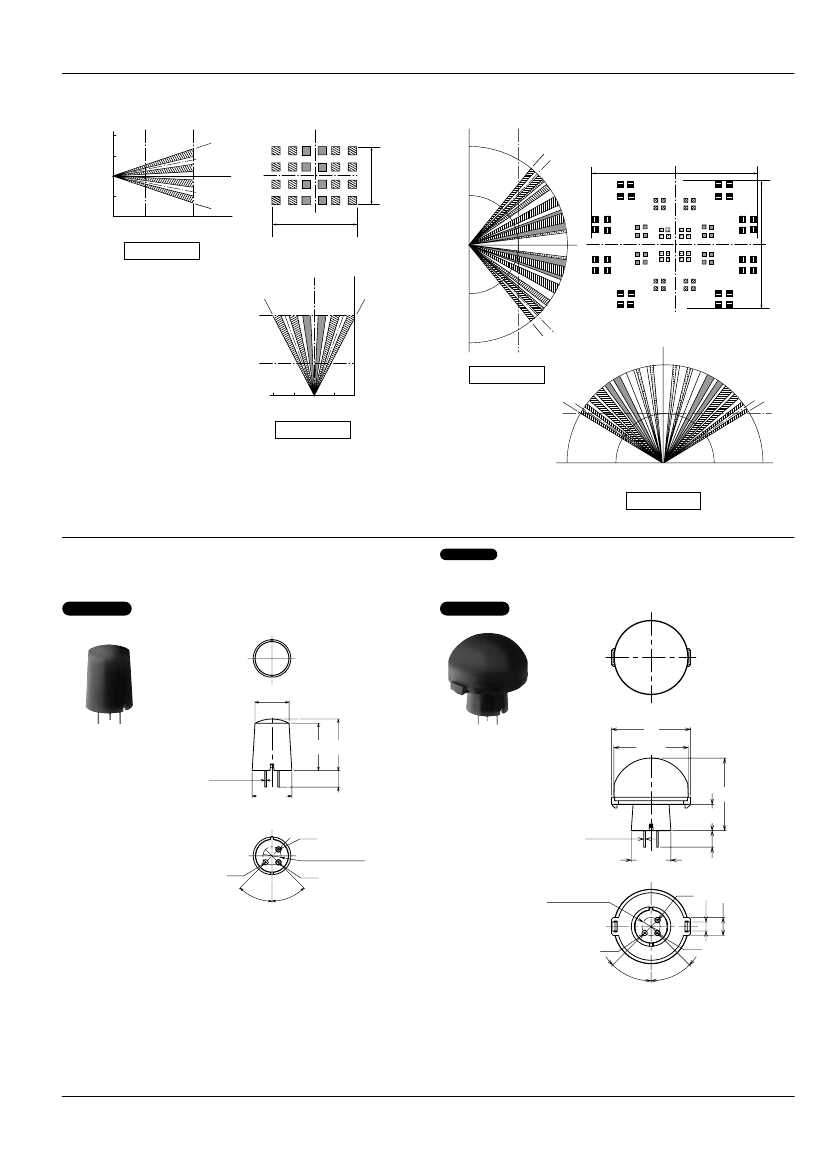

DIMENSIONS
(mm
inch)
1. VZ series WL series
Standard type
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
2. VZ series WL series
Long distance detection type
CAD Data
9.5 dia.
.374 dia.
13 14.4
.512 .567
0.45
±0.05
dia.
.018
±.002
dia.
11 dia.
.433 dia.
4.6
.181
22
.866
20.7 dia.
.815 dia.
20.2
.795
7.3
.287
VDD
P.C.D. 5.08
±0.2
dia.
.200
±.008
dia.
0.45
dia.
.018
±.002
dia.
11 dia.
.433 dia.
±0.05
GND
45
°
±
4
°
OUT
45
°
±
4
°
4.6
.181
VDD 2.5 5
.098 .197
P.C.D. 5.08
±0.2
dia.
.200
±.008
dia.
GND
45
°
±
4
45
°
±
4
°
OUT
°
General tolerance
±0.5
±.020
General tolerance
±0.5
±.020
ASCTB240E 201208-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
京公网安备 11010802033920号
EEWORLD
