821K004-203R001

Description
CONN RCPT FMALE 4POS SOLDER CUP
CategoryThe connector
File Size96KB，1 Pages
ManufacturerNorComp
Websitehttps://www.norcomp.net
Environmental Compliance
Download Datasheet Parametric Compare View All

821K004-203R001 Online Shopping

Suppliers Part Number Price MOQ In stock
821K004-203R001 - - View Buy Now

821K004-203R001 Overview

CONN RCPT FMALE 4POS SOLDER CUP

821K004-203R001 Parametric

Parameter NameAttribute value
Connector typesocket, female socket
Number of pins4
Housing Dimensions - Plug-in-
Housing size, MIL-
Installation typePanel mount, bulkhead style (rear nut)
Terminationsolder cup
Fastening typepush-pull
towardsMarked
Intrusion protectionIP67 - dust and water resistant
Housing material, platingBrass, nickel plated
Contact platinggold
characteristicshield
Rated current-
Voltage - Rated-
Contact plating thickness7.00µin（0.178µm）
Operating temperature-40°C ~ 200°C

Preview

Download Datasheet

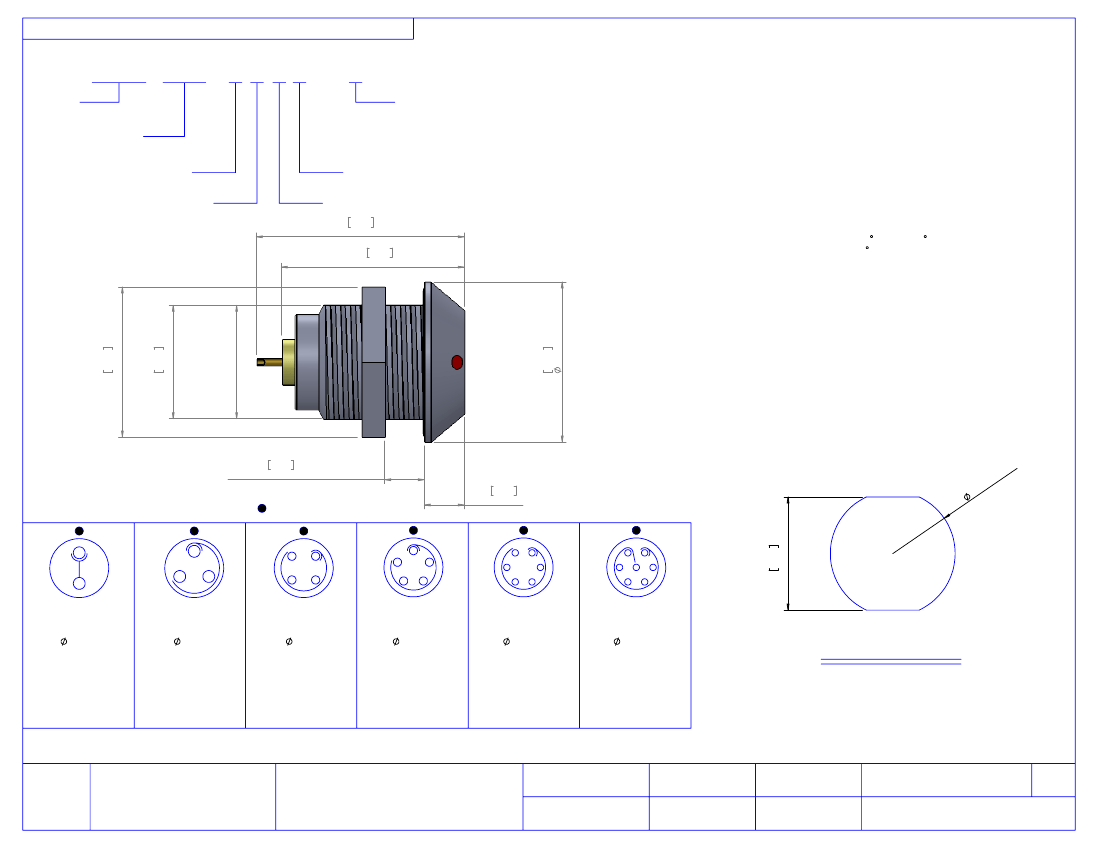

DESCRIPTION: QUIK-LOQ - FEMALE - SOLDER CUP - PANEL MOUNT - IP67
UNITS = MM [INCHES]
CHARACTERISSTICS
MATERIALS
SHELL : BRASS
SHELL PLATING : NICKEL
NUT : BRASS
NUT PLATING : NICKEL
LATCH SLEEVE : BRASS
LATCH SLEEVE PLATING : NICKEL
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
O-RING: SILICONE
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TORQUE VALUE : 7.0 Nm [61.0 IN/lbs]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 67
821K YYY - 2 0 3 R 00 1
SERIES
13.00 [0.512]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
SOLDER CUP (PANEL MOUNT)
1 = GOLD FLASH
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
1.094
27.80
0.945
24.00
0.571
14.50
(ACROSS FLATS)
M16*1.0
0.295
7.50
(MAX. PANEL THICKNESS)
0.787
20.00
0.748
19.00
CHART A
1
1
= KEY LOCATION
1
1
0.177
4.50
16
.1
3
0.6
0[
4]
**VIEW FROM TERMINATION END**
1
1
2 POSITION
20 AWG MAX.
15 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1500V
WORKING VOLTAGE
= 500V
3 POSITION
20 AWG MAX.
12 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
4 POSITION
22 AWG MAX.
10 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
5 POSITION
22 AWG MAX.
9 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 415V
6 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 1050V
WORKING VOLTAGE
= 350V
7 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
0.575
14.60
PANEL CUTOUT
TOLERANCE = +0.10, -0.0
[+0.004, -0.00]
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
M. SIGMON
DATE:
02-25-16
SCALE:
N.T.S.
SHEET
1
OF
1
REV:
2
CHECKED:
DATE:
DWG NO.
821KYYY-203R001
