DLA-300LCD
LCD Digital Panel Meters
Specifications Installation and Operating Instructions
3½ Digit LCD
FEATURES
}
}
}
}
}
}
}
}
}
}
}0.45",}3½}digit}high}contrast}LCD
Optional}positive}green}backlight
}User-selectable}decimal}points
Polycarbonate}case
}Optional}bezel}mount
SPECIFICATIONS
ORDERING INFO
PART NUMBER
BACKLIGHT
METER INPUT
DISPLAY
Numeral Size:
Overrange:
Polarity Indication:
Supply Voltage:
.45” (11.43 mm)
three lower order digits blank for
inputs >1999 & < -1999
automatic (-) for negative
+5 VDC @2mA
(10mA with backlight option)
DLA-300LCD .............................. NONE .........................................
±
200mV
.
.
DLA-300LCD-L .................5V POSITIVE GREEN ..............................
±
200mV
.
DLA-301LCD .............................. NONE ................................................
±
2V
DLA-301LCD-L .................5V POSITIVE GREEN .....................................
±
2V
.
.
DLA-302LCD .............................. NONE ..............................................
±
20V
DLA-302LCD-L .................5V POSITIVE GREEN ...................................
±
20V
.
.
DLA-303LCD .............................. NONE ............................................
±
200V
.
DLA-303LCD-L .................5V POSITIVE GREEN .................................
±
200V

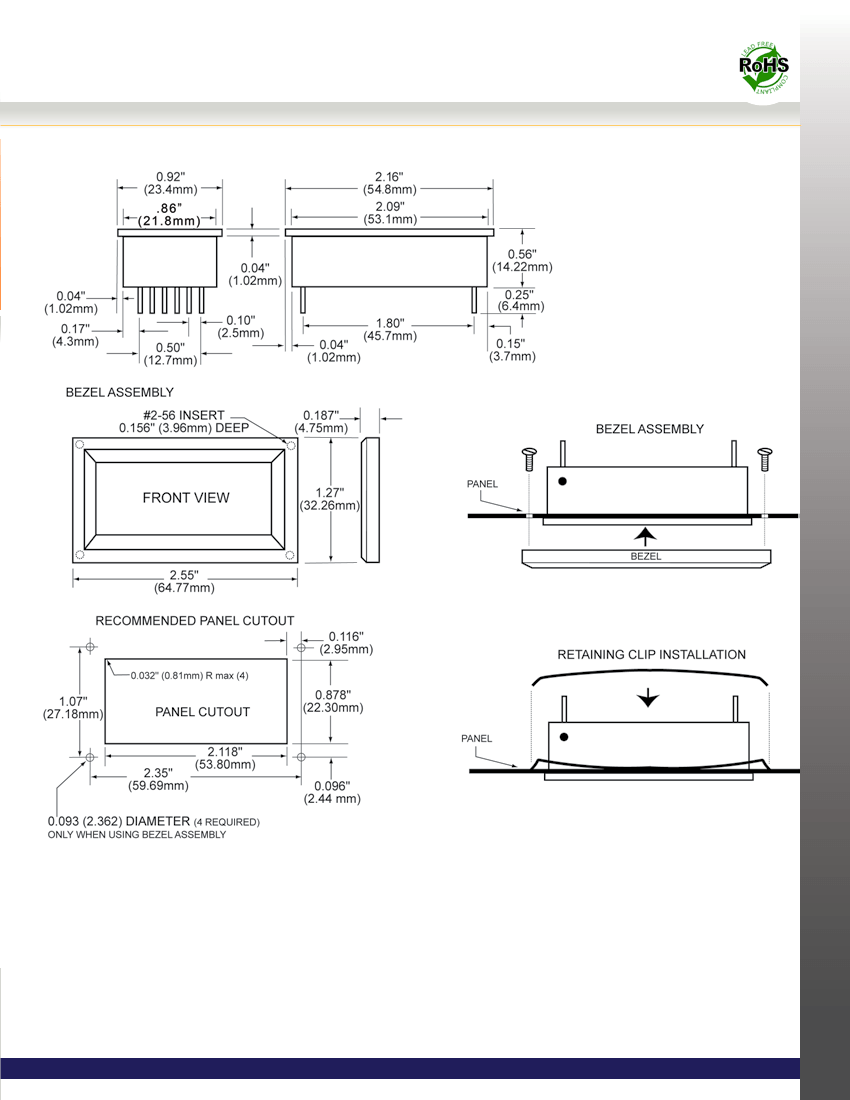

ACCESSORIES
INPUTS
Input Ranges:
Input Impedance:
Common Mode Range:
±200 mVdc, ± 2Vdc, ±20Vdc, ±200Vdc
1000 MΩ (200 mV)
1 MΩ (other ranges)
± 1 Vdc
±1% F.S. ± 2 counts
3 per second
PERFORMANCE
Accuracy:
Sampling Rate:
DLA-BEZ .............................................................................Bezel Assembly
PW2-5 ....................................... Regulated 120V AC to 5V DC Power Supply
CVC ..............................................................................................Calibrator
ENVIRONMENT
Operating Temperature: 0 to 50 °C
Max Humidity:
95% (non-condensing)
CONNECTION
12 pin

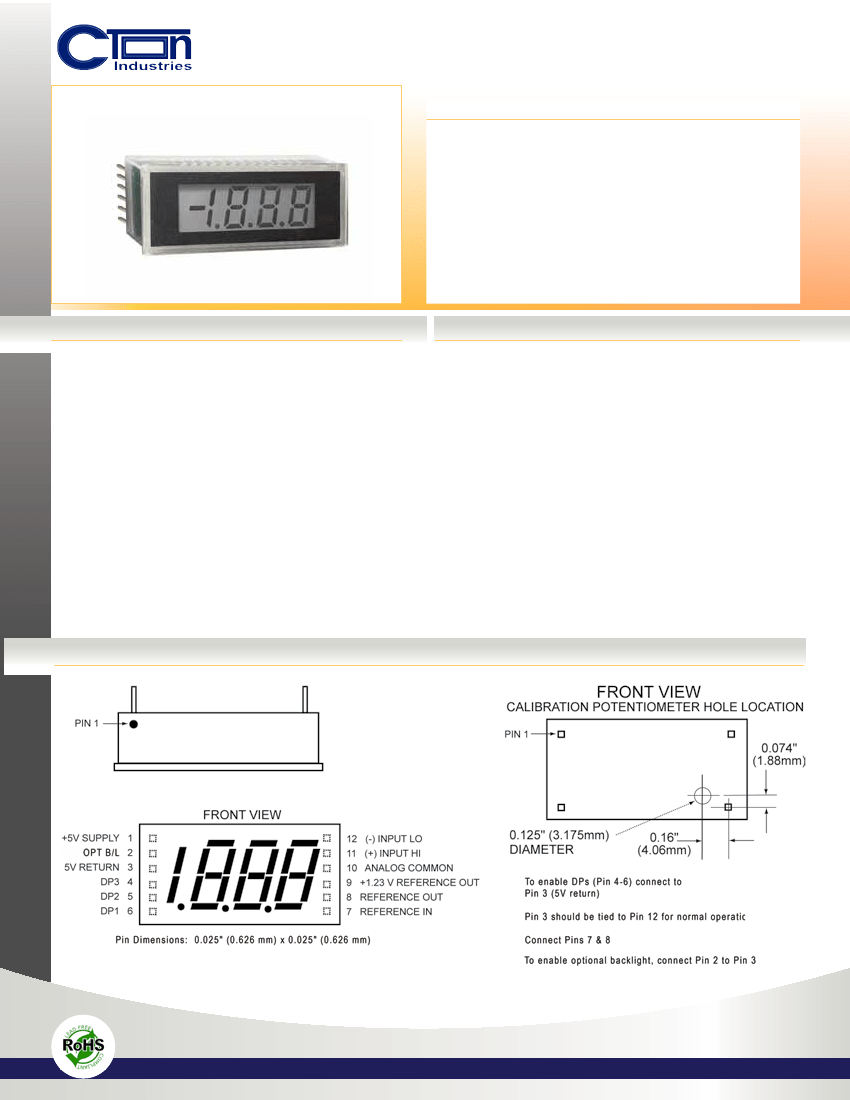

WIRING
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
emaIl
:
INfO
@
CTONINdusTrIes
.
COm
