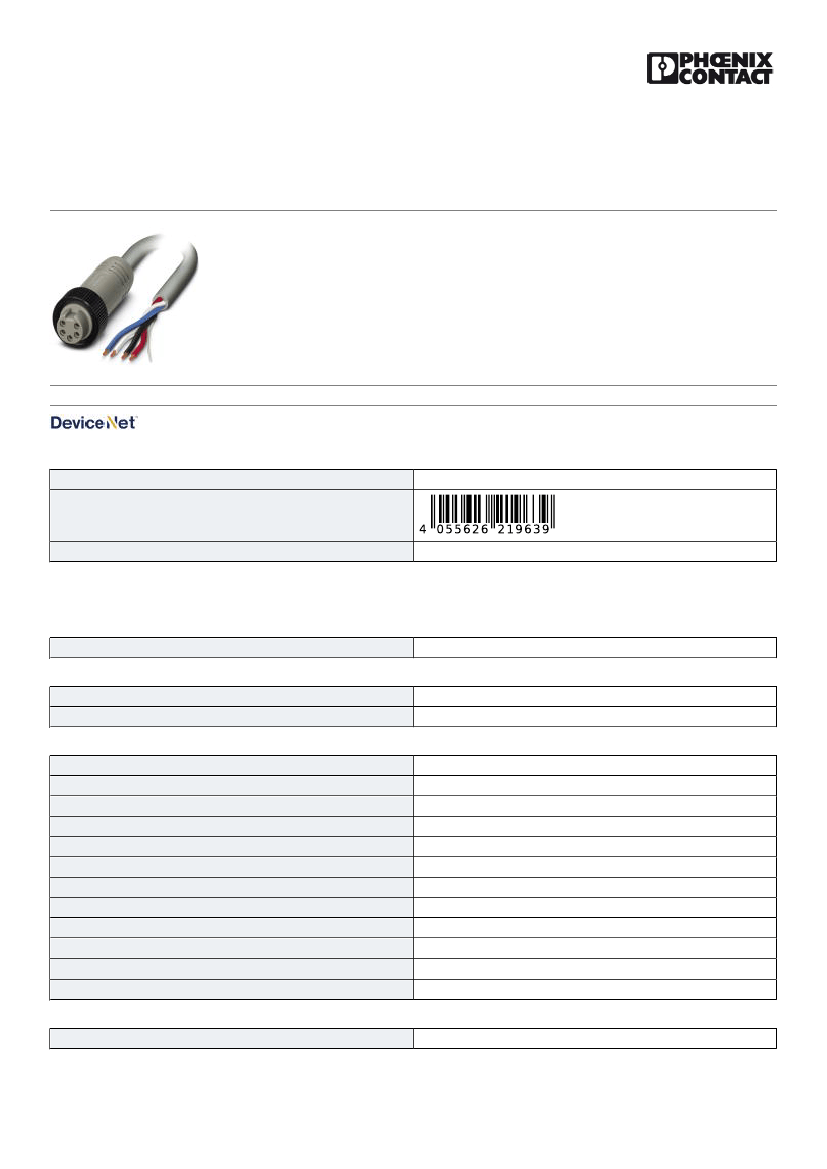

Bus system cable - SAC-5P- 5,0-U40/MINFS - 1416883
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bus system cable, DeviceNet™, 5-position, PVC, gray, free cable end, A - standard, on Socket straight
7/8"-16UNF, A - standard, cable length: 5 m
Key Commercial Data
Packing unit
GTIN
GTIN
4055626219639
1 pc
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 75 °C (Plug / socket)
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
Insulation resistance
Coding
Signal type/category
Status display
Protective circuit/component
Torque
8A
600 V AC
600 V DC
5
gray
≥ 100 MΩ
A - standard
DeviceNet™
No
Unwired
10 lb
f
-in.
1.12 Nm
Material
Contact material
CuZn
10/01/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1416883
Bus system cable - SAC-5P- 5,0-U40/MINFS - 1416883
Technical data
Material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Au
PVC
PVC
Anodized aluminum
Cable
Cable type
Cable abbreviation
Cable structure
Conductor cross section
DeviceNet trunk cable
U40
2xAWG18+2xAWG15+1xAWG18
2 x AWG 18 data cable
2 x AWG 15 power supply
1 x AWG 18 drain wire
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Wire colors
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Outer sheath, material
Material conductor insulation
Conductor material
Flame resistance
Resistance to oil
Other resistance
Ambient temperature (operation)
18
15
19 x AWG 30
19 x AWG 28
Red-black, blue-white
2 cores to the pair
Plastic-coated aluminum foil, aluminum side outside
2 pairs around a drain wire in the center to the core
Tinned copper braided shield
65 %
gray
11.43 mm
PVC
Foamed PE
PVC (Power supply)
Tin-plated Cu litz wires
UL 1581, FT4
OIL RES I according to UL 2256
UV resistant (720 h) UL 2556
-20 °C ... 75 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Standards and Regulations
Flame resistance
Resistance to oil
Other resistance
UL 1581, FT4
OIL RES I according to UL 2256
UV resistant (720 h) UL 2556
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
10/01/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1416883
Bus system cable - SAC-5P- 5,0-U40/MINFS - 1416883
Technical data
Environmental Product Compliance
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Dimensional drawing
L
25-50
59,4
11,9
Schematic diagram
4
5
7/8"-16 UN
Ø20,2
Ø25,4
3
2
1
7/8"-16UNF socket, straight
Pin assignment, socket, 7/8"-16UNF, 5-pos., view of female side
Circuit diagram
1
2
3
4
5
SH
RD
BK
WH
BU
Contact assignment of 7/8" socket
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 221474
10/01/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1416883
Bus system cable - SAC-5P- 5,0-U40/MINFS - 1416883
Approvals
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 221474
cULus Listed
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/01/2018 Page 4 / 4
