1554VA2GY Overview

BOX ABS GRAY 9.4"L X 6.3"W

1554VA2GY Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	9.449" long x 6.299" wide (240.00mm x 160.00mm)
high	3.543"（90.00mm）
Area (L x W)	59.5 in²（384 cm²）
design	Cover included
Material	Plastic - Polycarbonate
color	grey
thickness	0.140"（3.55mm）
characteristic	Card guide rail, PCB support, watertight
grade	IP66，NEMA 4，4X，12，13
Material flammability rating	UL94 5VA
weight	-

Preview

Download Datasheet

View All

9/13/2018

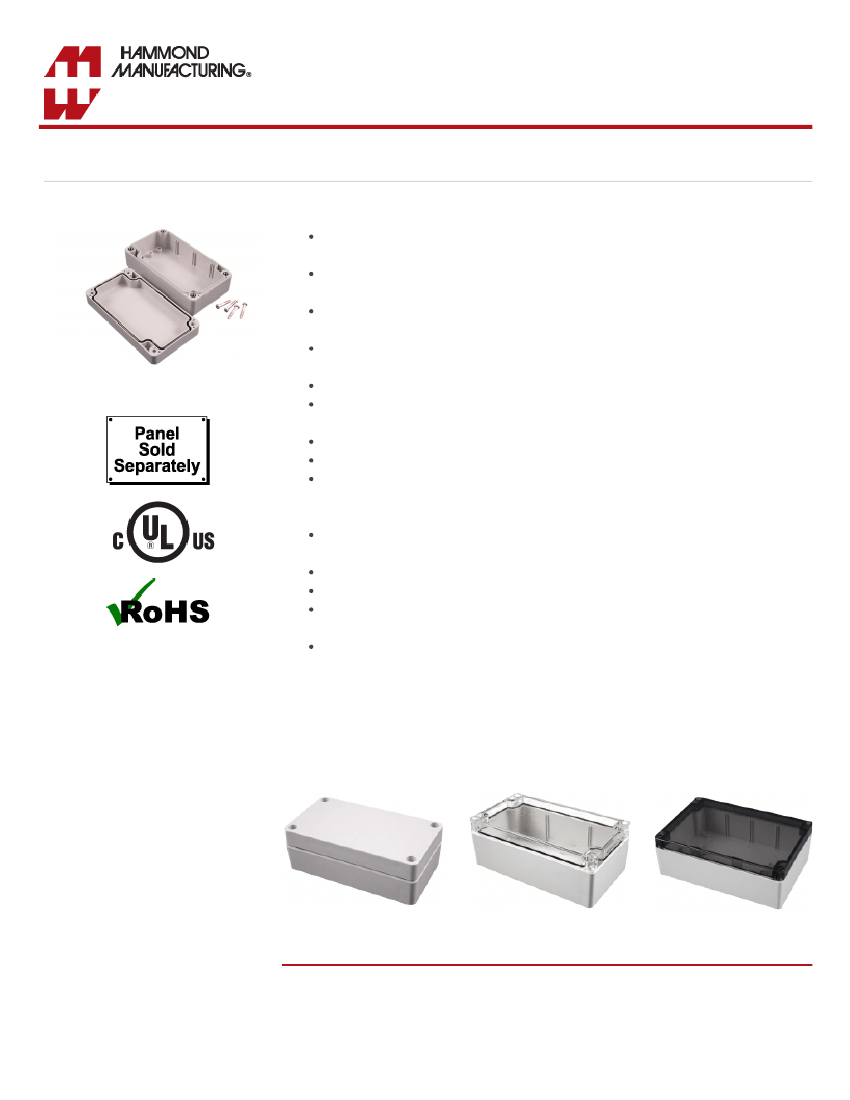

Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series) - Hammond Mfg.

Quality Products. Service Excellence.

Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures

1554 Series

Watertight, Flat Lid, UL Listed Options

Key Features

Ideally suited for mounting printed circuit boards or DIN rail mounted components (see

photo features below for details).

ABS Versions are molded from general purpose material which carries a flammability

rating of UL94-HB. For indoor use.

Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-

5VA rating, while clear and smoked lids carry a UL94V-0 rating.

Polycarbonate versions are cUL and UL 508A listed (File # E65324). ABS plastic

versions are not UL listed.

Enclosure color is a light gray (RAL 7035).

Gasketed lid with two piece “tongue & groove” construction provides protection against

access of oil, dust and water.

Gasket is one piece made from high temperature, U.L. listed silicone.

Designed to meet IP 66 & NEMA 4, 4X, 6, 6P, 12 & 13 ratings.

Lid is secured with included M4 stainless steel machine screws which are threaded into

integral stainless steel bushings for repetitive assembly & disassembly. All hardware is

stainless steel to avoid corrosion caused by dissimilar metals.

Lid screws are self captivating (lid holes are threaded with the first installation of lid

screws).

Internal features are maximized for mounting options and vary with size:

Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.

Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C.

board or inner panel mounting in all but the smallest size (“B”).

Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest

size (“B”).

Photo Features

Polycarbonate versions available with gray, clear, or smoked lid. ABS version available only in

gray.

Gray

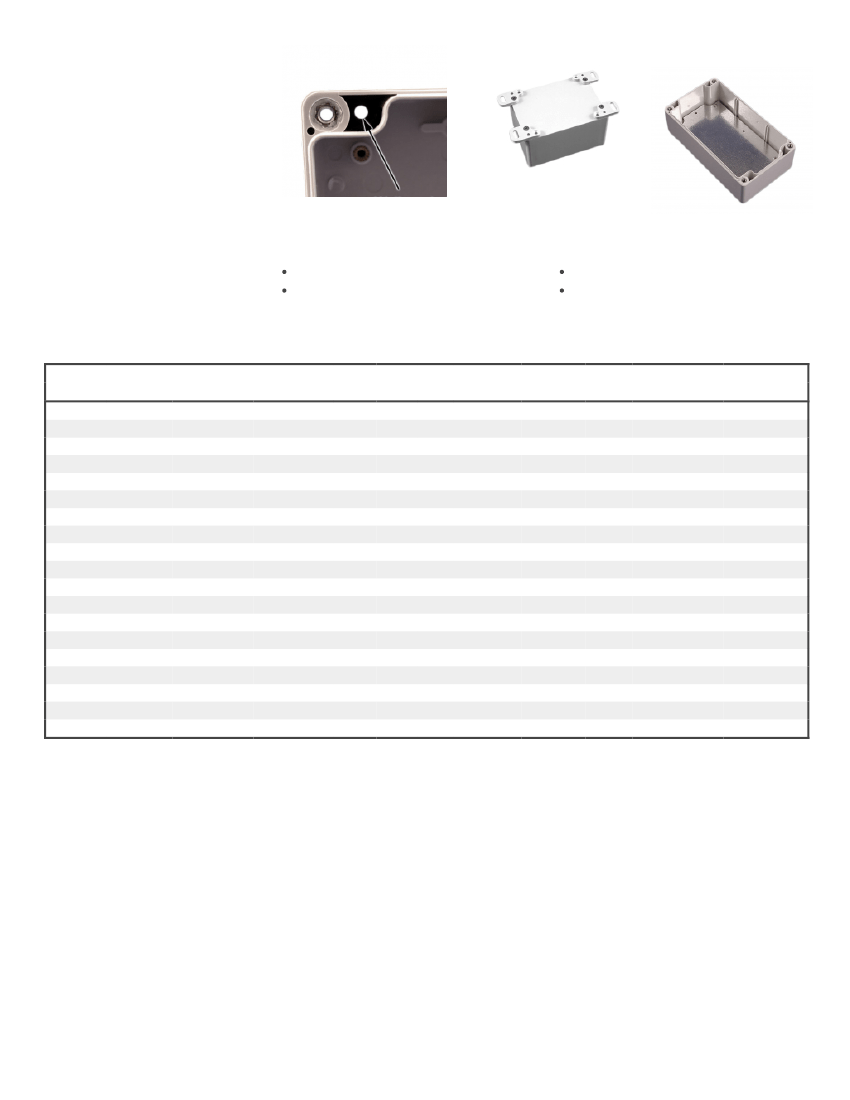

Wall-mounting holes are

located outside of the gasket

channel

Clear

Same wall mounting holes

can be used to install an

accessory foot kit, 1554FT

Smoked

Internal mounting posts can

be used to mount accessory

inner panels, PC boards, or

https://www.hammfg.com/electronics/small-case/plastic/1554

1/2
