DIN-064RPB-R1-TG30 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DIN-064RPB-R1-TG30

DIN-064RPB-R1-TG30: Description64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size556KB，7 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

DIN-064RPB-R1-TG30 Overview

64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, PLUG

DIN-064RPB-R1-TG30 Parametric

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
Is Samacsys	N
Other features	3M, STANDARD: DIN 41612
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	DIN
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

™

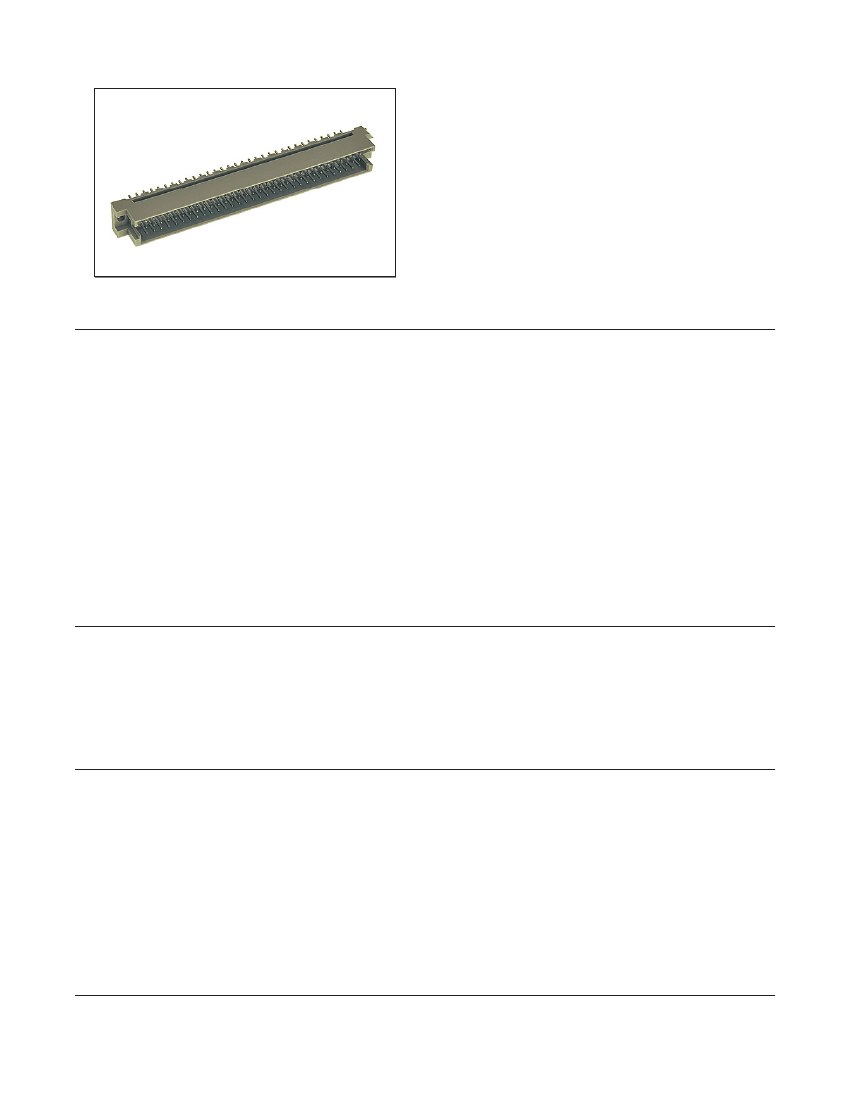

DIN R-Form Plug

.100” Inverse Mount, Vertical, Solder Tail or Press-Fit Termination

DIN 41612 Series

• Early mate late break (EMLB) grounding contacts for

hot swapping

• Select load capability

• Expanded pin counts

• Optional press-fit or solder tail termination

• Optional retention clips

• Mates with R-form and C-form sockets

• See Regulatory Information Appendix (RIA) for

chemical compliance information

Date Modified: February 20, 2008

TS-1133-D

Sheet 1 of 4

Physical

Termination Area: (See Ordering Information)

Electrical

Contact Resistance:

Current Rating:

Insulation Resistance:

Withstanding Voltage:

Environmental

Temperature Rating:

-55°C to +125°C

Temperature Rating:

260°C per J-STD-020C

Moisture Sensitivity Level:

1 (per J-STD-020C)

Electronic Solutions Division

Interconnect Solutions

http://www.3M.com/interconnects/

R CO

ec e

pl N

ac TI

he e U

et b ED

Insulation:

Material: Glass Filled Polyester (PCT)

Color: Gray or Black

Flammability: UL 94V-0

Contact:

Material: Copper Alloy

Plating:

Underplating: 50 μ” [ 1.27 μm ] Min. Nickel

Wiping Area: (See Ordering Information)

Marking:

Part Number and Date Code

20 mΩ Max.

3.0 A @ 30°C T-rise above ambient

1 x 10³ MΩ min. at 500 V

1 x 10³ V

for 1 minute

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/717/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

RIA-2217B-D

Appendix E4: European Union RoHS

Appendix E3: European Union RoHS

R CO

ec e

pl N

ac TI

he e U

et b ED
