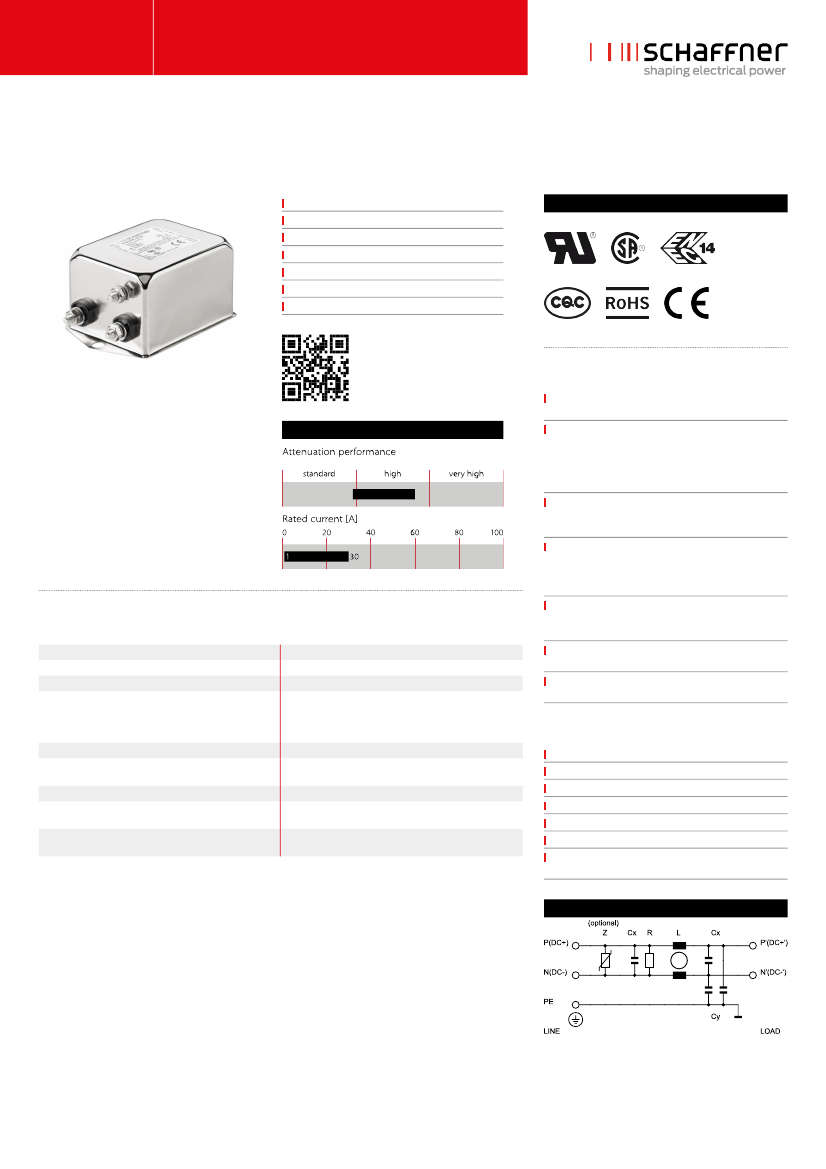

Single-Stage Filters FN 2030
General Purpose AC/DC EMI Filter with High Attenuation Performance
Rated currents from 1 to 30 A
High performance filter attenuation
High differential-mode attenuation
Optional medical versions (B type)
Optional safety versions (A type)
Optional enhanced performance versions
Optional overvoltage protection (Z type)
Approvals
Features and benefits
FN 2030 filters are designed for easy and fast chassis
mounting
Performance indicators
The FN 2030 filters are also available as B versions
with no Y-capacitors for medical applications as well
as A versions with low capacitance for safety critical
applications with a requirement for low leakage
currents
FN 2030 filters offer an optimized filter range for
high performance AC and DC applications , in same
compact size (M, N1 types)
All filters provide an exceptional conducted
attenuation performance, based on chokes with
high permeable core material and excellent thermal
behavior
Technical specifications
Rated voltage*
Operating frequency
Rated currents
High potential test voltage
250 VAC, 50/60 Hz; 250 VDC
DC to 400 Hz
1 to 30 A @ 40°C max.
P –> PE 2000 VAC for 2 sec (equiv. cap <88 nF)
P –> PE 2550 VDC for 2 sec (equiv. cap >88 nF)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 1100 VDC for 2 sec
-25°C to +100°C (25/100/21)
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to
AC and DC applications)
UL 94 V-2 or better
Helps compliance to IEC61000-4-5 (Differential Mode
only)
2,200,000 hours (1 to 10 A types)
1,200,000 hours (12 to 30 A types)
The higher inductivity versus amperage offers
increased attenuation performance with same form
factor compared to FN 2010 and FN 2020 filter series
All FN 2030 filters can be delivered with optional
surge pulse protection (Z type).
Various terminal options allow you to select the
desired connection style
Typical application
Electrical and electronic equipment
Consumer goods
Household equipment
Medical equipment
Electronic data processing equipment
Office automation and datacom equipment
Various noisy applications requiring high filter
performance
Temperature range (operation and storage)
Certified to
Flammability corresponding to
Surge pulse protection (Z type)
MTBF @ 40°C/230 V (Mil-HB-217F)
*maximum RMS operating voltage at rated frequency or the maximum DC operating voltage
Typical electrical schematic
4
EMC/EMI Products
Schaffner Group
Datasheets
2018
Product selector

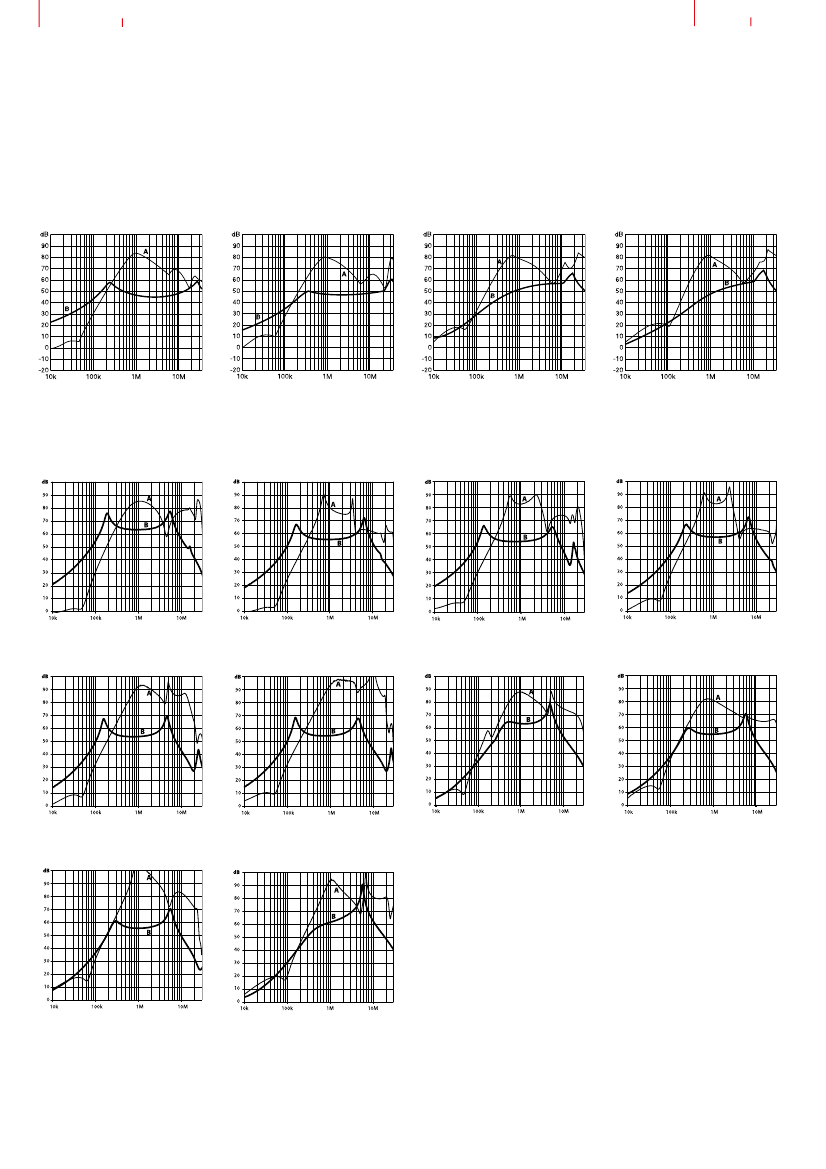

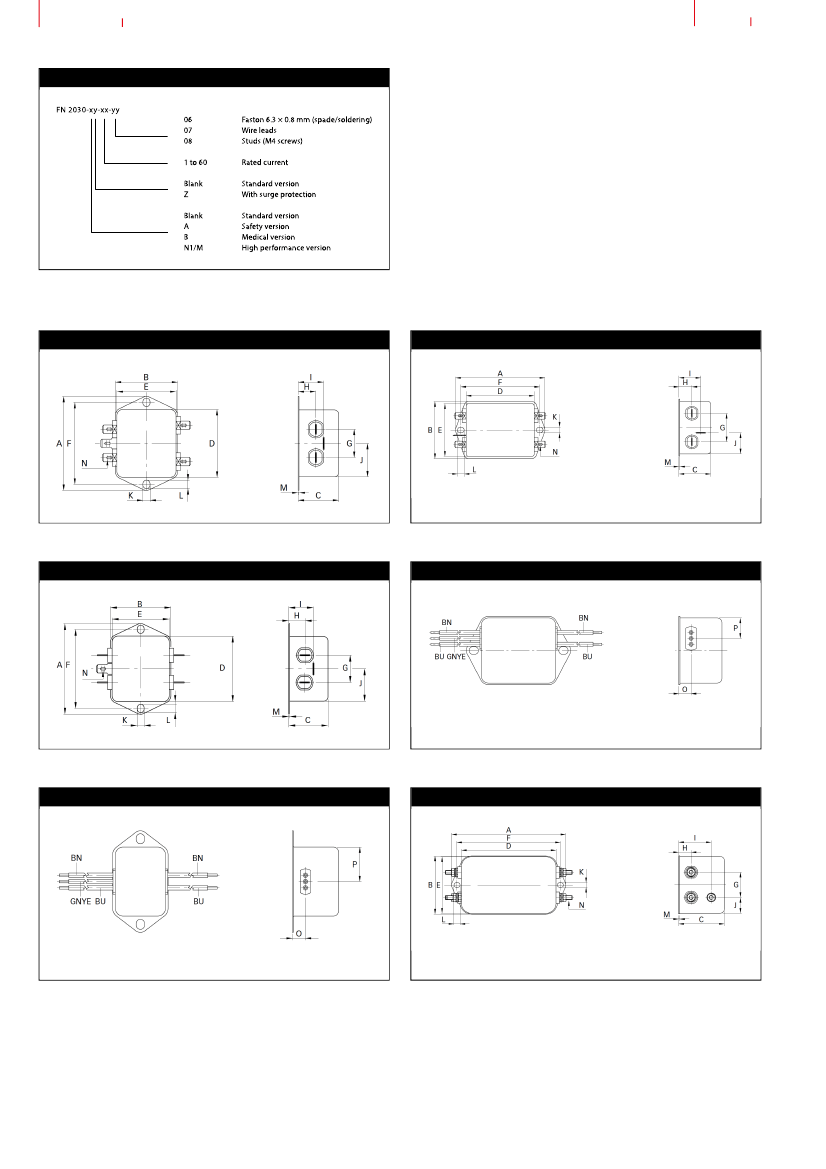

Mechanical data
Connection style -06, 1 A types
Connection style -06, 8 to 20 A types
Connection style -06, 3 to 6 A types
Connection style -07, 8 to 16 A types (same dimensions as style -06)
Connection style -07, 1 to 6 A types (same dimensions as style -06)
Connection style -08, 20 and 30 A types
