DLA20-DCM-R-1: DescriptionVOLTMETER 8-50VDC LED PANEL MT; CategoryTools and equipment; File Size168KB，2 Pages; ManufacturerC-TON Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

DLA20-DCM-R-1 Overview

VOLTMETER 8-50VDC LED PANEL MT

DLA20-DCM-R-1 Parametric

Parameter Name	Attribute value
type	Voltage (voltmeter)
Measuring range	8 ~ 50VDC
display type	LED - red characters
Number of characters per line	3.5
Display characters - height	0.370"（9.40mm）
Output type	-
Voltage - Power	Loop power
Panel opening size	Rectangular - 33.93mm x 21.29mm
Installation type	Panel Mount - Frame
Terminal type	screw terminal
Intrusion protection	-
characteristic	-
Operating temperature	-10°C ~ 50°C

Preview

Download Datasheet

View All

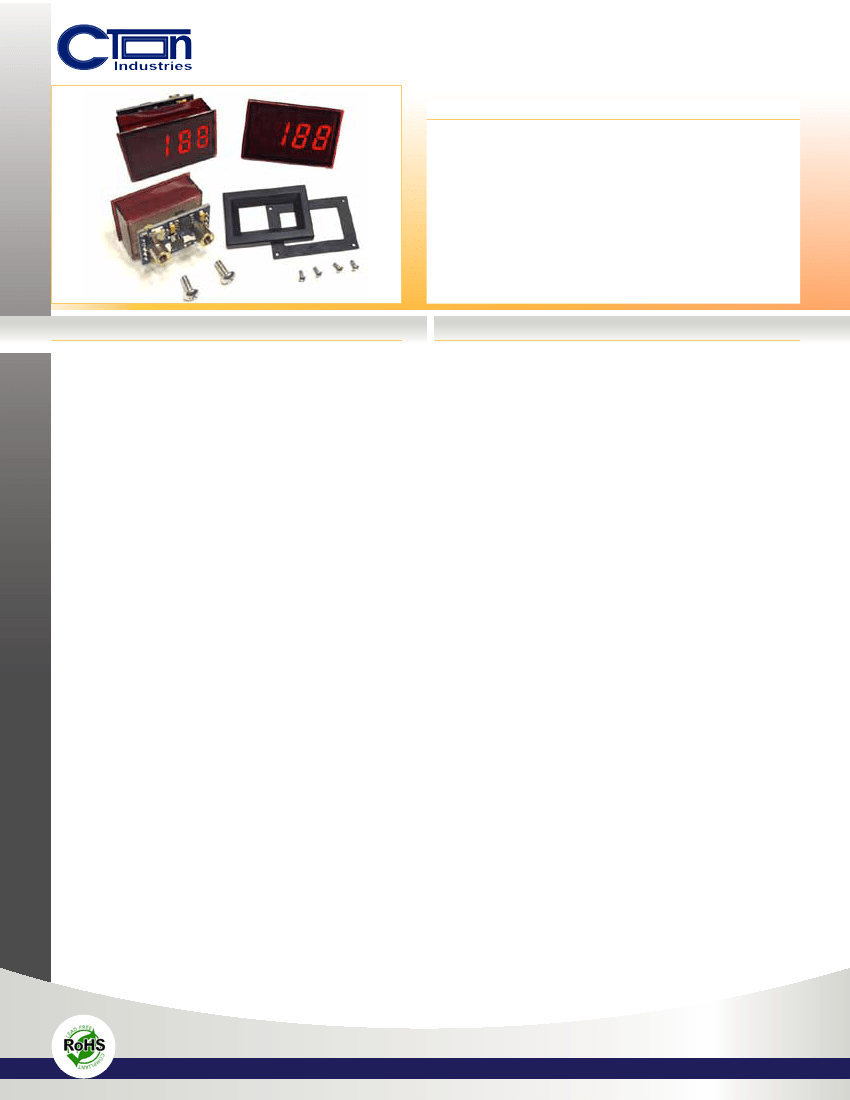

DLA20-DCM

LED Digital Panel Meters

Specifications Installation and Operating Instructions

Self Powered, Positive Input LED Display, DC Voltage

FEATURES

}

} Screw}terminals}

}

} Available}in}easy}to}read}RED,}BLUE}or}GREEN}LED

}

} Self}Powered

SPECIFICATIONS

DISPLAY

Numeral Size:

Overrange:

Supply Voltage:

.37” (9.4 mm)

three lower order digits blank

self powered

see ordering info

1% scale (Typ) 2% (Max)

2.5 per second

ORDERING INFO

PART NUMBER

METER COLOR

METER INPUT

DLA20-DCM-R-0 .......................... RED ........................... +4.50 to +19.99V

DLA20-DCM-B-0 ..........................BLUE .......................... +4.50 to +19.99V

DLA20-DCM-G-0 ........................ GREEN ......................... +4.50 to +19.99V

DLA20-DCM-R-1 .......................... RED ............................... +8.0 to +50.0V

DLA20-DCM-B-1 ..........................BLUE .............................. +8.0 to +50.0V

DLA20-DCM-G-1 ........................ GREEN ............................. +8.0 to +50.0V

DLA20-DCM-R-2 .......................... RED ................................. +30 to +264V

DLA20-DCM-B-2 ..........................BLUE ................................ +30 to +264V

DLA20-DCM-G-2 ........................ GREEN ............................... +30 to +264V

ACCESSORIES INCLUDED

INPUTS

Input Ranges:

PERFORMANCE

Accuracy:

Sampling Rate:

ENVIRONMENT

Operating Temperature: -10 to 50 °C

Max Humidity:

95% (non-condensing)

CONNECTION

2 screw terminals

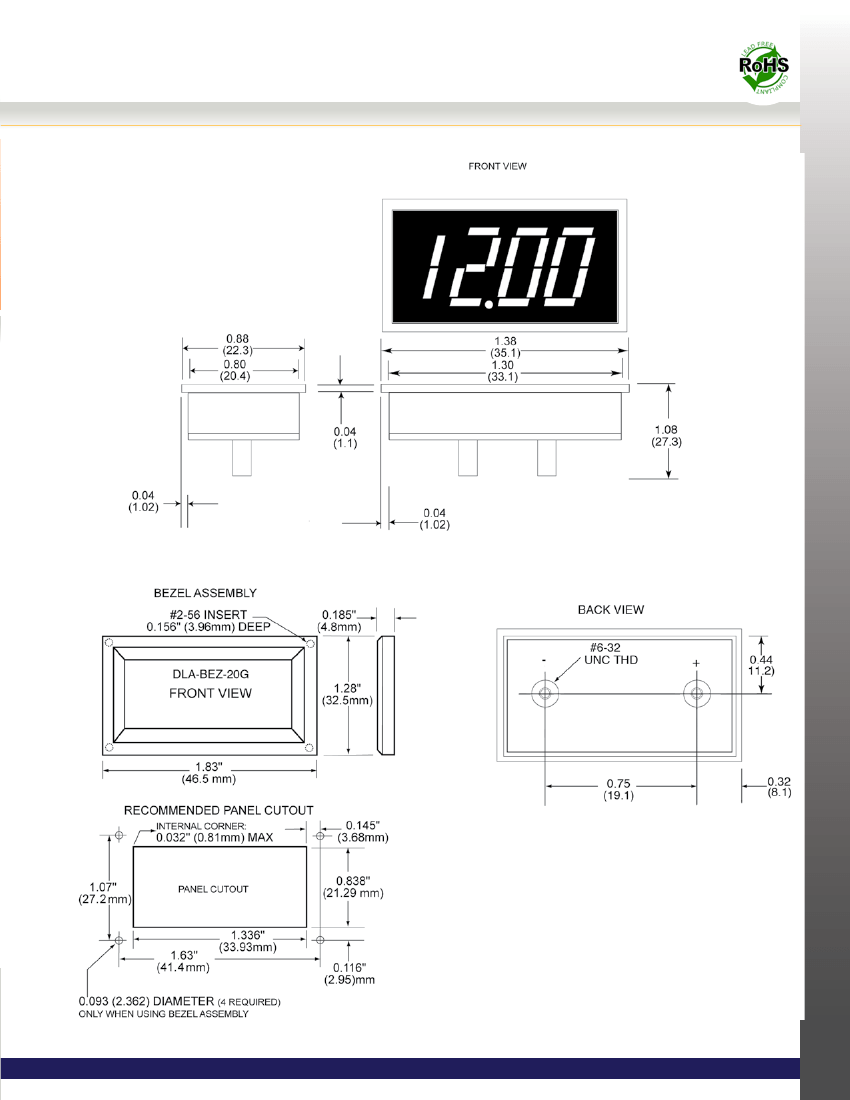

DLA-BEZ-20-G ....................................................................Bezel Assembly

C-TON I

NdusTrIes

• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •

INfO

CTONINdusTrIes

COm
