Battery charging current at B+ output can be adjusted according to output current range in parentheses by battery charging current adjustment potentiometer.
Load range in parentheses and rated current outside parentheses.
4) PARD is measured with an AC coupling mode, 5cm wires, and in parallel with 0.1µF ceramic capacitor & 47µF electrolytic capacitor.
2
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2017, Rev.01)
TECHNICAL DATASHEET

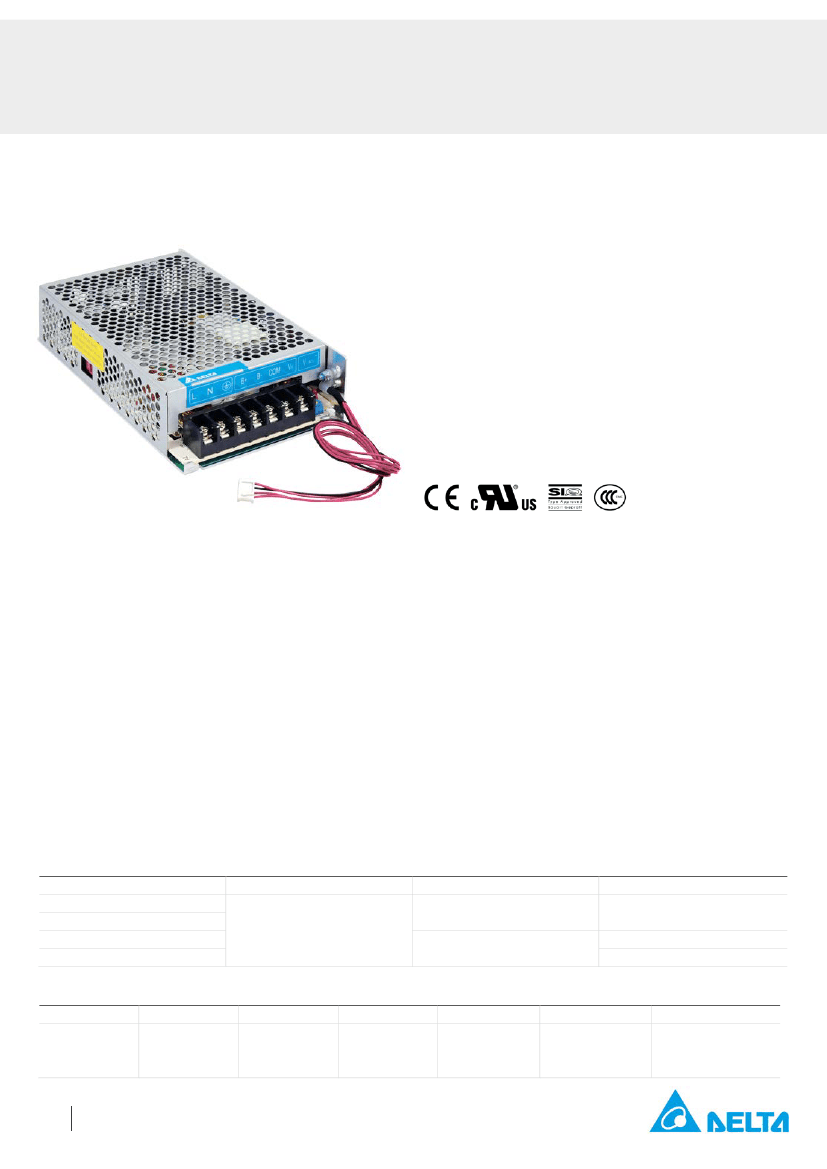

PMU Panel Mount Power Supply with Integrated DC-UPS
PMU-155W Series / PMU-□V155W□□A
Model Number
PMU-13V155W☐☐A
V1
B+
PMU-27V155W☐☐A
V1
B+
Battery Input / Output Characteristics
Nominal Battery Voltage
(Batteries not included with power supply)
12Vdc
SLA Sealed lead acid battery
24Vdc
SLA Sealed lead acid battery
2 x 12Vdc
SLA Sealed lead acid battery
11.0 to 13.8Vdc (nominal at 12V) 22.0 to 27.6Vdc (nominal at 24V)
16Vdc Max
8.5Vdc
32Vdc Max
16.5Vdc
Battery Voltage Range
Continuously
Operating
Maximum
Allowed Voltage
Minimum
Voltage
1)
Battery Capacity
Charging Time
2)
Recommended External Fuse for Battery
Battery Charging (Normal Mode)
End-of-Charge Voltage
3.3AH/ 7AH/ 12AH/ 15AH
2-10 hrs @ charging current of 1.5A
PMU-13V155W☐☐A
Automotive 30A / 80V FK3 type from Littelfuse, or similar, in the
battery B+ path. The battery fuse protects the wires between the
battery and the unit.
PMU-27V155W☐☐A
Automotive 30A / 80V FK3 type from Littelfuse, or similar, in the
battery B+ path. The battery fuse protects the wires between the
battery and the unit.
CC-CV mode (constant current-constant voltage) at 0 to 1.5A
The unit always charges battery to a fixed voltage value
Mechanical
Case Chassis / Cover
Dimensions (L x W x D)
Unit Weight
LED Indicator
Cooling System
Terminal
Signal
Wire
Noise (1 Meter from power supply)
AL / SGCC
178 x 97 x 38 mm (7.01 x 3.82 x 1.50 inch)
178 x 96.5 x 37.5 mm (7.01 x 3.80 x 1.48 inch)
0.60 kg (1.32 lb)
0.54 kg (1.19 lb)
DC OK
Battery Connected in Reverse Polarity
Convection
M3.5 x 7 Pins (Rated 300V/15A)
JST: XHP-4 (PMU-☐V155W☐CA)
AWG 16-14
Sound Pressure Level (SPL) < 30dBA
Enclosed
L Frame
Enclosed
L Frame
Green LED
Red LED
1) Minimum battery voltage required for power supply to detect battery in order to begin charging. Battery must be connected to power supply, with the correct polarity, across
B+ and B- terminals; and, with input and output loads disconnected.
2) Charging time depends on the state/condition of battery discharge; and will depend on the amount of buffering/discharging time, and load current that battery was
discharged at.
3
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2017, Rev.01)
TECHNICAL DATASHEET
PMU Panel Mount Power Supply with Integrated DC-UPS
PMU-155W Series / PMU-□V155W□□A

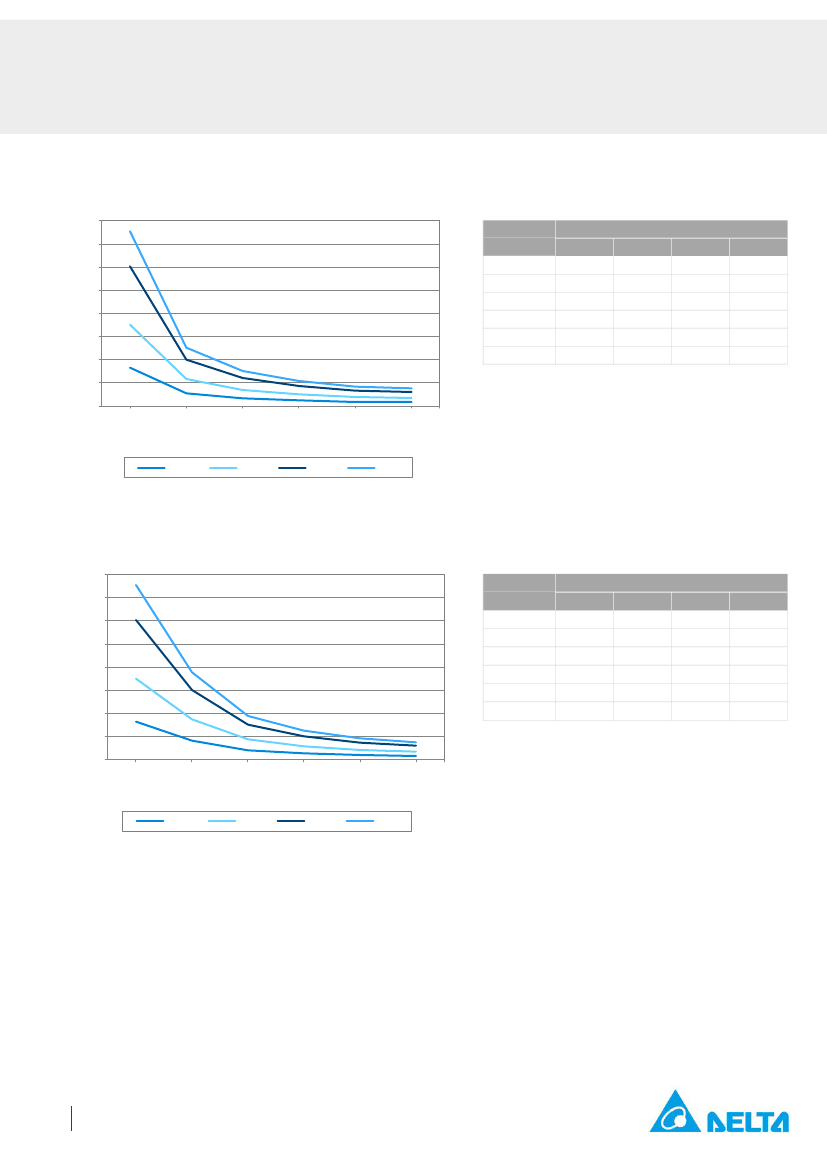

Buffering Times VS Output Load and Battery Capacity
PMU-13V155W☐☐A
800
700
600
Buffering Time (min)
500
400
300
200
100
0
1.1
3.3
5.5
7.7
9.9
11
Output Current (A)
7.5AH
12AH
15AH
15AH
Output
Current
1.1A
3.3A
5.5A
7.7A
9.9A
11.0A
3.3AH
166m
55m
33m
24m
18m
17m
Buffering Time
7AH
12AH
352m
604m
117m
201m
70m
121m
50m
86m
39m
67m
35m
60m
15AH
755m
252m
151m
108m
84m
76m
These buffering times assume the battery is fully charged to begin with
Fig. 1
Buffering Time VS Output Current
(PMU-13V155W☐☐A)
PMU-27V155W☐☐A
1,600
1,400
Buffering Time (min)
1,200
1,000
800
600
400
200
0
0.55
1.1
2.2
3.3
4.5
5.5
Output Current (A)
7.5AH
12AH
15AH
15AH
Output
Current
0.55A
1.1A
2.2A
3.3A
4.5A
5.5A
3.3AH
330m
165m
82m
55m
40m
33m
Buffering Time
7AH
12AH
700m
1208m
350m
604m
175m
302m
117m
201m
85m
147m
70m
120m
15AH
1510m
755m
377m
251m
184m
151m
These buffering times assume the battery is fully charged to begin with
Fig. 2
Buffering Time VS Output Current
(PMU-27V155W☐☐A)
4
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (February 2017, Rev.01)
TECHNICAL DATASHEET
PMU Panel Mount Power Supply with Integrated DC-UPS
PMU-155W Series / PMU-□V155W□□A
Model Number
PMU-13V155W☐☐A
V1
B+
PMU-27V155W☐☐A
V1
B+
Environment
Surrounding Air Temperature
Power De-rating
Operating
Storage
I/P: 90-132Vac
I/P: 180-264Vac
Operating Humidity
Operating Altitude
Shock Test (Non-Operating)
Vibration (Non-Operating)
Bump (Operating)
Over Voltage Category
Pollution Degree
-20°C to +70°C
-40°C to +85°C
< 0°C to -20°C de-rate power by 2.25% / °C
50°C to 70°C de-rate power by 2.25% / °C
< 0°C to -20°C de-rate power by 2.5% / °C
50°C to 70°C de-rate power by 2.5% / °C
5 to 95% RH (Non-Condensing)
0 to 5,000 Meters (16,400 ft.)
IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,3 times per
direction, 9 times in total
IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak);
displacement of 0.35mm; 20 min per axis for all X, Y, Z direction
IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1000 times
per direction, 3000 times in total
II
2
Protections
Overvoltage
V1
<18.5V, SELV Output,
Hiccup mode,
Non-latching (auto-recovery)
15Vdc Max will not cause
damage to the unit
<37.0V, SELV Output,
Hiccup mode,
Non-latching (auto-recovery)
30Vdc Max will not cause
damage to the unit
B+
Overload / Overcurrent
Normal Mode
Buffering Mode
Over Temperature
Short Circuit
Normal Mode
Buffering Mode
Battery Polarity Protection
Wrong Battery Voltage Protection
Deep Discharge Protection
2)
Internal fuse
Protection Against Shock
105-150% of rated load current, Hiccup mode,
Non-Latching (Auto recovery)
11.5-19.0A, Latch mode
6.05-11.0A, Latch mode
Latch mode
Hiccup Mode, Non-Latching
(Auto-recovery when the fault is removed)
Latch mode
Yes (RED LED = ON)
Yes, 15Vdc Max will not cause
damage to the unit
9.0V ± 0.5V
T4AH
Class I with PE
3)
connection
Yes (RED LED = ON)
1)
Yes, 30Vdc Max will not cause
damage to the unit
18.0V ± 0.5V
1) If the RED LED is ON, this indicates a failure in the installation of the battery. In this case, do not turn on the power supply (for 27V only) while the battery is connected.
POWER SUPPLY WILL BE DAMAGED!
2) The unit will stop operating when the battery voltage detected is less than specified values.
3) PE: Primary Earth
5
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
