ROHS COMPLIANT
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED

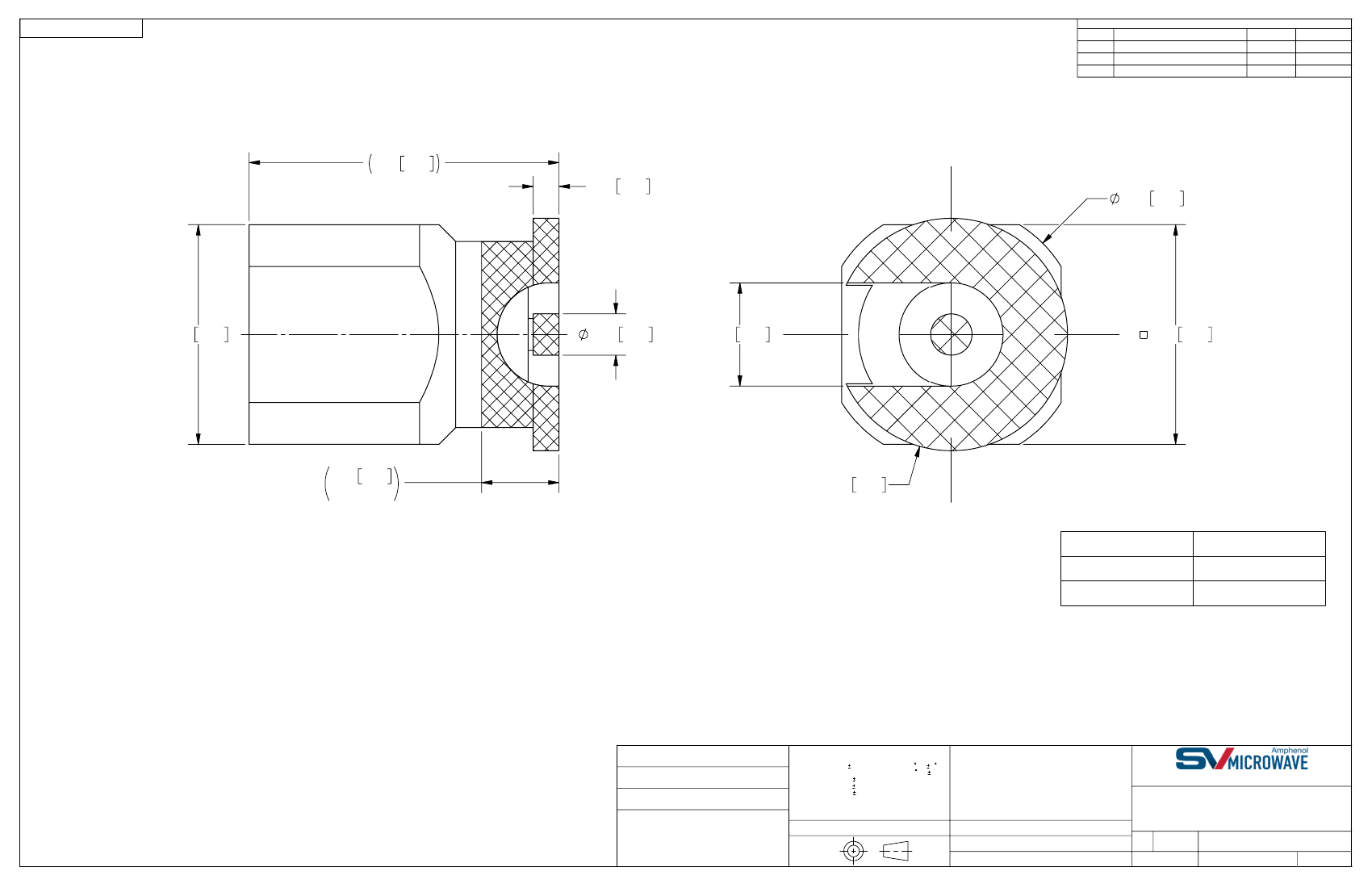

PRODUCT DATA DRAWING
-
DCN 46637
07/17
GPF
.120 3.05
.010 0.25
.100 2.54
.085 2.16
.016 0.41
.040 1.02
.085 2.16
.030 0.76
SOLDER
R.045 1.14
PART NUMBER
3811-40022-TD
3811-40023-TD
MATERIAL:
BODY & CONTACT:
INSULATOR:
FINISH:
BODY & CONTACT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 0.51, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .000050" MIN.
MATERIAL:
FINISH:
INTERFACE
FULL DETENT
SMOOTH BORE
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
NOTES:
1. FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC
PCB, CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800)
2. TO BE TIN DIPPED USING Sn96 SOLDER
3. ALL DIMENSIONS APPLY PRIOR TO SOLDER DIPPING
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
50 OHMS
DC TO 65.0 GHz
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
VB
07/14/17
SMPS MALE SURFACE
MOUNT
95077
GPF 07/14/17
GPF 07/14/17
SIZE CAGE CODE DWG. NO.
B
3811-40022-40023-TD
SHEET 1 OF 1
SCALE: 32:1
