Connector - SACC-M12FS-8CON-PG11-M - 1410665
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Connector, 8-position, Socket straight M12, A-coded, Screw connection, knurl material: Zinc die-cast, nickel-
plated, cable gland Pg11, external cable diameter 8 mm ... 10 mm
Why buy this product
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Screw connection: proven connection technology for a large selection of different conductors
Key Commercial Data
Packing unit
GTIN
GTIN
4046356904667
1 pc
Technical data
Dimensions
Diameter housing
Length
External cable diameter
Stripping length of the sheath
Stripping length of the individual wire
20 mm
60.4 mm
8 mm ... 10 mm
20 mm
5 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 85 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
2A
30 V DC
30 V AC
09/30/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1410665
Connector - SACC-M12FS-8CON-PG11-M - 1410665
Technical data
General
Number of positions
Color handle area
Insulation resistance
Coding
Standards/regulations
Status display
Overvoltage category
Degree of pollution
Connection method
Conductor cross section
8
black
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
II
3
Screw connection
0.25 mm² ... 0.5 mm² (without ferrule)
0.14 mm² ... 0.34 mm² (with ferrule)
0.25 mm² ... 0.5 mm² (solid)
Conductor cross section AWG
Insertion/withdrawal cycles
Torque
24 ... 20 (without ferrule)
26 ... 22 (with ferrule)
≥ 100
0.4 Nm (M12 knurl)
0.2 Nm (Screw terminal blocks)
1.5 Nm ... 2 Nm (Pressure screw with sleeve housing)
Tightening torque
Assembly instructions
Screw plug insert with sleeve housing as far it will go
The wires can be connected both with ferrules and without ferrules
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuZn
Au
PA
PA
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
09/30/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1410665
Connector - SACC-M12FS-8CON-PG11-M - 1410665

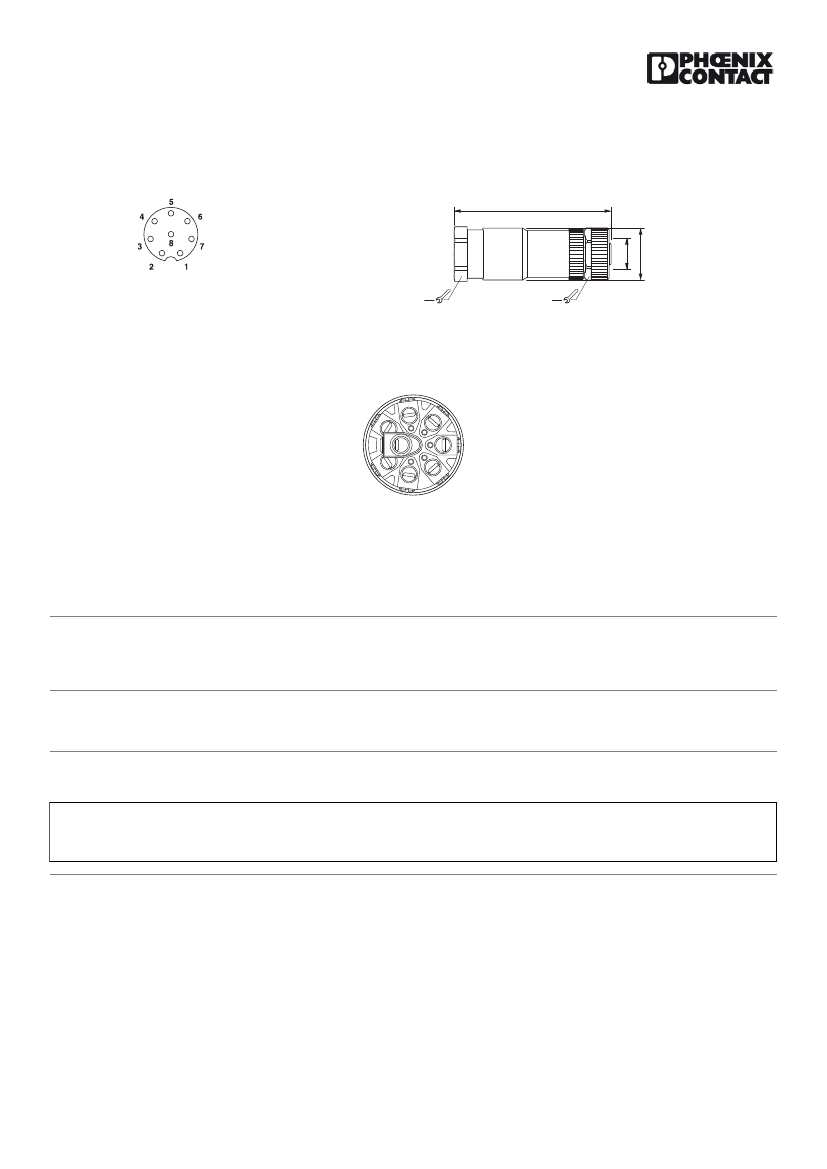

Schematic diagram
Dimensional drawing
60,4
M12x1
Pin assignment M12 socket, 8-pos., A-coded,
view female side
M12 x 1 socket, straight
19
18
Schematic diagram
8
4
3
2
Cable connection side M12 (screw connection)
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
5
Ø20
