POWER
Data Sheet
Total Power:
15 Watts
Input Voltage:
12 V, 24 V or 48 V
# of Outputs:
Single, Dual
SPECIAL FEATURES
4200 Vac reinforced insulation
Insulation rated for 300 Vac
working voltage
Medical safety certifications
2x MOPP rated
Wide 2:1 input voltage range
Low leakage current <5 µA
Operating temperature range
–40 °C to +85 °C (with derating)
Input filter meets EN 55022, Class
A and FCC, Level A
Medical EMC Standard meets 4th
Edition of EMI EN55011 and EMS
EN60601-1-2
2”x 1” plastic package
Three-year product warranty

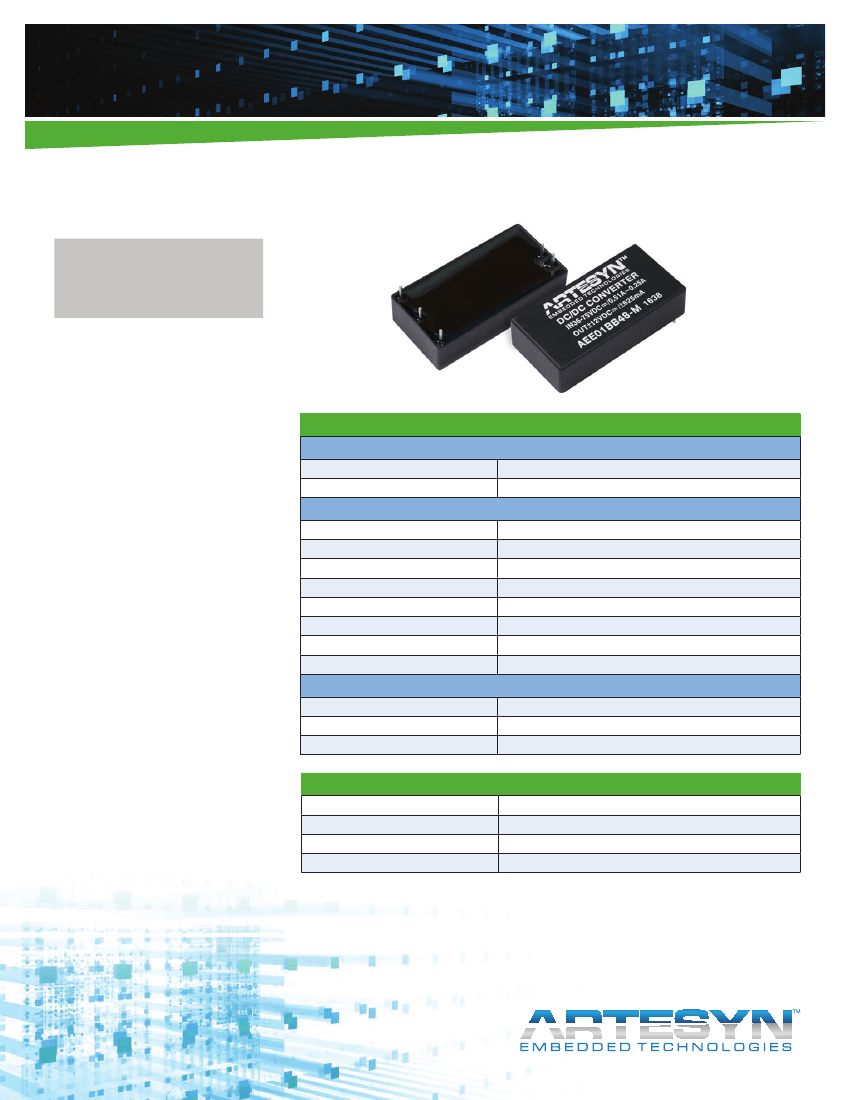

AEE15W-M Series
15 Watts
Electrical Specifications
Input
Input range
Efficiency
9 - 18 Vdc; 18 - 36 Vdc; 36 - 75 Vdc
89%
Output
Voltage tolerance
Line regulation
Load regulation
Noise/ripple
OCP and S/C protection
Overvoltage protection
Switching frequency
Temperature co-efficient
±1.0%
±0.5%
1.0%
150 mV
150%, Hiccup
110%
285 KHz
±0.02/°C
SAFETY
EN/IEC 60601-1 3rd Edition,
ANSI/AAMI ES60601-1
2x MOPP
CE Mark
Isolation
I/O isolation
Insulation resistance
Insulation capacitance
4200 Vac rms
10 Gohm
80 pF
Environmental Specifications
Operating ambient temperature range
Storage temperature
Humidity
Calculated MTBF
-40 °C to +80 °C
-50 °C to +125 °C
5% to 95% (non-condensing)
1 MHrs
AEE15W-M Series Data Sheet

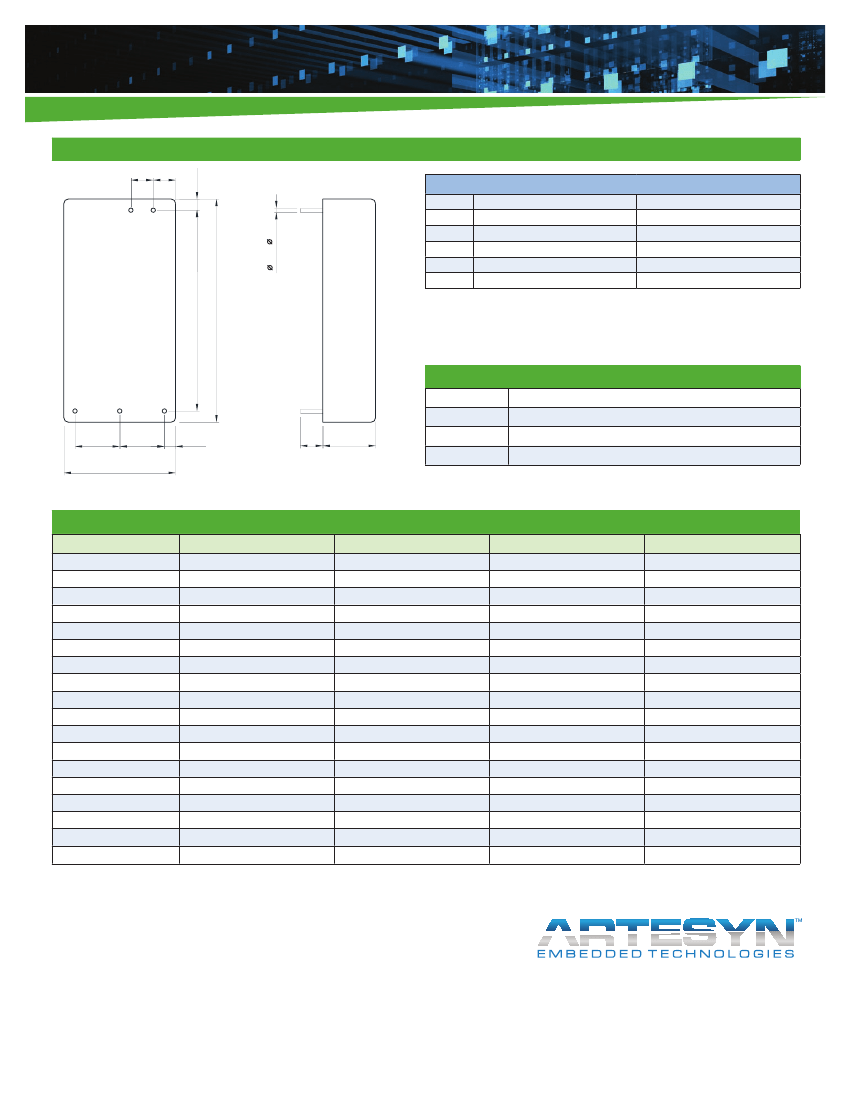

Mechanical Drawing
5.08 5.08
[0.20] [0.20]
2.54
[
0.10
]
Pin Connectors
Pin No.
1.00
[
0.04
]
Single Output
+Vin
-Vin
+Vout
No Pin
-Vout
Dual Output
+Vin
-Vin
+Vout
Common
-Vout
2
1
1
2
3
4
5
45.72 [1.80]
50.8 [2.00]
Bottom View
• All dimensions in mm (inches)
• Tolerance: X.X±0.5 (X.XX±0.02)
X.XX±0.25 ( X.XXX±0.001)
• Pin diameter 1.0 ±0.5 ( 0.04±0.002)
Physical Characteristics
5
4
3
Case Size
Case Material
Pin Material
Weight
50.8 x 25.4 x 12 mm (2.0 x 1.0 x 0.47 inches)
Non-Conductive Black Plastic (flammability to UL94V-0 rated)
Tinned Copper
30 g
10.16
[0.40]
10.16
[0.40]
2.54
[0.10]
5.08
[0.20]
12.0
[0.47]
25.4 [1.00]
Ordering Information
Artesyn Part number
AEE03A12-M
AEE01B12-M
AEE01C12-M
AEE01H12-M
AEE01BB12-M
AEE01CC12-M
AEE03A24-M
AEE01B24-M
AEE01C24-M
AEE01H24-M
AEE01BB24-M
AEE01CC24-M
AEE03A48-M
AEE01B48-M
AEE01C48-M
AEE01H48-M
AEE01BB48-M
AEE01CC48-M
Input Voltage
9 - 18 V
9 - 18 V
9 - 18 V
9 - 18 V
9 - 18 V
9 - 18 V
18 - 36 V
18 - 36 V
18 - 36 V
18 - 36 V
18 - 36 V
18 - 36 V
36 - 75 V
36 - 75 V
36 - 75 V
36 - 75 V
36 - 75 V
36 - 75 V
Output 1 Voltage
5V@3A
12 V @ 1.25 A
15 V @ 1 A
24 V @ 0.625 A
12 V @ 0.625 A
15 V @ 0.5 A
5V@3A
12 V @ 1.25 A
15 V @ 1 A
24 V @ 0.625 A
12 V @ 0.625 A
15 V @ 0.5 A
5V@3A
12 V @ 1.25 A
15 V @ 1 A
24 V @ 0.625 A
12 V @ 0.625 A
15 V @ 0.5 A
-12 V @ 0.625 A
-15 V @ 0.5 A
-12 V @ 0.625 A
-15 V @ 0.5 A
-12 V @ 0.625 A
-15 V @ 0.5 A
Output 2 Voltage
Maximum Power
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
15 W
