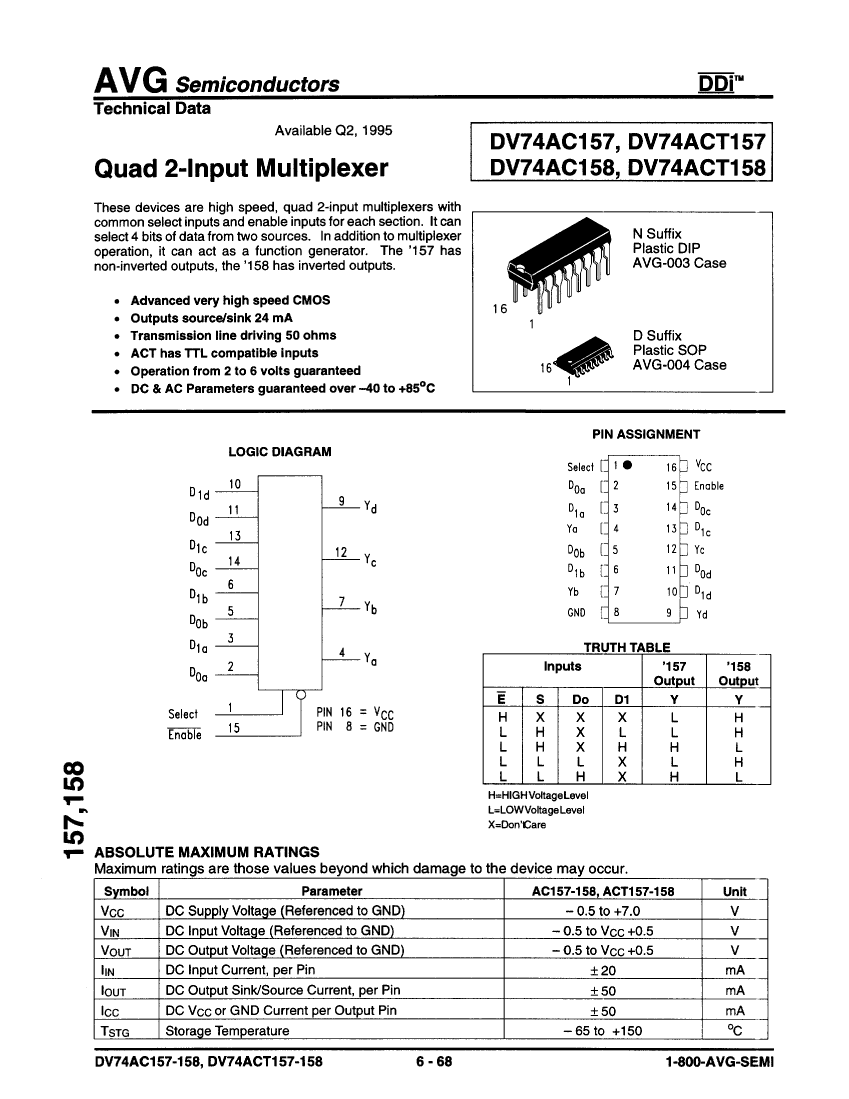

Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16

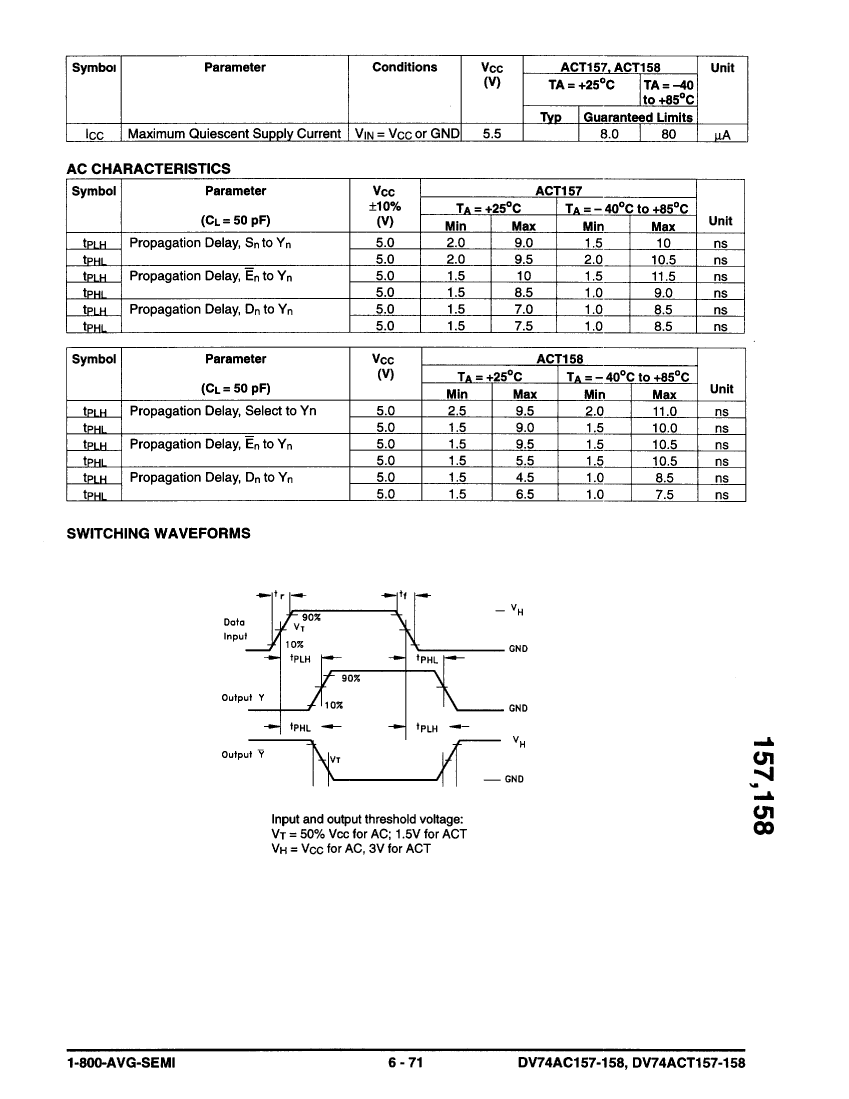

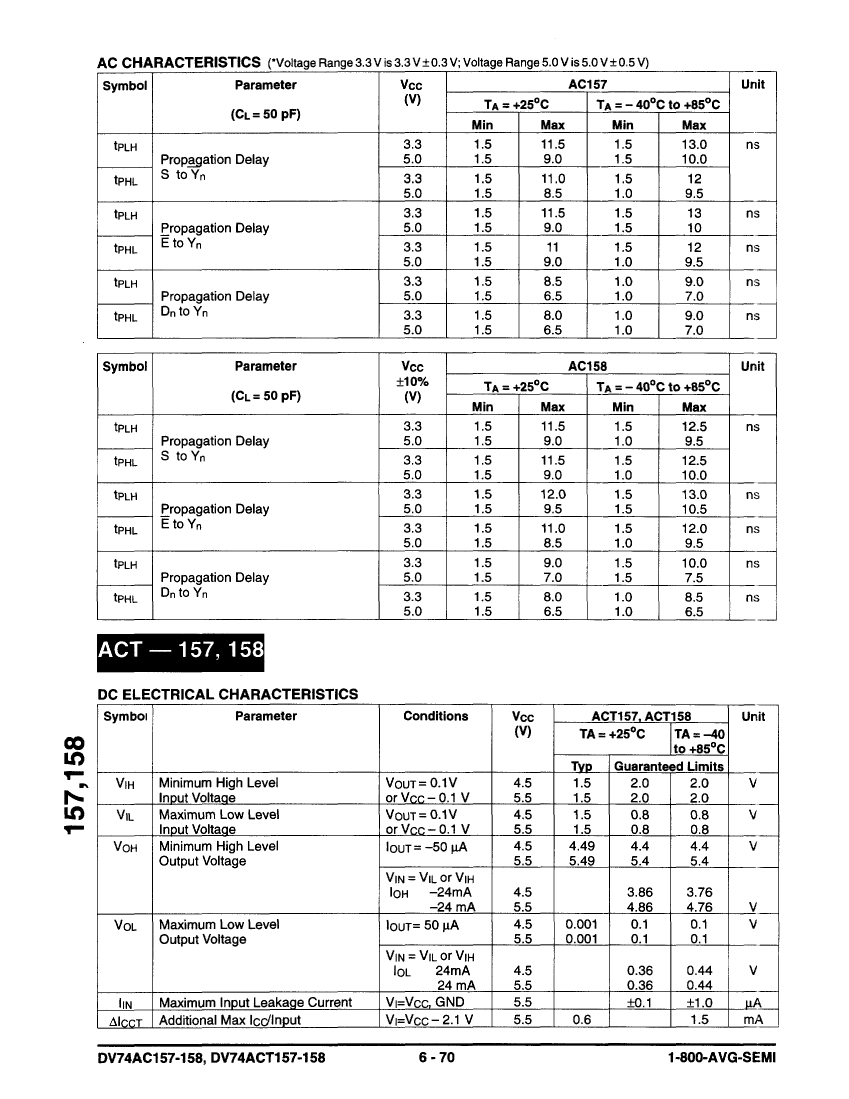

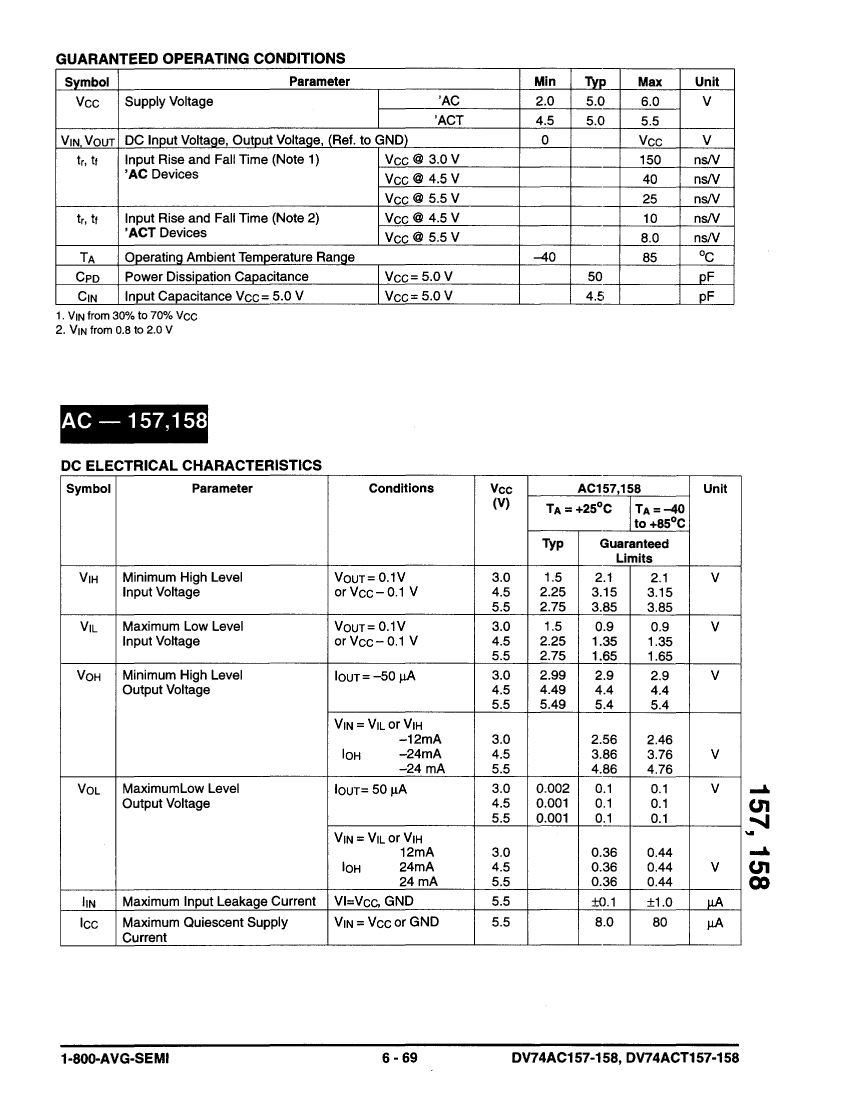

| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | SOIC |
| package instruction | PLASTIC, SOP-16 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| series | ACT |
| JESD-30 code | R-PDSO-G16 |
| length | 9.9 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 4 |
| Number of entries | 2 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| propagation delay (tpd) | 8.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 3.9 mm |
| Base Number Matches | 1 |
| DV74ACT158D | DV74AC157D | DV74AC157N | 320520915 | DV74AC158D | 320520962 | DV74ACT157N | DV74ACT158N | |
|---|---|---|---|---|---|---|---|---|
| Description | Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16 | Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16 | Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16 | Induktive Sensoren | Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16 | Induktive Sensoren | Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16 | Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16 |
| Maker | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | - | AVG [AVG Semiconductors(HITEK)] | - | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | SOIC | SOIC | DIP | - | SOIC | - | DIP | DIP |
| package instruction | PLASTIC, SOP-16 | SOP, | DIP, | - | SOP, | - | DIP, | PLASTIC, DIP-16 |
| Contacts | 16 | 16 | 16 | - | 16 | - | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown | - | unknown | - | unknown | unknown |
| series | ACT | AC | AC | - | AC | - | ACT | ACT |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PDIP-T16 | - | R-PDSO-G16 | - | R-PDIP-T16 | R-PDIP-T16 |
| length | 9.9 mm | 9.9 mm | 19.175 mm | - | 9.9 mm | - | 19.175 mm | 19.175 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | - | 50 pF | - | 50 pF | 50 pF |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | - | MULTIPLEXER | - | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 4 | 4 | 4 | - | 4 | - | 4 | 4 |
| Number of entries | 2 | 2 | 2 | - | 2 | - | 2 | 2 |
| Output times | 1 | 1 | 1 | - | 1 | - | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | - | 16 | - | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | - | 85 °C | - | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | - | -40 °C | - | -40 °C | -40 °C |
| Output polarity | INVERTED | TRUE | TRUE | - | INVERTED | - | TRUE | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | DIP | - | SOP | - | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | - | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | - | SMALL OUTLINE | - | IN-LINE | IN-LINE |
| propagation delay (tpd) | 8.5 ns | 9 ns | 9 ns | - | 10 ns | - | 8.5 ns | 8.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | - | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.75 mm | 4.44 mm | - | 1.75 mm | - | 4.44 mm | 4.44 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 6 V | 6 V | - | 6 V | - | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 2 V | 2 V | - | 2 V | - | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | - | 5 V | - | 5 V | 5 V |
| surface mount | YES | YES | NO | - | YES | - | NO | NO |
| technology | CMOS | CMOS | CMOS | - | CMOS | - | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | - | INDUSTRIAL | - | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE | - | GULL WING | - | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | - | 1.27 mm | - | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | - | DUAL | - | DUAL | DUAL |
| width | 3.9 mm | 3.9 mm | 7.62 mm | - | 3.9 mm | - | 7.62 mm | 7.62 mm |
