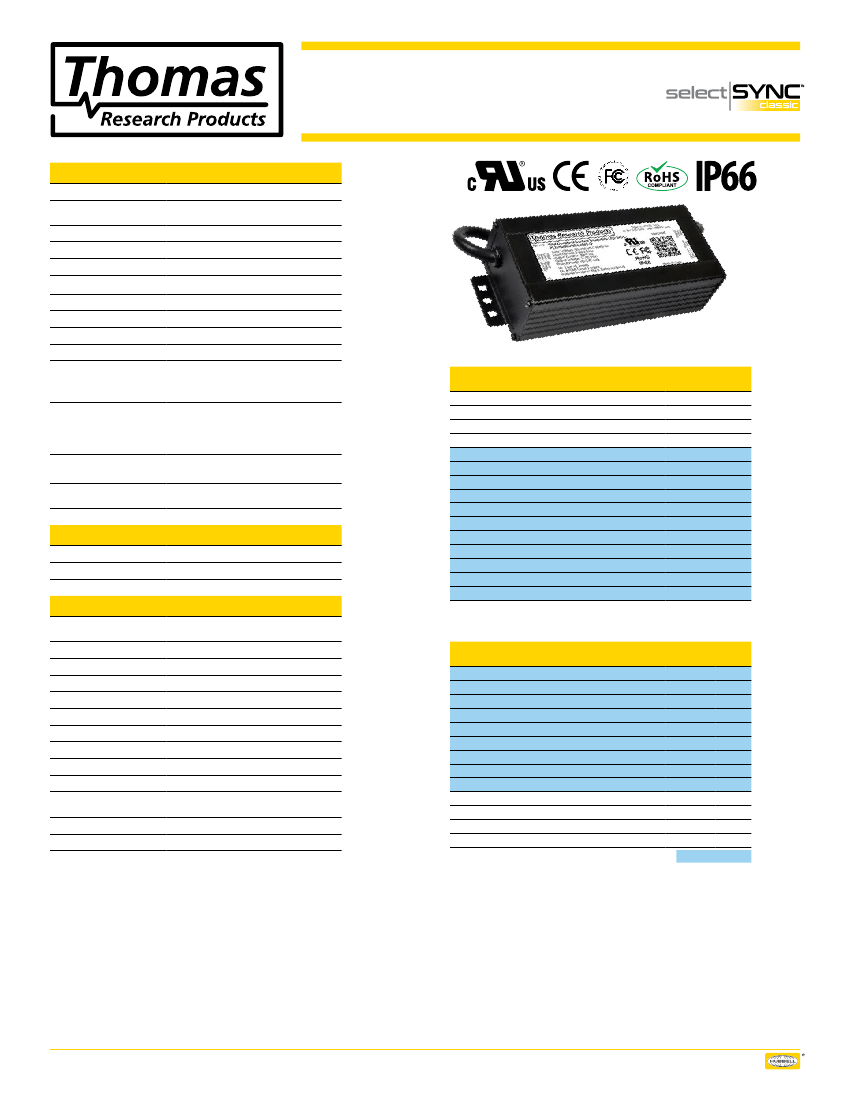

Fixed Output & Dimmable
Flicker-Free LED Drivers
Electrical Specifications
Input Voltage Range:
Input Over-Voltage:
Frequency:
Power Factor:
Inrush Current:
Input Current:
Maximum Power:
Current Regulation:
Load Regulation:
THD:
Ripple & Noise:
(Vpk-pk)
100-277 Vac Nom. (90-305 V Min/Max)
Can endure 320Vac for 48 Hrs,
350Vac for 2 Hrs
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ 75-100% load, 100-277Vac
<50.0 Amps max @ 277Vac, cold start 25ºC
0.80 Amps max
60W
± 3% Over input line variation
± 4%
≤ 20% @ 75-100% load, 100-277Vac
5% Vo max @ 20 MHz BW, Full load output
in parallel with 0.1 μF ceramic & 10 μF
Electrolytic
5% Io max @ 20 MHz BW, Full load output
in parallel with 0.1 μF ceramic & 10
μFElectrolytic. 120 Hz component (Flicker
Free)
200mS typical @ Full Load,
120Vac/60Hz (1000mS max)
0.28 mA max @ 120Vac,
0.78 mA max @ 277Vac
40mS typical @ Full Load, 277Vac
E332160
PLED60W Series
Rev 8-29-2017
TL
TYPE
Constant Current Models
Model
PLED60W-214-C0280-XX
PLED60W-166-C0360-XX
PLED60W-108-C0550-XX
PLED60W-072-C0850-XX
PLED60W-054-C1050-XX
PLED60W-054-C1100-XX
PLED60W-048-C1250-XX
PLED60W-042-C1400-XX
PLED60W-042-C1450-XX
PLED60W-036-C1670-XX
PLED60W-027-C2250-XX
PLED60W-024-C2500-XX
PLED60W-020-C3000-XX
PLED60W-015-C4000-XX
PLED60W-012-C5000-XX
Output Current Output Voltage Max. Output
Max
(mA ±3%)
Power
(W)
Efficiency
Range
(Vdc)
280
360
550
850
1050
1100
1250
1400
1450
1670
2250
2500
3000
4000
5000
72-214
56-166
36-108
24-72
18-54
18-54
16-48
14-42
14-42
12-36
9-27
8-24
7-20
5-15
4-12
60
60
60
60
56.7
60
60
58.8
60
60
60
60
60
60
60
91%
91%
90%
90%
88%
88%
88%
86%
86%
86%
85%
85%
84%
84%
84%
Ripple:
(Ipk-pk)
Start-up Time:
Leakage Current:
Hold Up Time:
Protections
Over-voltage
Over-current
Short Circuit
Output
Output
Auto Recovery
Environmental Specifications
Max Case Life Temp:
(5 year warranty)
Maximum Case Temp (UL):
Minimum Starting Temp:
Storage Temperature:
UL Type TL Rating:
Humidity:
Cooling:
Vibration Frequency:
Sound Rating:
Impact Resistance:
MTBF:
EMC:
Weight:
70˚C
90ºC
-30ºC
-40ºC to +85ºC
Class 2: 86/63°C; Non-Class 2: 90/81°C
5% to 95%
Convection
5 to 55 Hz/2g, 30 minutes
Class A
1g/s
474,000 Hours at full load and 40ºC ambi-
ent conditions per MIL-217F Notice 2
FCC 47CFR Part 15 Class B compliant
19 oz. (538 g)
-XX indicates dimming options are available. See options at left. Blank = fixed current output
Constant Voltage Models
Model
PLED60W-012
PLED60W-015
PLED60W-020
PLED60W-024
PLED60W-027
PLED60W-036
PLED60W-042
PLED60W-048
PLED60W-054
PLED60W-072
PLED60W-108
PLED60W-166
PLED60W-214
Output Voltage Output Current Max. Output
Max
(Vdc ±5%)
Power
(W)
Efficiency
Range
(mA)
•
•
12
15
20
24
27
36
42
48
54
72
108
166
214
1563-5000
1250-4000
938-3000
783-2500
700-2250
525-1670
448-1450
390-1250
350-1200
263-850
175-550
113-360
88-280
60
60
60
60
60
60
60
60
60
60
60
60
60
84%
84%
84%
85%
85%
86%
86%
88%
88%
90%
90%
91%
91%
•
Indicates S.A.M.
• Smallest Footprint Driver for this wattage
• Total Power: 60 Watts
• Input Voltage: 100-277 Vac Nom.
• UL Dry & Damp Location Rated
Class 2: US/Canada
Dimming Option:
“-D”
0-10V & Resistance dimmable models include an extra two wires
+Purple/-Gray on the output side. “-D” Compatible with most
quality 0-10V wall dimmers. See page 3.
“-D3”
3-wire dimmable model dims 100% to 10%. Three extra wires
included on the output side: Yellow/Purple/Gray. This model is
suitable for potentiometer dimming. See page 3.
Note:
LED drivers are designed and intended to operate LED loads only. Non-LED
loading may be outside the specified design limits of our LED drivers, and
therefore cannot be covered by any warranty. If you desire to use our LED
drivers to operate non-LED loads please contact us to discuss compatibility.
© 2017 Thomas Research Products. Specifications subject to change without notice.
• IP66 & NEMA6
• Constant Current & Constant Voltage with Isolation
• Black Magic Thermal Advantage™ Aluminum Housing
• UL Type HL Rated for Hazardous Locations
• UL Sign Components Manual (S.A.M. Models)
Pg 1 of 3
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
Fixed Output & Dimmable Flicker-Free LED Drivers

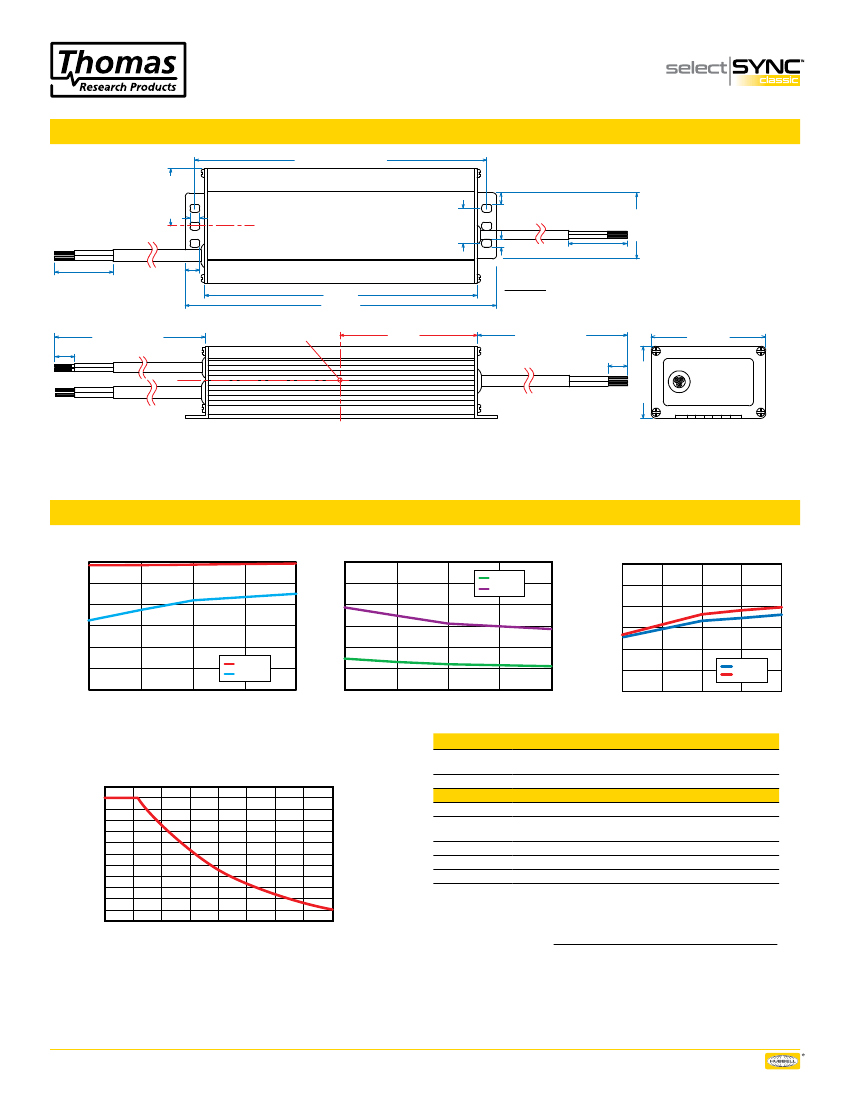

Dimensions
5.51 ±0.047 [140.0 ±1.2]
1.165 [29.6]
PLED60W Series
IN [mm]
0.236 [6]
0.71 [18]
1.34 [34]
2.24±0.12 [57.0±3]
0.236 [6]
0.16 [4]
0.31 [8]
2.24±0.12 [57.0±3]
5.1 [130]
5.91 [150]
Tc = 90°C max
2.6 [65]
WIRE SPECS:
Input Leads:
18 AWG, rated 600 V, 105C, min.
Output Leads:
18 AWG, rated 300 V, 105C, min.
Dimming Leads:
22 AWG, rated 300 V, 105C.
All wires are stranded with solder dipped ends.
12.0 Min [305 Min]
0.39±0.04 [10±1]
Dimming
Purple (Dim+)
Gray (Dim-)
12.0 Min [305 Min]
0.39±0.04 [10±1]
INPUT
Black (ACL)
White (ACN)
Green/Yellow (GND)
2.33 [59.2]
OUPUT
Red (V+)
Blue (V-)
Power Characteristics
1.000
0.950
0.900
Power Factor / Load
30%
25%
20%
THD / Load
120Vac
277Vac
100%
95%
Efficiency
90%
85%
80%
75%
70%
60%
0.850
0.800
0.750
0.700
60%
70%
80%
120Vac
277Vac
90%
100%
THD
PF
15%
10%
5%
0%
60%
70%
80%
90%
100%
1.47 [37.3]
Typical Efficiency / Load
120Vac
277Vac
70%
80%
90%
100%
Load
Load
Load
Lifetime / Case Temperature
Full Load @ 120Vac
140000
128750
117500
106250
95000
83750
72500
61250
50000
38750
27500
16250
5000
50
Safety Cert.
UL/CUL
CE
FCC, 47CFR Part 15
EN 55015
EN 61000-3-2
EN 61000-3-3
EN 61000-4-5
Standard
UL8750 & CAN/CSA-22.2 No. 250.13-12, UL1310/CSA-C22.2 No.223-M91,
UL1012/CSA-C22.2 No.107.1 for Non-Class 2
EN 61347-1, EN61347-2-13
Class B
Limits and methods of measurement of radio disturbance characteristics
of electrical lighting and similar equipment.
Part 3-2: Limits for harmonic current emissions Class C, >80% Rated Power
Part 3-3: Limitation of voltage changes, voltage fluctuations and flicker.
Part 4-5: Surge Immunity test, 2 kV L-N, 4 kV L-G & N-G
EMC Standard Notes
Lifetime
(kHrs)
55
Case Hotspot Temperature
(°C)
60
65
70
75
80
85
90
UL Conditions of Acceptability
See website for additional information
Note:
The area under the life-temperature curve represents where the driver has highly reliable operation within specification. Driver performance may drift out of published specifications
as the hours of operation exceed the curve at a given temperature. Higher operating temperatures increase the chances of a failure to function. Other electrical, mechanical and environmental
factors affect driver lifetime but are not represented in this calculation.
© 2017 Thomas Research Products. Specifications subject to change without notice.
Pg 2 of 3
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
Fixed Output & Dimmable Flicker-Free LED Drivers
“-D” and “-D3” Options: 0-10VDC and Resistance Dimming
Parameters
10V Output, Yellow Wire
Source Current out of Aux Yellow Wire
Absolute Voltage Range on 0-10V (+) Purple Wire
Source Current out of 0-10V Purple Wire
PLED60W Series
Minimum
9.2V
—
-2.0V
0mA
Typical
10.0V
—
—
—
Maximum
10.8V
10mA
+15V
2mA
Typical Dimming Circuit
Dim (+) Purple
3-Wire Dimming Typical Circuit
10V Output (Yellow)
PLED60W-xxx-Cxxxx-D
IP710 Wall Dimmer
Dim (-) Gray
PLED60W-xxx-Cxxxx-D3
0-10V Input (Purple)
Return (Gray)
20K
Potentiometer
(Dimmer must be current-sink type control)
100
90
80
70
60
50
40
30
20
10
0
Output Current / 0-10VDC Dimming Input
Output Current %
0V
1V
2V
3V
Dimming Input
(Vdc)
4V
5V
6V
7V
8V
9V
10V
Notes:
1.
2.
3.
4.
5.
0-10V dimmable version comes with an extra two wires +Purple/-Gray on the output side.
Compatible with most 0-10V Wall Slide dimmers and direct 0-10V analog signal. Recommended dimmer is Leviton IP710 or equivalent
0-10V dimmable version is not intended to dim below about 5% @ 0V or 10% @ 1.0V
0-10V dimmable version output will be 100% with Purple/Gray open and minimum with Purple/Gray Shorted.
3-wire dimmable drivers come with three wires on the output side (Yellow/Purple/Gray).
© 2017 Thomas Research Products. Specifications subject to change without notice.
Pg 3 of 3
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
