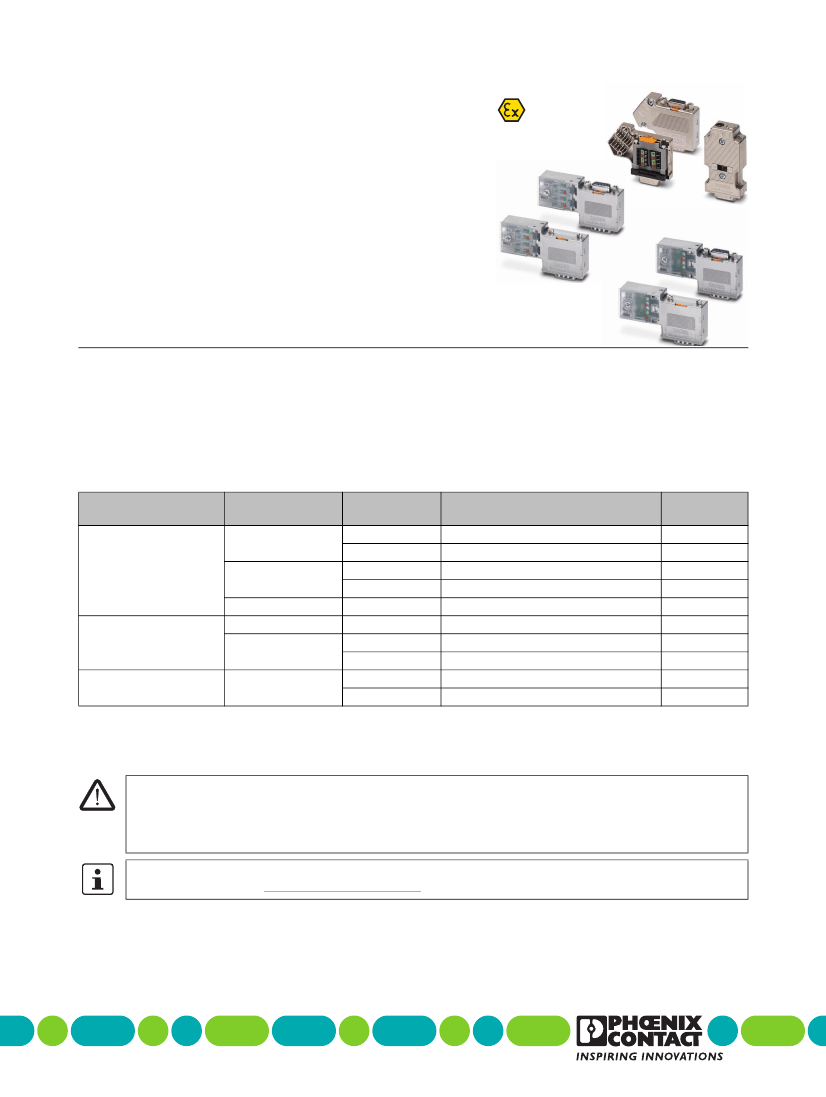

SUBCON-PLUS-PROFIB...
Fast connector for PROFIBUS systems
Data sheet
101610_en_10
1
Description
© PHOENIX CONTACT 2017-03-27
The
SUBCON-PLUS-PROFIB...
D-SUB series is specifi-
cally designed for use in PROFIBUS systems up to
12 Mbps. Under field conditions, it enables the quick and
easy connection of the incoming and outgoing bus line.
The product range includes ten fast connectors:
Connection
Cable entry
Angled 35°
Screw connection
Angled 90°
Axial
Axial
Push-in spring
connection
IDC connection
Angled 35°
Angled 90°
Programming
interface
-
-
-
-
-
-
Type
SUBCON-PLUS-PROFIB/SC2
SUBCON-PLUS-PROFIB/PG/SC2
SUBCON-PLUS-PROFIB/90/SC
SUBCON-PLUS-PROFIB/90/PG/SC
SUBCON-PLUS-PROFIB/AX/SC
SUBCON-PLUS-PROFIB/AX
SUBCON-PLUS-PROFIB
SUBCON-PLUS-PROFIB/PG
SUBCON-PLUS-PROFIB/90/IDC
SUBCON-PLUS-PROFIB/90/PG/IDC
Order No.
2708232
2708245
2313698
2313708
2744380
2744377
2744348
2744403
2313672
2313685
WARNING: Explosion hazard when used in potentially explosive areas
Connectors with screw connection or push-in spring connection: Follow the instructions provided here during in-
stallation and make sure you observe the safety notes.
The connectors with IDC connection have
no
ATEX approval and are suitable only for safe areas.
Make sure you always use the latest documentation.
It can be downloaded at
phoenixcontact.net/products.
SUBCON-PLUS-PROFIB...
Features
–
–
All connectors can be used for PROFIBUS cables with
a solid or stranded copper wire.
All versions already have an integrated termination
resistor. This is switched on externally via a slide
switch. Concurrently, the outgoing bus segment is
switched off. This makes it easy to start up segment by
segment while incorrect terminations are avoided.
In addition, the connector housing with high-quality
shielding ensures a high level of immunity to interfer-
ence even at maximum data transmission speed.
The connectors are designed for all standard
PROFIBUS cables with an outside diameter of 8 mm
(types A and B). When using Fast Connect cables, work
is reduced to a minimum by using the PSM-STRIP-
FC/PROFIB quick stripping tool.
A special feature of the 35° angled connector is that the
internal connection unit can be turned round. Whether
the cable is to be inserted from the right or left can thus
be decided on site.
–
–
–
2
1
2
3
4
Table of contents
Description..................................................................................................................................1
Table of contents ........................................................................................................................2
Ordering data..............................................................................................................................3
Connectors with screw connection or push-in spring connection................................................5
4.1
4.2
4.3
4.4
4.5
4.6
Safety regulations and installation notes ........................................................................................................ 5
Installation in zone 2 ....................................................................................................................................... 5
SUBCON-PLUS-PROFIB(/PG)/SC2 .............................................................................................................. 6
SUBCON-PLUS-PROFIB/90(/PG)/SC ........................................................................................................... 9
SUBCON-PLUS-PROFIB/AX(/SC)............................................................................................................... 12
SUBCON-PLUS-PROFIB(/PG) .................................................................................................................... 15
5
6
Connectors with IDC connection...............................................................................................18
Termination resistor ..................................................................................................................20
101610_en_10
PHOENIX CONTACT
2 / 20
SUBCON-PLUS-PROFIB...
3
Ordering data
Type
SUBCON-PLUS-PROFIB/SC2
Order No.
2708232
Pcs./
Pkt.
1
Connectors with screw connection
D-SUB 9 connector, pin, cable entry < 35°, bus system:
PROFIBUS DP up to 12 Mbps, termination resistor can be
switched on via slide switch, pin assignment: 3, 5, 6, 8
D-SUB 9 connector, pin, cable entry < 35°, bus system:
PROFIBUS DP up to 12 Mbps with PG D-SUB socket for
connecting a programming device, termination resistor can
be switched on via slide switch, pin assignment: 3, 5, 6, 8
D-SUB 9 connector, pin, cable entry < 90°, bus system:
PROFIBUS DP up to 12 Mbps, termination resistor can be
switched on via slide switch, pin assignment: 3, 5, 6, 8
D-SUB 9 connector, pin, cable entry < 90°, bus system:
PROFIBUS DP up to 12 Mbps with PG D-SUB socket for
connecting a programming device, termination resistor can
be switched on via slide switch, pin assignment: 3, 5, 6, 8
D-SUB 9 connector, pin, axial version with two cable entries,
bus system: PROFIBUS DP up to 12 Mbps,
termination resistor can be switched on via slide switch,
pin assignment: 3, 5, 6, 8
Plug with push-in spring connection
SUBCON-PLUS-PROFIB/PG/SC2
2708245
1
SUBCON-PLUS-PROFIB/90/SC
2313698
1
SUBCON-PLUS-PROFIB/90/PG/SC 2313708
1
SUBCON-PLUS-PROFIB/AX/SC
2744380
1
Type
Order No.
2744377
D-SUB 9 connector, pin, axial version with two cable entries, SUBCON-PLUS-PROFIB/AX
bus system: PROFIBUS DP up to 12 Mbps,
termination resistor can be switched on via slide switch,
pin assignment: 3, 5, 6, 8
D-SUB 9 connector, pin, two cable entries < 35°, bus sys-
SUBCON-PLUS-PROFIB
tem: PROFIBUS DP up to 12 Mbps, termination resistor can
be switched on via slide switch, pin assignment: 3, 5, 6, 8
D-SUB 9 connector, pin, cable entry < 35°, bus system:
SUBCON-PLUS-PROFIB/PG
PROFIBUS DP up to 12 Mbps with PG D-SUB socket for
connecting a programming device, termination resistor can
be switched on via slide switch, pin assignment: 3, 5, 6, 8
Connectors with IDC connection
D-SUB 9 connector, pin, cable entry < 90°, bus system:
PROFIBUS DP up to 12 Mbps, termination resistor can be
switched on via slide switch, pin assignment: 3, 5, 6, 8
D-SUB 9 connector, pin, cable entry < 90°, bus system:
PROFIBUS DP up to 12 Mbps with PG D-SUB socket for
connecting a programming device, termination resistor can
be switched on via slide switch, pin assignment: 3, 5, 6, 8
Type
SUBCON-PLUS-PROFIB/90/IDC
Pcs./
Pkt.
1
2744348
1
2744403
1
Order No.
2313672
Pcs./
Pkt.
1
SUBCON-PLUS-PROFIB/90/PG/IDC
2313685
1
101610_en_10
PHOENIX CONTACT
3 / 20
SUBCON-PLUS-PROFIB...
Accessories
Quick stripping tool for PROFIBUS cable type Fast Connect
Stripping pliers for PVC-insulated cables,
stripping range: 0.08 to 6 mm²,
can cut wires up to 6 mm² stranded and 4 mm² solid
PROFIBUS cable, Fast Connect type, up to 12 Mbps
(02YSY (ST)CY 1x2x22 AWG)
D-SUB connector, 9-pos., pin, assignment: 3, 5, 6, 8
Two M12 cable glands (B-coded) under 90°
Bus system: PROFIBUS DP up to 12 Mbps
Termination resistor via separate M12 terminator
D-SUB connector, 9-pos., pin, assignment: 3, 5, 6, 8
Two M12 cable glands (B-coded) under 35°
Bus system: PROFIBUS DP up to 12 Mbps
Termination resistor via separate M12 terminator
D-SUB connector, 9-pos., pin, assignment: 3, 5, 6, 8
Two M12 cable glands (B-coded) under 180° (axial)
Bus system: PROFIBUS DP up to 12 Mbps
Termination resistor via separate M12 terminator
Type
PSM-STRIP-FC/PROFIB
QUICK WIREFOX 6
Order No.
2744623
1204384
Pcs./
Pkt.
1
1
PSM-CABLE-PROFIB/FC
SUBCON-PLUS-PROFIB/90/M12
2744652
2902318
1
1
SUBCON-PLUS-PROFIB/35/M12
2902320
1
SUBCON-PLUS-PROFIB/AX/M12
2902321
1
101610_en_10
PHOENIX CONTACT
4 / 20
SUBCON-PLUS-PROFIB...
4
4.1
Connectors with screw connection or push-in spring connection
Safety regulations and installation notes
WARNING:
Observe the following safety notes when using
the connector.
4.2
Installation in zone 2
WARNING: Explosion hazard when used in
potentially explosive areas
Make sure that the following notes and instruc-
tions are observed.
WARNING: Explosion hazard when used in
potentially explosive areas
D-SUB interfaces may only be connected or dis-
connected when the voltage is disconnected.
Screw the D-SUB mounting screws tight on all
connectors.
•
•
Observe the specified conditions for use in potentially
explosive areas.
The device should be installed so that a degree of pro-
tection of at least IP54 is achieved in accordance with
EN 60529. To this end, a suitable, approved housing
that meets the requirements of EN 60079-15 should be
used.
Only devices which are designed for operation in
Ex zone 2 and are suitable for the conditions at the in-
stallation location may be connected to the circuits in
zone 2.
In potentially explosive areas, only connect and discon-
nect cables when the power is disconnected.
The switches of the device that can be accessed may
only be actuated when the power supply to the device
is disconnected.
Connection to the D-SUB interface is only permitted if
the screw connection is fully tightened.
Temporary malfunctions (transients) must not exceed
the rated voltage by more than 40%.
The device must be stopped and immediately removed
from the Ex area if it is damaged, was subjected to an
impermissible load, stored incorrectly or if it malfunc-
tions.
•
•
•
•
•
•
The category 3 device is designed for installation in
zone 2 potentially explosive areas. It meets the require-
ments of EN 60079-0:2012+A11:2013 and EN 60079-
15:2010.
Installation, operation, and maintenance may only be
carried out by qualified electricians. Follow the installa-
tion instructions as described. When installing and op-
erating the device, the applicable regulations and
safety directives (including national safety directives)
as well as general technical regulations must be ob-
served. The data on safety technology is provided in
this packing slip and on the certificates (conformity as-
sessment, additional approvals where applicable).
Do not repair the device yourself; replace it with an
equivalent device instead. Repairs may only be carried
out by the manufacturer. The manufacturer is not liable
for damage resulting from non-compliance.
The IP20 degree of protection (IEC 60529/EN 60529)
of the device is intended for a clean and dry environ-
ment. Do not subject the device to mechanical and/or
thermal loads that exceed the specified limits.
The device is not designed for installation in zone 22.
If, however, you wish to use the device in zone 22, it
must be installed in a housing that complies with
IEC/EN 60079-31. In doing so, observe the maximum
surface temperatures. Observe the requirements of
IEC/EN 60079-14.
•
•
•
•
•
•
101610_en_10
PHOENIX CONTACT
5 / 20
