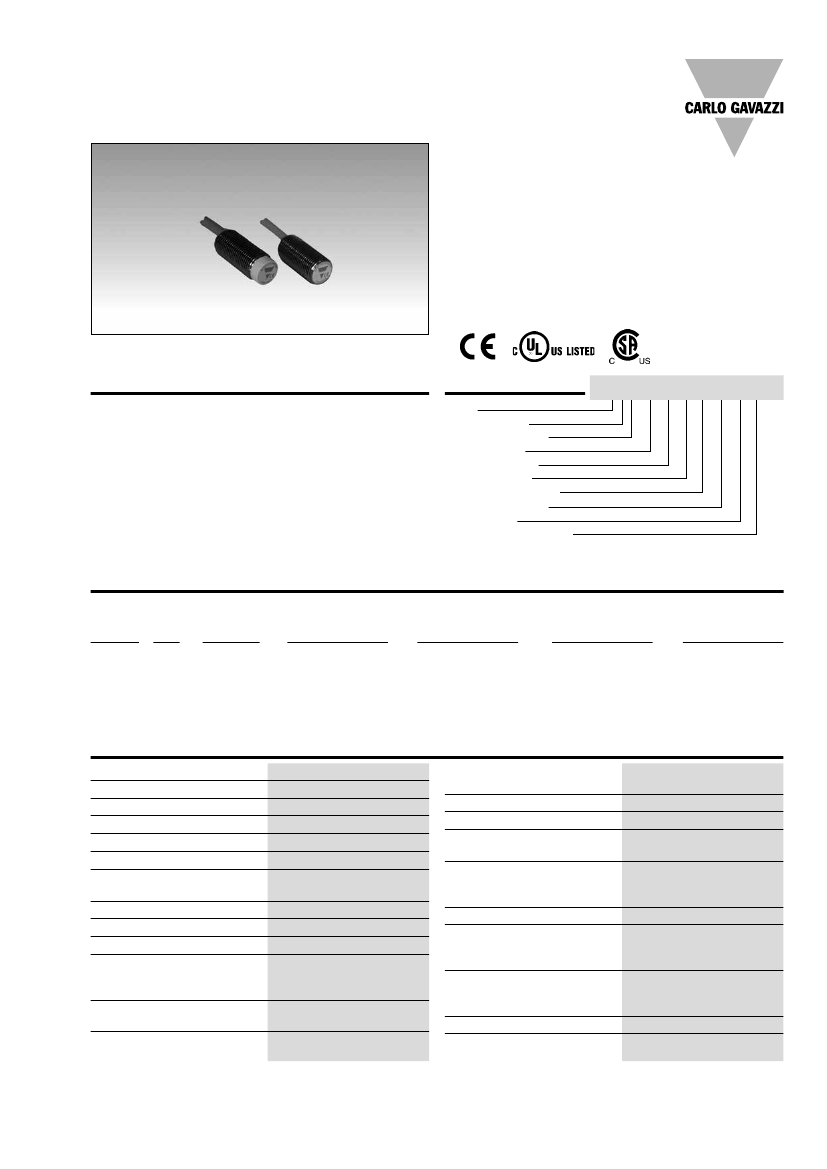

ICB, M12, Extra short body version
Proximity Inductive Sensors
Extended Range, Nickel-Plated Brass Housing
Types ICB, M12 - Extra short body version
•
•
•
•
•
•
•
•
•
•
•
•
•
Sensing distance: 4 to 8 mm
Flush or non-flush types
Extra short body versions
Rated operational voltage (U
b
): 10 - 36 VDC
Output: DC 200 mA, NPN or PNP
Normally open or Normally closed
LED indication for output ON
Protection: reverse polarity, short circuit, transients
Cable versions
According to IEC 60947-5-2
Laser engraved on front cap, permanently legible
Extended temperature range of -25°C...+80°C
CSA certified for Hazardous Locations
Product Description
A family of inductive prox-
imity switches in industrial
standard nickel-plated brass
housings. They are charac-
terized by extremely high
performance in a very small
design, to satisfy the most
demanding
applications,
also where the space avail-
able for the sensor is limited
and extended sensing range
is requested.
Output is open collector
NPN or PNP transistors.
Ordering Key
Type
Housing style
Housing material
Housing size
Housing length
Thread length
Detection principle
Sensing distance
Output type
Output configuration
ICB12S23F04NO
Type Selection
Connec-
tion
Cable
Cable
1)
Body
style
Short
Short
Rated
operating
distance S
n
4 mm
1)
8 mm
2)
Ordering no.
NPN,
Normally open
ICB12S23F04NO
ICB12S23N08NO
2)
Ordering no.
PNP,
Normally open
ICB12S23F04PO
ICB12S23N08PO
Ordering no.
NPN,
Normally closed
ICB12S23F04NC
ICB12S23N08NC
Ordering no.
PNP,
Normally closed
ICB12S23F04PC
ICB12S23N08PC
For flush mounting in metal
For non-flush mounting in metal
Specifications
Rated operational voltage (U
b
)
Ripple
Output current (I
e
)
OFF-state current (I
r
)
No load supply current (I
o
)
Voltage drop (U
d
)
Protection
Voltage transient
Power ON delay (t
v
)
Max. operating frequency (f)
Indication for output ON
NO version
NC version
Indication for short circuit/
overload
Assured operating
sensing distance (S
a
)
10 to 36 VDC (ripple incl.)
≤ 10%
≤ 200 mA @ 50°C
≤ 50 μA
≤ 15 mA
Max. 2.5 VDC @ 200 mA
Reverse polarity,
short-circuit, transients
1 kV/0.5 J
≤ 40 ms
≤ 2000 Hz
Activated LED, yellow
Target present
Target not present
LED blinking (f = 2 Hz)
0 ≤ S
a
≤ 0.81 x S
n
Effective operating
distance (S
r
)
Usable operating distance (S
u
)
Repeat accuracy (R)
Differential travel (H)
(Hysteresis)
Ambient temperature
Operating
Storage
Shock and vibration
Housing material
Body
Front
Connection
Cable
Degree of protection
Weight
(cable/nuts included)
0.9 x S
n
≤ S
r
≤ 1.1 x S
n
0.9 x S
r
≤ S
u
≤ 1.1 x S
r
≤ 10%
1 to 20% of sensing dist.
-25° to +80°C (-13° to +176°F)
-25° to +80°C (-13° to +176°F)
IEC 60947-5-2/7.4
Nickel-plated brass
Grey thermoplastic polyester
Ø4.1 x 2 m, 3 x 0.25 mm
2
,
grey PVC, oil proof
IP 67
Max. 70 g
Specifications are subject to change without notice (17.05.16)
1
ICB, M12, Extra short body version
Specifications (cont.)
Dimensions
Tightening torque
Distance from sensing face
from 0 mm to 4 mm
> 4 mm
Approvals
c
UL
us
c
CSA
us
See diagrams below
10 Nm
15 Nm
(UL508)
As Process Control
Equipment for Hazardous
Locations.
- Class I, Division 2,
Groups A, B, C and D.
- T5, Enclosure Type 4.
Ambient temperature
Ta: -25° to +60°C
Approvals (cont.)
EMC protection
IEC 61000-4-2 (ESD)
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-6
IEC 61000-4-8
MTTF
d
CCC is not required for
products with a maximum
operating voltage of ≤ 36 V
According to IEC 60947-5-2
8 KV air discharge,
4 KV contact discharge
3 V/m
2 kV
3V
30 A/m
816 years @ 50°C (122°F)

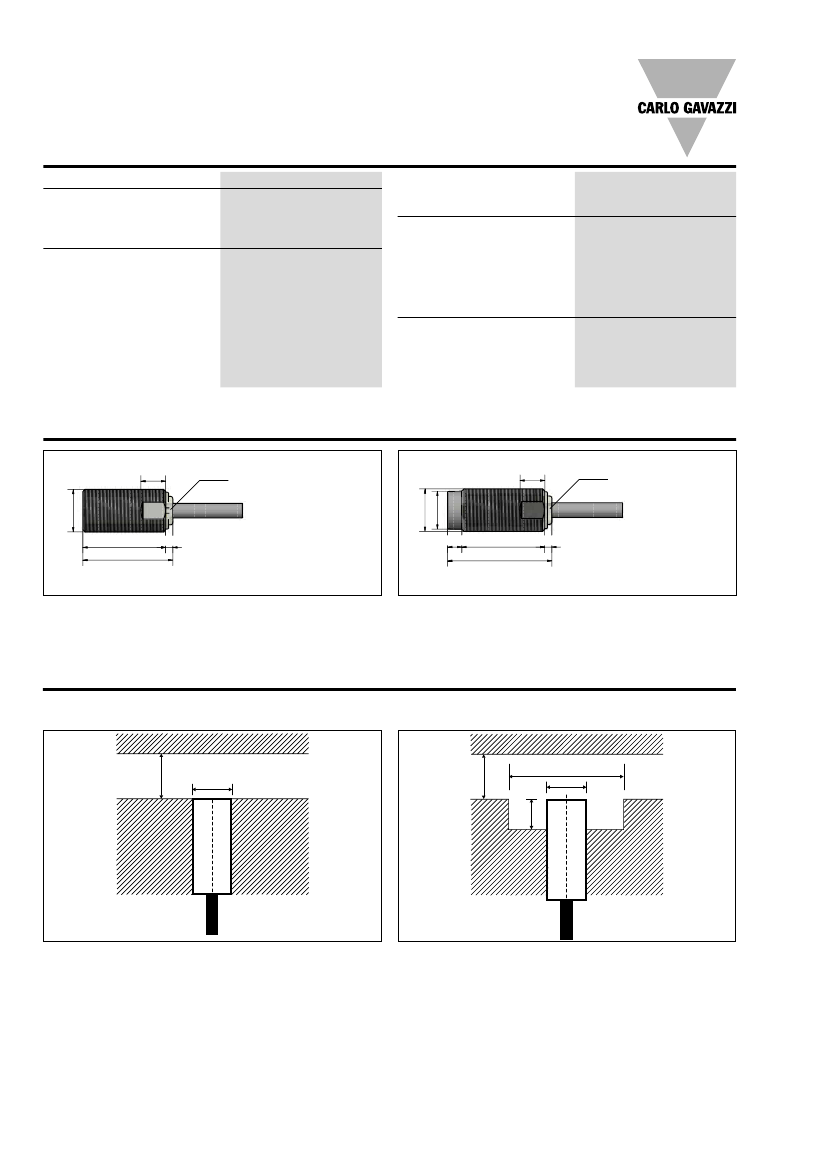

Dimensions (mm)
7.0
LED
M12x1
10.70
7.0
LED
M12x1
23.40
25.40
2.0
4.0
23.40
29.40
2.0
Extra short body, flush version, cable
Extra short body, non-flush version, cable
Installation
Flush sensor, when installed in damping material, must be
according to Picture 1A.
Picture 1A
≥ 3 x S
n
d
Free zone or
non-damping
material
Non-flush sensor, when installed in damping material, must
be according to Picture 1B.
Picture 1B
≥ 3 x S
n
≥ 2 x S
n
≥3xd
d
Free zone or
non-damping
material
S
n
: nominal sensing distance
d : sensor diameter (12 mm)
S
n
: nominal sensing distance
d : sensor diameter (12 mm)
2
Specifications are subject to change without notice (17.05.16)
ICB, M12, Extra short body version
Installation (cont.)

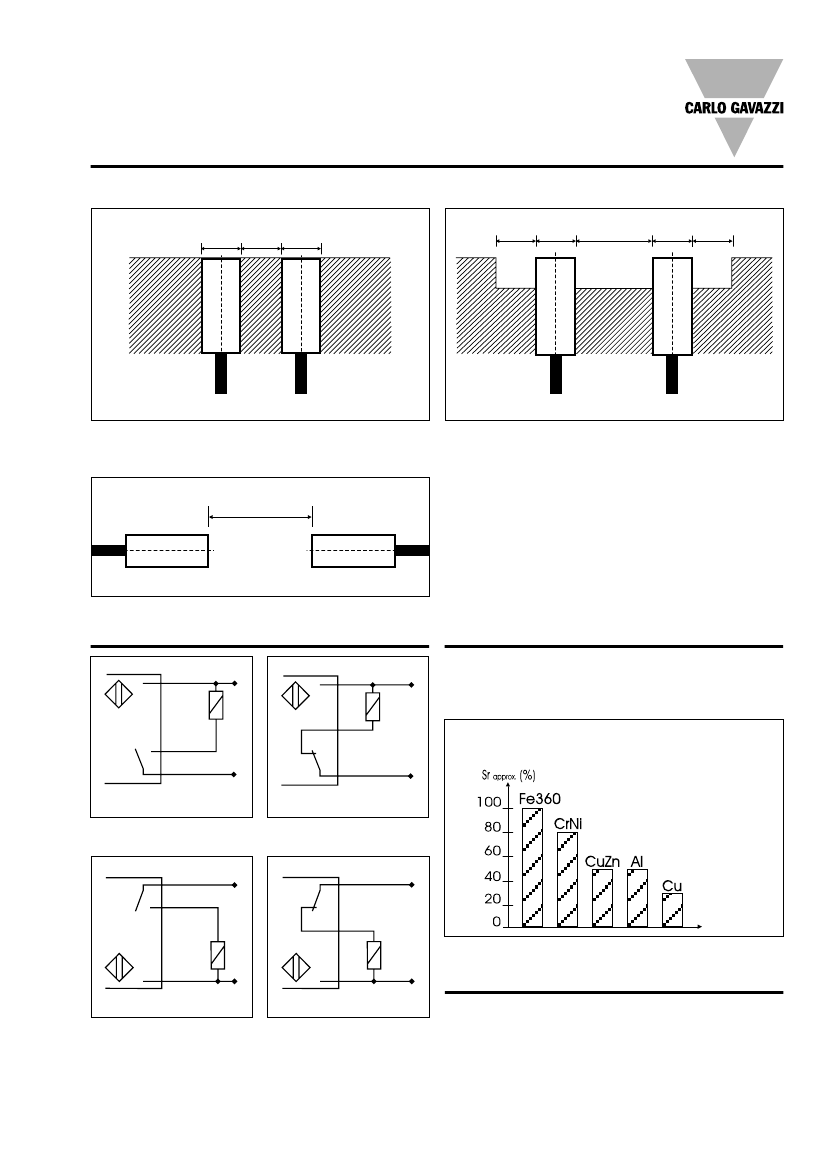

Flush sensors, when installed together in damping material,
must be according to Picture 2A.
Picture 2A
d
d
d
Non-flush sensors, when installed together in damping
material, must be according to Picture 2B.
Picture 2B
d
d
2xd
d
d
d : sensor diameter (12 mm)
d : sensor diameter (12 mm)
For sensors installed opposite each other, a minimum space
of 6 x S
n
(the nominal sensing distance) must be observed
(See Picture 3).
Picture 3
≥ 6 x S
n
S
n
: nominal sensing distance
Wiring Diagram
1 BN
Reduction Factors
1 BN
+
+
The rated operating distance
is reduced by the use of
metals and alloys other than
Fe360.
Picture 4
The most important reduc-
tion factors for inductive
proximity sensors are shown
in Picture 4.
2 BK
4 BK
3 BU
-
3 BU
-
NPN - Normally open
NPN - Normally closed
Fe360 : Steel
CrNi : Chrome-nickel
CuZn : Brass
Al : Aluminium
Cu : Copper
Sr : Effective operating distance
1 BN
4 BK
+
1 BN
+
2 BK
3 BU
PNP - Normally open
-
3 BU
PNP - Normally closed
-
Delivery Contents
• Inductive proximity switch ICB.
• 2 nuts NPB
• Packaging: plastic bag
Specifications are subject to change without notice (17.05.16)
3
