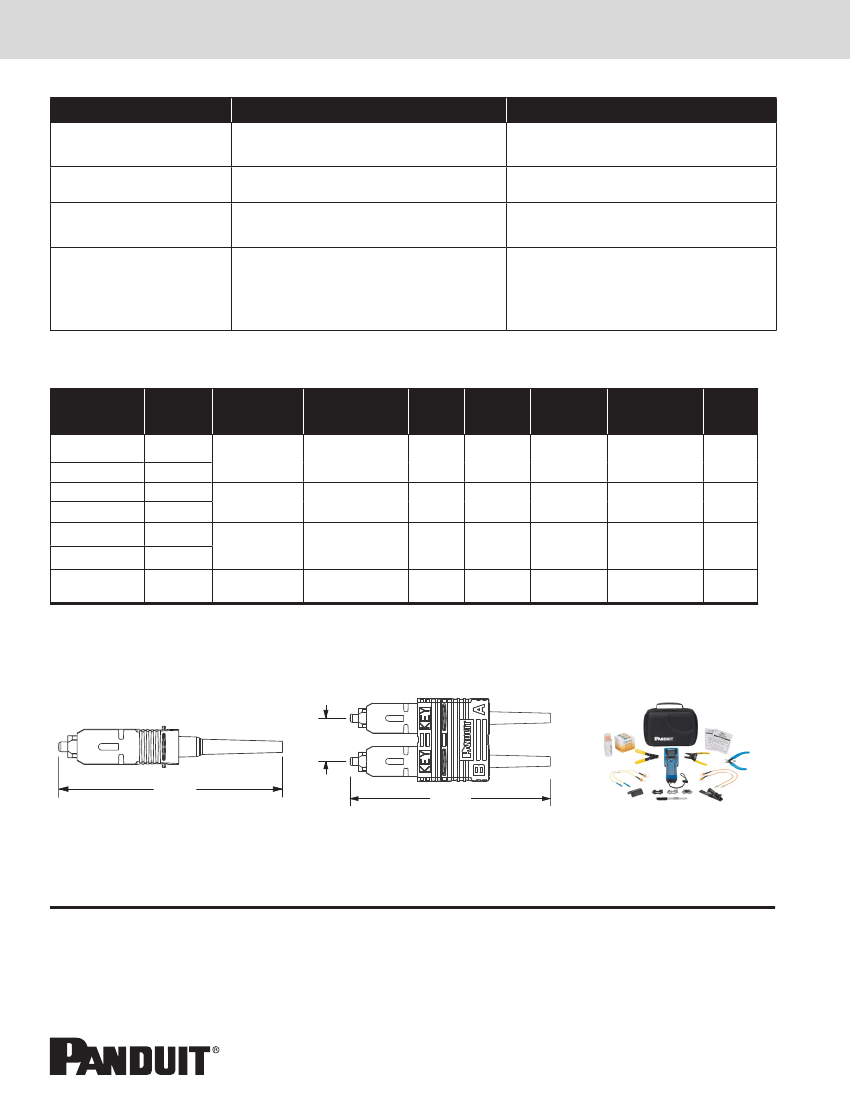

SC2 OptiCam
®
Pre-Polished Fiber Optic Connectors
specifications
SC2 pre-polished fiber optic connectors shall be TIA/EIA-604 FOCIS-3
compliant and contain a factory-terminated fiber, eliminating field
polishing and adhesive. SC2 pre-polished connectors shall have
an average insertion loss of 0.3dB per mated pair for multimode
and singlemode fiber. SC2 2pre-polished connectors shall capture
fiber and buffer in one action allowing for up to two re-terminations
with no degradation in performance.
S P E C I F I CAT I O N S H E E T
SC2 OptiCam
®
Pre-Polished Connectors
with Zirconia Ceramic Ferrules
50/125μm simplex:
FSC2MCXAQ^^
50/125μm duplex:
FSC2DMCXAQ
50/125μm simplex:
FSC2MC5BL^^
50/125μm duplex:
FSC2DMC5BL
62.5/125μm simplex:
FSC2MC6EI^^
62.5/125μm duplex:
FSC2DMC6EI
9/125μm simplex:
FSC2SCBU^^
®
OptiCam 1.6/2.0mm Boot Assemblies
Multimode (aqua):
Multimode (black):
Singlemode (blue):
OptiCam
®
3.0mm Boot
Multimode (aqua):
Multimode (black):
Singlemode (blue):
FMCBT2AQ-X*
FMCBT2BL-X
FSCBT2BU-X
Assemblies
FMCBT3AQ-X*
FMCBT3BL-X
FSCBT3BU-X
technical information
Standards requirements:
Fiber compatibility:
Fiber size and type:
Ferrule type:
Insertion loss:
Return loss:
TIA/EIA-604 FOCIS-3 compliant; exceeds
TIA/EIA-568-D.3 requirements
62.5/125µm OM1, 50/125µm OM2, 50/125µm
OM3/OM4 and 9/125µm OS2
1.6mm - 2.0mm and 3.0mm jacketed cable with optional boots
900μm tight-buffered cable only
Zirconia ceramic
0.3dB average (multimode and singlemode)
>20dB (multimode), >26dB (10Gig
™
multimode),
>50dB (singlemode)
*X = Bag of 10 Boots; 100 per carton.
OptiCam
®
2 Termination Tooling
OptiCam
®
2
Termination Kit:
SC cradles:
SC Fiber Optic Adapters
Multimode:
Multimode:
Singlemode:
FOCTT2-KIT
FOCTT2-BKIT
FSCC2
FADSCAQ-L*
FADSCEI-L
FADSCZBU-L
key features and benefits
SC2 OptiCam
®
Connectors
Factory pre-polished
fiber stub endface
Eliminates inconsistent and time-consuming field polishing to deliver
required optical performance; reduces termination time (less than half
the time of field polish connectors) and the number of installation tools
required
Secures both the fiber and the buffer during the camming step to facilitate
consistent termination results; reduces the termination time compared to
conventional termination methods
Allows up to two re-terminations to achieve optimum termination
results; reduces the number of rejected connectors and terminations
to provide yield rates approaching 100% for lower installed costs
Facilitates inspection of the fiber termination quality; results in rapid
installations, improved termination yields, and lower installed costs
Maintains data transmission under tensile loads for jacketed cable
Consistently provides higher than industry standard cable retention;
requires no adhesive, speeding installation
The OptiCam® 2 Termination Termination Tool is designed to offer certainty
of terminations of OptiCam connectors
Guides the user through the termination process with simple step-by- step
prompts and on-screen visuals. Indicates the field fiber and fiber stub are
in proper alignment before camming
Provides calculated insertion loss value on completion of the camming
process
*L = Bag of 50 adapters; 100 per carton.
Mini-Com
®
SC Adapter Modules
Multimode:
Multimode:
Singlemode:
CMDAQSC**
CMDEISC**
CMSBUSCZ**
Dual cam design with
fiber and buffer clamps
**Substitute for module color: EI = Electric Ivory,
BU = Blue, BL = Black, IW = Off White,
AW = Arctic White
Opticom
®
SC Fiber Adapter Panels
3
3
6
6
duplex MM adapters:
FAP3WEIDSC
duplex SM adapters:
FAP3WBUDSCZ
simplex MM adapters:
FAP6WEISC
simplex SM adapters:
FAP6WBUSCZ
Translucent inner
housing assembly
Non-optical disconnect
Mechanical cable
retention
®
^^Add -C to simplex connector part numbers
for bulk packs of 100 connectors.
^Substitute for fiber type: 6 = 62.5/125μm OM1,
5 = 50/125μm OM2, X = 50/125μm
OM3/OM4 or 9 = 9/125μm OS2.
OptiCam 2 Termination Tool
Universal termination
tool
LCD Display
Calculated Insertion
Loss
applications
SC2 fiber optic connectors are widely used in
fiber optic backbone and horizontal applications
for high-speed data transmission. Typical
applications for SC2 OptiCam
®
Connectors
include maintenance or emergency restoration
of fiber networks and retrofit/initial install in both
behind-the-wall (BTW) and in the permanent side
of panelized interconnect and cross-connect.
SC2 OptiCam
®
Connectors eliminate the need for end
face polishing and adhesive providing easier, faster
installation, especially in remote areas and confined
spaces. The hand-held OptiCam
®
2 Termination Tool
gives installers the flexibility to terminate in very
close proximity to the application without having
to switch tools or find benchtop space.
w w w. pa nduit. co m
SC2 OptiCam
®
Pre-Polished Fiber Optic Connectors
performance information
Test Parameter
Qualification test suite
(TIA/EIA-568-D.3 requirements)
Connector intermatability
Repeated mating
Description
Complete testing protocol per TIA/EIA-568-D.3
using TIA/EIA FOTPs that include mechanical,
environmental and optical test sequences
Dimensional and material compliance to
TIA/EIA standards
500 mate/unmate cycles
Max. insertion loss: 0.75dB
Min. return loss: 20dB
TIA/EIA-568-D.3 requirement:
0.5 lbs. load applied with <0.5dB increase in
insertion loss after test
11.24 lbs. load applied with <0.5dB increase in
insertion loss after test
Result
Exceeds TIA/EIA-568-D.3 requirements
All connectors are FOCIS compatible with
TIA/EIA-604-3
Exceeds TIA/EIA-568-D.3 test requirements:
<0.1dB additional insertion loss
Exceeds TIA/EIA-568-D.3 requirements:
1.0 lbs. avg. load applied with <0.2dB
increase in insertion loss after test
11.24 lbs. load applied with <0.1dB increase
in insertion loss after test*
Cable retention (straight pull):
900μm tight-buffered fiber
Jacketed cable
*Jacketed cable retention tensile load may vary based on specific manufacturer’s jacketed cable diameter and aramid yarn count.
selection information
Part Number
Connector
Type
Simplex
Duplex
Simplex
Duplex
Simplex
Duplex
Simplex
Zirconia
Ceramic
Zirconia
Ceramic
Zirconia
Ceramic
50/125μm OM2
62.5/125μm OM1
9/125μm OS2
SPC
SPC
UPC
Natural
Natural
Natural
Black/Black
Electric Ivory/
Electric Ivory
Blue/Blue
0.3dB
0.3dB
0.3dB
>20dB
>20dB
>50dB
Ferrule
Material
Zirconia
Ceramic
Fiber
Ferrule
Finish
Backbone
Color
Boot/
Housing
Color
Aqua/Black
Average
Insertion Loss**
Return
Loss
FSC2MCXAQ
FSC2DMCXAQ
FSC2MC5BL
FSC2DMC5BL
FSC2MC6EI
FSC2DMC6EI
FSC2SCBU
50/125μm
OM3/OM4
SPC
Natural
0.3dB
>26dB
*All connector insertion loss values calculated from tests taken with precision launch jumper assemblies per TIA/EIA-FOTP-171.
SC2
OptiCam Pre-Polished
Simplex Connector
®
SC2 OptiCam Pre-Polished
Duplex Connector
®
OptiCam 2 Termination Tool
®
.50
[12.7]
2.23
[56.6]
FSC2MC***
2.23
[56.6]
FSC2DMC***
(Patch cords available separately
or in termination kits)
FOCTT2-BKIT
***Substitute for fiber type: For multimode, insert XAQ for 50/125µm, 5BL for 50/125µm, or 6EI for 62.5/125µm.
Dimensions are in inches [Dimensions in brackets are in millimeters].
