3239: DescriptionBOX ALUM BLUE 2.25"L X 1.38"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size24KB，1 Pages; ManufacturerPomona Electronics

Download Datasheet Parametric View All

3239 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3239	-	-	View	Buy Now

3239 Overview

BOX ALUM BLUE 2.25"L X 1.38"W

3239 Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	2.250" long x 1.380" wide (57.15mm x 35.05mm)
high	1.130"（28.70mm）
Area (L x W)	3.11 in²（20.1 cm²）
design	Cover included
Material	Metal - Aluminum
color	blue
thickness	-
characteristic	외부 커넥터，EMI 차폐
grade	-
Material flammability rating	-
delivery information	Shipping from Digi-Key
weight	-

Preview

Download Datasheet

View All

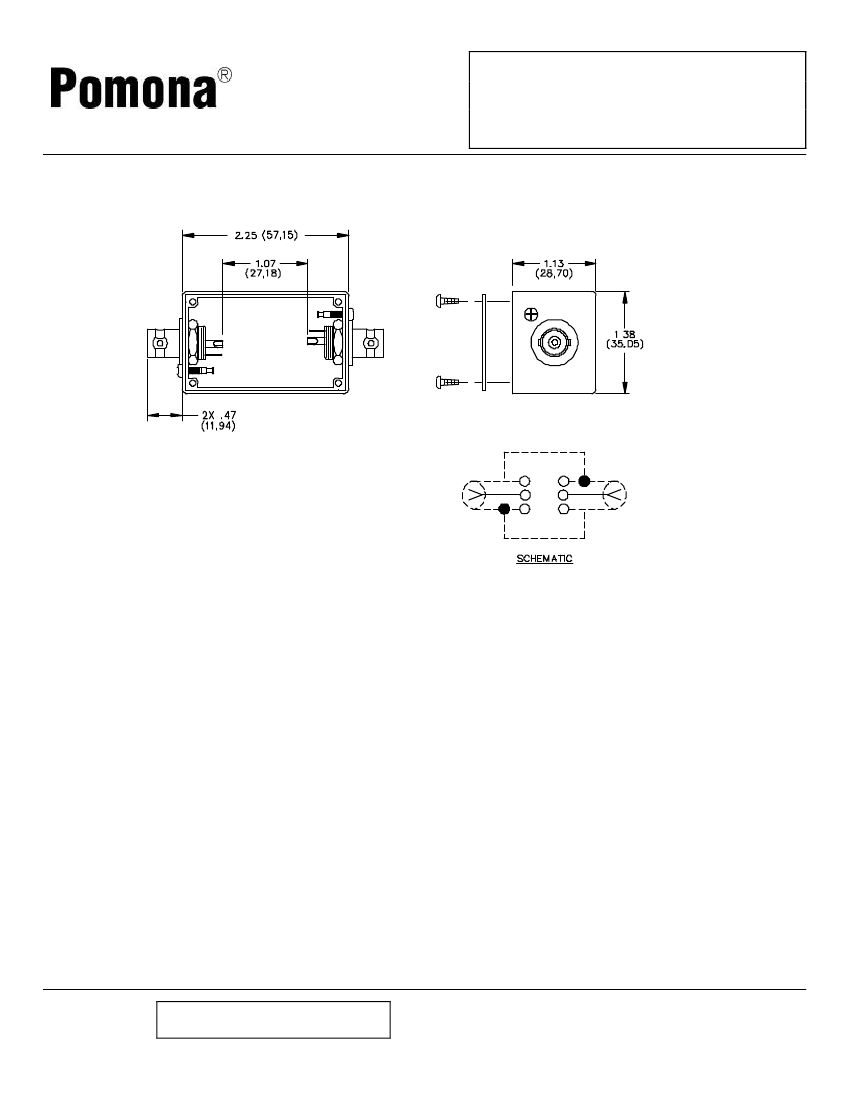

Model 3239

Size B, Isolated BNC Female

Each End With Cover

MATERIALS:

Connector:

Body: Tarnish Resistant Plating, Center Contact: Gold Plated Beryllium Copper

Solder Turret Terminal Screws: Steel

Shielded Housing: Die cast aluminum Alloy A380 or A384.

Finish: Blue baked enamel per Federal Standard 595 #25109 over Phosphoric Etch.

Marking: “Pomona Electronics Calif.”

Cover: 1.02 .(040) thick aluminum 1100-H14

Finish: Clear anodized.

Screws: Steel 4 ea. #2-32 x ¼” Pan Head self-tapping

RATINGS:

Operating Voltage: Inner Conductor/Shield: 500 VRMS Max.

Operating Temperature: -55ºC to +150ºC

Nominal Impedance: 50 Ohms

ORDERING INFORMATION:

Model 3239

All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

5/28/02 SY/EH/LS

Last saved by PN

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90169

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

S:\Engineering\Release\DataSheets\FlukeDataSheet \d3239_1_02.doc
