NOTES:
1. MATERIALS AND FINISHES:
SMPM STR PLUG - BeCu, GOLD PLATING
CABLE - 0.047 SEMI-RIGID CONFORMABLE
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 95-725-112-XXX AND DATE CODE"
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
B
C
RELEASE TO MFG.
FREQUENCY AND VSWR REQUIREMENTS UPDATED
SHEET 1 CHANGE
20-Mar-17
06-Apr-17
19-Mar-18
3344
3506
7383
BMG
BMG
BMG
SCALE
0.800
LENGTH 'L' (SEE TABLE)
INTERFACE PER
MIL-STD-348
SERIES: SMPM PLUG
TYP(2)
PART NUMBER
(IMPERIAL)
95-725-112-030
95-725-112-040
95-725-112-050
95-725-112-060
95-725-112-070
95-725-112-080
95-725-112-090
95-725-112-100
95-725-112-110
95-725-112-120
95-725-112-180
95-725-112-240
95-725-112-360
-
-
-
-
-
-
PART NUMBER
(METRIC)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
LENGTH TABLE
LENGTH AND TOLERANCE 'L'
IN INCHES [METERS]
3.00 [0.076]
3.94 [0.100]
4.00 [0.102]
5.00 [0.127]
6.00 [0.152]
7.00 [0.178]
8.00 [0.203]
9.00 [0.229]
10.00 [0.254]
11.00 [0.279]
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
78.74 [2.000]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]
TOLERANCE
# 0.25" [0.006]
# 0.50" [0.013]
# 2.5%
# 5.0%
9.84 [0.250]
95-725-112M010
95-725-112M025
95-725-112M050
95-725-112M075
95-725-112M100
95-725-112M200
DESIGN REQUIREMENTS:
X
FREQUENCY : DC TO 18 GHz
X
VSWR : 1.25 MAX. [DC-18.0 GHz]
INS. LOSS: ____ dB MAX
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
MATERIAL
-
REFERENCE
EAR# EAR # 7428
REF: --
CONFIGURATION LEVEL: In Work
95-725-112-480

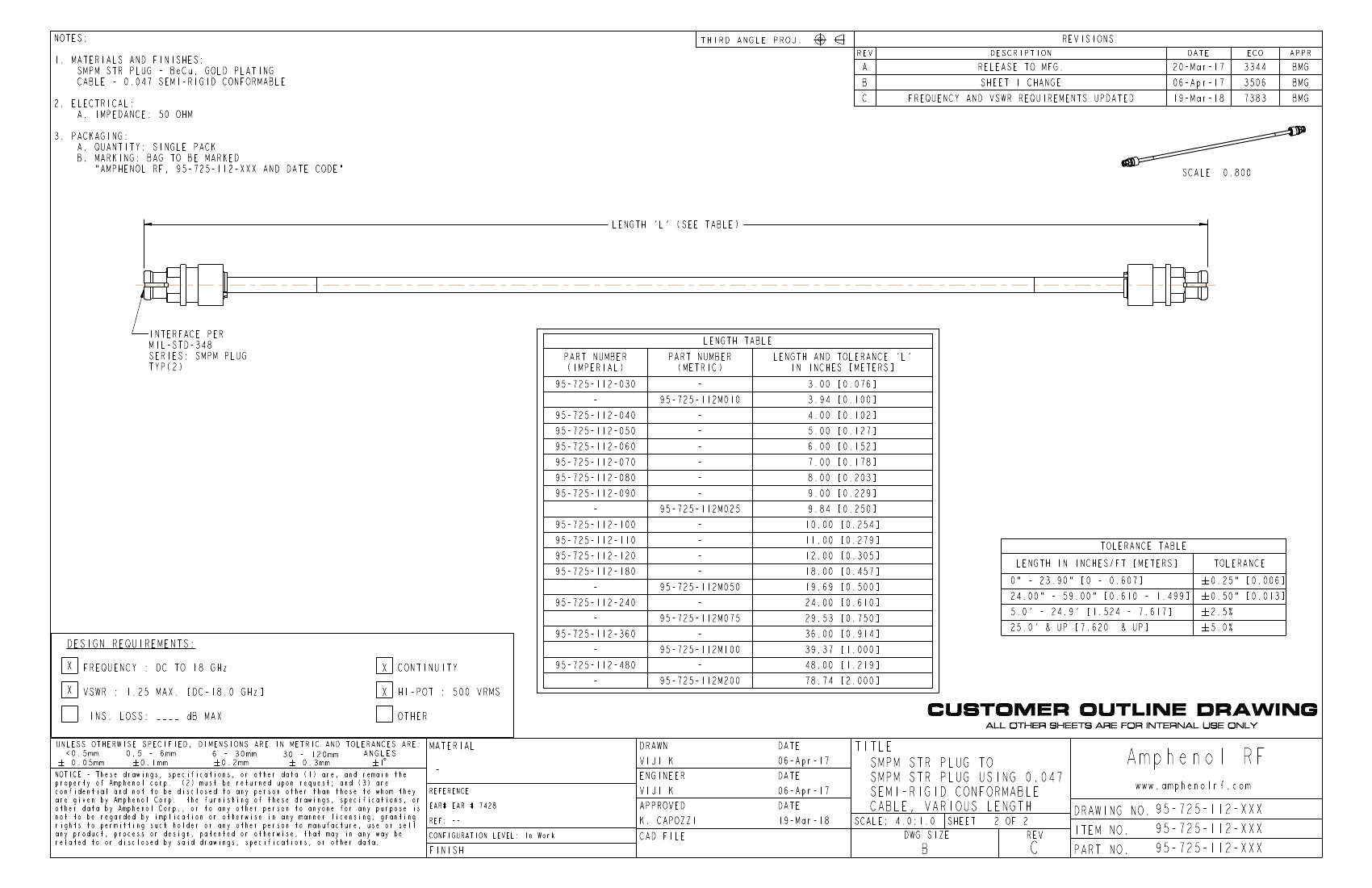

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DRAWN
ENGINEER
APPROVED
VIJI K
VIJI K
DATE
DATE
06-Apr-17
06-Apr-17
19-Mar-18
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
ANGLES
6 - 30mm
30 - 120mm
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing, granting
rights to permitting such holder or any other person to manufacture, use or sell
any product, process or design, patented or otherwise, that may in any way be
related to or disclosed by said drawings, specifications, or other data.
K. CAPOZZI
CAD FILE
DATE
TITLE
SMPM STR PLUG TO
SMPM STR PLUG USING 0.047
SEMI-RIGID CONFORMABLE
CABLE, VARIOUS LENGTH
SCALE: 4.0:1.0 SHEET
DWG SIZE
Amphenol RF
www.amphenolrf.com
FINISH
B
2 OF 2
REV
C
ITEM NO.
DRAWING NO.
95-725-112-XXX
95-725-112-XXX
95-725-112-XXX
PART NO.
