Power cable - SAC-6P-MINMS/ 2,0-547/MINFS - 1416678
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

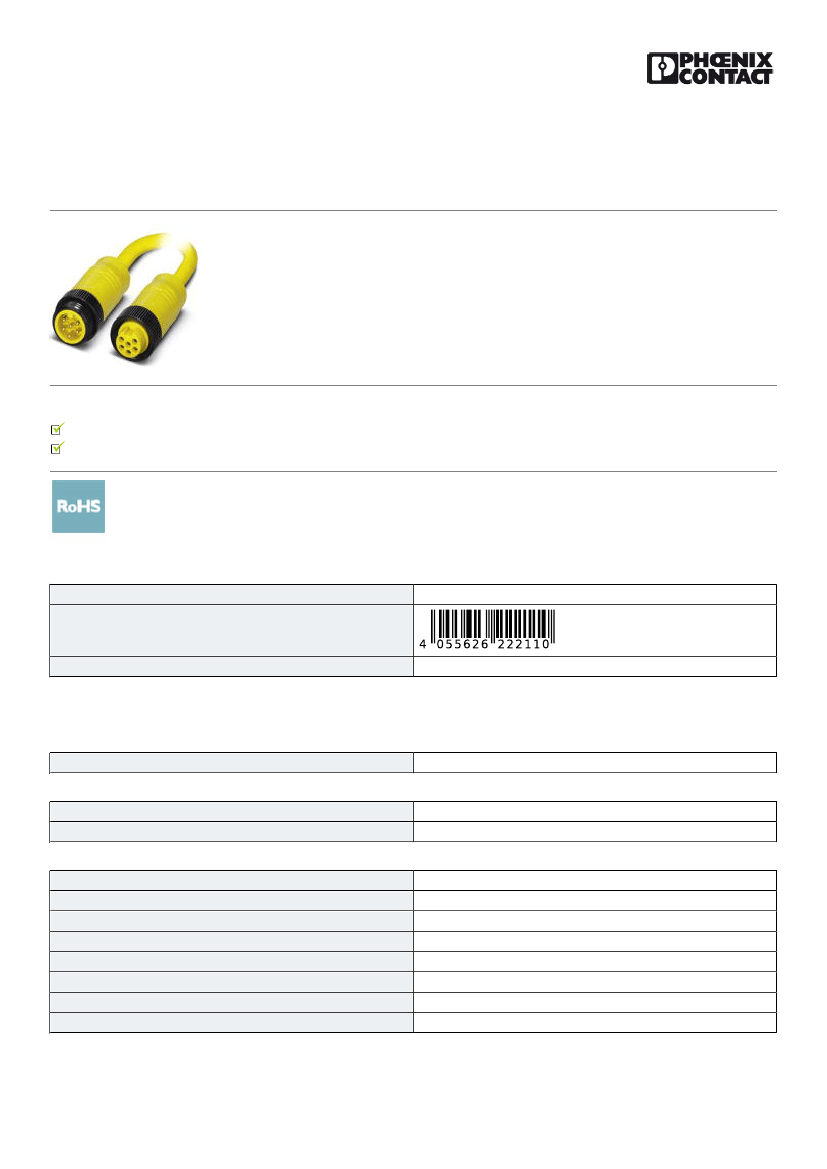

Power cable, 6-position, PVC, yellow, Plug straight 7/8"-16UNF, on Socket straight 7/8"-16UNF, cable length:
2m
Why buy this product
Easy and safe: 100% electrically tested plug-in components
High-performance: connectors and cables with a large conductor cross section for power supply
Key Commercial Data
Packing unit
GTIN
GTIN
4055626222110
1 pc
Technical data
Dimensions
Length of cable
2m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 105 °C (Plug / socket)
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
Insulation resistance
Coding
Status display
8A
300 V AC
300 V DC
6
yellow
≥ 100 MΩ
A - standard
No
09/30/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1416678
Power cable - SAC-6P-MINMS/ 2,0-547/MINFS - 1416678
Technical data
General
Protective circuit/component
Insertion/withdrawal cycles
Torque
Unwired
100
10 lb
f
-in.
1.12 Nm
Material
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
CuZn
AU
PVC
PVC
Anodized aluminum
Cable
Cable type
Cable abbreviation
AWG signal line
Conductor cross section signal conductor
Conductor cross section voltage supply
Wire colors
External sheath, color
External cable diameter
Outer sheath, material
Conductor material
Nominal voltage, cable
Flame resistance
Other resistance
Ambient temperature (operation)
ITC/PLTC
547
18
6 x AWG 18
41 x AWG 34
Green 1, white 2, blue 3, gray 4, yellow 5, brown 6
yellow
7.29 mm
PVC
Bare Cu litz wires
300 V
UL 1581, FT4
UV resistant (720 h) UL 2556
-30 °C ... 105 °C (cable, flexible installation)
Standards and Regulations
Flame resistance
Other resistance
UL 1581, FT4
UV resistant (720 h) UL 2556
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
09/30/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1416678
Power cable - SAC-6P-MINMS/ 2,0-547/MINFS - 1416678

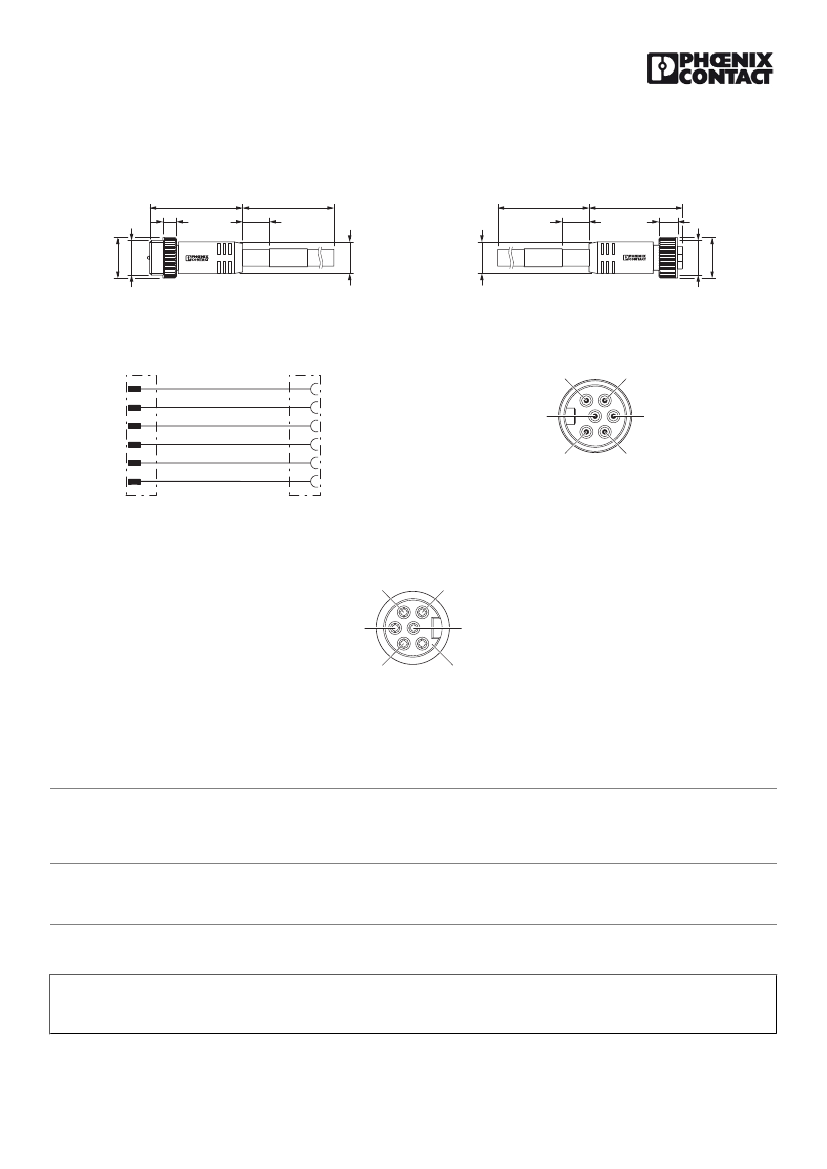

Dimensional drawing
58,7
8,6
25-50
L
Dimensional drawing
L
25-50
59,4
11,9
7/8"-16 UN
7/8"-16 UN
Ø20,2
Ø25,5
Ø20,2
7/8"-16UNF plug, straight
7/8"-16UNF socket, straight
Circuit diagram
1
2
3
4
5
6
1 GN
2 WH
Schematic diagram
5
4
6
3 BU
4 GY
5 YE
6 BN
3
1
2
Pin assignment, plug, 7/8"-16UNF, 6-pos., view of male side
Contact assignment of 7/8" plugs/sockets
Schematic diagram
4
5
3
6
2
1
Pin assignment, socket, 7/8"-16UNF, 6-pos., view of female side
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 221474
09/30/2018 Page 3 / 4
Ø25,4
https://www.phoenixcontact.com/pi/products/1416678
Power cable - SAC-6P-MINMS/ 2,0-547/MINFS - 1416678
Approvals
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 221474
cULus Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
09/30/2018 Page 4 / 4
