RK 30-838/10M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> RK 30-838/10M

RK 30-838/10M: DescriptionCORD 3POS FML MINI 7/8 10M 16AWG; CategoryWire/cable; File Size278KB，1 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RK 30-838/10M Overview

CORD 3POS FML MINI 7/8 10M 16AWG

RK 30-838/10M Parametric

Parameter Name	Attribute value
first connector	7/8" female
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
Second connector	Wire leads
length	32.8'（10.00m）
Cable type	round
color	yellow
shield	No shielding
use	Industrial environment - IP67

Preview

Download Datasheet

View All

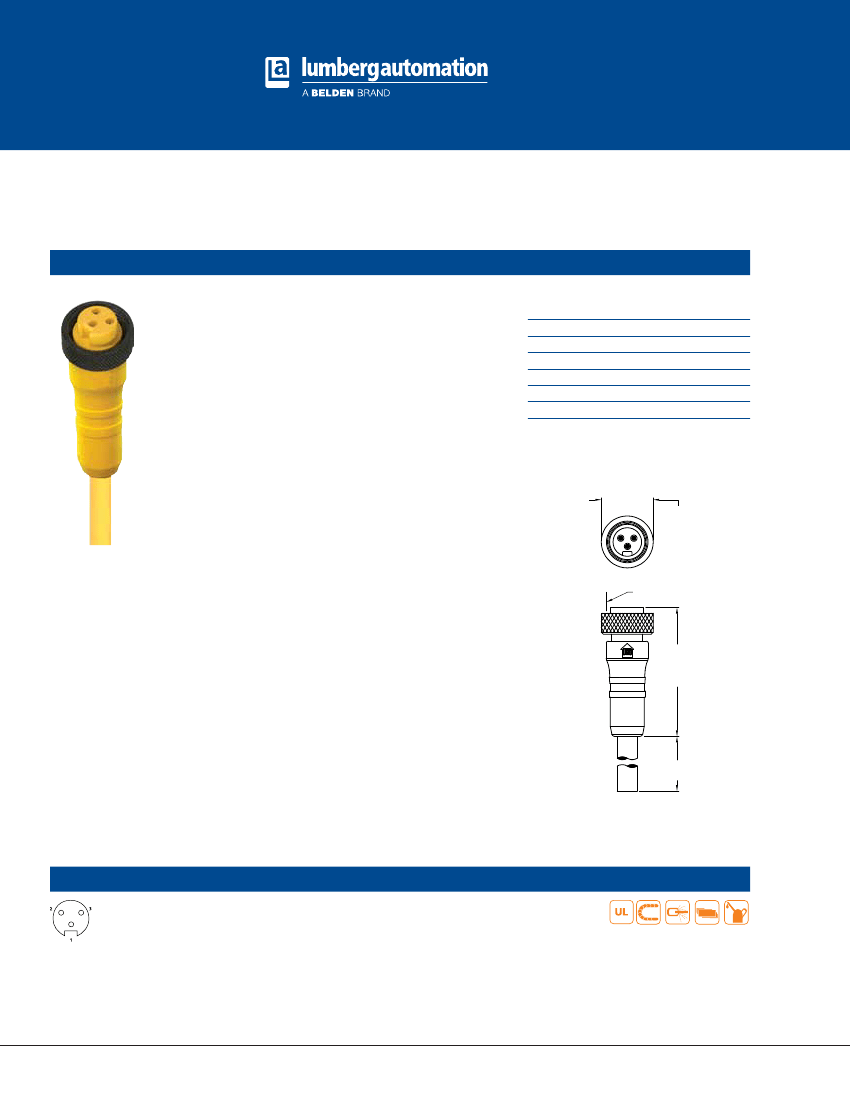

SPECIFICATIONS

7/8-16 UNF-2B

Ø26 [1.02]

64.5 [2.54]

"XX"

RK 30-838/10M

RK 30-838/20M

Part Number

RK 30-838/1M

RK 30-838/2M

RK 30-838/3M

RK 30-838/5M

Lumberg p/n: RS 301-838/..M

CONTACT CARRIER MATERIAL /COLOR

CONTACT MATERIAL/PLATING

COUPLING NUT

MOLDED BODY: MATERIAL/COLOR

CONDUCTOR INSULATION MATERIAL

CABLE JACKET: MATERIAL/COLOR

NUMBER OF CONDUCTORS /[AWG]

PROTECTION CLASS

RATED CURRENT [A]

RATED VOLTAGE [V]

TEMPERTURE RANGE

CABLE RATINGS

CABLE DIAMETER- NOMINAL

TPU/YELLOW

CuZn ALLOY/ GOLD OVER Ag PLATED

ALUMINUM /BLACK ANODIZED

TPU/YELLOW

PVC /NYLON

TPE/YELLOW

3/16AWG , STRANDED BARE COPPER

NEMA 6P, IP67

600 V

-30C to 90C

UL :TC-ER, SUNLIGHT RESISTANT

.315 IN

Ø26 [1.02]

68.4 [2.69]

7/8-16 UNF-2B

"XX"

MINI, Single-Ended Cordset, Straight, Female,

3 Pole, 16 AWG, PLTC, Yellow. TPE Cable, U.S.

Color Code, IP 67 and NEMA 6P Rated.

PUR, Yellow

16 AWG

TC-ER

.315”

Lumberg p/n: RS 30-838/..M

600 V

MILLIMETER [INCH]

I1986

Phone: 1-800-BELDEN1

Cable

Jacket

Gauge

Outside diameter

Technical Data

Electrical

Current rating

Voltage rating

------

Make from mCATPD1949_REV B

6.24.15

BAB

SEE SPECIFICATIONS

NONE

B Baruffalo

6.24.15

____

_____

7/8" Cordset 3 pole ML, Single Ended

Material

Molded body

Coupling nut

Contacts

Insert

Description

Mechanical

Temperature

Protection

SEE SPECIFICATIONS

_____

mCATPD1948

1/2

form fxxx - Issue 1 - August 2014

FACE VIEW MALE

Mini Single-Ended Cordsets

1 = GREEN

2 = BLACK

3 = WHITE

FCA NAFTA Project Book

47.2 [1.86]

Ø26 [1.02]

44.3 [1.75]

Pin Assignments

Face View 7/8”

RK 30-838

7/8-16 UNF-2B

7/8-16 UNF-2A

Lumberg p/n: RSW 30-838/..M

Lumberg p/n: RS 301-838/..M

Revison 12, July 1, 2015

1 = green

2 = black

3 = white

1.800.Belden1 |

www.lumberg-automationusa.com

TPU, yellow

Aluminum, anodized black

Brass, gold plated

TPE, yellow

-30°C to + 90°C

IP 67, NEMA 6P rated

www.lumberg-automationusa.com

RK 30-838/10M Related Products

	RK 30-838/10M	RK 30-838/2M	RK 30-838/3M	RK 30-838/4M	RK 30-838/5M	RK 30-838/6M
Description	CORD 3POS FML MINI 7/8 10M 16AWG	CORD 3POS FML MINI 7/8 2M 16AWG	CORD 3POS FML MINI 7/8 3M 16AWG	CORD 3POS FML MINI 7/8 4M 16AWG	CORD 3POS FML MINI 7/8 5M 16AWG	CORD 3POS FML MINI 7/8 6M 16AWG
first connector	7/8" female	7/8" female	7/8" female	7/8" female	7/8" female	7/8" female
1st Connector Number of Positions	3	3	3	3	3	3
1st Connector Number of Positions Loaded	All	All	All	All	All	All
Second connector	Wire leads	Wire leads	Wire leads	Wire leads	Wire leads	Wire leads
length	32.8'（10.00m）	6.56'（2.00m）	9.84'（3.00m）	13.12'（4.00m）	16.40'（5.00m）	19.69'（6.00m）
Cable type	round	round	round	round	round	round
color	yellow	yellow	yellow	yellow	yellow	yellow
shield	No shielding	No shielding	No shielding	No shielding	No shielding	No shielding
use	Industrial environment - IP67	Industrial environment - IP67	Industrial environment - IP67	Industrial environment - IP67	Industrial environment - IP67	Industrial environment - IP67
