A1
-
TECHNICAL DATA SHEET RELEASE
12-MAY-14
KMM
RFC
LENGTH (Mxxx = METERS)
58.1mm [2.29"]
59.6mm [2.35"]
25.4mm [1.00"] TYP
P29012-M( )
( ) METERS
AMPHENOL SINE SYSTEMS
ø13.5mm [0.53"]
P1
P2
7/8-16 UN
TYP
TECHNICAL DATA:
1) MATERIALS:
COUPLING NUT: MACHINED ALUMINUM, ANODIZED
INSULATION INSERT: THERMOPLASTIC, UL 94/V-0
CONTACT: GOLD FLASH PLATING OVER COPPER ALLOY
OVERMOLD MATERIAL: THERMOPLASTIC COLOR: BLACK
CABLE RATING: UL LISTED DUAL RATED TC-ER/STOOW,
CSA TYPE STOOW, FT4 FLAME RATING, 600V,
90°C DRY & 75°C WET (TC-ER), 105°C (STOOW)
CABLE JACKET MATERIAL: PVC COLOR: BLACK
CONDUCTOR INSULATION: PVC
NUMBER OF CONDUCTORS: (3) 14AWG
2) ELECTRICAL DATA:
CURRENT (MAX): 15A
VOLTAGE (MAX): 600V AC/DC
INSULATION RESISTANCE (MIN): 5000M OHMS
DIELECTRIC TEST VOLTAGE: 2200V
3) MECHANICAL DATA:
TEMPERATURE RANGE: -40°C TO 90°C
PROTECTION: IP67 (MATED CONDITION)
MATING CYCLES: >500
VIBRATION RESISTANCE PER MIL-STD-202 METHOD 204
THERMAL SHOCK PER MIL-STD-202 METHOD 207
48 HOUR SALT SPRAY PER MIL-STD-202 METHOD 101
4) RoHS COMPLIANT
5) UL 2237 LISTED ASSEMBLY
UL FILE NUMBERS: E339703
1
P1
WIRING DIAGRAM
GREEN 14AWG
BLACK 14AWG
WHITE 14AWG
P2
1
2
1
2
3
1
3
2
3
2
3
Risk of Electrical Shock
Do Not Disconnect Under Load.
Risque de chocs electriques
Ne pas debrancher sous tension.
WARNING
QUANTITY
1)
2)
1
2
3
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
UNLESS OTHERWISE SPECIFIED
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
0-2.99 M = +100.0/-25.0mm
3-8.99 M = +150.0/-25.0mm
9-14.99 M = +300.0/-25.0mm
15-OVER M = +450.0/-25.0mm
TOLERANCE
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
KMM
MRF
KMM
RFC
12-MAY-14
12-MAY-14
12-MAY-14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
0-9.99 FT = +4" / -1"
10.00-29.99 FT = +6" / -1"
30.00-49.99 FT = +12" / -1"
50 FT-OVER = +18" / -1"
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.

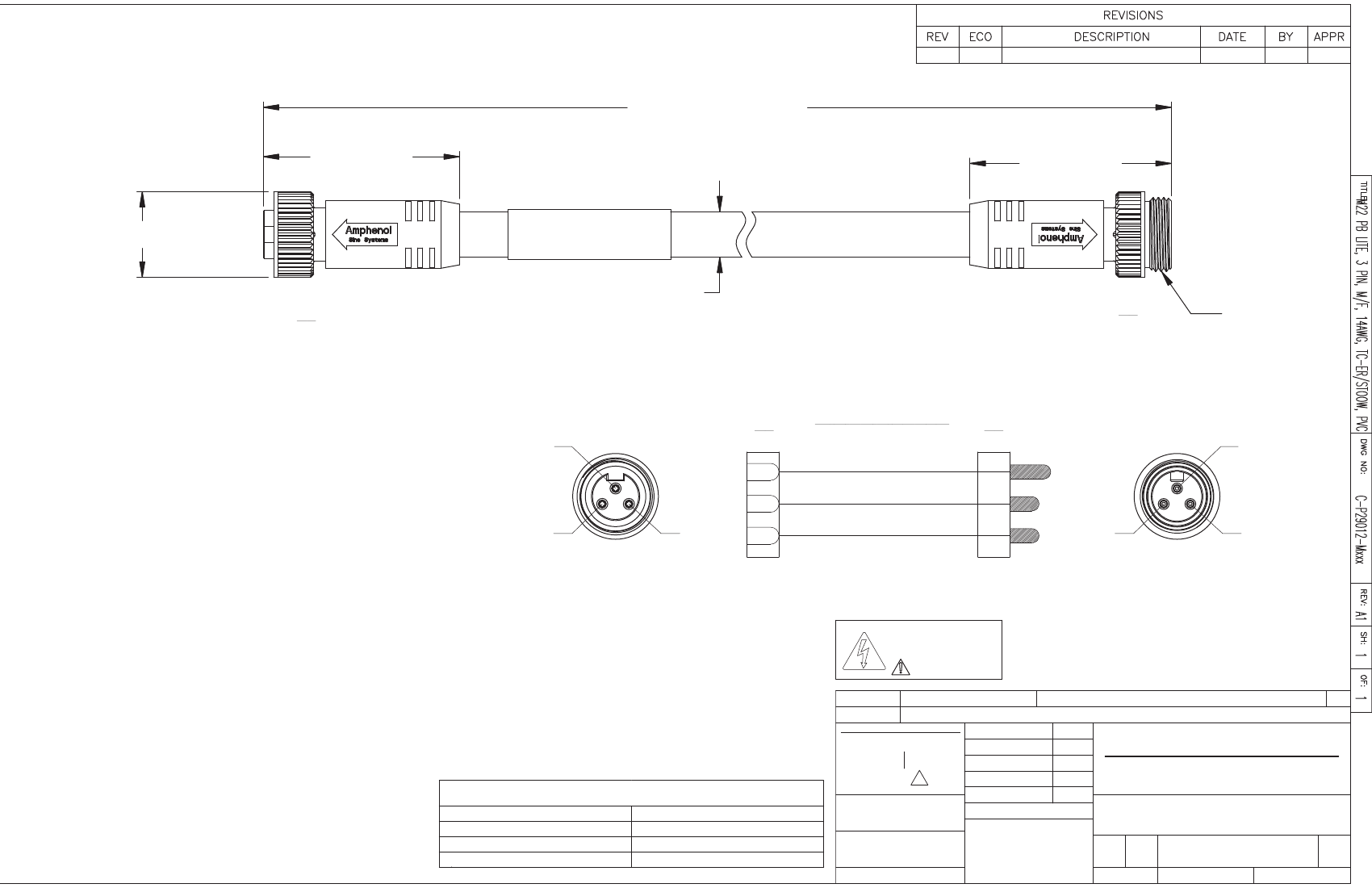

M22 POWERBOSS LITE, 3 PIN, M/F,
14 AWG, TC-ER/STOOW, PVC JACKET
TYPE
FULL
C-
DWG NO:
C-P29012
P29012-Mxxx
SHEET
REVISION
1
A1
1
OF
