133463 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 133463

133463: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Plug,; CategoryThe connector The connector; File Size55KB，4 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

133463 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Plug,

133463 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	SHIELDED
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Total number of contacts	8
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

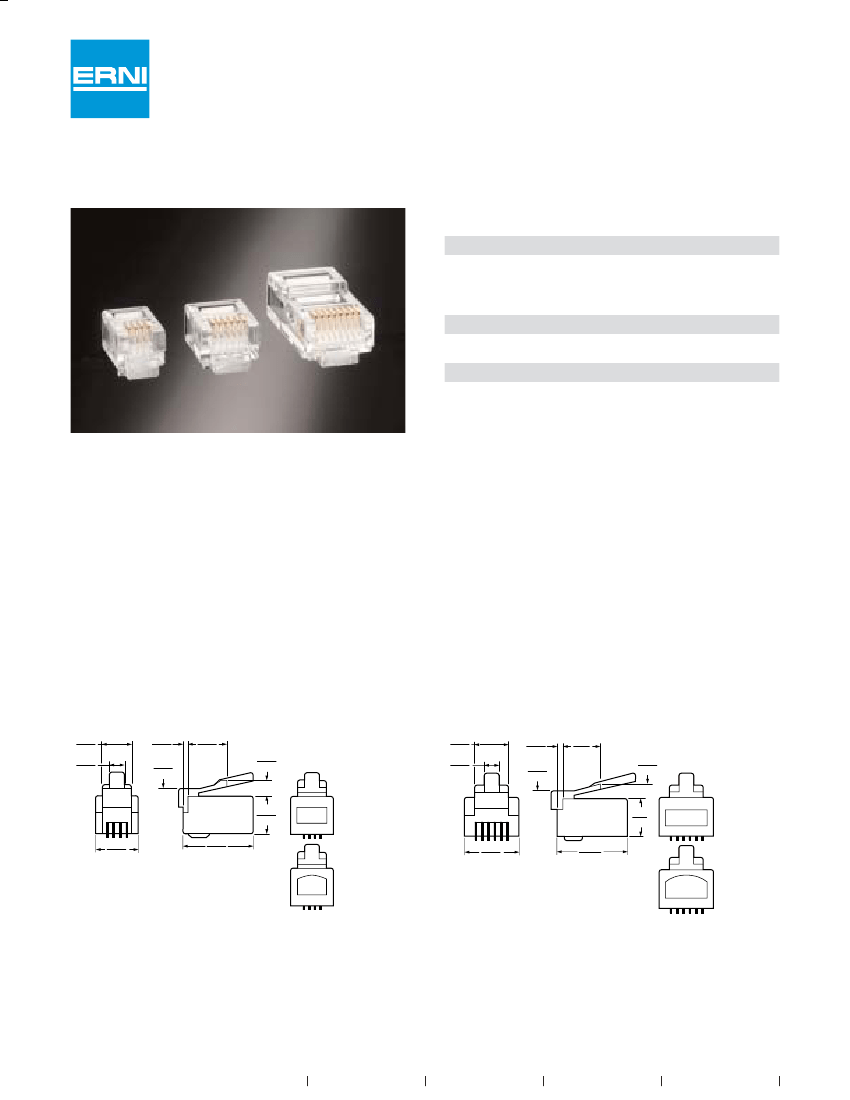

MP Series: Modular Plugs, Non-Shielded, Shielded

Performance Specifications

Materials and Finish

Housing:

Contacts:

Contact Finish:

Polycarbonate UL 94V-2 rated

Copper alloy

Gold plated over nickel

Mechanical Characteristics

Durability:

1,000 mating cycles

Electrical Characteristics

Current/Voltage:

Dielectric Withstanding Voltage:

Insulation Resistance:

Contact Resistance:

150Vac at 1.5 Amps at

25°C

1,000 Vac RMS mini-

mum, 60 Hz

500 megaohms minimum

30 milliohms maximum

Features

•

Meets FCC requirements

Flat and round cable

Shielded 6P, 8P and 8P10C

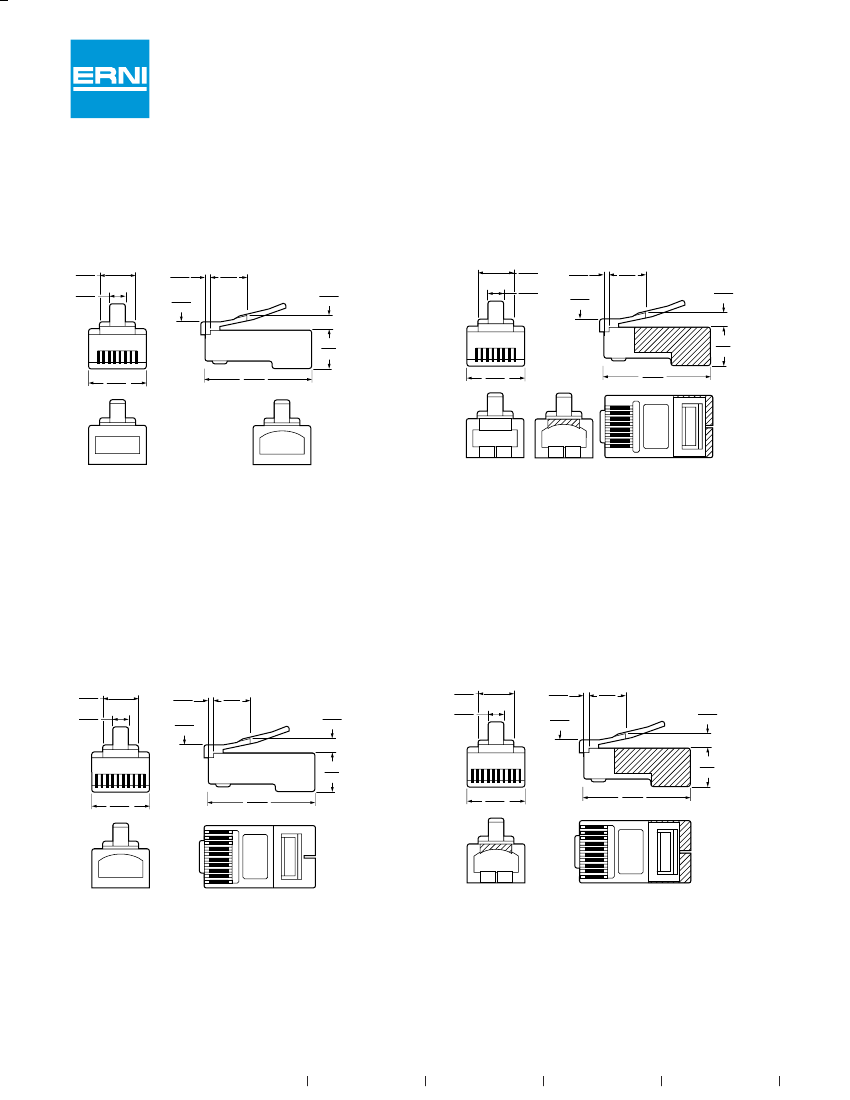

Dimensions

Non-Shielded

4 Positions, 4 Contacts

Dimensions

Non-Shielded

6 Positions, 6 Contacts

4.95

[.195]

2.54

[.100]

1.02

[.040]

1.32

[.052]

.232

(5.89)

2.77

[.109]

Flat

Cable Entry

6.1

[.240]

[3.25]

.128

1.02

[.040]

1.32

[.052]

5.89

[.232]

2.77

[.109]

Flat

Cable Entry

6.6

[.260]

7.62

[.300]

13.60

[.535]

6.6

[.260]

9.65

[.380]

13.60

[.535]

Round Cable Entry

Catalog MCMJ74a

03/04

Edition 3

www.erni.com

133463 Related Products

	133463	133444	133448	133449	133455	133459	133462	133456	133443	133716
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Plug,	Telecom and Datacom Connector, 4 Contact(s), Male, Plug,	Telecom and Datacom Connector, 6 Contact(s), Male, Plug,	Telecom and Datacom Connector, 6 Contact(s), Male, Plug,	Telecom and Datacom Connector, 8 Contact(s), Male, Plug,	Telecom and Datacom Connector, 10 Contact(s), Male, Plug,	Telecom and Datacom Connector, 8 Contact(s), Male, Plug,	Telecom and Datacom Connector, 8 Contact(s), Male, Plug,	Telecom and Datacom Connector, 4 Contact(s), Male, Plug,	Telecom and Datacom Connector, 10 Contact(s), Male, Plug,
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compliant	compli	compli
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Total number of contacts	8	4	6	6	8	10	8	8	4	10
UL Flammability Code	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2
Is it Rohs certified?	conform to	conform to	-	conform to	-	conform to	conform to	-	conform to	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-
Base Number Matches	1	1	1	1	1	1	1	1	-	-
