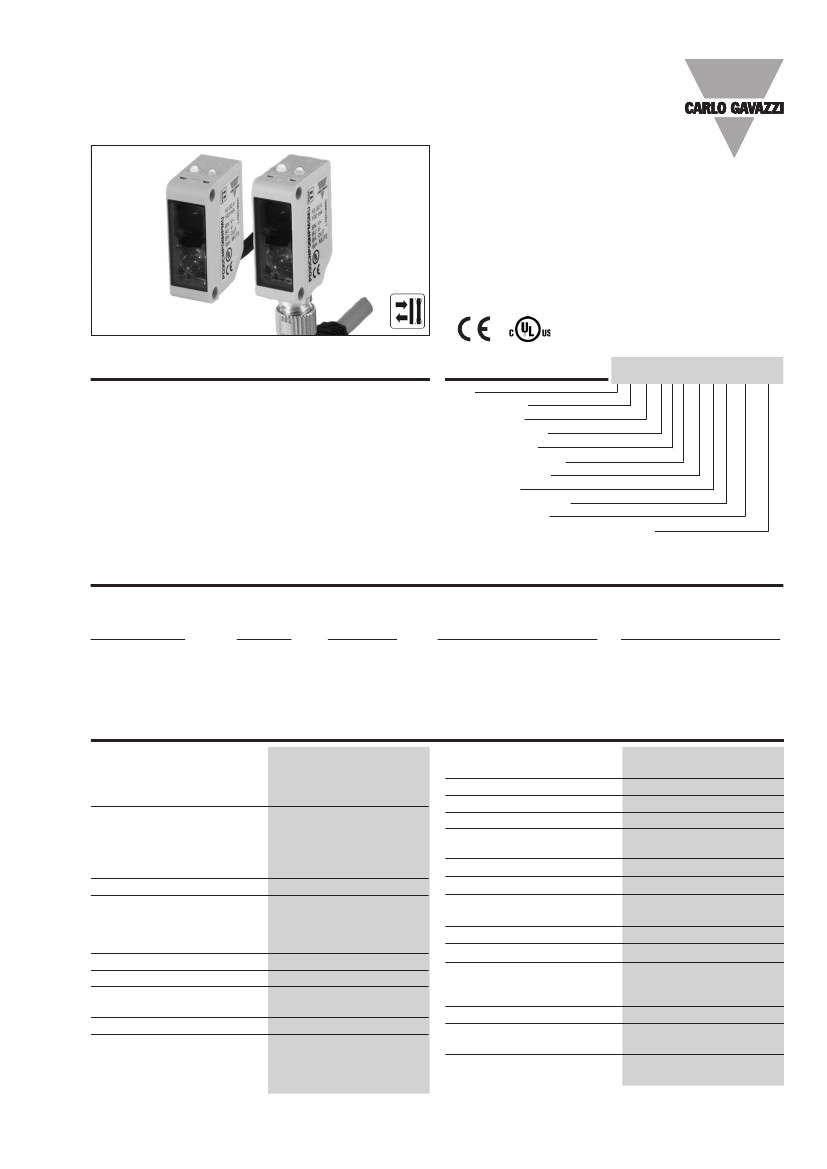

Photoelectrics
Diffuse-reflective, Background Suppression, IR
Type PD30CNB20....IS
•
•
•
•
•
•
•
•
•
•
•
•
Miniature sensor range
Range: 200 mm
Sensitivity adjustment by Potentiometer
Modulated, infrared light 850 nm
Supply voltage: 10 to 30 VDC
Output: 100 mA, NPN or PNP preset
Make and break switching function
LED indication for output, stability and power ON
Protection: reverse polarity, short circuit and transients
Cable and plug versions
Excellent EMC performance
Exellent colour matching
Product Description
The PD30CNB20 sensor
family comes in a compact
10 x 30 x 20 mm reinforced
PMMA/ABS housing.
The sensors are useful in
applications where high-ac-
curacy detection as well as
small size is required.
Compact housing and high
power LED for excellent
performance-size ratio.
The Potentiometer function
for adjustment of the sen-
sitivity makes the sensors
highly flexible. The output
type is preset (NPN or PNP),
and the output switching
function is NO and NC out-
put.
Ordering Key
PD30CNB20NAM5IS
Type
Housing style
Housing size
Housing material
Housing length
Detection principle
Sensing distance
Output type
Output configuration
Connection type
Sensitivity adjustment and IR light
Type Selection
Housing
WxHxD
Range
S
n
Connection
Ordering no.
NPN
Make and break switching
PD 30 CNB 20 NAIS
PD 30 CNB 20 NAM5IS
Ordering no.
PNP
Make and break switching
PD 30 CNB 20 PAIS
PD 30 CNB 20 PAM5IS
10 x 30 x 20 mm
10 x 30 x 20 mm
200 mm
200 mm
Cable
Plug
Specifications
EN 60947-5-2
No load supply current
(I
o
)
Minimum operational current
(I
m
)
OFF-state current
(I
r
)
Voltage drop
(U
d
)
Protection
Light source
Light type
Emitter angle
Ambient light
Operating frequency
(f)
Response time
OFF-ON (t
ON
)
ON-OFF (t
OFF
)
Power ON delay
(t
v
)
Output function
Open collector
Output switching function
≤ 20 mA @ U
B
max
≤ 40 mA @ U
B
min
≤ 0.5 mA
≤ 100 µA
≤ 2 VDC @ I
e
max
Short-circuit, reverse polarity
and transients
GaALAS, LED, 850 nm
Infrared, modulated
± 1.5º @ half sensing
distance
≤ 10,000 lux
≤ 500 Hz
≤ 1 ms
≤ 1 ms
≤ 200 ms
NPN or PNP by sensor type
N.O. and N.C.
Rated operating distance
(S
n
) Up to 200 mm,
referece target Kodak test
card R27, white, 90%
reflective, 100 x 100 mm
Maximum detecting distance
@ 200 mm white background
White object 90% refl.
≤ 200 mm
Grey object 18% refl.
≤ 200 mm
Black object 6% refl.
≤ 200 mm
Blind zone
10 mm
Sensitivity
Electrical adjustment
210˚
Mechanical adjustment
240˚
Temperature drift
Hysteresis
(H)
Rated operational volt.
(U
B
)
Ripple
(U
rpp
)
Output current
Continuous (I
e
)
Short-time (I)
≤ 0.05%/ºC
≤ 10%
10 to 30 VDC
(ripple included)
≤ 10%
≤ 100 mA
≤ 100 mA
(max. load capacity 100 nF)
Specifications are subject to change without notice (13.06.2016)
1
PD30CNB20....IS
Specifications (cont.)
Indication
Output ON
Power ON
Environment
Installation category
Pollution degree
Degree of protection
Ambient temperature
Operating
Storage
Vibration
Shock
LED, yellow
LED, green
III (IEC 60664/60664A;
60947-1)
3 (IEC 60664/60664A;
60947-1)
IP 67 (IEC 60529; 60947-1)
-25° to +60°C (-13° to +140°F)
-40° to +70°C (-40° to +158°F)
10 to 150 Hz, 1.0 mm/15 G
(IEC 60068-2-6)
30 g / 11ms, 3 pos, 3 neg
per axis
(IEC 60068-2-6, 60068-2-32)
Rated insulation voltage
Housing material
Body
Frontglas
Trimmer shaft
Connection
Cable
Plug
Weight
Cable version
Plug version
CE-marking
Approvals
≤ 500 VAC (rms)
ABS Light Grey
PMMA Red
POM Dark Grey
PVC, black, 2 m
4 x 0.14 mm
2
, Ø = 3.3 mm
M8, 4-pin (CON. 54-series)
≤ 50 g
≤ 20 g
Yes
cULus (UL508 + CSA)
Operation Diagram
Tv = Power ON delay
Power supply
Object
Break Output (N.C.)
Make Output (N.O.)
ON
OFF
Present
Not Present
Tv
ON
OFF
ON
OFF
Tv
Detection Diagram
Distance (Inches)
3,9
5,9
Sensing Conditions
0,0
16,0%
1,0
2,0
White background 90% [inches]
3,0
3,9
4,9
5,9
6,9
7,9
8,9
9,8
0,0
2,5
2,0
1,5
1,0
0,5
0,0
-0,5
-1,0
-1,5
-2,0
-2,5
0
2,0
7,8
50
100
150
Distance (mm)
200
0,10
0,08
0,06
0,04
0,02
0,00
-0,02
-0,04
-0,06
-0,08
-0,10
250
9,8
Distance from background [%]
14,0%
12,0%
10,0%
8,0%
6,0%
4,0%
2,0%
0,0%
(Inches)
(mm)
0
25
50
75
100
125
150
175
White background 90% [mm]
Poly. (Grey on
White 18%/90%)
200
225
250
Poly. (Black on
White 6%/90%)
Poly. (White on
White 90%/90%)
2
Specifications are subject to change without notice (13.06.2016)
PD30CNB20....IS

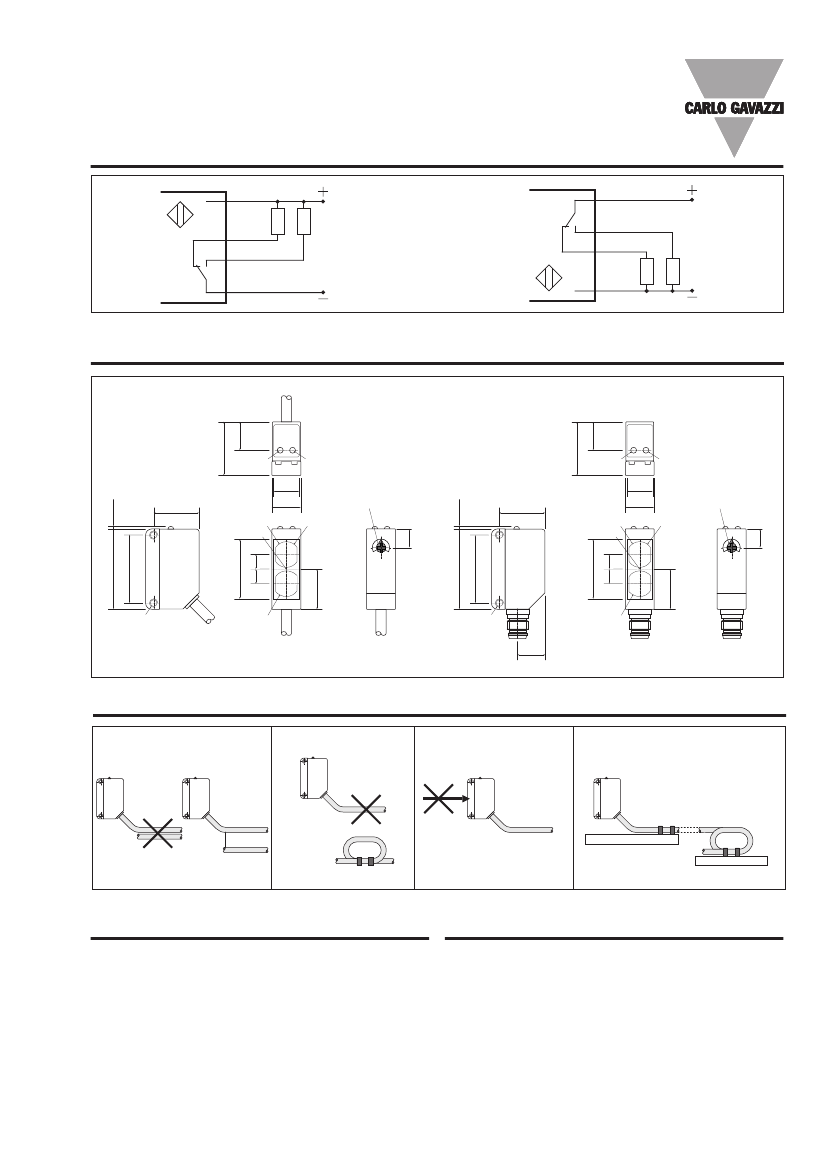

Wiring Diagrams
NPN
1BN
2WH
4BK
3BU
PNP
1BN
4BK
2WH
3BU
Dimensions
Cable version
10.6
Plug version
10.6
20
Output LED
Yellow
Power / Stability LED
Green
10.6
Output LED
Yellow
20
Power / Stability LED
Green
10.6
PD30CNP
06NPM5T
10-30 V
100 mA
BN: V+
UL
BU: V-
BK: OUT
WH: ET
R
PD30CNP
06NPM5T
Potentiometer
Two, 9.5 dia.
Lenses
10-30 V
100 mA
BN: V+
UL
BU: V-
BK: OUT
WH: ET
R
1.1
1.1
17
Receiver
Optical axis
10.8
17
Receiver
Optical axis
10.8
Potentiometer
Two, 9.5 dia.
Lenses
7
15
xxxxxxS
25.4
22
30
5.5 5.5
Two M3
Emitter
15
Two M3
> 100 mm
10.25
Installation Hints
To avoid interference from inductive voltage / Relief of the cable strain
current peaks, separate the proximity switch
cables from any other power cables. E.g.
Engine, contactor or solenoid cables
Protection of the sensing face
Sensor mounted on a mobile carrier
Incorrect
Incorrect
Incorrect
Correct
Correct
> 100 mm
The cable should not be pulled
A proximity switch should not serve
as mechanical stop
Any repetitive flexing of the
cable should be avoided
Accessories
•
Mounting bracket APD30-MB1 or APD30-MB2 to be
purchased separately.
Delivery Contents
•
Photoelectric switch: PD30CNB20 ...
•
Screwdriver
• Packaging:
Plastic bag
5.5 5.5
Emitter
25.4
Incorrect
7
xxxxxxS
30
Correct
22
Specifications are subject to change without notice (13.06.2016)
3
