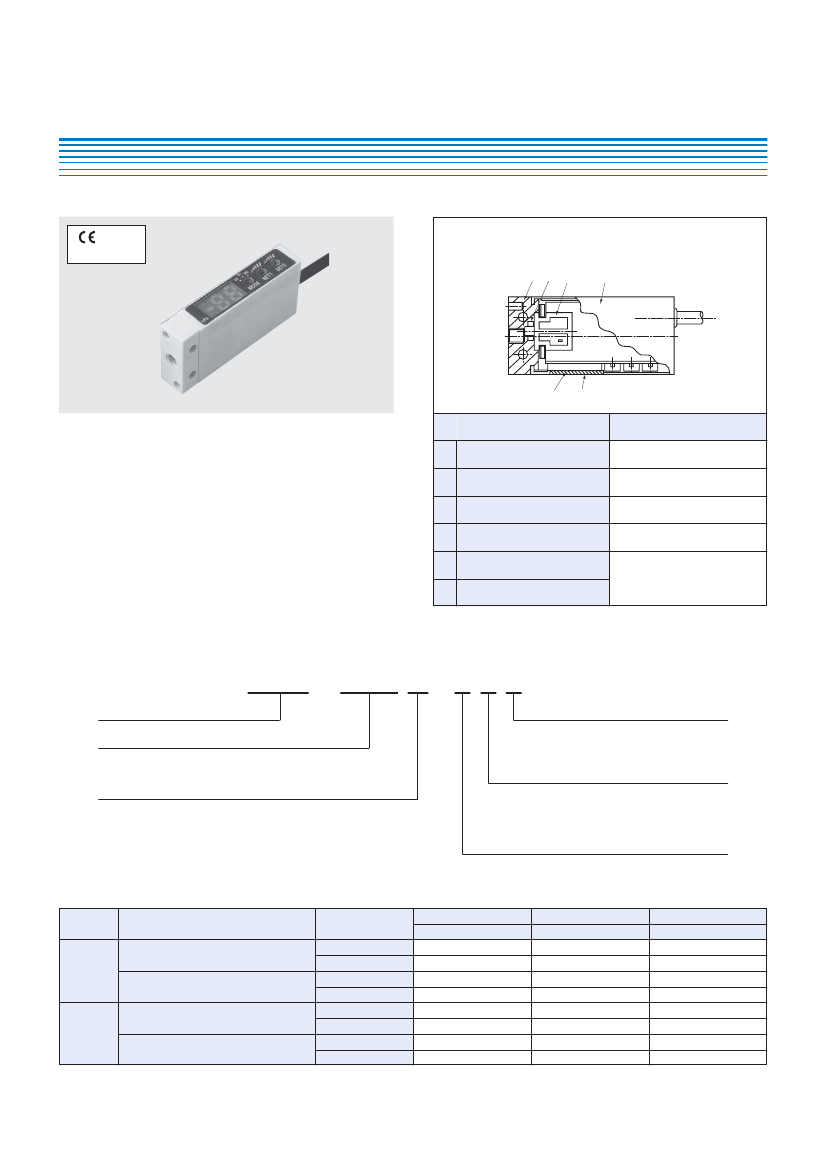

PRESSURE SWITCHES WITH GAUGE
PS6
INTERNAL STRUCTURE (M5 female screw)
13 4
2
marking
Compatible with
EMC directive
5
Part name
6
Material
POM (Polyoxymethylene)
PC (Polycarbonate)
Fluoro-rubber
———
■
FEATURES
Solidstate pressure switch with no mechanical moving parts
2 types of pressure ports are available
Open collector output of either NPN or PNP is available
Analog output type available
1
2
3
4
5
6
Pressure port
Housing
“O” ring
Sensor module board
Protection panel
PET (Polyethyleneterephthalate)
Main panel
■
MODEL NUMBER DESIGNATION
P S 6 - 1 0 2 V - N A R
Series name
Rated pressure range
102：100 kPa
103：1000 kPa
Pressure port
R：R1/8 male screw with M5 female screw
M：M5 female screw
Output
A：1 SW output and adjustable hysteresis + Analog output
W：2 SW outputs
Pressure reference
G：Gauge
V：Gauge (Vacuum)
Switch output interface
N：NPN open collector
P：PNP open collector
■
LIST OF MODEL NUMBERS
Pressure port
Outputs
Adjustable hysteresis switch output
+
Analog output
Switch outputs (2 points)
Adjustable hysteresis switch output
+
Analog output
Switch outputs (2 points)
Switch output
102V
0 ~
−100
kPa
102G
0 ~ 100 kPa
103G
0 ~ 1000 kPa
PS6-103G-PAR
PS6-103G-NWR
PS6-103G-PWR
PS6-103G-NAM
PS6-103G-PAM
PS6-103G-NWM
PS6-103G-PWM
NPN open collector output
PS6-102V-NAR PS6-102G-NAR
PS6-103G-NAR
PNP open collector output
PS6-102V-PAR PS6-102G-PAR
NPN open collector output
PS6-102V-NWR
PS6-102G-NWR
PNP open collector output
PS6-102V-PWR PS6-102G-PWR
NPN open collector output
PS6-102V-NAM PS6-102G-NAM
PNP open collector output
PS6-102V-PAM PS6-102G-PAM
NPN open collector output
PS6-102V-NWM PS6-102G-NWM
PNP open collector output
PS6-102V-PWM PS6-102G-PWM
R 1/8 male
screw
M 5 female
screw
※
Verify the above model numbers when placing orders.
PS6
PRESSURE SWITCHES WITH GAUGE
■
STANDARD SPECIFICATIONS
Unless otherwise specified, the specs are defined at an ambient temperature of 25
±
5 °C and excitation voltage of 12 V DC.
Item
Pressure reference
Rated pressure range
Maximum pressure
Model number
PS6
102V
kPa
kPa
kPa
°C
°C
0 ~
−100
200
500
102G
Gauge
0 ~ 100
200
500
−10
~ 60
0 ~ 50
35 ~ 85
（
No condensation
）
−20
~ 70（Atmospheric pressure, humidity 65 %RH maximum）
Non-corrosive gases
103G
0 ~ 1000
1500
2000
General specifications
Break-down pressure
Operating temp. range
Compensated temp. range
Operating humidity
Storage temp.
Pressure medium
Insulation resistance
Dielectric strength
Pressure port
Net weight
%RH
°C
MΩ min.
100 (500 V DC)
500 V AC, 60 s
（
Leakage current 1 mA maximum
）
R 1/8
（M5
Female screw
）
or
M5
g
V DC
mA max.
−0
~
−99
kPa
Approx.
50
（
Including cable
）
12 ~ 24 V
±
10 %
（
Including ripple percentage
）
35
2-digit LED
0 ~ 99 kPa
±
3 %F.S.
±
2counts
1 count
1 or 2
Open collector output (NPN or PNP)
Adjustable by VR
0 ~ 100 of rated pressure
Red LED ON (W type only : SW1 Red, SW2 Green)
※1
※2
.0 ~ .99 MPa
Power
Display
Switch output
Supply voltage
Consumption current
Display element
Rated display range
Display accuracy
0 ∼ 50℃
（
Reference temp. 25 °C
）
Resolution
No. of outputs
Output interface
Setting method
Adjustable range
Display
Accuracy
0 ∼ 50℃
（
Reference temp. 25 °C
）
Switch
hysteresis
%F.S.
±
3
Approx. 0 ~ 15 % of the set value (W type only 2 % F.S. maximum)
30 V 80 mA maximum
V maximum
ms
V
V
V
mA maximum
0.8 (NPN), 1.2 (PNP)
Approx. 2
1~5
1
±
0.1
4
±
0.1
1（
Load resistance 5 kΩ minmum
）
Switching capacity
Residual voltage
Response
Analog output
Output voltage
Zero voltage
Span voltage
Output current
※1：
Please set adjusting torque at 30 mN·m maximum.
※2：
The actual setting range adjustable by VR has a little overrunning margin beyond the rated display of 0 through 99.
This could cause the setting value of VR may be under “0” or over “99”.
PRESSURE SWITCHES WITH GAUGE
PS6
■
ENVIRONMENTAL CHARACTERISTICS
Test item
Vibration
Shock
Moisture resistance
Pressure cycling
EMC
Test conditions
10 ~ 500 Hz, 1.5 mm maximum/98.1 m/s
2
, 3 directions for 2 hours each
196 m/s
2
, 3 directions for 3 times each
40 °C, 90 ~ 95 %RH, 240 hrs.
0 ~ Rated pressure, 10
6
cycles
Permissible change
Pressure indication, switch operating pressure and
analog output variation :
±
2 %F.S., maximum each after test
EMI : EN55011: 2007, A2 : 2007 Group 1, class B
EMS : EN61326-1 : 2006 Table 2
Pressure indication, switch operating pressure and analog
output variation :
±
5 %F.S., maximum during test
■
CIRCUIT DIAGRAMS
NAM, NAR (NPN/Adjustable hysteresis switch)
1
PAM, PAR (PNP/Adjustable hysteresis switch)
1
ＬＥＤ Indicator
Power
B
Load
ＬＥＤ Indicator
Power
B
Pressure
Sensor
Main circuit
S.Output
A.Output
Common
Pressure
Sensor
Main circuit
A.Output
S.Output
Load
Common
LED
Pressure indication
FG
LED
Pressure indication
FG
NWM, NWR (NPN/2 switch outputs)
PWM, PWR (PNP/2 switch outputs)
1
2
ＬＥＤ Indicator
1
2
ＬＥＤ Indicator
Power
B
Power
B
Load
Load
Pressure
Sensor
Main circuit
S.Output1
S.Output2
Common
FG
Pressure
Sensor
Main circuit
S.Output1
S.Output2
Load
Load
Common
FG
■
SWITCHING OPERATION
●
The switch turns on at the set pressure and turns off at the set pressure minus the hysteresis.
PS6-102V
Hysteresis
ON
OFF
−100
kPa
Set value
Barometic
pressure
PS6-
＊＊＊
G
Hysteresis
ON
OFF
Barometic
pressure
Set value
Rated pressure
※
＊
A
＊
is adjustable hysteresis type.
PS6
PRESSURE SWITCHES WITH GAUGE
■

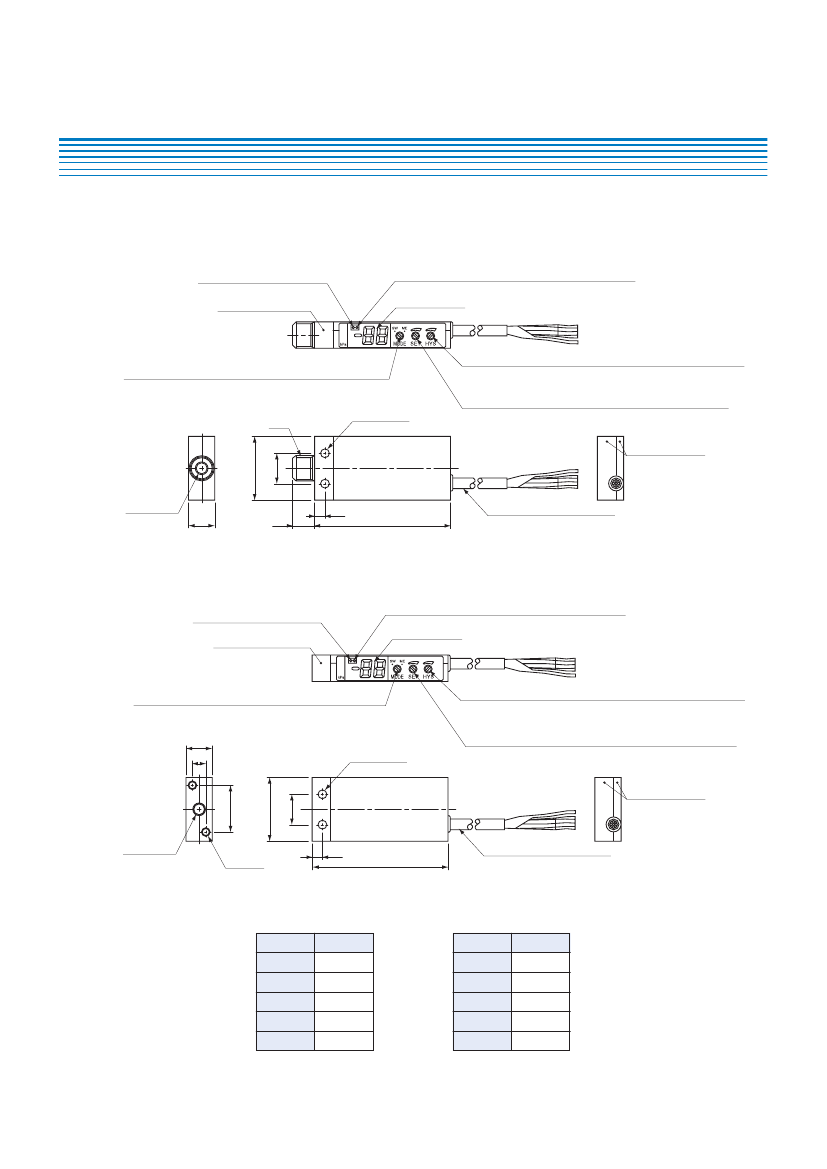

OUTLINE DIMENTIONS
R type
(NAR, PAR, NWR, PWR)
Switch status LED 1 (Red)
Polyacetal
Pressure indication
Unless otherwise specified, tolerance :
±
0.5
(Unit: mm)
Switch status LED 2 (Green)
※Only
for two-switch output model
Display selector switch (ME/SW)
※For
two-output switch (ME/S1/S2)
Recommended adjusting torque 25 mN·m maximum
Hysteresis setting VR
※Used
to set the switch 2 for two-switch output model
Recommended adjusting torque 30 mN·m maximum
Pressure setting VR
※Used
to set the switch 1 for two-output type
Recommended adjusting torque 30 mN·m maximum
R1/8
2 –
φ
3.3
Mounting hole
Polycarbonate
25
12
Pressure port
M5 depth 5
10
8.5
4.5
52.5
4-core shielded cable (
φ
3.8)
L = 1500 ± 50 AWG26 ULNo.2844
M type
(NAM, PAM, NWM, PWM)
Switch status LED 1 (Red)
Polyacetal
Switch status LED 2 (Green)
※Only
for two-switch output model
Pressure indication
Display selector switch (ME/SW)
※For
two-output switch (ME/S1/S2)
Recommended adjusting torque 25 mN·m maximum
Hysteresis setting VR
※Used
to set the switch 2 for two-switch output model
Recommended adjusting torque 30 mN·m maximum
10
5
2 –
φ
3.3
Mounting hole
Pressure setting VR
※Used
to set the switch 1 for two-switch output model
Recommended adjusting torque 30 mN·m maximum
Polycarbonate
19
25
12
Pressure port
M5 Depth
5
2 – M3
Depth 4.5
4.5
52.5
4-core shielded cable
(
φ
3.8)
L = 1500 ± 50 AWG26 ULNo.2844
PS6 (NAM,NAR, PAM, PAR)
Wire color
Brown
Black
White
Blue
Shield
Connection
Power
B
Switch output
Analog output
Common
N.C.
PS6 (NWM, NWR, PWM, PWR)
Wire color
Brown
Black
White
Blue
Shield
Connection
Power
B
Switch output 1
Switch output 2
Common
N.C.
