ROHS COMPLIANT

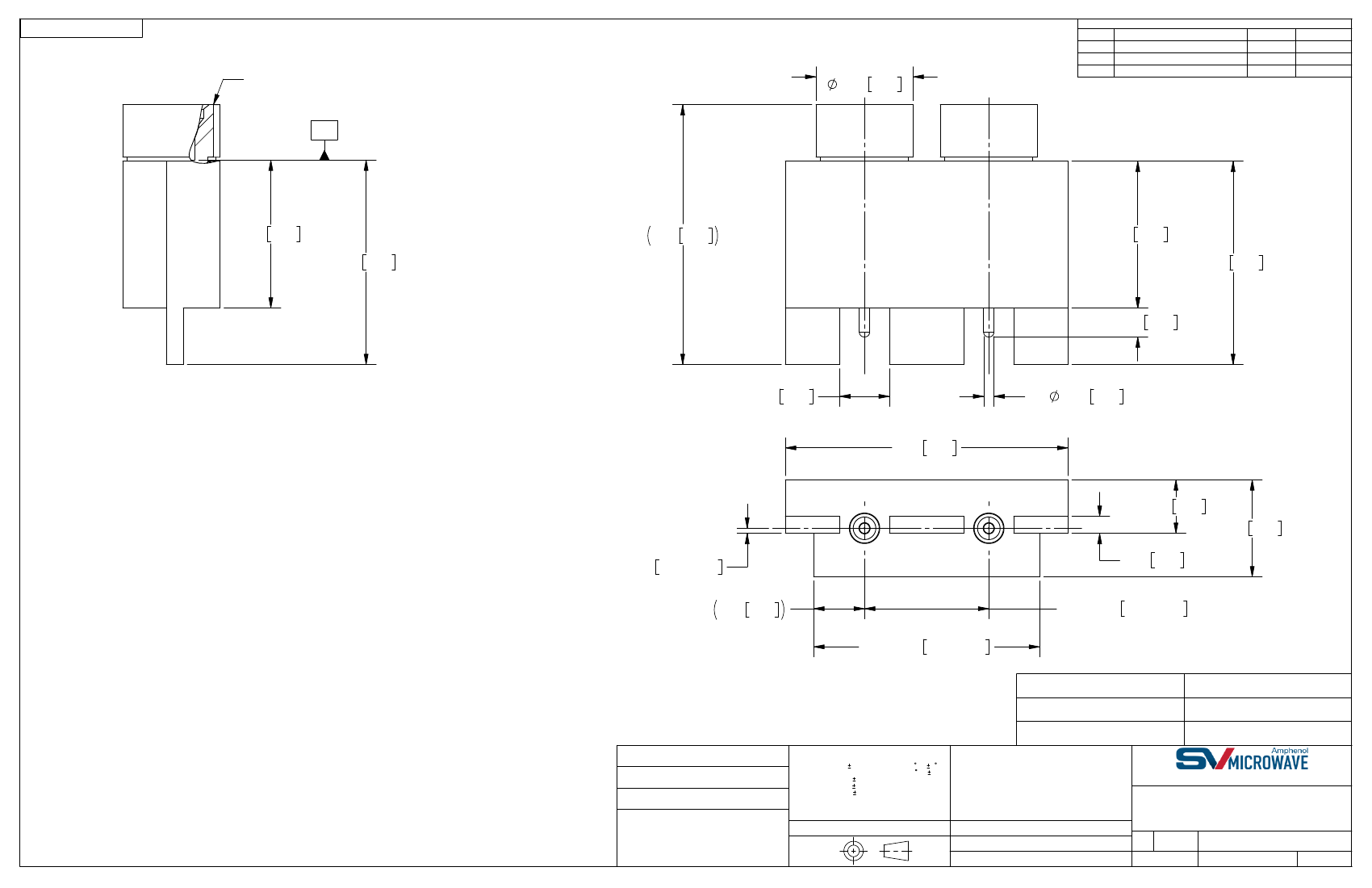

PRODUCT DATA DRAWING
SMPS INTERFACE
2X
.086 2.18
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
01
PRELIMINARY
10/17
DAL
RP
.131 3.33
.181 4.60
.230 5.84
.130 3.30
.180 4.57
2X .026 0.65
2X .044 1.12
2X
.009 0.23
.250 6.35
MATERIAL:
BODY & SHROUDS:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1;
OR ASTM A582 TYPE 303, COND. A
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
NOTES:
1.
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
.048 1.21
.086 2.18
.0045±.0010 0.11±0.03
.045 1.14
.200±.004 5.08±0.10
SV PART NUMBER
FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC
PCB, CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800).
MATERIAL:
FINISH:
.015 0.38
CONTACTS:
.110±.002 2.79±0.05
INSULATORS:
FINISH:
BODY, SHROUDS,
& CONTACTS:
COUPLING STYLE
FULL DETENT
SMOOTH BORE
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
3811-60049
3811-60050
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
50 OHMS
DC TO 65.0 GHz.
SURFACE AREA:
TITLE:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
JDT 10/03/17
DAL 10/03/17
DAL 10/03/17
SMPS MALE 2-PORT
EDGE LAUNCH
95077
SIZE CAGE CODE DWG. NO.
B
3811-60049-60050
SHEET 1 OF 1
SCALE: 14:1
