DE300-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DE300-7

DE300-7: DescriptionAC/DC CONVERTER 12V 300W; CategoryPower/power management; File Size969KB，2 Pages; ManufacturerCurtis Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

DE300-7 Overview

AC/DC CONVERTER 12V 300W

DE300-7 Parametric

Parameter Name	Attribute value
type	closed
Number of outputs	1
Voltage - input	90 ~ 264 VAC
Voltage - Output 1	12V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	25A
Power (W)	300W
application	ITE (Business)
efficiency	91%
Operating temperature	-20°C ~ 65°C
characteristic	PFC, standby output, universal input
Installation type	Base installation
size/dimensions	5.00" long x 3.30" wide x 2.09" high (127.0mm x 83.8mm x 53.0mm)
Minimum load required	-
Approval	-

Preview

Download Datasheet

View All









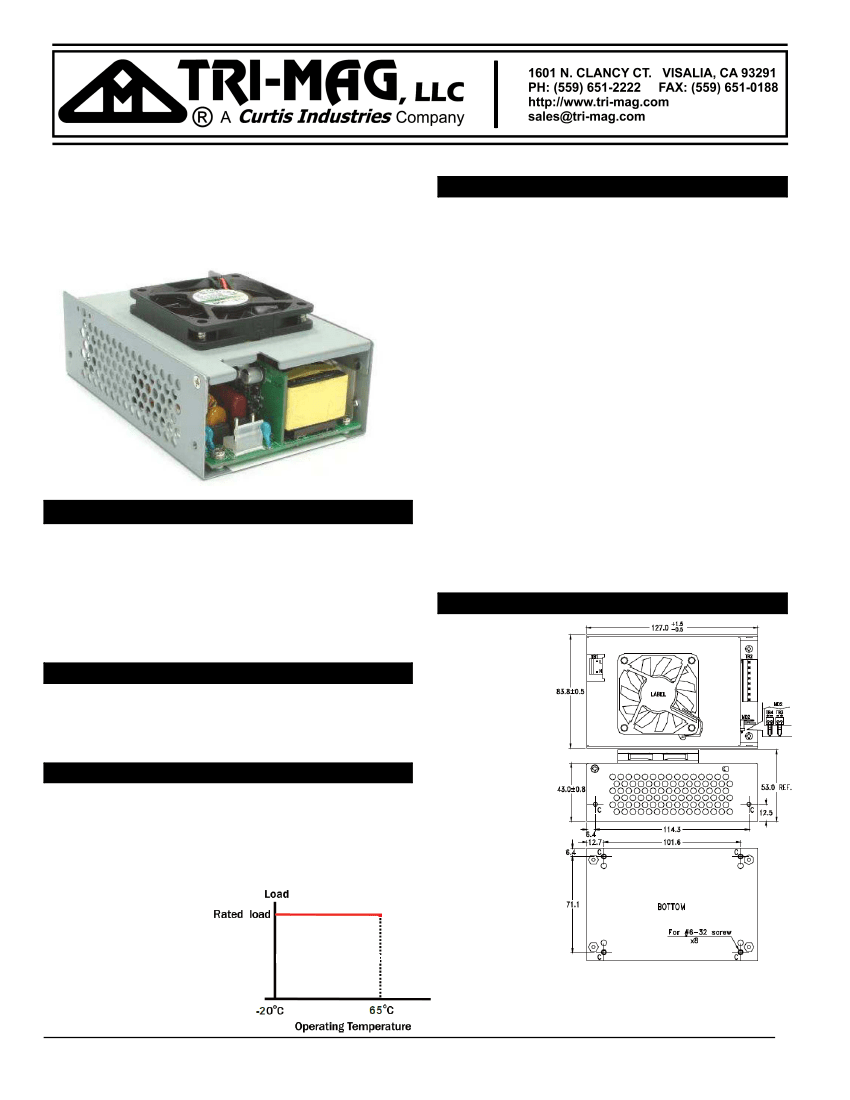

LineVoltage……………………...90VACto264VAC

InputFrequency………………………..47Hzto63Hz

Noloadinputpower……………...……………..<0.5W

InrushCurrent(cold)….……lessthen30Aat115VAC

or60Aat230VAC

OperatingTemperature……………..…...20ºCto65ºC

StorageTemperature…………..………..20ºCto85ºC

Cooling…………………………..FreeAirConvection

300W24CFMforcedair

Efficiency………………………….…...….89%91%

HoldupTime……………………...…20msat115VAC

OvervoltageType………………………….…latchoff

OverloadProtection……...…………..….Autorecovery

Within150%ratedload

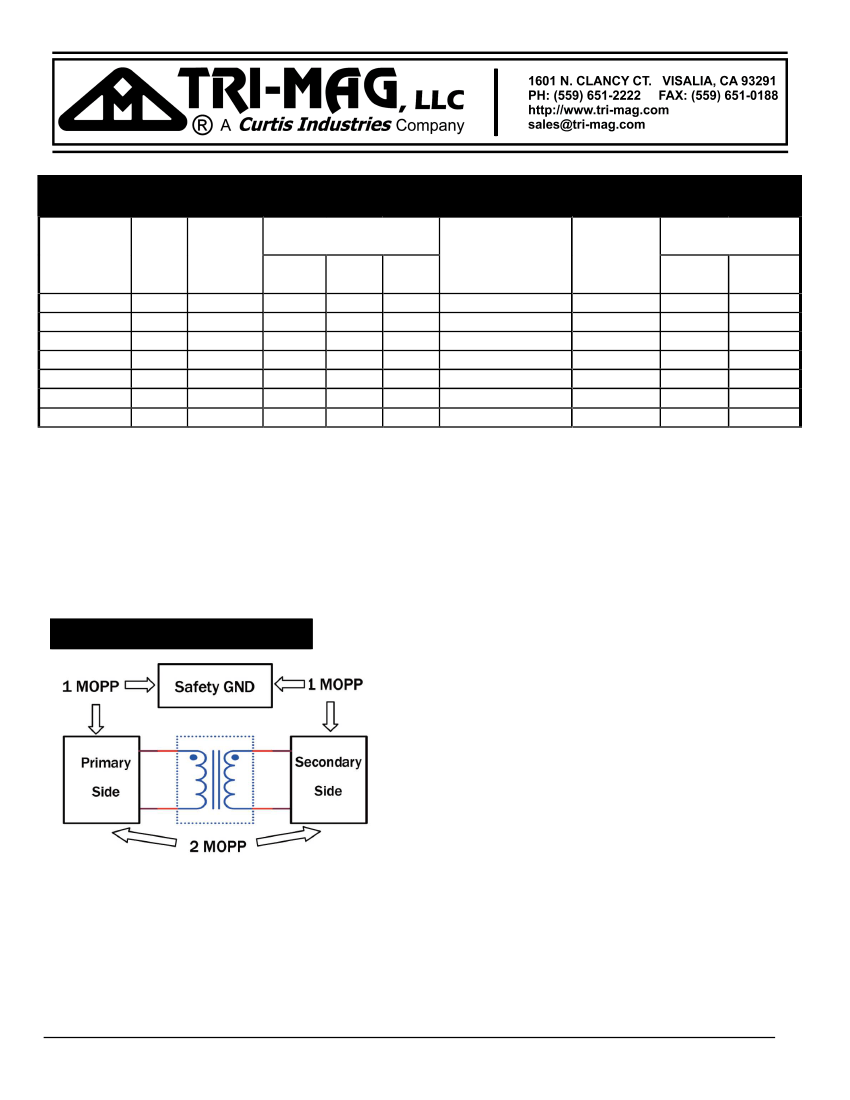

Safety:

Designedinfullcompliancewith………...UL609501

EN609501

ANSI/AAMIES606011

EN606011

EMI………………...……………….…….FCCclassB

EN6100033

EMS………………...……EN6100042,3,4,5,6,11





TheDE300Seriesisa300WattEnclosedpowersupply

thatis3”x5”x2.08”providing9.6Wattspercubicinch.

EachunithasabuiltinActivePowerFactorCorrection

andtheefficiencyofthisseriesisbetween89%to91%

dependingonmodel.TheDE300hasabuiltinforcedair

coolingandeachserieshasMolexinputandoutput.































1.Dimensionin

mmTolerance:

+/1mm

2.Size:3”x5”x

2.08”

3.Connector:

ACInput:Molex

527702Aor

equivalent

DCOutput:

Molex527308A

orequivalent

Fan,RS:Molex

504502Aor

equivalent







Jan. 2014

DE300-7 Related Products

	DE300-7	DE300-J
Description	AC/DC CONVERTER 12V 300W	AC/DC CONVERTER 36V 300W
type	closed	closed
Number of outputs	1	1
Voltage - input	90 ~ 264 VAC	90 ~ 264 VAC
Voltage - Output 1	12V	36V
Current - Output (maximum)	25A	8.3A
Power (W)	300W	300W
application	ITE (Business)	ITE (Business)
efficiency	91%	91%
Operating temperature	-20°C ~ 65°C	-20°C ~ 65°C
characteristic	PFC, standby output, universal input	PFC, standby output, universal input
Installation type	Base installation	Base installation
size/dimensions	5.00" long x 3.30" wide x 2.09" high (127.0mm x 83.8mm x 53.0mm)	5.00" long x 3.30" wide x 2.09" high (127.0mm x 83.8mm x 53.0mm)
