Hybrid cable - NBC-MSY/ 5,0-94H/MSY SCO - 1407493
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Hybrid cable, Ethernet hybrid CAT5 (100 Mbps), 8-position, PUR halogen-free, black RAL 9005, shielded,
Plug straight M12 SPEEDCON / IP67, coding: Y, on Plug straight M12 SPEEDCON / IP67, coding: Y, cable
length: 5 m, Power with Ethernet (PWE)
Key Commercial Data
Packing unit
GTIN
GTIN
4046356777926
1 pc
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP65
IP67
-25 °C ... 90 °C (M12 connector)
General data
Note
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Standards/regulations
Contact material
Contact carrier material
Further products with variable cable type and variable cable length can
be found in the accessories section
6 A (Power)
0.5 A (Data)
48 V AC (Power and data)
50 V DC (Power and data)
8
Ethernet hybrid CAT5 (IEC 11801), 100 Mbps
M12 connector IEC 61076-2-113
CuZn
PP / PA 6 GF
10/02/2018 Page 1 / 6
https://www.phoenixcontact.com/pi/products/1407493
Hybrid cable - NBC-MSY/ 5,0-94H/MSY SCO - 1407493
Technical data
General data
Contact surface material
Ni/Au
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Coding
Color
Material (component)
Plug straight M12 SPEEDCON / IP67
8 (4+4)
Y (Hybrid)
black
CuZn (Contact)
Ni/Au (Contact surface)
PP (Contact carrier, data)
PA (Contact carrier, power)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Shielded
Insulation resistance
Insertion/withdrawal cycles
Torque
Ambient temperature (operation)
yes
≥ 100 MΩ
≥ 100
0.4 Nm
-25 °C ... 90 °C
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Coding
Color
Material (component)
Plug straight M12 SPEEDCON / IP67
8 (4+4)
Y (Hybrid)
black
black
CuZn (Contact)
Zinc die-cast, nickel-plated (Screw connection)
Ni/Au (Contact surface)
PP (Contact carrier, data)
PA (Contact carrier, power)
TPU, hardly inflammable, self-extinguishing (Grip)
Shielded
Insulation resistance
Insertion/withdrawal cycles
Torque
Ambient temperature (operation)
yes
≥ 100 MΩ
≥ 100
0.4 Nm
-25 °C ... 90 °C
Standards and Regulations
Standard designation
Standards/regulations
M12 connector
IEC 61076-2-113
Cable
Cable type
Ethernet hybrid
10/02/2018 Page 2 / 6
https://www.phoenixcontact.com/pi/products/1407493
Hybrid cable - NBC-MSY/ 5,0-94H/MSY SCO - 1407493
Technical data
Cable
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Tensile strength GRP
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Loop resistance
Working capacitance
Wave impedance
Near end crosstalk attenuation (NEXT)
94H
20963 (80°C/30 V)
Ethernet hybrid CAT5 (IEC 11801), 100 Mbps
1x4xAWG26+1x4xAWG20
4x 0.15 mm² (Data)
4x 0.6 mm² (Power)
26
20
19x 0.10 mm
19x 0.20 mm
1.05 mm (Data)
1.4 mm (Power)
White/orange, orange, white/green, green, white, blue, brown, black
1 star quad and 4 wires with 2 fillers
Tinned copper braided shield
85 %
black RAL 9005
7.6 mm ±0.2 mm
5xD
10 x D
2000000
10 x D
4.5 m
3 m/s
3 m/s²
70 N (in accordance with DIN EN 50565-1 for flexible installation)
240 N (in accordance with DIN EN 50565-1 for fixed installation)
87 kg/km
PUR
PP (Data)
PP (Power)
Bare Cu litz wires
≥ 5 GΩ*km
≤ 280.00 Ω/km (Data)
≤ 34.60 Ω/km (Power)
nom. 50 nF (per kilometer)
100 Ω ±15 Ω (4 MHz ... 100 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
10/02/2018 Page 3 / 6
https://www.phoenixcontact.com/pi/products/1407493
Hybrid cable - NBC-MSY/ 5,0-94H/MSY SCO - 1407493
Technical data
Cable
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Attenuation
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.5 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Shield attenuation
Differential impedance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Special properties
Flame resistance
Halogen-free
Resistance to oil
Other resistance
Ambient temperature (operation)
≥ 80 dB (30 MHz ... 125 MHz)
100 Ω ±5 % (at 100 MHz)
≤ 50 V (Peak value, not for high-power applications)
1500 V (50 Hz, 1 min.)
1500 V (50 Hz, 1 min.)
Free of substances which would hinder coating with paint or varnish
Silicone-free
in acc. with UL 1581, section 1061
according to IEC 60754
in accordance with DIN VDE 0472 part 815
according to IEC 60811-2-1
according to VDE 0282 Part 10
Low adhesion
-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 70 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

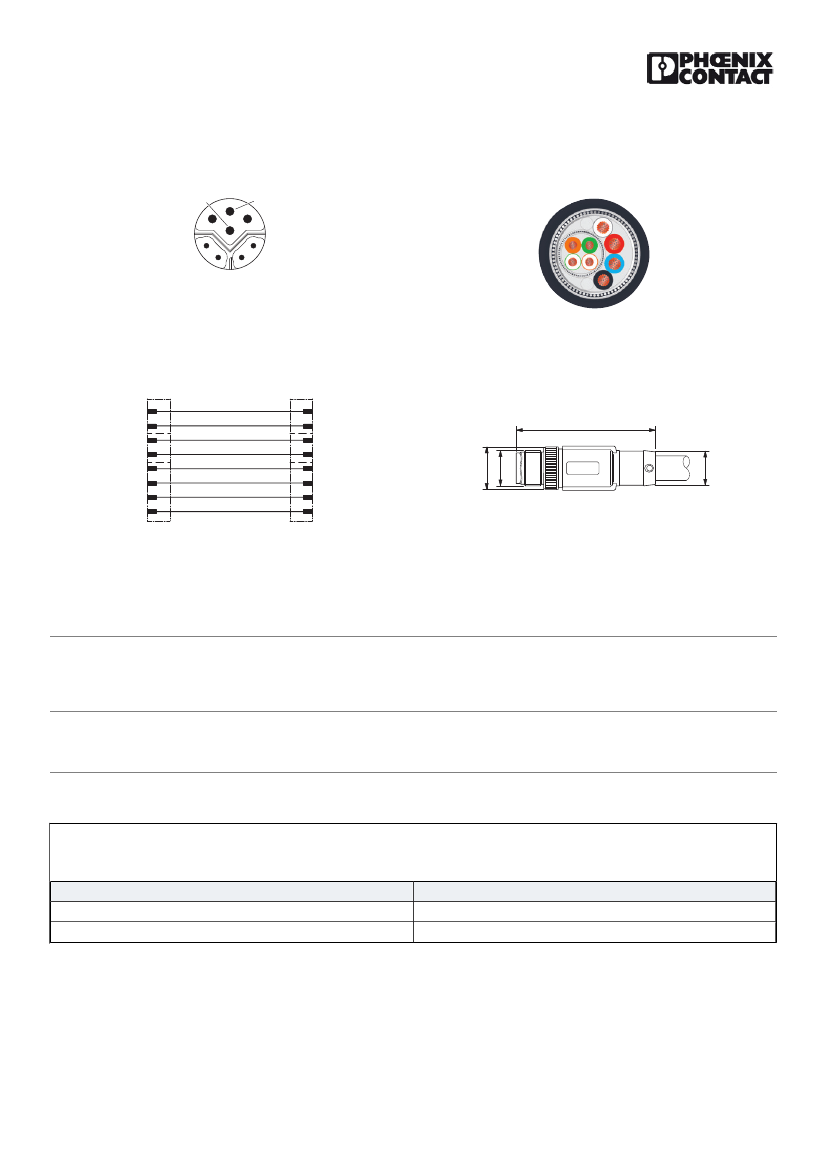

Drawings
10/02/2018 Page 4 / 6
https://www.phoenixcontact.com/pi/products/1407493
Hybrid cable - NBC-MSY/ 5,0-94H/MSY SCO - 1407493
Schematic diagram
8
7
6
5
Cable cross section
1
2
3
4
M12 hybrid plug pin assignment, 8-pos., Y-coded, pin side view
Ethernet hybrid [94H]
Circuit diagram
M12
1
2
3
4
5
6
7
8
Dimensional drawing
M12
1
2
3
47,2
Ø14,8
5
6
7
8
Contact assignment of the M12 plugs
Plug, M12 x 1, straight, shielded
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
56.5 V
0.175 A
FILE E 335024
10/02/2018 Page 5 / 6
Ø11,6
4
M12
